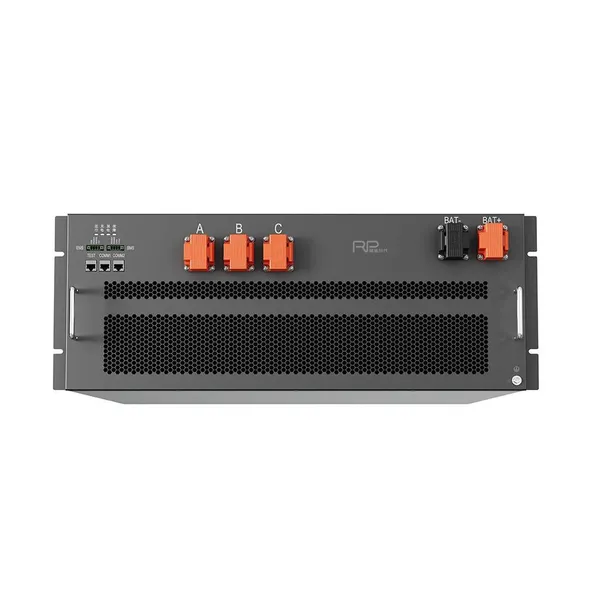

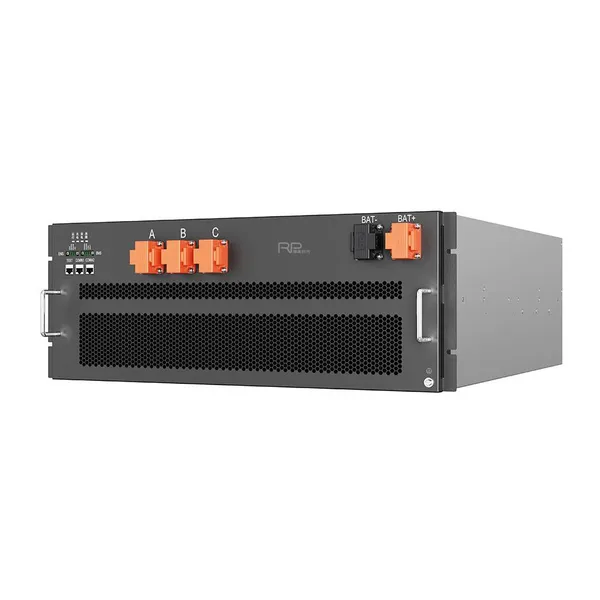

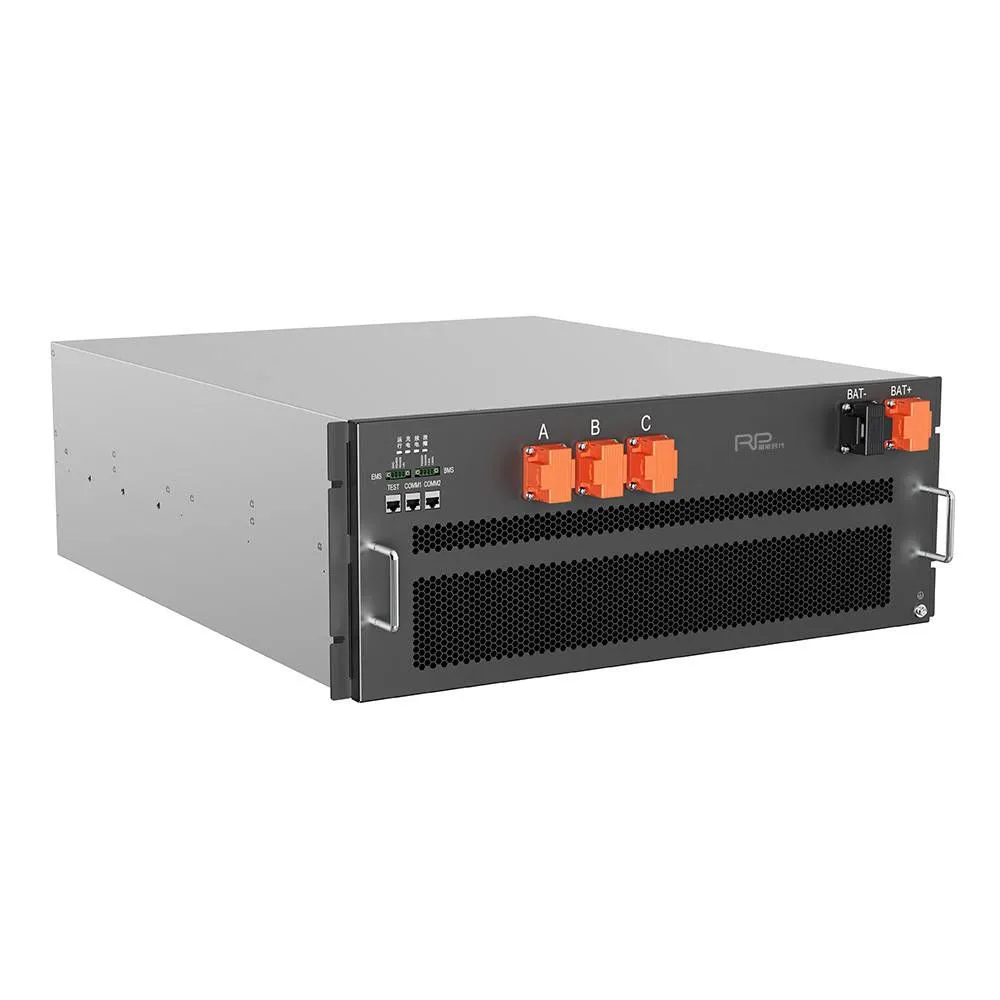

Energy Storage Converter 220kW |
|
Product Overview
This PCS supports bidirectional rectification and inversion, ensuring efficient and stable electrical energy interaction between the DC battery and the AC power grid/load. It outputs high-quality AC power and supports grid-connected/off-grid operation, thereby achieving efficient utilization and reliable management of energy.
Product Advantages
|
Flexible Adaptation Wide DC voltage range of 680~1500V, suitablefor air-cooled/liquid-cooled battery systems and compatible with various Ah battery systems; |
|
Fully Compatible Compatible and perfectly matched with new sodium-ion batteries, with thermal stability, environmental tolerance, and also having circular economy and environmental protection benefits; |
|
|
Powerful Application Supports reactive power compensation, harmonic governance, and three-phase unbalance compensation functions, supports seamless switching between grid-connected, off-grid, and grid-connected/off-grid modes, and has the capabilities of high and low voltage ride-through, black start, and unbalanced load carrying; |
|
Fine Management One cluster of batteries is managed individually, with low battery circulation and automatic current sharing for multiple parallel units; |
Product Features
|
Power Grid |
AIDC Data Center |
Industrial Park Intelligent Microgrid |
||
|
Photovoltaic Energy Storage Super Charging Station |
Commercial Building Intelligent Microgrid |
Mine Power Supply Station |
||
|
Mobile Energy Storage Battery Cabinet |
Emergency Rescue Power Supply |
Mobile Emergency Charging Station |
Product Parameters
| Specification | 125kW/400Vac |
150kW/480Vac | 220kW/690Vac | |
Grid sideParameters |
Rated power |
125kW |
150kW | 220kW |
| Rated output current | 180A | 180A | 184A | |
| Grid voltage range | 400Vac / -15%~+10% | 480Vac / -15%~+10% | 690Vac / -15%~+10% | |
| Frequency range | 46.5~51.5Hz / 56.5~61.5Hz | |||
| Charging and discharging switching time | ≤100ms | |||
| Power factor | -1~+1 | |||
| Efficiency | ≥97. 6% | |||
| Wiring method | 3P3W+PE | |||
| THDi | ||||
DC sideParameters |
Sustained current |
184A | 200A | 206A |
| DC operating voltage range | 680~1500V | 750~1500V | 1070~1500V | |
|
ComprehensiveParameters |
Short-term overload current (1 min) |
110%～120% In | ||
| Long-term overload current (10 min) | 100% ～110% In | |||
| Communication protocol | ModBus | |||
| Communication interface | RS485/CAN | |||
| Storage temperature | -40~70℃ | |||
| Operating temperature | -20~55℃ | |||
| Altitude | >2000m derating | |||
| Relative humidity | 5%~95% (No condensation) | |||
| Protection level | IP20 | |||
| Cooling method | Intelligent high-speed air cooling | |||
| External dimensions (Length * Height * Width) | 740*270*850mm |
|||
| Weight | 100kg |
100kg | 100kg | |
