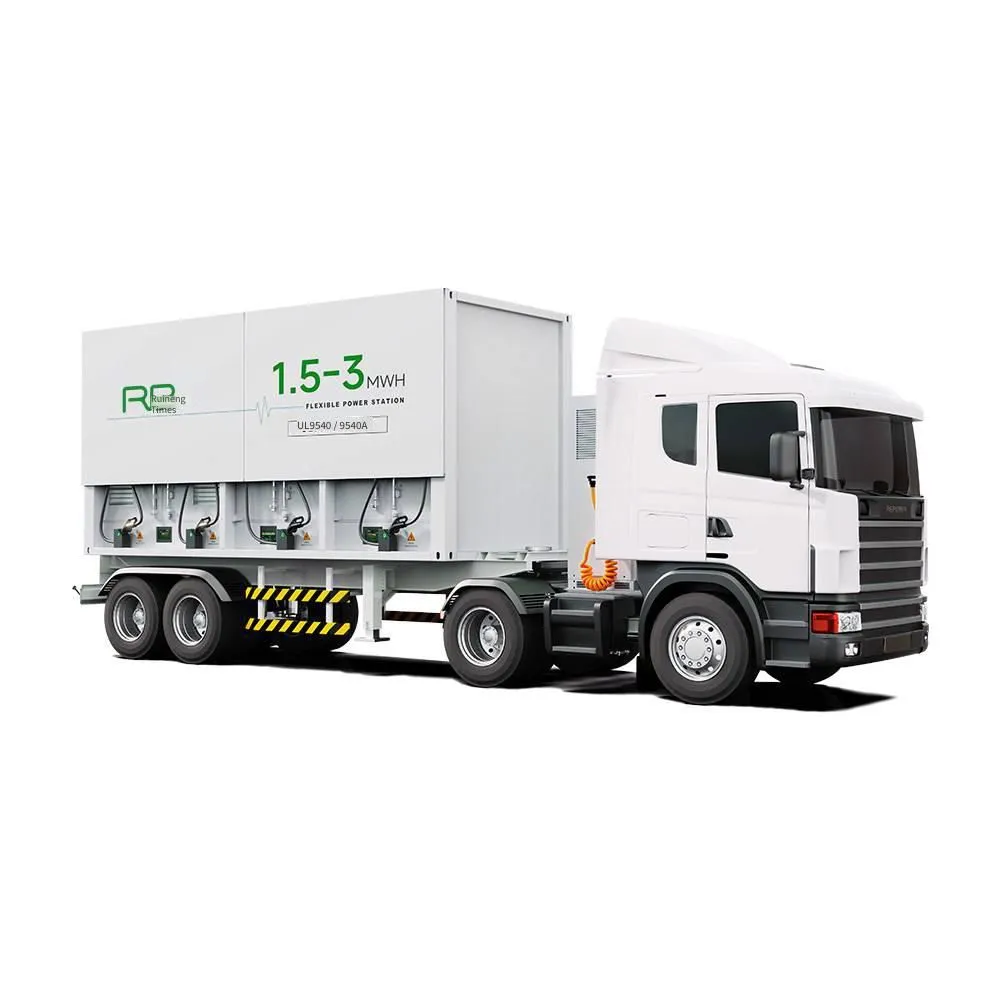

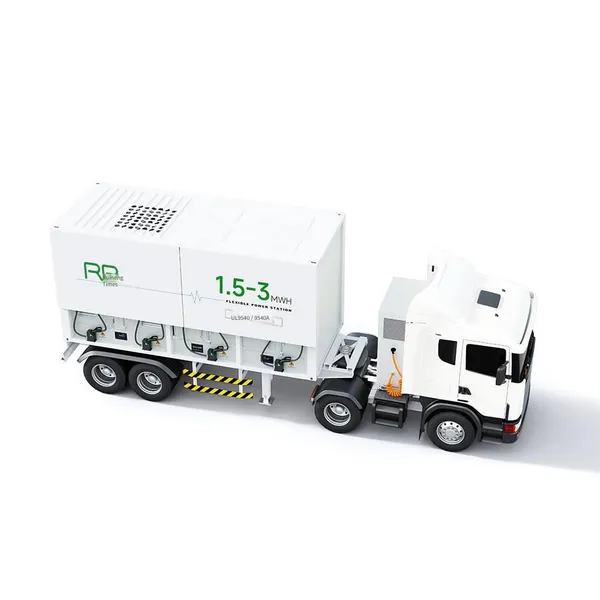

Mobile energy storage vehicle 1488~2976 kWh |
|
Product overview
An integrated, large-capacity mobile energy storage and charging system designed to provide customers with a high-power charging solution that does not require fixed infrastructure and can be quickly deployed.
Product advantages
-
Fully equipped with a capacity of 2976kWh, achieving ultra-high energy density in a compact space and meeting the needs of both mobility and large-capacity energy storage;
The battery packs are connected one-to-one with the bidirectional AC/DC. A single module failure does not affect the overall operation;
The single gun can output a full power of 120kW continuously for 6 hours, supporting 4 vehicles to use simultaneously, meeting the needs of various scenarios such as temporary activities, emergency power supply, and high-load power replenishment;
Equipped with a dangerous goods tank container skeleton transport semi-trailer, three-axle skeleton, air suspension, ABS system and other equipment to handle a variety of complex road conditions;
This product is a mobile energy storage and charging vehicle, which does not require the configuration of transformers, switch cabinets, etc., and truly realizes plug-and-play;
-
The three-in-one technology is adopted to integrate the DC side, AC side, and charging gun into a 20-foot container, which is convenient to use;
Product Features
|
Quick commissioning in 6 hours Multi-purpose in one station |
|
PACK safety design Explosion-proof and anti-expansion |
|
Unrestricted energy replenishment Solve the consumption problem of wind and solar power plants |
|
Multi-dimensional fire protection Safe and reliable |
|
Vehicles accept scheduling instructions Improve utilization rate |
|
Real-time data management Monitor product operation |
Product parameters
| Item | RPC3-S120KA241K-rp1 | RPC3-S120KA107K-rp1 |
| System parameters | ||
| System capacity (kWh) | 241 | 107 |
| AC rated power (kW) | 125 | 30 |
| AC rated voltage (V) | 400 (-15%~10%) | |
| Rated current (A) | 180 | 45 |
| Power factor | 0.99 (-1~+1) | |
| Wiring method | 3P+N+PE | |
| Communication interface | Ethernet/RS485/CAN | |
| Operating environment temperature (℃) | -20~+55 (Derating when >45) | |
| Permissible relative humidity (% Rh) | 5%~95% (No condensation) | |
| Temperature control scheme | Battery liquid cooling + Intelligent air cooling | Intelligent air cooling |
| Fire protection scheme | Aerosol + Perfluorohexanone | Aerosol |
| Electrical protection | Overvoltage/Undervoltage protection + Overload/Short circuit protection + Surge protection + Anti-backflow protection | |
| Altitude (m) | 4000 (Derating when >2000) | |
| Overall dimensions (Width * Height * Depth) (mm) | 1450*2200*1640 | |
| Fully equipped weight (t) | 3.5 | 1.5 |
| DC Side Parameters | ||
| Charge and Discharge Rate | 0.5C Charge / 0.5C Discharge | 1C Charge / 1C Discharge |
| Cycle Life (times) | 7000 (@25℃,70% EOL, 90% DOD) | 6000 (@25℃,70% EOL, 90% DOD) |
| Cell Parameters | LFP-3.2V-314Ah | LFP-3.2V-28Ah |
| PACK Capacity (kWh) | 48.23 | 8.96 |
| DC Rated Voltage (V) | 768 | |
| DC Current (A) | 194 | 191 |
| Protection Level | IP65 | IP20 |
