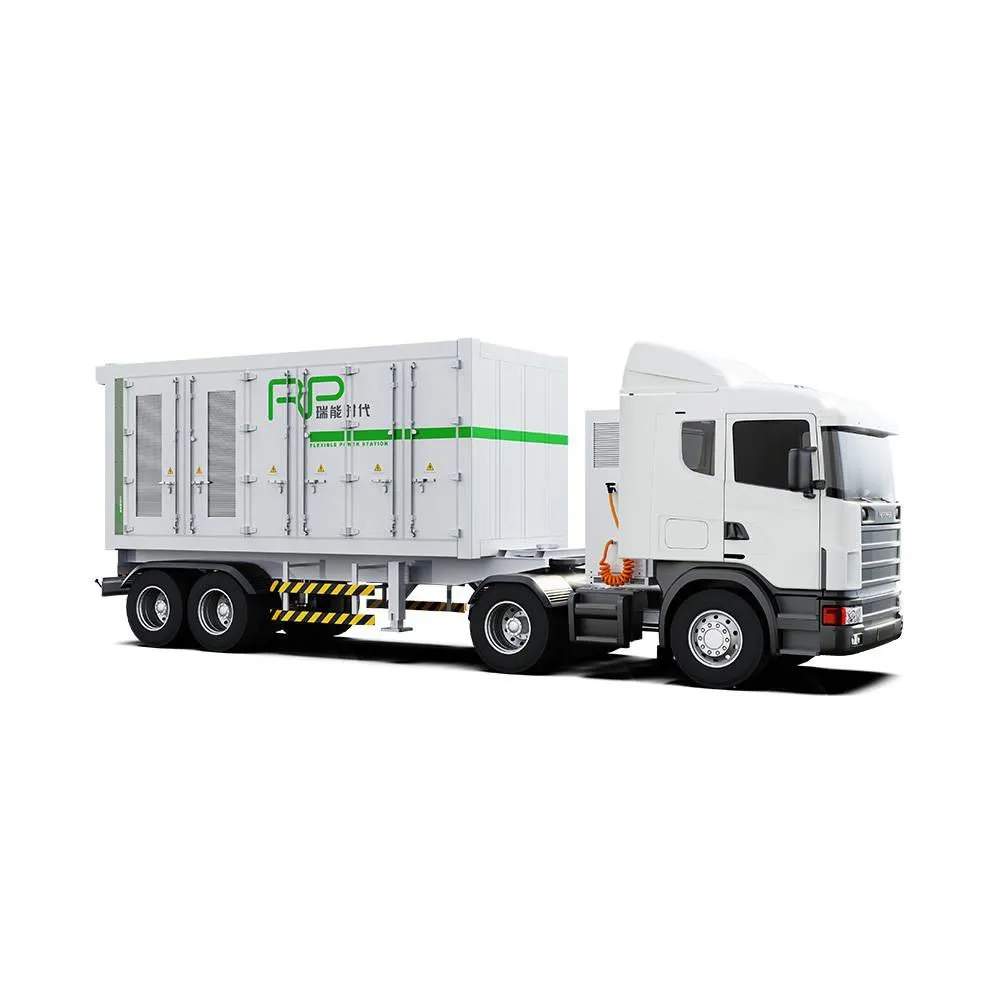

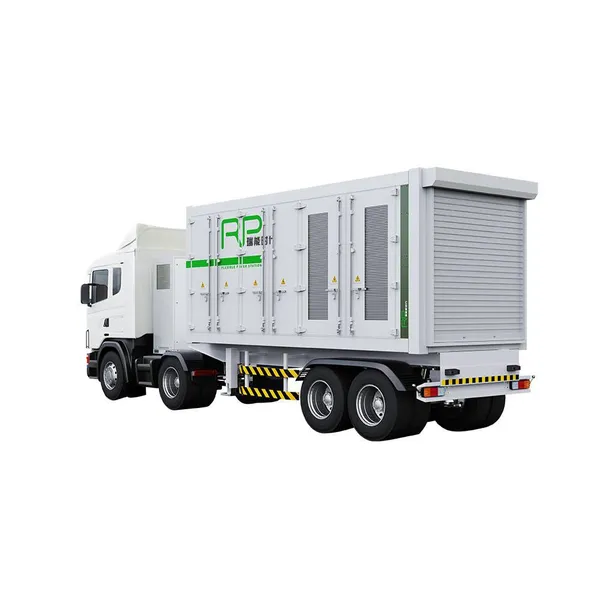

Solid-state battery energy storage vehicle 1567kWh/3343kWh |
|
Product overview
A mobile energy storage and charging system that integrates high-safety semi-solid-state batteries and flexible power distribution technology. It breaks through the limitations of the power grid and provides on-demand, flexible and efficient emergency power and charging solutions for various industries.
Product advantages
-
Adopting semi-solid-state cells: It features high energy density, strict safety standards, a perfect thermal management system, covering extreme environmental conditions, long service life and low maintenance cost;
Supporting cascade expansion: Plug-and-play, it can support the parallel expansion of multiple battery vehicles and is flexibly dispatched;
High safety: Independent management of battery clusters with low thermal risk;
Multi-scenario application: Oilfield construction, emergency rescue, event power protection, power grid maintenance, disaster relief, power distribution area management, island scenic spots, diesel generator replacement, etc.;
-
Vehicle body shock absorption design: Equipped with a dangerous goods tank container skeleton transport semi-trailer, including three-axle skeleton, air suspension, ABS system and other equipment.
Product features
|
Semi-solid battery pack Improve the overall performance of the machine |
|
PACK safety design Explosion-proof and anti-expansion |
|
Unrestricted energy replenishment Solve the consumption problem of wind and solar power plants |
|
Multi-dimensional fire protection Safe and reliable |
|
The vehicle accepts scheduling instructions Improve utilization |
|
Real-time data management Monitor product operation |
Product parameters
| Project | RPC3-S750KA1567K-rp1 | RPC3-B3M3-rp1 |
| System parameters | ||
| Full configuration capacity (kWh) | 1567 | 3343 |
| Communication interface | RS-485/CAN/LAN/TCP IP | |
| Temperature control solution | Liquid cooling | |
| Fire protection solution | Aerosol / FK-5-1-12 + Water fire protection | |
| Altitude (m) | 4000 (>2000 derating) | |
| Ambient temperature range (℃) | -20～+55 | |
| Protection level | IP54 | |
| Anti-corrosion level | C4 | |
| Container dimensions (W*D*H) (mm) | 6058*2438*2591 | 6058*2438*2896 |
| Full configuration weight (T) | ≈22 | ≈37 |
| DC side parameters | ||
| Battery type | LFP | |
| Rated capacity of battery cell (Ah) | 314Ah | |
| Rated voltage (V) | 832 | 1331.2 |
| Voltage range (V) | 680～949 | 1040～1497.6 |
| Rated output current (A) | 157 | |
| Charge-discharge rate | 0.5C | |
| Cycle life (times) | 7000, 25℃, 90%DOD, ≥70%EOL | |
| AC side parameters | ||
| Rated power (kW) | 750 | / |
| Rated grid frequency | 50/60Hz | / |
| AC current (A) | 1299 | / |
| Rated AC current (A) | 1082 | / |
| Wiring method | 3P+N+PE | / |
| Adjustable range of power factor | -1～+1 | / |
| Unbalanced load capacity | 100% | / |
| THDu | ＜3% | / |
| Charging parameters | ||
| Rated power (kW) | 120 | / |
| Output voltage range (Vdc) | 200～950 | / |
| Constant power range (Vdc) | 300～950 | / |
| Cable length (m) | 5 | / |
| Startup method | Scan code / VIN / Manual, etc. | / |
