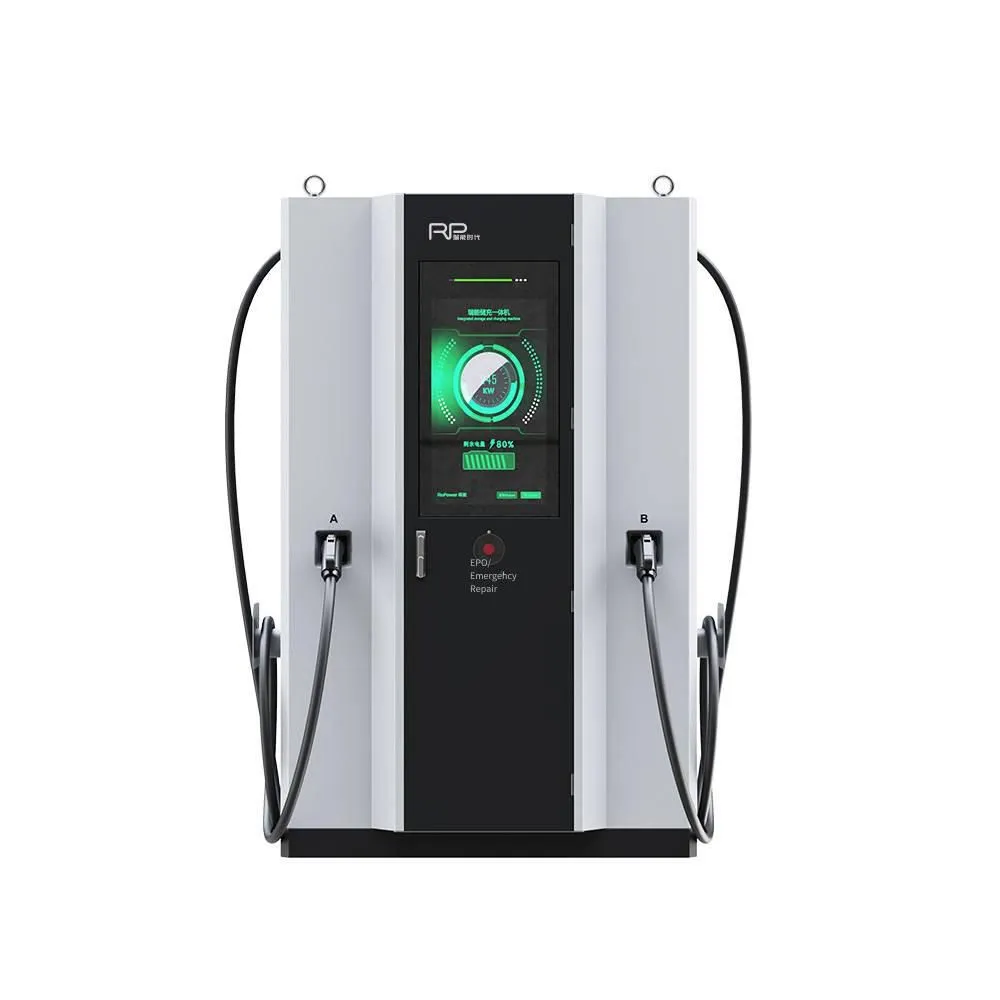

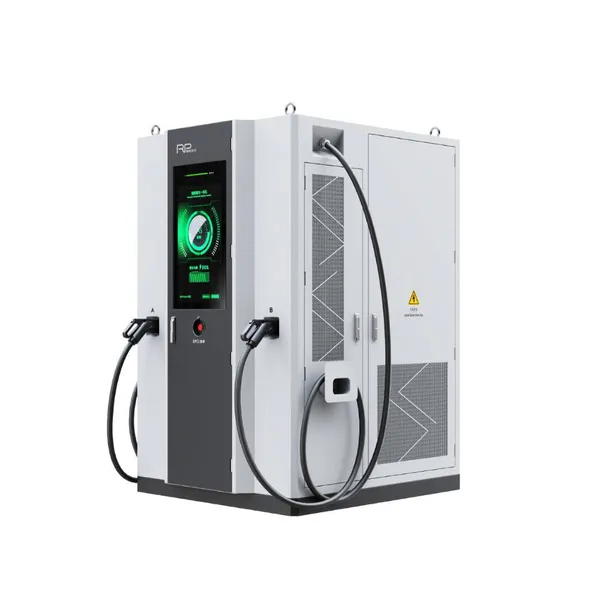

Integrated Photovoltaic-Energy Storage-Charging Cabinet 107~241 kWh |
|
Product Overview
The new generation of integrated photovoltaic-energy storage-charging system deeply integrates photovoltaic, energy storage, and charging systems. Through intelligent dynamic allocation and efficient energy management, it realizes the efficient use of clean energy, comprehensively upgrades the charging experience, and provides a safe, reliable, and economical green charging solution for diverse scenarios.
Product Advantages
Seamlessly connect to the photovoltaic system, with the IRR increased by 300% compared to a single energy storage system, significantly enhancing the economic efficiency and profitability of energy utilization;
Compatible with energy storage PACK and vehicle-mounted PACK, supporting independent control of single packs and intelligent health management to avoid the circulation problem;
High-voltage DC bus architecture. Through DC/DC optimized conversion between the photovoltaic, energy storage, and charging systems, and coordinated with the unified control of the EMS, the system conversion efficiency is increased by 1%~2% compared to the AC architecture;
Reduce the transformer demand, achieve safe capacity expansion under limited capacity conditions, and at the same time reduce the demand electricity bill and optimize the operating cost.
Product Features
|
Flexible deployment
Integrated design, seamless parallel connection of multiple units, pre-installed and pre-tested; IP54 protection level, suitable for various outdoor scenarios; |
|
Safe and reliable
Multiple fire safety designs, accurate early warning of thermal runaway, timely fire fighting, and intelligent cell health management; |
|
|
Intelligent operation and maintenance
Cloud-edge collaboration technology to achieve remote intelligent monitoring and local monitoring; Improve the management efficiency of the power station throughout its life cycle; |
|
High-efficiency thermal management Adopt a high-efficiency liquid cooling control system to keep the temperature difference of battery cells within 2℃; |
|
Complete certifications Comply with international certifications such as GB/T36276, GB/T34131, MSDS, shipping appraisal report, and hazard classification. |
Product parameters
| Item | RPC3-S120KA241K-rp1 | RPC3-S120KA107K-rp1 |
| System parameters | ||
| System capacity (kWh) | 241 | 107 |
| Rated AC power (kW) | 125 | 30 |
| Rated AC voltage (V) | 400 (-15%~10%) | |
| Rated Current (A) | 180 | 45 |
| Power Factor | 0.99 (-1~+1) | |
| Wiring Method | 3P+N+PE | |
| Communication Interface | Ethernet/RS485/CAN | |
| Operating Environment Temperature (℃) | -20~+55(>45 derating) | |
| Allowable Relative Humidity (% Rh) | 5%~95% (No condensation) | |
| Temperature Control Scheme | Battery liquid cooling + Intelligent air cooling | Intelligent air cooling |
| Fire Extinguishing Scheme | Aerosol + Perfluorohexanone | Aerosol |
| Electrical Protection | Overvoltage/Undervoltage protection + Overload/Short circuit protection + Surge protection + Anti-backflow protection | |
| Altitude (m) | 4000 (>2000 derating) | |
| Dimensions (W*H*D) (mm) | 1450*2200*1640 | |
| Full Configuration Weight (t) | 3.5 | 1.5 |
| DC Side Parameters | ||
| Charge and Discharge Rate | 0.5C charging / 0.5C discharging | 1C Charging / 1C Discharging |
| Cycle Life (Number of Cycles) | 7000 (@25℃,70% EOL, 90% DOD) | 6000 (@25℃,70% EOL, 90% DOD) |
| Cell Parameters | LFP-3.2V-314Ah | LFP-3.2V-28Ah |
| PACK Capacity (kWh) | 48.23 | 8.96 |
| Rated DC Voltage (V) | 768 | |
| DC Current (A) | 194 | 191 |
| Protection Level | IP65 | IP20 |
