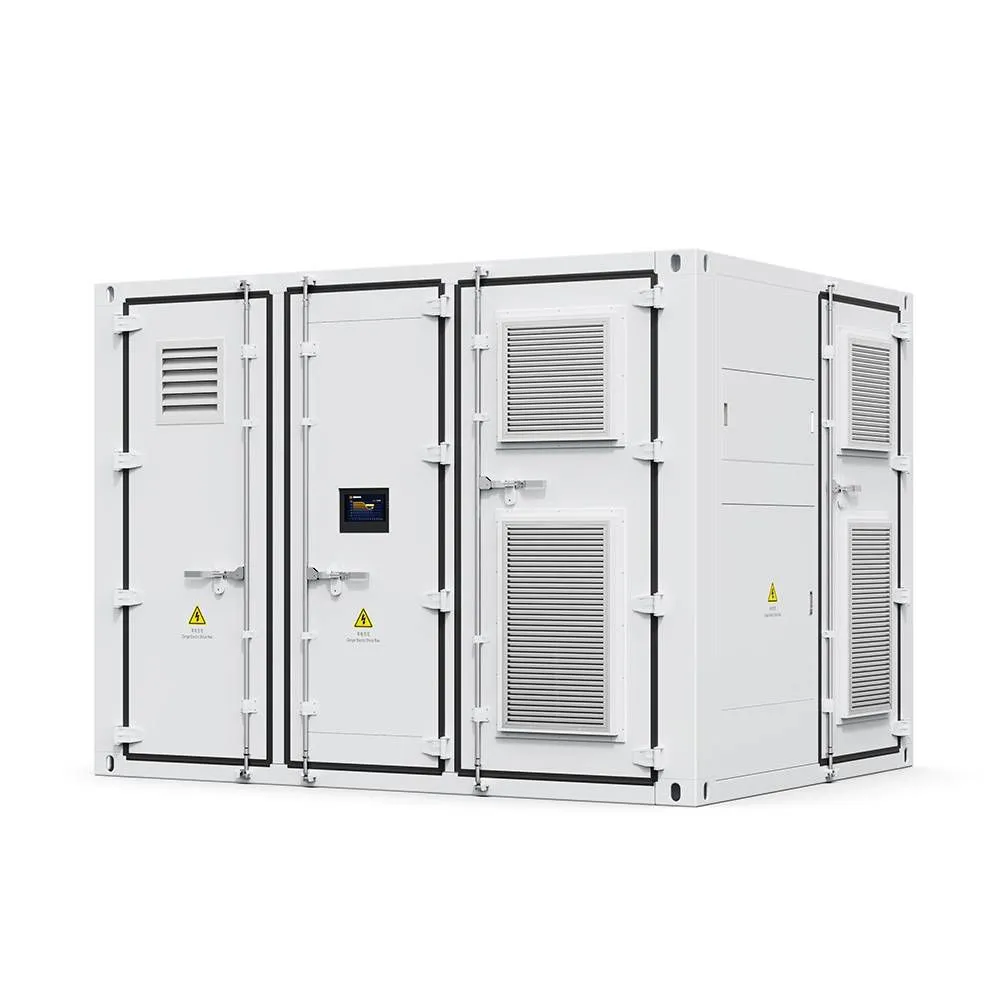

Energy storage container 500kW/1045kWh |
|
Product overview
This series of distributed liquid-cooled energy storage cabinets adopts an innovative modular architecture and efficient liquid-cooling technology, integrating flexible deployment, full-domain protection, multi-scenario application, and intelligent management. It provides high-safety, long-life, and low-maintenance energy storage solutions for industrial and commercial enterprises and new energy power stations.
Product advantages
|
Industrial park |
Wind-solar-energy storage power station |
Super charging station |
Commercial building |
Product Features
|
Multiple operation strategies Peak shaving and valley filling, dynamic capacity expansion, demand control, off-grid mode; |
|
Full liquid-cooled temperature control Intelligent liquid-cooled system, truly achieving full liquid-cooled control; |
|
|
Save floor space The cabinet supports a "hand-in-hand" layout, improving land utilization; |
|
Safety Equipped with aerosol and water fire protection systems, and the top explosion venting window is installed to ensure the safety of personnel and property; |
Product Parameters
| Item | RPC3-S500KA1045K-3F50CN-rp1 |
| DC Side Parameters | |
| Total Capacity (kWh) | 1045 |
| Battery Cluster Capacity (kWh) | 261.25 |
| Number of Battery Clusters |
4 |
| Cell parameters | LFP-3.2V-314Ah-1004.8Wh |
| Battery module parameters | LFP-166.4V-314Ah-52.249kWh |
| Rated voltage (V) | 832 |
| DC rated current (A) | 157*4 |
| DC voltage range (V) | 728~949 |
| Charge-discharge rate | 0.25/0.5P |
| Cycle life (times) | 7000, 25℃, 90%DOD,≥70%EOL |
| AC side parameters | |
| Rated power (kW) | 500 |
| Rated output voltage (V) | 400 |
| Rated output current (A) | 800 |
| AC side wiring method | Three-phase four-wire |
| Frequency (Hz) | 50 |
| Total harmonic distortion rate of voltage | |
| Unbalanced load capacity | 100% |
| Power factor range | -1~+1 |
| Allowable grid voltage range | -15%~+15% |
| General parameters | |
| Communication interface | RS-485/CAN/LAN/TCP IP |
| Equalization strategy | Passive equalization |
| Charge-discharge efficiency | ≥92% |
| Charge-discharge depth | ≥90% DOD |
| Temperature control scheme | Liquid cooling |
| Fire protection scheme | Aerosol / FK-5-1-12 + Water fire protection |
| Altitude (m) | 4000 (>2000 derating) |
| Ambient temperature (℃) | -20~+60 |
| Relative humidity (%Rh) | 0~95 |
| Protection level | IP54 |
| Anti-corrosion level | C3 |
| External dimensions (width * depth * height) (mm) | 3000*2500*2390mm |
| Full load weight (tons) | ≈10 |
