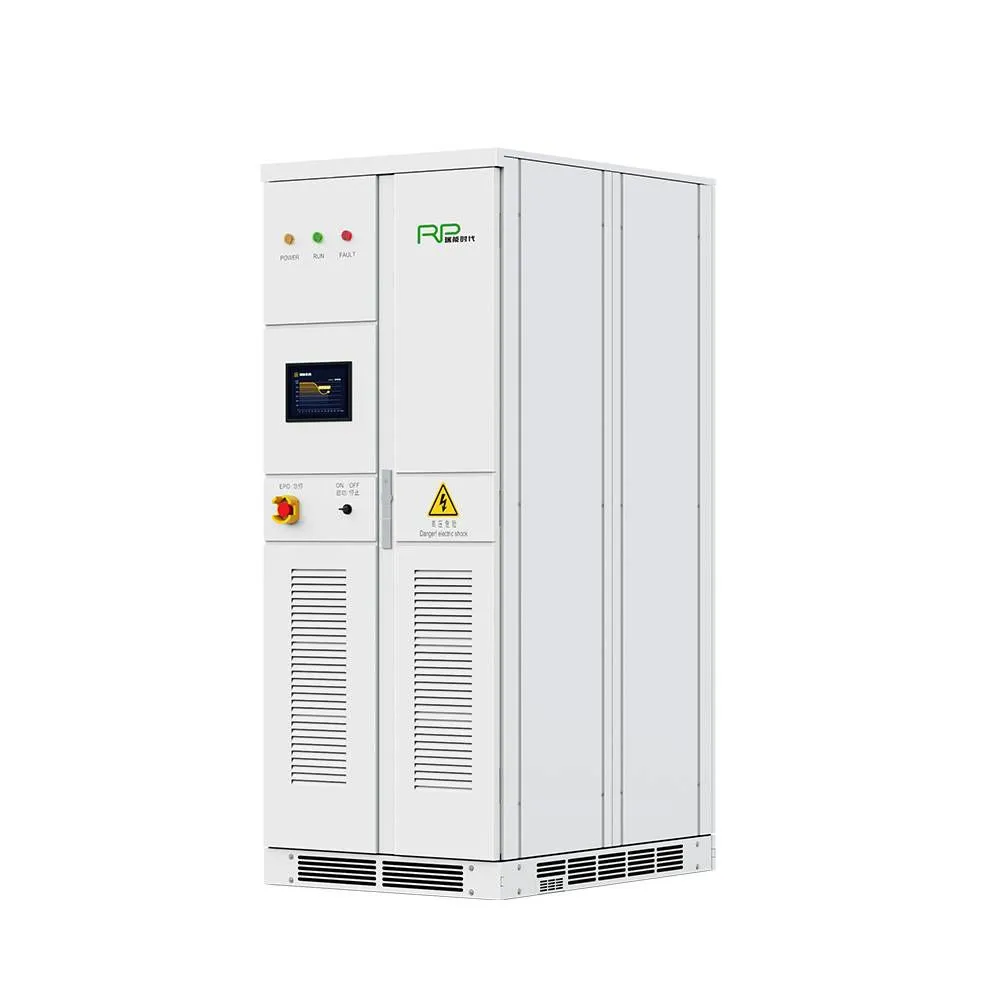

Energy Storage Converter 630kWh |
|
Product Overview
This PCS supports bidirectional rectification and inversion, with stable performance, and is equipped with a Human - Machine Interface (HMI) for parameter display, parameter setting, alarm prompt, fault recording and data logging. At the same time, this device can jointly build a "diesel - energy storage" micro - grid system with battery containers and diesel generators to provide reliable off - grid power supply for areas such as mining areas and remote islands.
Product Advantages
|
Energy Complementation The system integrates the high energy density of diesel power generation and the fast - response characteristics of energy storage (such as lithium - ion batteries) to achieve multi - energy synergy; |
|
Quick Switching
The new mobile energy storage cabin can achieve fast battery swapping in scenarios such as drilling platforms and infrastructure construction sites. The single battery swapping time is compressed to 60% of the industry average, ensuring the continuity of operations. It has been successfully applied in projects such as Great Wall Drilling; |
|
|
High Energy Efficiency Utilization Significantly reduce fuel consumption and carbon emissions. The photovoltaic-storage-diesel integrated system can reduce diesel consumption by more than 80%; |
|
Efficient Operation
Keep the diesel engine always in the "high-efficiency zone"; |
Product Features
|
Diesel and energy storage, photovoltaic and energy storage microgrid system |
Large-scale energy storage power station |
Diesel and energy storage power generation for heavy industry operations |
Diesel and energy storage power generation for communication base stations |
Product parameters
| Specifications | 630kW/400Vdc |
|
Grid-sideParameters |
Rated Power |
630kW |
Rated Output Current |
909A | |
Grid Voltage Range |
400Vac / -15%~+10% | |
Frequency Range |
50/60Hz | |
Charge-discharge Switching Time |
≤100ms | |
Power Factor |
-1~+1 | |
Efficiency |
≥98.8% | |
Wiring method |
3P3W+PE | |
THDi |
||
DC sideParameters |
Continuous current |
927A |
DC operating voltage range |
680~950V | |
|
OtherParameters |
Short-time overload current (1 min) |
110%～120% In |
Long-term overload current (10 min) |
100% ～110% In | |
Communication protocol |
Modbus-RTU/Modbus-TCP/IEC61850/CAN2.0B | |
Communication interface |
RS485/CAN/Ethernet | |
Storage temperature |
-40~70℃ | |
Operating temperature |
-20~55℃ | |
Altitude |
4000m (Derate when >2000m) | |
Relative humidity |
5%~95% (No condensation) | |
Protection level |
IP20 | |
Cooling Method |
Air Cooling | |
External Dimensions (Length * Height * Width) |
1100*880*2000mm |
|
Weight |
1000kg |
|
