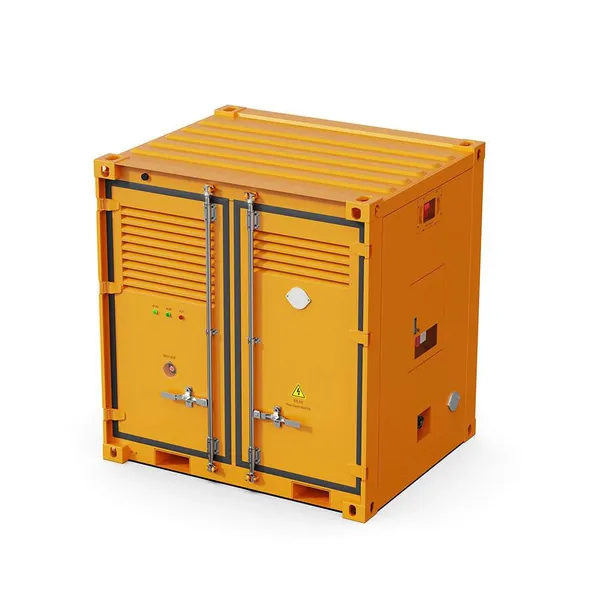

Repower Times Diesel-storage Microgrid System, 125kw~1.25mw
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Repower Times Mobile Energy Storage Vehicle 1488~2976 KwhNegotiableMOQ: 0 Unit -
Repower Times Solid-state Battery Energy Storage Vehicle 1567kwh/3343kwhNegotiableMOQ: 0 Unit
-
Repower Times Diesel-storage Microgrid System 215~261kwhNegotiableMOQ: 0 Unit
-
Repower Times Container Energy Storage Cabinet 500kw/1045kwhNegotiableMOQ: 0 Unit
-
Repower Times North American Version Distributed Liquid-cooled Energy Storage Cabinet 464~652 KwhNegotiableMOQ: 0 Unit
|
Diesel Storage Microgrid System 125kW~1.25MW |
|
Product Overview

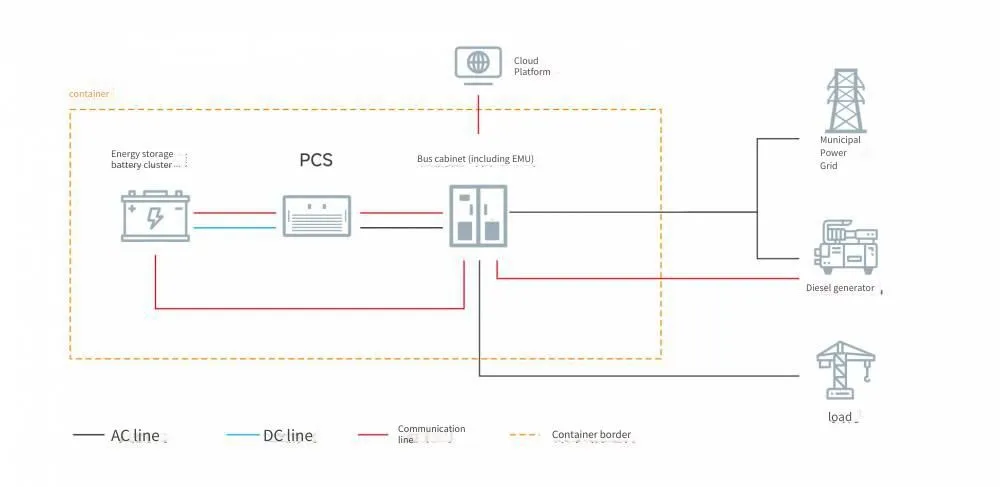

The entire system adopts an integrated design, internally integrating energy storage batteries, PCS, STS, and EMS. It supports the connection of mains power and diesel generators. Through the flexible configuration of the EMS operation strategy, the application scenarios are diversified.
Product Advantages
|
Emergency Power Supply |
Construction Site Work |
Oil Field/Mine Construction |
Island/Port Power Supply |
Product Features
Product Parameters
| Model | RPC3-S125KA241K-rp1 | RPC3-S220KA220K-rp1 | RPC3-S700KA234K-rp1 |
| Rated Energy (kWh) | 241 | 220 | 234 |
| Rated Power (kW) | 125 | 220 | 700 |
| Wiring Method | 3P+N+PE | ||
| Communication Interface | Ethernet / RS485/ CAN | ||
| Temperature Control Scheme | Liquid Cooling | ||
| Fire Protection Scheme | Aerosol/Perfluorohexanone | ||
| Altitude (m) | 4000 (Derate when >2000) | ||
| Operating Environment Temperature (℃) | -20℃~+55℃ (Derating at ≥45℃) | ||
| Operating relative humidity (%Rh) | 5~95 (No Condensation) | ||
| Protection level | IP54 | ||
| Anticorrosion level | C4 | ||
| Dimensions (W*D*H)(mm) | 2000*1650*2100 | 2000*1650*2100 | 2438*2438*2100 |
| Fully equipped weight (t) | 4.5 | 4.8 | 6.5 |
| DC side parameters | |||
| Rated voltage (Vdc) | 768 | 832 | 1043.28 |
| Voltage range (Vdc) | 672~864 | 728~936 | 907.2~1166.4 |
| Charge-discharge rate | 0.5C charging/0.5C discharging | 1C charging/1C discharging | 3C charging/3C discharging |
| Cycle life (times) | 7000, @25℃, 0.5C, 70%SOH | 6000, @25℃, 0.5C, 70%SOH | 3000, @25℃, 0.5C, 70%SOH |
| AC Side Parameters | |||
| Rated Voltage (Vac) | 400 | 400 | 400 |
| Rated Current (A) | 180 | 317 | 1010 |
| Power Factor | 0.99( -1~+1） | ||
| Total Current Harmonic Distortion Rate | |||
| Total Voltage Harmonic Distortion Rate | |||
| DC Component | |||
| Overload Capacity | 110% Overload 10min，120% Overload 1min | ||
