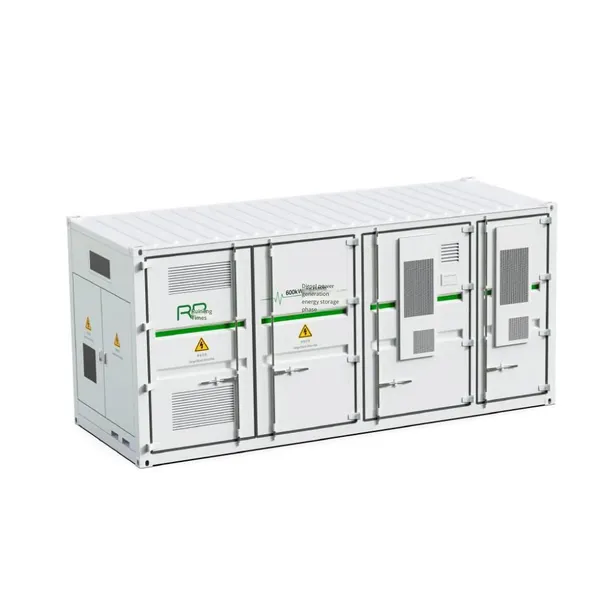

Repower Times Diesel-storage Microgrid System 215~261kwh photo-3
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Renergy Times Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Diesel Storage Microgrid System

RPC3-S800KA230K-rp1

Product Overview

This system deeply integrates diesel power generation and intelligent energy storage, providing an efficient and stable off-grid/microgrid energy solution for high-standard engineering scenarios. The system achieves significant cost reduction and efficiency improvement through "using energy storage instead of diesel", supports flexible multi-mode operation, and provides all-weather reliable power support for application scenarios such as field construction, mining, and emergency support.



Product Advantages

  • Built-in battery performance detection and recording function: Supports real-time battery performance testing and data recording;

  • Highly integrated and pre-assembled design: Compact structure, significantly reducing the threshold for transportation and on-site deployment;

  • Supports flexible switching between three operation modes: Covers peak shaving and valley filling of the power grid, independent operation of the microgrid, and backup power supply for industry and commerce;

  • Multi-level battery protection and multi-dimensional fire protection system: Creates an all-round safety barrier to ensure the long-term reliable operation of the system;

  • Real-time status monitoring and fault recording: Has the ability of intelligent fault early warning and accurate positioning, improving operation and maintenance efficiency.


Product Features


Product Parameters

Model RPC3-S120KA241K-rp1 RPC3-S233KA233K-rp1 RPC3-S630KA322K-rp1 RPC3-S756KA384K-rp1
Full Capacity 241kWh 233kWh 322kWh 384kWh
Wiring Method 3P4W+PE
Parallel Operation Supported
Communication Interface Ethernet/RS485/CAN
Altitude 4000 (>2000m derating)
Operating environment temperature -20℃~+55℃ (≥45℃ derating)
Allowable relative humidity 5~95 (no condensation)
Temperature control scheme Battery liquid cooling + Intelligent forced air cooling Intelligent forced air cooling
Fire protection scheme Aerosol + Perfluorohexanone Perfluorohexanone Heptafluoropropane
Electrical protection Overvoltage/undervoltage protection + Overload/short circuit protection + Surge protection + Anti-backflow protection
Protection level Ethernet/ RS-485/CAN
Anti-corrosion level C3 (optional)
External dimensions (mm) 2000*2591*2438mm 2500*2591*2438mm 3658*2900*2438mm 6366*2900*2438mm
Full configuration weight 9t 10t 15t 16t
DC Side Parameters
Charge-discharge Rate 0.5C Charge / 0.5C Discharge 0.5C Charge / 1C Discharge 0.5C Charge / 1C Discharge 0.5C Charge / 1C Discharge
Cycle Life (@25℃, 70% EOL, 90% DOD) 7000 cycles 6000 cycles 6000 cycles 6000 cycles
PACK Capacity 48.23kWh 46.59kWh 8.96kWh 2.56kWh
DC Rated Voltage 768V 832V 768V 768V
DC Voltage Range 660~864V 715~936V 660~864V 660~864V
DC Current 186A 334A 937A 937A
Short Circuit Protection MSD+Fuse MSD+Fuse Fuse Fuse
AC Side Parameters
Rated Capacity / Power 120kW 233kW 630kW 630kW
AC Rated Current 173A 336A 910A 910A
AC Rated Voltage 400V
Allowable Grid Voltage Range -15%~10%
Operating Frequency 50/60Hz
Isolation Method Power Frequency Isolation
