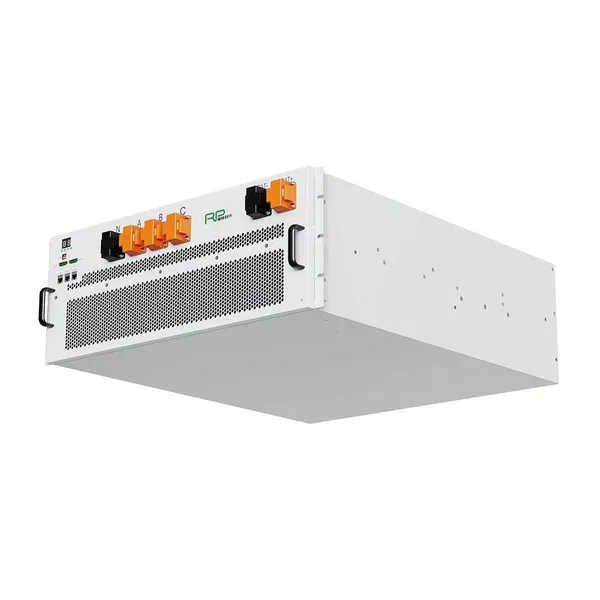

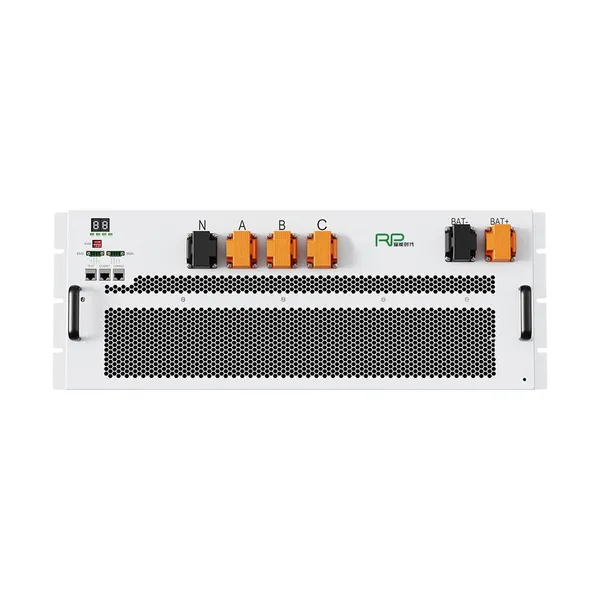

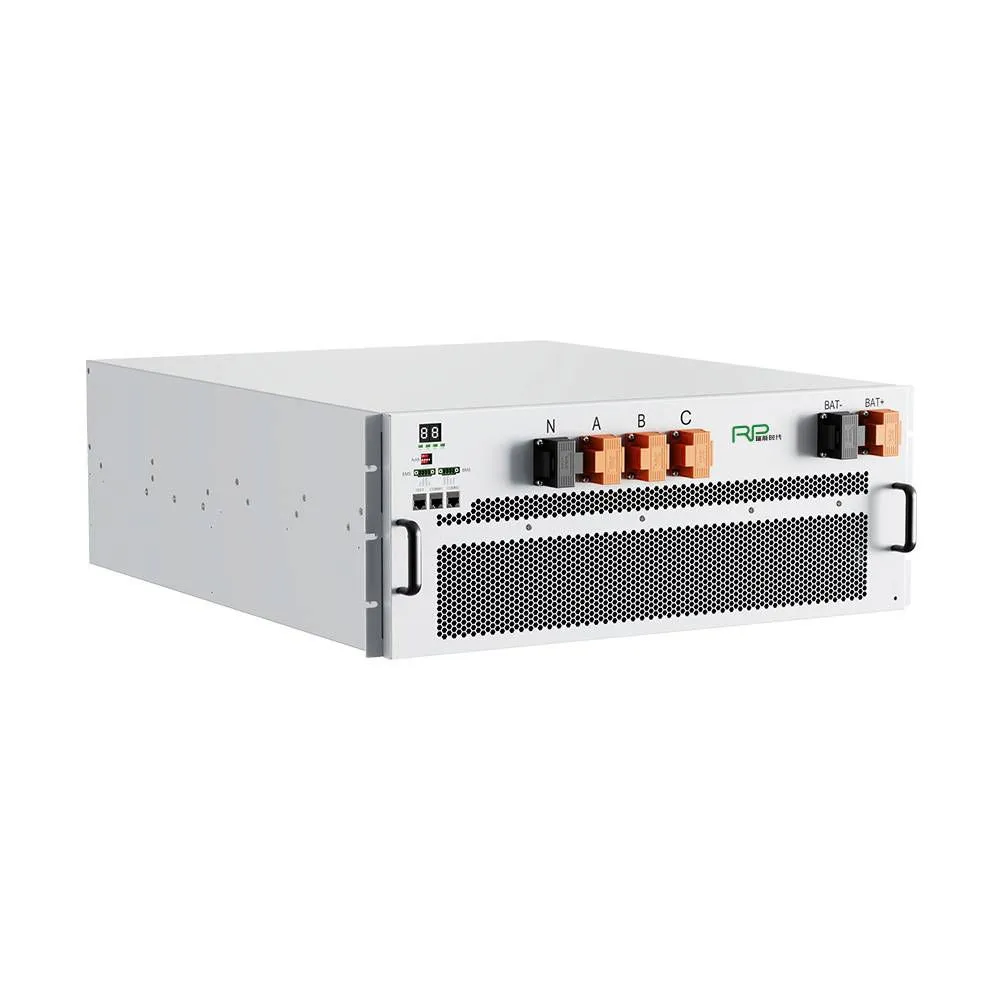

Energy Storage Converter (US Standard Version - 3P4W) 125kW/150kW/220kW |
|
Product Overview
This PCS has bidirectional rectification and inversion functions, enabling efficient and stable power transmission between the DC battery system and the AC power grid/load. The device outputs pure AC power and is fully compatible with new sodium-ion batteries, thereby achieving efficient energy utilization and reliable management.
Product Advantages
|
Flexible Adaptation The DC wide voltage range is 680~1500V, suitable for air-cooled/liquid-cooled battery systems and various Ah battery systems; |
|
IP66 High Protection Level
Dust protection grade 6, completely prevent foreign objects from intruding and completely prevent dust from entering; Waterproof grade reaches 6, can withstand strong water spray from any direction; |
|
|
Powerful Application Supports reactive power compensation, harmonic control, and three - phase unbalance compensation functions. Supports seamless switching between grid - connected, off - grid, and grid - connected/off - grid modes. It has the capabilities of high - low voltage ride - through, black - start, and unbalanced load - carrying; |
|
Safe and Reliable The three - phase four - wire system meets off - grid use requirements. It can seamlessly connect with third - party EMS. Each battery cluster is independently managed, with low battery circulation and automatic current sharing for multiple parallel units; |
Product Features
|
Power Grid |
AIDC Data Center |
Industrial Park Smart Microgrid |
||
|
Photovoltaic Energy Storage Super Charging Station |
Intelligent Microgrid for Commercial Buildings |
Mine Power Supply Station |
||
|
Mobile Energy Storage Battery Cabinet |
Emergency Rescue Power Supply |
Mobile Emergency Charging Station |
Product Parameters
| Specifications | 125kW/1500Vdc |
150kW/1500Vdc | 220kW/1500Vdc | |
Grid sideParameters |
Rated power |
125kW |
150kW | 220kW |
Rated output current |
180A | 180A | 184A | |
Grid voltage range |
400Vac / -15%~+10% | 480Vac / -15%~+10% | 690Vac / -15%~+10% | |
Frequency range |
46.5~51.5Hz / 56.5~61.5Hz | |||
Charge-discharge switching time |
≤100ms | |||
Power factor |
-1~+1 | |||
Efficiency |
≥97. 6% | ≥98% | ≥98% | |
Wiring method |
Off-grid: 3P4W; Grid-connected: 3P3W+PE | |||
THDi |
||||
DC sideParameters |
Continuous current |
184A | 183A | 183A |
DC operating voltage range |
680~1500V | 820~1500V | 1200~1500V | |
|
ComprehensiveParameters |
Short-term overload current (1 min) |
110%～120% In | ||
Long-term overload current (10 min) |
100% ～110% In | |||
Communication protocol |
ModBus | |||
Communication interface |
RS485/CAN | |||
Storage Temperature |
-40~70℃ | |||
Operating Temperature |
-20~55℃ | |||
Altitude |
>2000m Derating | |||
Relative Humidity |
5%~95% (Non-condensing) | |||
Protection Level |
IP20 | |||
Cooling Method |
Intelligent High-speed Air Cooling | |||
External Dimensions (Length * Height * Width) |
740mm *270mm *880mm |
|||
Weight |
105kg |
|||
