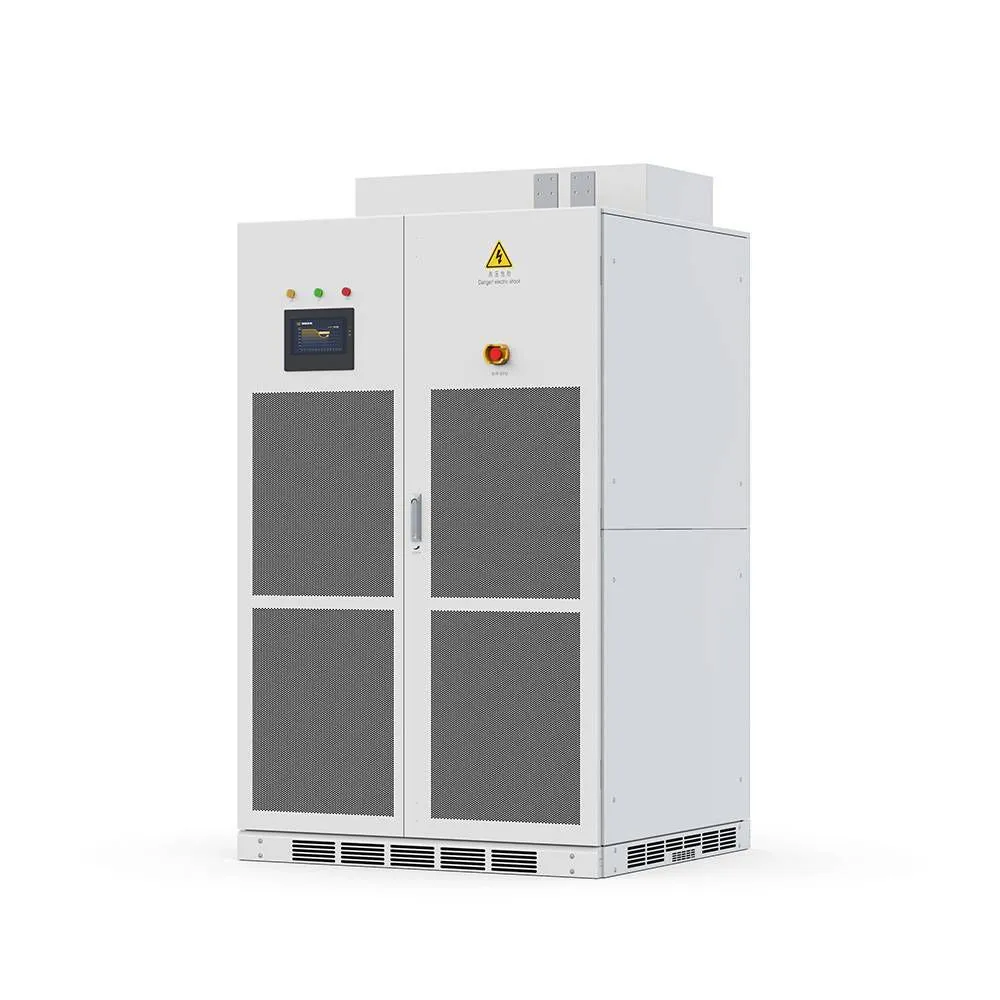

Energy Storage Converter Cabinet All-in-One 1.25MW |
|
Product Overview
This 1.25MW PCS supports bidirectional rectification and inversion, integrates EMS (Energy Management System) and BMS (Battery Management System), and adopts a modular redundant design. The device supports independent access of battery clusters without direct parallel connection, enabling independent control of each module. It has functions such as parameter display, parameter setting, alarm prompt, fault recording, and data logging. When paired with a battery container and an optional STS (Static Transfer Switch), it can achieve seamless switching between grid-connected and off-grid modes.
Product Advantages
|
FlexibleAdaptable
DC wide voltage range of 680~950V, compatible with air-cooled/liquid-cooled battery systems and various Ah battery systems; |
|
Off-grid microgrid
Provide stable power supply for remote areas such as islands and mining areas; |
|
|
High conversion efficiency Zero power consumption of standby battery, charge-discharge conversion time of 30ms, conversion efficiency ≥97.6% |
|
Flexibility and expandability Modular design, easy to deploy, fast transportation and hoisting. Add modules as needed, plug and play. |
Product Features
|
Power Grid |
AIDC Data Center |
Industrial Park Smart Microgrid |
||
|
Photovoltaic Energy Storage Super Charging Station |
Commercial Building Smart Microgrid |
Mine Power Station |
Product Parameters
| Model | 1.25MW/400Vdc |
|
Grid SideParameters |
Rated Power |
1.25MW |
Rated Output Current |
1804A | |
Grid Voltage Range |
400Vac / -15%~+10% | |
Frequency range |
50/60Hz; ±5Hz | |
Charge-discharge switching time |
≤100ms | |
Power factor |
-1~+1 | |
Efficiency |
≥97.6% | |
Wiring method |
3P3W+PE | |
THDi |
||
DC sideParameters |
Continuous current |
1838A |
DC operating voltage range |
680~950V | |
|
Product Parameters |
Short-term overload current (1 min) |
110%～120% In |
Long-term overload current (10 min) |
100% ～110% In | |
Communication protocol |
Modbus | |
Communication interface |
RS485/CAN/Ethernet | |
Storage temperature |
-40~70℃ | |
Operating temperature |
-20~55℃ | |
Altitude |
4000m (Derating when >2000m) | |
Relative Humidity |
5%~95% (No condensation) | |
Protection Class |
IP20 | |
Cooling Method |
Air cooling | |
External Dimensions (Length * Height * Width) |
1250*1400*2400mm |
|
Weight |
2100kg | |
