BHMA Exit Device Cycle Test Machine

BHMA Exit Device Cycle Test Machine thumbnail-1
BHMA Exit Device Cycle Test Machine thumbnail-2
BHMA Exit Device Cycle Test Machine thumbnail-3
BHMA Exit Device Cycle Test Machine thumbnail-4
BHMA Exit Device Cycle Test Machine thumbnail-5
BHMA Exit Device Cycle Test Machine photo-1
BHMA Exit Device Cycle Test Machine photo-2
BHMA Exit Device Cycle Test Machine photo-3
BHMA Exit Device Cycle Test Machine photo-4
BHMA Exit Device Cycle Test Machine photo-5

Product Spotlights

This equipment is designed and manufactured strictly according to the latest ANSI/BHMA A156.3 standards. It is suitable for certification lab testing or factory R&D quality control testing.
US$ 100000 1 Combo
US$ 10000 ≥2 Combo
Key Specifications
Get Latest Price
Type:
Tensile Testing Machine
Warranty:
One year
Weight:
100-500Kg
Contact Supplier Request Quote Chat Now
Guangzhou Zhijian Instruments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tensile Testing Machine
Warranty One year
Weight 100-500Kg
Power Source AC220V
After-sales Service Quality Assurance
Accuracy Grade 1
Max Diameter of Workpiece 2400mm
Mass Scope of Workpiece 900kg
Maxcapacity <1000KN
Load Way Electronic Load
Oil Cylinder Position Other
Control Computer Control
Loading Method Static Load
Display Digital
Transport Package wooden box
Specification ZNBHMA-6D
Trademark zont-test
Origin China

Equipment Advantages:

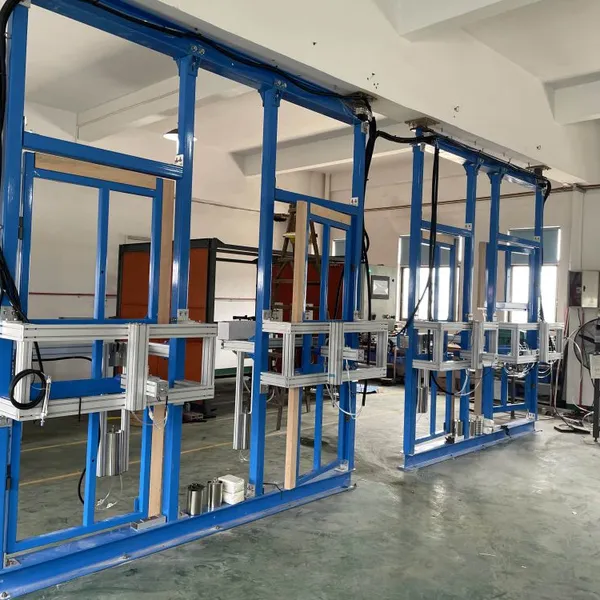

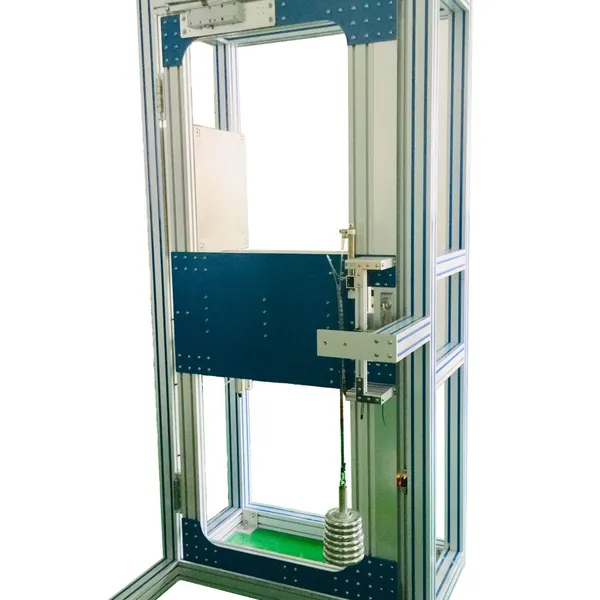

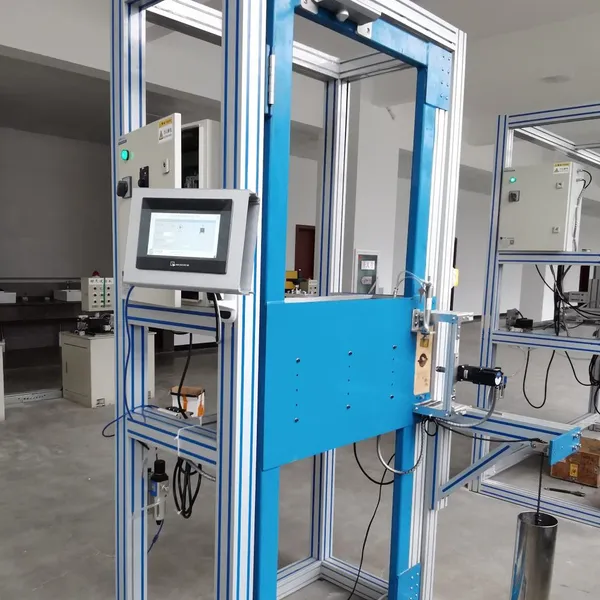

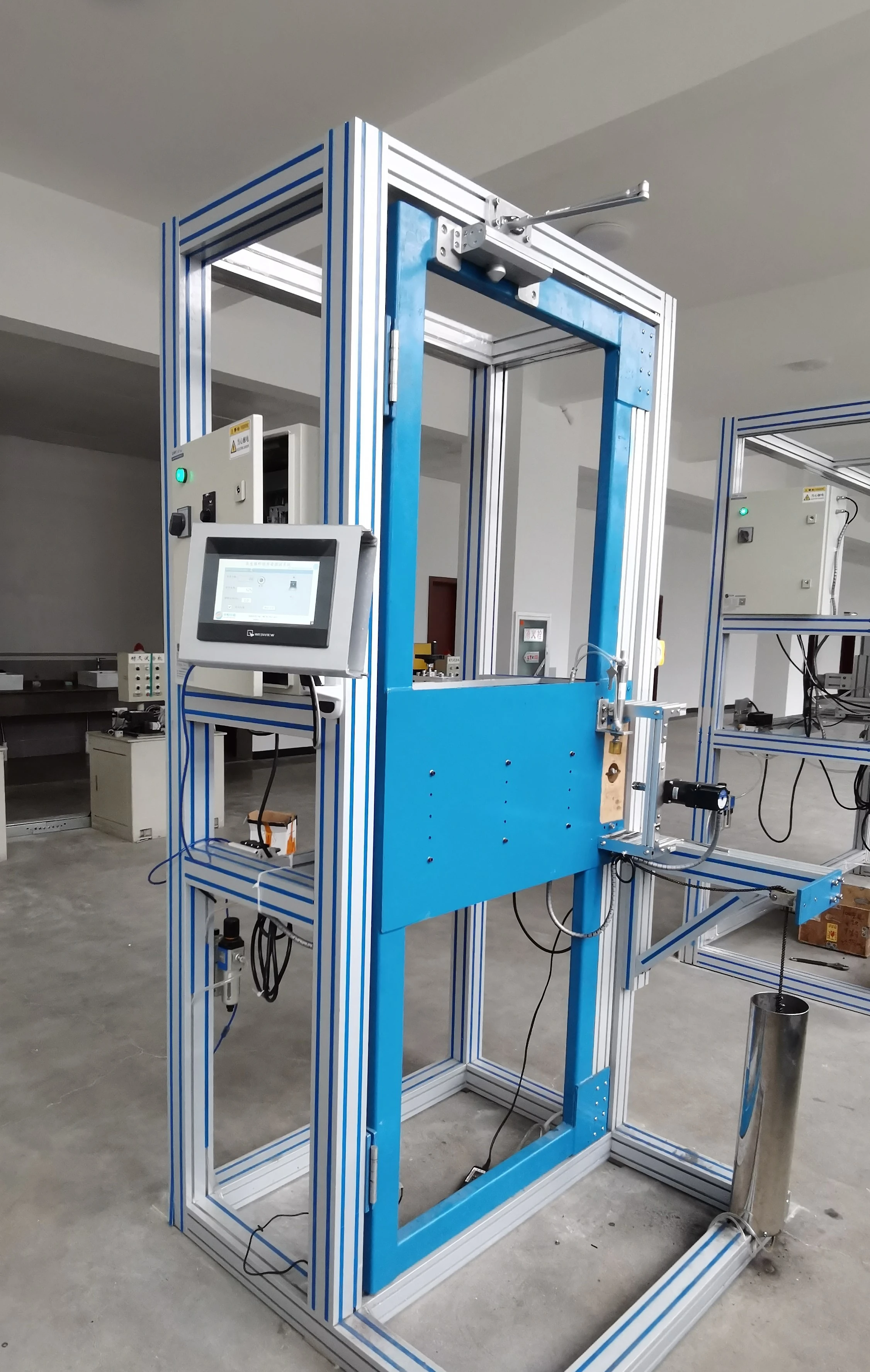

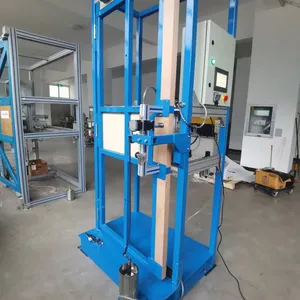

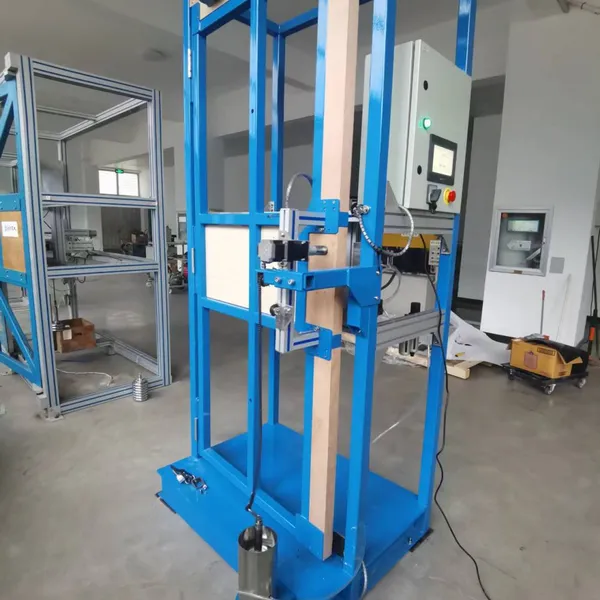

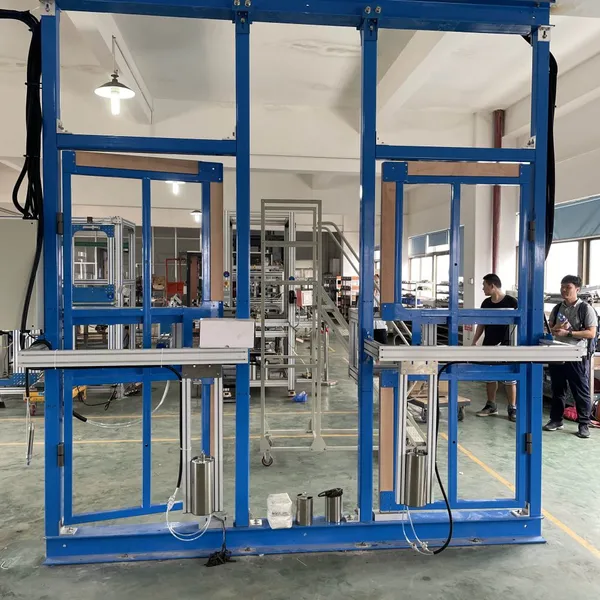

       This equipment is designed and manufactured strictly according to the latest ANSI/BHMA A156.3 standards. It is suitable for certification lab testing or factory R&D quality control testing. The device uses PLC control, with a touchscreen to set the test program. The cylinder pushes the rod to open the door, and retracts to close it. It can apply opening-direction loads according to standard requirements. For operating parts outside the test chamber, a stepper motor is set to operate the handle (grip), meeting the ANSI/BHMA A156.3:2014 standard testing requirements. The test door has replaceable mounting parts, which can be swapped based on how the sample is installed. It supports installation of surface-mounted latch, mortise lock, surface-mounted top-and-bottom rods, and concealed top-and-bottom rod push locks.

Equipment Parameters:

a. Frame: Aluminum profile independent frame;

b. 1 station;

c. Equipment space: 1.2m (L) x 1.1m (W) x 2.35m (H);

d. Standard door size: 2134*915*45;

e. Lock block specification: 400 x 130 x 45mm;

f. Lock handle operation angle: adjustable within 0~90 degrees;

g. Lifespan frequency: 25~30 cycles/min, adjustable speed;

h. Touchscreen (HMI): WINVIEW, set lifespan count, retains count display after power off;

i. Pneumatic components: Airtac;

j. Standard: Meets ANSI/BHMA A156.3 requirements for U.S. standard door lock lifespan testing equipment.

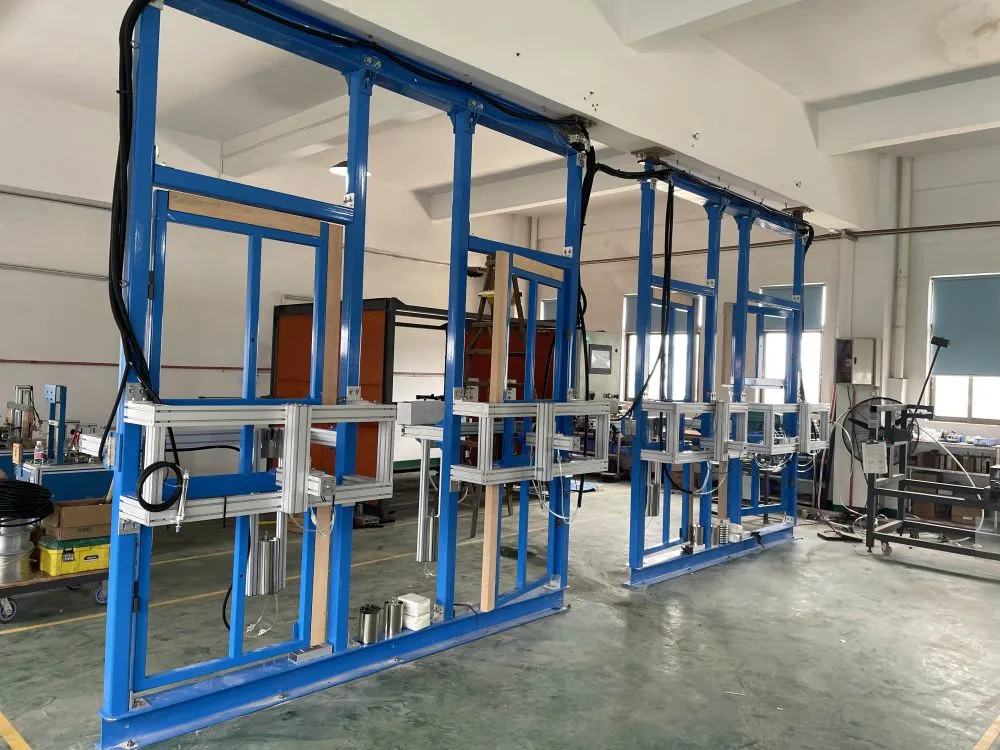

微信图片_20240615090407IMG_20200720_154236

Product Tags: BHMA Exit Device Cycle Test Machine , Door Hardware durability test machine , Emergency Exit Lock Lifespan Test
