Help CenterDoor Closer Durability Test Machine
Related Products
·Test equipment function

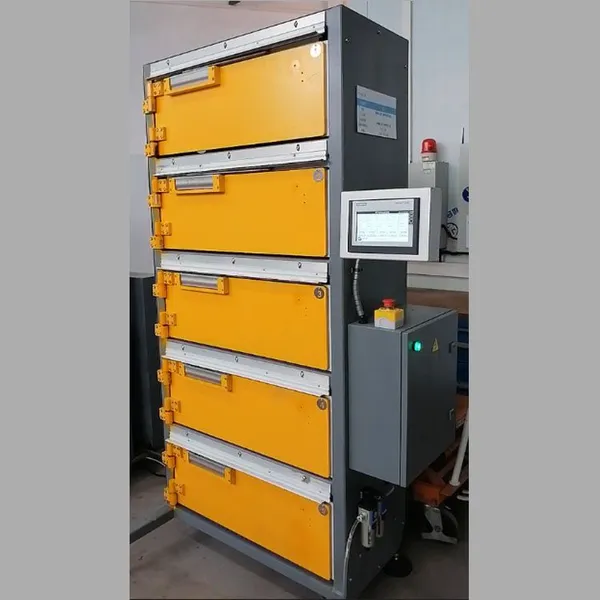

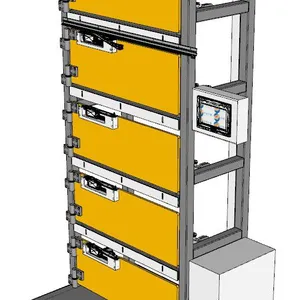

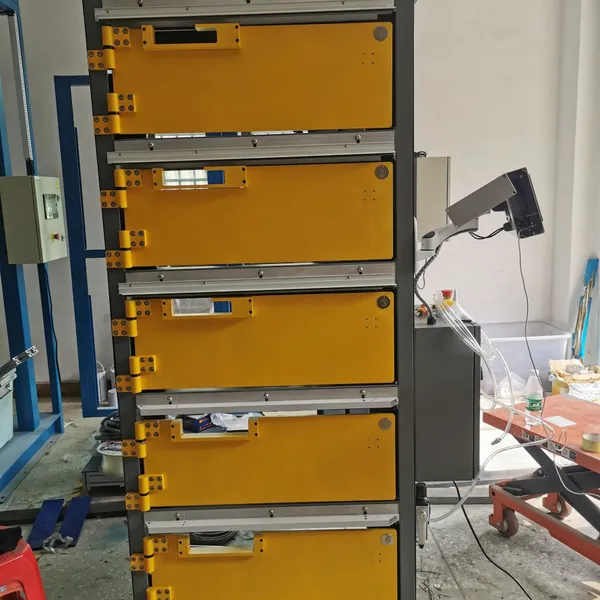

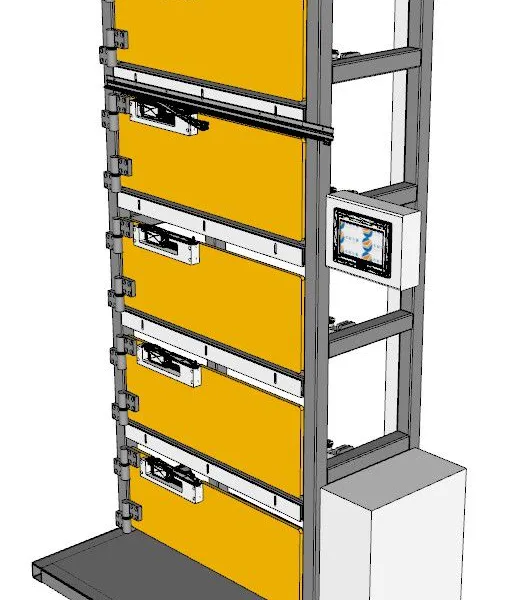

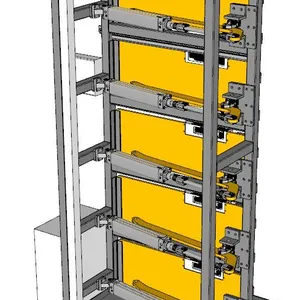

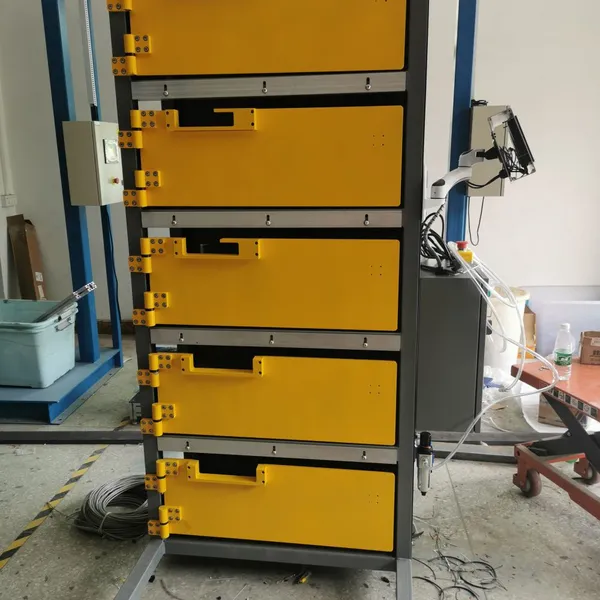

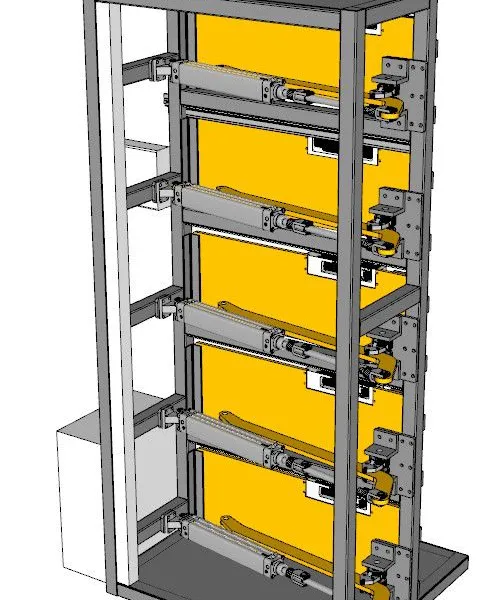

The Door closer cycle test machines are designed for durability test of different types of door closer. It can be easily set to test standard arm, parallel arm, and concealed mounting door closer. The test doors are actuated by air cylinder and monitored by door sensor. And test door mass, opening speed, closing speed and door opening angle can be adjusted according to power sizes as EN, BHMA standard required. The equipment includes multiple stations and controlled individually. If door closer failed, the equipment can stop contain test door automatically. The equipment includes a touch screen to set, control and display the test cycles.
Equipment parameters：
Model：ZNEN1154-5P
Size：L 1.0 m * W 0.8 m * H 2.1 m
Test doors: Three set of test doors, Steel plate L796*H285*T12mm,about 20kg
PLC: Panasonic
Painting color: grey/yellow or custom specified
Power supply: 220V AC or custom specified
Compressed air: above 0.5 MPa
Pneumatic parts: Airtac brand.
Touch screen: Weinview
Test standards： EN 1154
Touch screen monitor: friendly human interface touch screen to control cycles test, setting and display cycle times. Will not lost record even power off.
