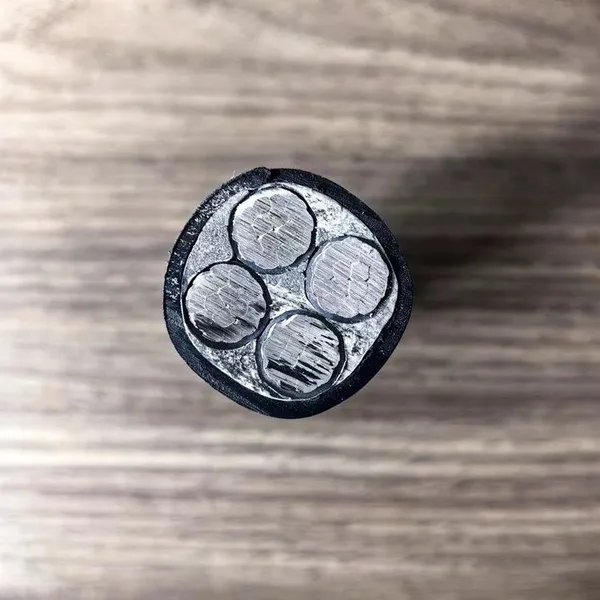

0.6/1KV YJLV22 4*400 Low-Voltage Armored Aluminum Power Cable
Engineered for reliable, cost-effective low-voltage power transmission, this 0.6/1kV rated cable features a 4-core 400mm² aluminum conductor paired with cross-linked polyethylene (XLPE) insulation, double steel tape armoring, and durable polyvinyl chloride (PVC) inner and outer sheaths. It strictly complies with national industry standards, delivering stable electrical performance, excellent heat resistance, and strong mechanical protection to adapt to complex laying environments.
Core Advantages
Superior Electrical Performance
The high-purity aluminum conductor ensures low power loss during high-current transmission, while the XLPE insulation layer provides outstanding dielectric strength, effectively preventing electrical breakdown and maintaining long-term stable operation under the 0.6/1kV rated voltage.Heavy-Duty Mechanical Protection
The double-layer steel tape armoring structure endows the cable with excellent resistance to external extrusion, impact, and rodent damage, making it fully suitable for direct burial, laying in cable trenches, tunnels, and underground pipelines without additional heavy protective measures.Outstanding Cost-Efficiency
Compared with copper-core cables of the same specification, the aluminum conductor significantly reduces the overall weight of the cable, lowering the difficulty and labor cost of transportation and on-site laying. It also offers a far more competitive total cost while meeting the power supply demand, maximizing economic benefits for large-scale projects.Wide Application Scenarios
Designed for urban power grid transformation, industrial and mining enterprise power distribution, municipal engineering, and large commercial complex low-voltage power supply systems, it can operate reliably for decades even in humid, corrosive, or harsh underground environments.-
Reliable Supply Guarantee
We provide full-process supporting services including formal quality certification documents, fast delivery within 48 hours after payment, and perfect after-sales support for quality issues, eliminating all procurement concerns for engineering contractors.
0.6/1kV YJLV22 4×400 Aluminum Armored Power Cable Technical Data Sheet
Item Specification
Standard IEC 60502-2, GB/T 12706
Rated Voltage 0.6/1kV
Conductor Aluminum, 400mm², Class 2 stranded
Insulation XLPE (Cross-linked Polyethylene)
Inner Sheath PVC
Armoring Double Steel Tape
Outer Sheath PVC
Max Conductor Temp (Normal) 90℃
Max Conductor Temp (Short Circuit, ≤5s) 250℃
Min. Installation Ambient Temp 0℃
Min. Bending Radius ≥15×Cable Outer Diameter
Rated Current (25℃ in Soil) 395A
Approx. Outer Diameter 78~83mm
Net Weight 10~11.2kg/m
Application Direct buried laying, underground tunnel, withstand mechanical external force
