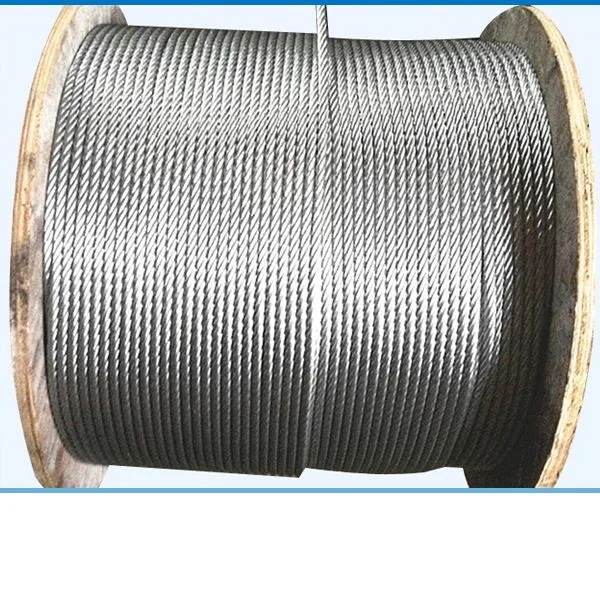

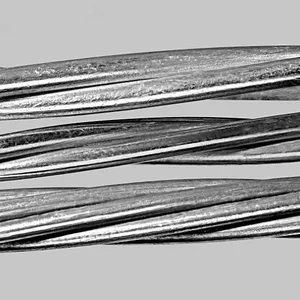

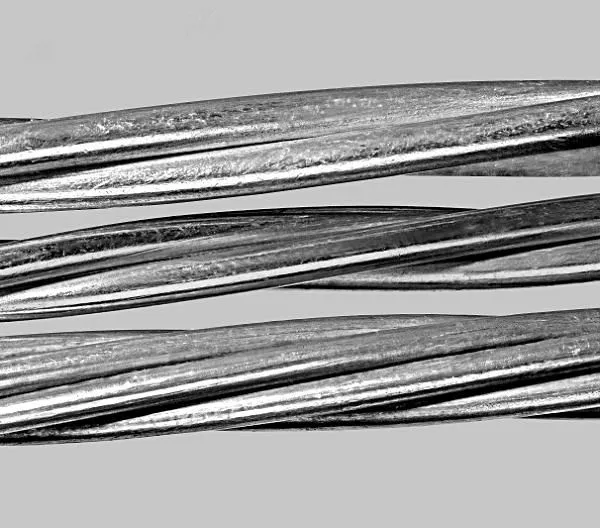

Hot-Dip Galvanized Steel Strand Guy Wire for Overhead Power Line
High Tensile Galvanized Steel Wire Strand Stay Wire for Telecommunication
7-Wire Galvanized Steel Strand Aerial Guy Wire for Transmission Tower
Corrosion Resistant Hot-Dip Galvanized Steel Guy Strand for Optical Cable
1x7 Structure Galvanized Steel Strand Stay Wire for Pole Line Hardware
Heavy Duty Galvanized Steel Strand Guy Wire for Construction Tension Support
Gsw, Guy Wire, Stay Wire, Steel Wire, Stranded Galvanized Steel Wire (BS 183)
1. Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays—Bare overhead
2. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
3. Specification:
See the table below.
| Construction Number of wires/wire diameter | Approximate strand diameter | Minimum breaking load of strand | Approx. mass | ||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | -- - | - | 130 |
| 3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.20 | 18.10 | -- | - | - | - | - | 295 |
| 4/1.80 | 4,4 | 3.55 | 4.90 | - | - | - | - | 80 | |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - -- | - | - | 220 | |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | -- | - | - | - | 320 |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1,7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | 2.75 | 3.19 | 3.60 | 28 | |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3,10 | 4.45 | 5.12 | 5.80 | 35 | |
| 7/1.00 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 38.60 | 170 |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 3520 | 39.80 | 240 |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | 38.60 | 44.40 | 50.20 | 300 | |
| 7/3.00 | 9,0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66,80 | 75.50 | 460 |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | 73.25 | 84.20 | 95.20 | 570 | |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88,00 | 101.0 | 114.0 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.0 | 129.0 | 780 |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86,80 | - | 124.0 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8.0 | 13.37 | 18.34 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274,6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286.0 | 336.7 | 387.2 | 437.7 | 2630 |
ASTM A475 is used as a messenger cable for guying high-performance communications cables and electrical conductors
Under full-load conditions the tension in the messenger must not exceed 60% of its min. break strength.
Galvanized Steel Wire Strand, ¼ “, 1 x 7., EHS
Manufacturing Norm: ASTM-A-475 (NTC-2145)
Number of Threads: 7
Grade: EHS (Extra High Strength)
Nominal wire diameter: 2,03 mm.
Nominal wire strand diameter: 6,35 mm.
Metallic Area: 22,65 mm2
Minimum Breaking Strength: 3016 Kgf (6650 lbf)
Cable Direction: Left
Minimum Elongation: 4,0%
Weight: 180 Kg./Km.
Maximum Length: 101,6 mm.
Minimum Zinc Layer: 183 g./m
Galvanized Steel Wire Strand, 3/8“, EHS
Manufacturing Norm: ASTM-A-475 (NTC-2145)
Number of Threads: 7
Grade: EHS (Extra High Strength)
Nominal wire diameter: 3,05 mm.
Cable Section: 51,14 mm2
Nominal wire strand diameter: 9,52 mm.
Minimum Breaking Strength: 6984 Kgf (15400 lbf)
Cable Direction: Left
Minimum Elongation: 4,0%
Weight: 406 Kg./Km.
Galvanization Type: Class A – min. zinc layer 259 g/m2 Class B – min. zinc layer 518 g/m2
Galvanized Steel Strand Guy Wire Core Selling Points
Superior Corrosion Resistance: Adopts hot-dip galvanized process with high-purity zinc ingots, forming a dense, uniform zinc layer that effectively blocks moisture and corrosive media, extending service life in outdoor, humid and coastal environments.
High Tensile Strength: Complies with national standard YB/T 5004-2012, with tensile strength up to 1670MPa, providing stable and reliable tension support for overhead power lines, communication towers and photovoltaic projects.
Stable & Flexible Performance: Features uniform strand structure with low residual stress, excellent softness and no loose ends after cutting, which is easy for on-site bending and installation without internal damage.
Strict Quality Control: Undergoes full tests including tensile, torsion and salt spray inspection, with consistent quality across batches, reducing long-term maintenance costs for engineering projects.
