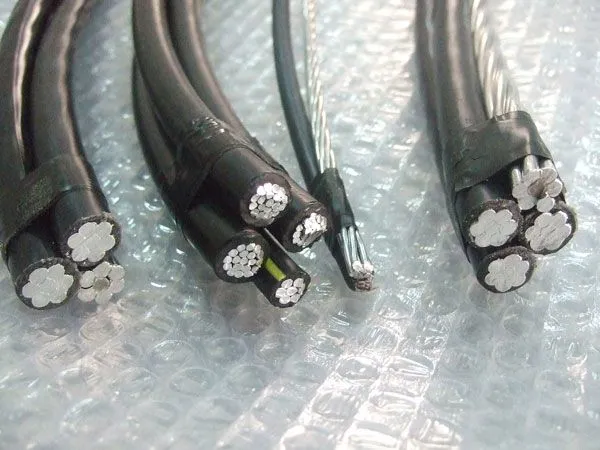

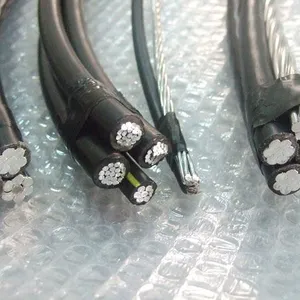

Help Center0.6/1kV XLPE Insulated Aerial Bunch Cable (ABC Cable) With Aluminum Conductor for Overhead Power Distribution
Product Spotlights
Related Products
-
Aluminum-Clad Steel Strand for Overhead Transmission LineUS$ 0.35MOQ: 3000 Meters -
Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389NegotiableMOQ: 5 Metric Tons
-
GTACSR & GZTACSR Conductor Overhead Transmission Conductor Bare ConductorUS$ 1.25 - 12.5MOQ: 3000 Meters
-
0.6/1kV YJLV 3×95 Aluminum Power Cable, 3 Cores × 95 Mm², Aluminium Conductors, XLPE Insulation, PVC Outer SheathNegotiableMOQ: 3000 Meters
-
0.6/1KV 4*400 Mm², Aluminium Conductors, XLPE Insulation, Steel-tape Armour, PVC Outer Sheath IEC StandardNegotiableMOQ: 500 Meters
0.6/1kV rated ABC Aerial Bundled Cable, with UV-resistant XLPE/HDPE insulation, eliminates phase short circuits and tree-caused faults, cutting outage rates drastically.
High-strength aluminum alloy core (max 340MPa tensile strength) adapts to harsh coastal, mountainous and forest areas, with excellent corrosion and weather resistance.
Compliant with IEC, ASTM, NFC standards, supports 1-4 core configurations (Duplex/Triplex/Quadruplex), fits urban grid renovation, rural power distribution and temporary construction power supply.
Integrated bundled design simplifies installation, no extra ducts needed, reduces construction cost by 30% and shortens project period greatly.
ABC CABLE
1.Application
ABC cable is primarily used on lighting, outdoor lighting, and temporary service for construction.To be used at voltages of 600V phase-to-phase or less.
The conductor temperatures no exceeds 75 degrees for polyethylene(PE) insulated conductors or90 degrees for corsslinked polyethylene(XLPE) insulated conductors.
2.ABC cable meets or exceeds following specifications
2.1. Aluminum cable,1350-H19 for electrical purposes.
2.2. Aluminum conductors,concentric lay stranded.
2.3. Aluminum conductor,concentric lay stranded,coated steel reinforced(ACSR).
2.4. Concentric lay stranded,6201-T81 conductors.
2.5. Compressed round stranded aluminum conductors using single input conductor.
ABC cable meets or exceeds all appliable requirements of ASTM ANSI/ICEA S-76-474.
3. Characters

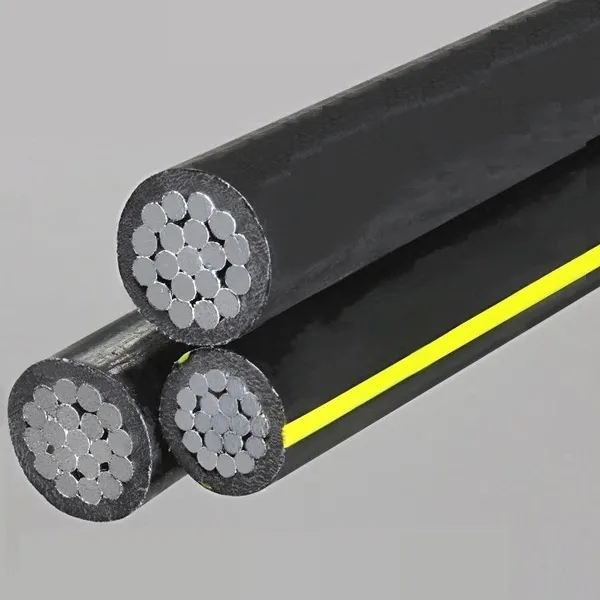

res: Duplex/Triplex/Quadruplex Cable
Phase core: AAC/XLPE.
Neutral core: AAC/AAAC/ACSR
| *Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per | Allo wable Amp acitles | ||||||
| 1000 ft.(lbs.) | |||||||||||
| Size | Stranding | Insul | Size | Stranding | Rated | inches | XLP | POLY | XLP | POLY | |
| (A WG) | Thick(Mils) | (AWG) | Strength | ||||||||
| (lbs.) | |||||||||||
| AAC Neutral-messenger | |||||||||||
| Clydessdale | 4 | 1 | 45 | 4 | 7 | 881 | 20.58 | 198 | 198 | 100 | 80 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 20.58 | 211 | 211 | 100 | 80 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 25.42 | 318 | 318 | 135 | 105 |
| Criollo | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 25.42 | 503 | 503 | 180 | 140 |
| Percheron | 2/0 | 11 | 60 | 2/0 | 7 | 2510 | 29.97 | 619 | 619 | 205 | 160 |
| Hanovarian | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 35.18 | 764 | 764 | 235 | 185 |
| Oldenburg | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 35.18 | 945 | 945 | 275 | 210 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 38.79 | 1519 | 1519 | 370 | 280 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above | |||||||||||
| +Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun. | |||||||||||
| NO. | Item | Optional | ||||||||
| 1 | Product name | abc cable | ||||||||
| 2 | Meterial | XLPE insulation | ||||||||
| 3 | Color | Black or as your enquiry | ||||||||
| 4 | Size | 1.5~300mm2 | ||||||||
| 5 | or as your enquiry | |||||||||
| 6 | MOQ | 1000 meters | ||||||||
| 7 | Packing | wooden drum | ||||||||
| 8 | Price term | FOB shenzhen/Ningbo/Shanghai | ||||||||
| 9 | Suggestion: ship by courier(FedEx, UPS, TNT)for small order(less than 500 pcs)will be cheaper | |||||||||
| 10 | Shipping Methods | By sea, air or courier. | ||||||||
| 11 | Courier: Fedex, DHL,UPS,TNT,EMS ets | |||||||||
| 12 | Payment Terms | T/T,L/C,Western Union, Paypal. | ||||||||
| 13 | Sample Lead-Time | 5-7 days after receive your artwork or samples. | ||||||||
| 14 | Production Lead-Time | 15-30 days after your comfirmation to pre-production sample. | ||||||||
| 15 | Remarks | Your own designs are welcome. Any logo, material,color,size and specification are available | ||||||||
| 16 | Sample Charge | Sample for your own disigns will be charged and courier charge should be in your acount | ||||||||
