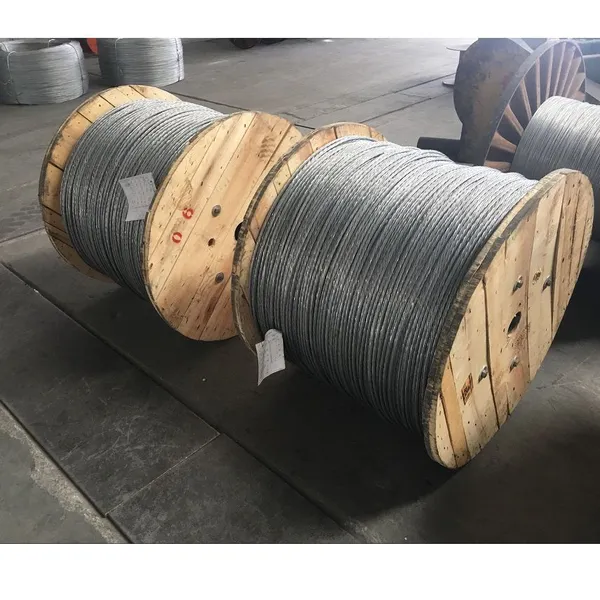

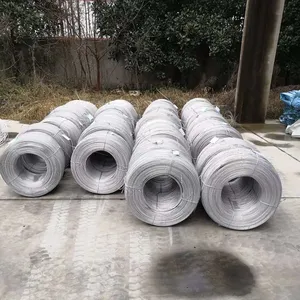

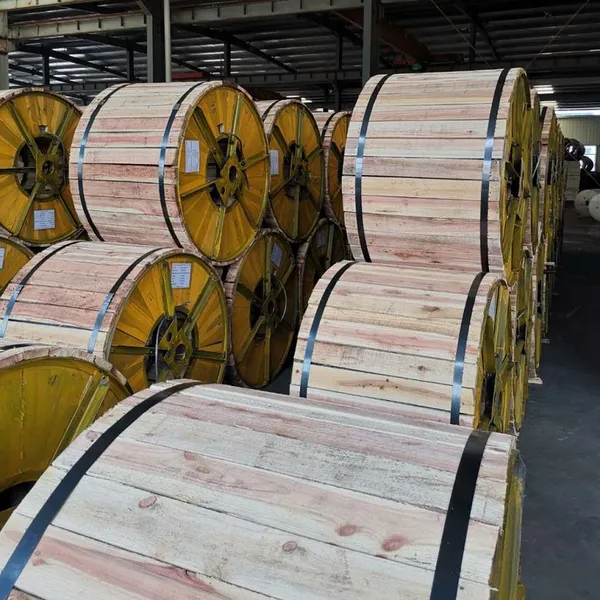

Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389

Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389 thumbnail-3

Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389 photo-1

Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389 photo-2

Aluminium Clad Steel Wire for Electric Transmission as per ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389 photo-3

Product Spotlights

High-strength steel core combined with pure aluminum cladding delivers superior tensile strength, excellent electrical conductivity and reliable corrosion resistance, far outperforming traditional steel wire and pure aluminum wire in long-term outdoor service.

Negotiable MOQ: 5 Metric Tons (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Bare

Certification:

ISO9001

Application:

Overhead, Heating, Underground

Contact Supplier Request Quote Chat Now

Anhui Electric Group Shares Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Type Bare

Certification ISO9001

Application Overhead, Heating, Underground

Conductor Material Aluminum Clad Steel

Conductor Type Solid

Brand Other, ANHUI ELECTRIC

Material Shape Round Wire

Range of Application Mine

High-strength steel core combined with pure aluminum cladding delivers superior tensile strength, excellent electrical conductivity and reliable corrosion resistance, far outperforming traditional steel wire and pure aluminum wire in long-term outdoor service.
Perfect metallurgical bonding between aluminum and steel layers eliminates peeling risks, ensuring stable performance under frequent bending, stretching and harsh weather conditions.
Lightweight design cuts overall installation load by 30% while maintaining high mechanical strength, greatly reducing transportation and construction costs for overhead power transmission lines.
Outstanding anti-oxidation and anti-corrosion properties extend service life to over 40 years, requiring minimal maintenance even in coastal, industrial and high-pollution environments.
Customizable cladding thickness and diameter options meet diverse application demands, from power grid construction, communication overhead lines to railway catenary systems.

Product description:
Aluminum clad steel wire is a piece of round wire made of a round steel core clad with a uniform and continuous aluminum layer. By structure ratio of steel and aluminum, aluminum clad steel wire has different grades, LB14, LB20, LB23, LB27, LB30, LB35 and LB40, with corresponding electric conductivities of 14%, 20.3%, 23%, 27%, 30%, 35% and 40% IACS (IACS stands for International Annealed Copper Standard). Featured by high strength, corrosion resistance and high conductivity, etc., aluminum clad steel wire is widely used in coastal areas, volcano areas, salt atmosphere areas and overhead power line used in areas seriously polluted by industrial materials containing SO2, NO and CO2, etc. It's the optimum material for transmission conductor with kilometric span and carrier cable for electrified railways.

Conductivity :14﹪,20.3﹪,23﹪,27﹪,30﹪,35﹪,40﹪

Aluminum Clad Steel Wire, ACS Wire, Alumoweld Wire, ACSR Core Wire, OPGW Strength Member, Overhead Ground Wire, Guy Wire, Messenger Wire, Bare Overhead Conductor, Aluminum Clad Steel Strand

Standard & Specification

ASTM B416, ASTM B502, IEC 61232, AS 3607, DIN 48201, 20.3% IACS, 27% IACS, 30% IACS, 40% IACS, LB1/LB2/LB3/LB4 Grade, High Tensile Strength, Corrosion Resistant, Low Sag

Application Scenario

Long-span Transmission Line, Coastal Salt-fog Area, Heavily Polluted Region, Extra High Voltage Line, Self-damping Conductor, Optical Fiber Composite Overhead Ground Wire, Power Grid Construction, Railway Catenary, Fence & Hardware, ADSS Fitting Accessory

Technical Standard:GB/T 17937-2008,YB/T 123-1997,ASTM B415/B502,AS 1222, IEC61232, JCS389

Parameters:

Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%)


Nominal Dia			Size	Calculated cross sectional area				Min tensile strength					Calculated breaking load		Mincoating thickness		D.C resistance at 20ºC≤				Weight



in.		mm	AWG	mm2		cmils		Mpa			psi		kn		mm		Ω/1000ft		Ω/km		kg/km	1b/1000ft
0.2043		5.189	4	21.150		41740		1070			155000		22.60		0.259		1.222		4.009		139.32	93.63
0.1880		4.775	4	17.908		35342		1100			160000		19.70		0.239		1.443		4.735		118.01	79.31
0.1819		4.620	5	16.767		33090		1140			165000		18.10		0.231		1.541		5.056		110.48	74.25
0.1729		4.392	5	15.150		29899		1170			170000		17.73		0.220		1.706		5.597		99.84	67.10
0.1620		4.115	6	13.296		26240		1210			175000		16.00		0.206		1.943		6.375		87.61	58.88
0.1549		3.934	6	12.155		23989		1240			180000		15.07		0.197		2.126		6.976		80.10	53.83
0.1443		3,665	7	10.549		20820		1280			185000		13.50		0.183		2.450		8.038		69.47	46.69
0.1369		3.477	7	9.495		18739		1310			190000		12.44		0.174		2.722		8.931		62.57	42.05
0.1285		3.264	8	8.366		16510		1340			195000		11.20		0.163		3.089		10.135		55.15	37.03
0.1144		2.906	9	6.633		13090		1340			195000		8.92		0.145		3.896		12.783		43.70	29.37
0.1019		2.588	10	5.260		10380		1340			195000		7.07		0.129		4.912		16.116		34.66	23.29
0.0907		2.304	11	4.170		8230		1340			195000		5.61		0.115		6.194		20.323		27.48	18.47
0.0808		2.052	12	3.309		6530		1340			195000		4.45		0.103		7.811		25.628		21.80	14.65
Approximate Properties of Hard-drawn 27% Conductivity Aluminum-Clad steel Wire (27%)


Nominal Dia			Size	Calculated cross sectional area			Min tensile strength			Calculated breaking load		Mincoating thickness		D.C resistance at 20ºC≤				Weight



in.	mm		AWG	mm2	cmils		Mpa		psi	kn		mm		Ω/1000ft		Ω/km		kg/km		1b/1000ft
0.2043	5.189		4	21.150	41740		862		125000	18.20		0.363		0.920		3.019		124.99		84.00
0.1880	4.775		4	17.908	35342		889		129000	15.92		0.334		1.087		3.566		105.83		71.12
0.1819	4.620		5	16.767	33090		917		133000	15.40		0.323		1.161		3.809		99.09		66.59
0.1729	4.392		5	15.150	29899		945		137000	14.32		0.307		1.285		4.215		89.54		60.17
0.1620	4.115		6	13.296	26240		972		141000	12.90		0.288		1.464		4.803		78.57		52.80
0.1549	3.934		6	12.155	23989		1000		145000	12.16		0.275		1.601		5.254		71.84		48.28
0.1443	3,665		7	10.549	20820		1034		150000	10.90		0.257		1.845		6.053		62.33		41.89
0.1369	3.477		7	9.495	18739		1062		154000	10.08		0.243		2.050		6.726		56.12		37.71
0.1285	3.264		8	8.366	16510		1076		156000	9.00		0.228		2.326		7.632		49.43		33.22
0.1144	2.906		9	6.633	13090		1076		156000	7.13		0.203		2.934		9.626		39.19		26.34
0.1019	2.588		10	5.260	10380		1076		156000	5.66		0.181		3.700		12.140		31.08		20.89
0.0907	2.304		11	4.170	8230		1076		156000	4.48		0.161		4.667		15.312		24.63		16.55
0.0808	2.052		12	3.309	6530		1076		156000	3.56		0.144		5.882		19.299		19.55		13.14

Approximate Properties of Hard-drawn 30% Conductivity Aluminum-Clad steel Wire (30%)


Nominal Dia		Size	Calculated cross sectional area		Min tensile strength		Calculated breaking load	Mincoating thickness	D.C resistance at 20ºC≤		Weight



in.	mm	AWG	mm2	cmils	Mpa	psi	kn	mm	Ω/1000ft	Ω/km	kg/km	1b/1000ft
0.2043	5.189	4	21.150	41740	703	102000	14.90	0.389	0.828	2.717	118.64	79.73
0.1880	4.775	4	17.908	35342	731	106000	13.09	0.358	0.978	3.209	100.46	67.51
0.1819	4.620	5	16.767	33090	758	110000	12.70	0.347	1.045	3.429	94.06	63.21
0.1729	4.392	5	15.150	29899	786	114000	11.91	0.329	1.156	3.793	84.99	57.12
0.1620	4.115	6	13.296	26240	786	118000	10.50	0.309	1.317	4.321	74.59	50.13
0.1549	3.934	6	12.155	23989	814	122000	9.89	0.295	1.441	4.728	68.19	45.83
0.1443	3,665	7	10.549	20820	841	126000	8.87	0.275	1.660	5.446	59.18	39.77
0.1369	3.477	7	9.495	18739	869	128000	8.25	0.261	1.845	6.053	53.27	35.80
0.1285	3.264	8	8.366	16510	883	128000	7.38	0.245	2.094	6.870	46.95	31.55
0.1144	2.906	9	6.633	13090	883	128000	5.85	0.218	2.642	8.668	37.20	25.00
0.1019	2.588	10	5.260	10380	883	128000	4.47	0.194	3.329	10.922	29.52	19.84
0.0907	2.304	11	4.170	8230	883	128000	3.68	0.173	4.203	13.79	23.38	15.71
0.0808	2.052	12	3.309	6530	883	128000	2.92	0.154	5.295	17.373	18.57	12.48
