3-Core 95mm² Aluminum Power Cable, AL/XLPE/PVC Cable, 0.6/1kV Low Voltage Power Cable, 3×95mm² XLPE Insulated Cable, Aluminum Conductor Power Cable
Technical & Specification
Class 2 Stranded Aluminum Conductor, XLPE Insulation, PVC Outer Sheath, 90°C Rated Temperature, 205A Air Ampacity, 235A Buried Ampacity, 3.5kV 5min Withstand Voltage, 0.6/1kV Voltage Rating
Application & Compliance
Low Voltage Distribution Cable, Industrial Power Wiring, Building Main Feeder, Underground Direct Burial, Cable Tray Installation, IEC 60502 Compliant, GB/T 12706 Certified, Commercial Power Supply Cable

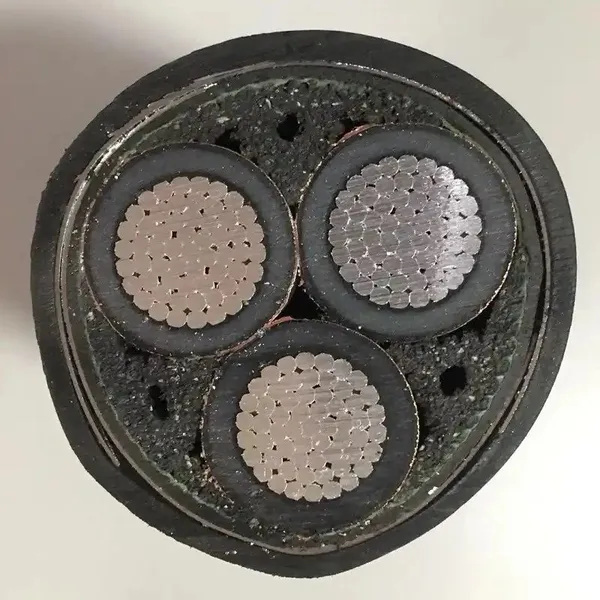

3 Cores 95mm² Aluminum Conductor XLPE Insulated PVC Sheath Power Cable
Product Overview
This 3-core 95mm² low-voltage power cable is engineered for reliable, cost-effective power distribution across industrial, commercial and infrastructure projects. Built with high-purity stranded aluminum conductors, cross-linked polyethylene (XLPE) insulation and a robust PVC outer sheath, it delivers stable electrical performance while significantly reducing total installation weight and material cost compared to equivalent copper cables.
Core Specifications
Conductor: Class 2 compacted stranded aluminum, nominal cross-section 95mm² per core
Insulation: XLPE (Cross-Linked Polyethylene), rated for 90°C continuous operation
Outer Sheath: Flame-retardant black PVC, UV-stabilized for outdoor exposure
Voltage Rating: 0.6/1kV, suitable for general low-voltage power transmission
Compliance: Manufactured strictly in accordance with IEC 60502 and GB/T 12706 international standards
Packaging: Supplied in standard 100m wooden/steel drums, customizable lengths available on request
Key Performance Advantages
Lightweight & Cost-Efficient: Aluminum conductors cut total cable weight by over 40% vs copper alternatives, lowering transportation, handling and labor costs during installation.
Superior Thermal Stability: XLPE insulation offers excellent heat resistance, low dielectric loss and long-term aging resistance, supporting consistent high-load operation without performance degradation.
Durable Environmental Protection: The flame-retardant PVC outer sheath passes IEC 60332-1 flame propagation tests, with strong resistance to common chemicals, moisture and minor mechanical abrasion for both indoor and outdoor use.
Reliable Ampacity Performance: Delivers 205A continuous ampacity in free air and 235A when directly buried, fully meeting the power supply demands of most industrial equipment, building main feeders and urban distribution networks.
Typical Applications
This 3×95mm² aluminum power cable is widely used for factory power system wiring, commercial building main power lines, municipal road lighting distribution, underground trench laying and temporary construction power supply projects. It is an ideal choice for large-scale power distribution projects that balance performance, durability and budget efficiency.
0.6/1kV YJLV 3×95 Aluminum Power Cable Technical Data Sheet
Item Specification
Standard IEC 60502-2, GB/T 12706
Rated Voltage 0.6/1kV
Conductor Aluminum, 95mm², Class 1/2 stranded
Insulation XLPE (Cross-linked Polyethylene)
Sheath PVC (Polyvinyl Chloride)
Max Conductor Temp (Normal) 90℃
Max Conductor Temp (Short Circuit, ≤5s) 250℃
Min. Installation Ambient Temp 0℃
Min. Bending Radius ≥15×Cable Outer Diameter
Rated Current (30℃ in Air) 226A
Approx. Outer Diameter 38~42mm
Net Weight 1.27Kg/m
Application Indoor, duct, loose soil laying, no heavy mechanical load
