Product Details
Brand Name: | Nanyang Cable | Place of Origin: | China | Model Number: | YJV22 ; YJLV22 |
Type: | Low Voltage | Application: | Other, Industrial, Marine, Mining, Overhead, Power Station,Underground | Insulation Material: | XLPE |
Jacket: | PVC | Conductor Material: | Copper |
Product Description

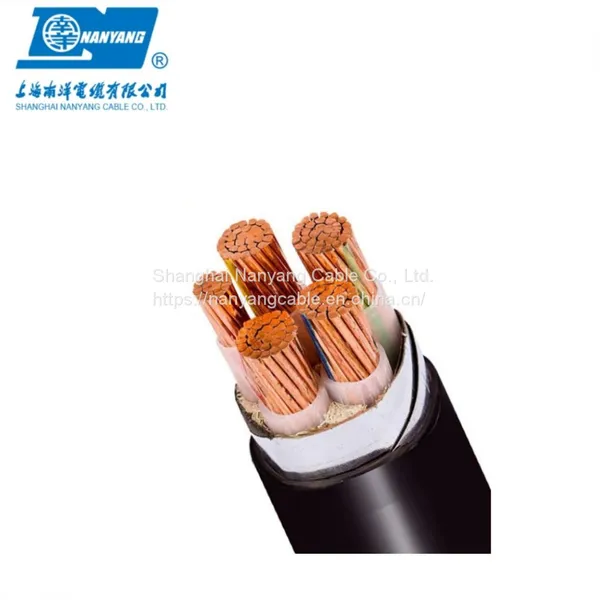

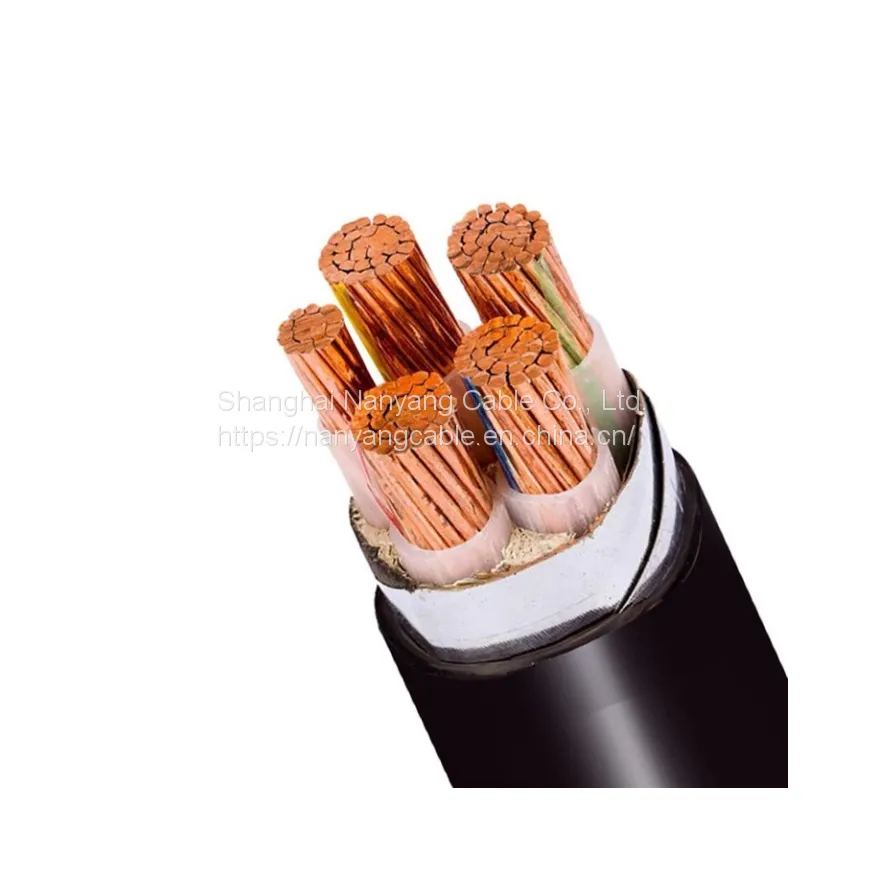

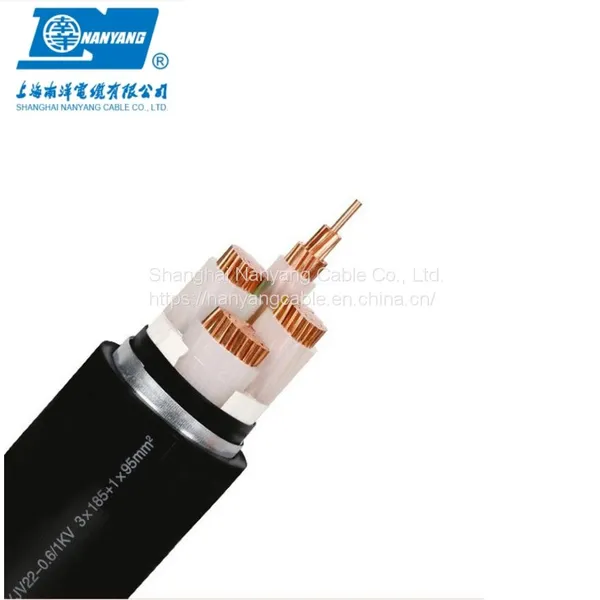

XLPE insulated PVC sheathed Steel Tape Armored Cable Power Cable
1、 Application
Cables are used for transmission and distribution systems with rated voltages of 0.6/1, 1.8/3, 3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, and 26/35kV.
YJV and YJLV are suitable for indoor and outdoor laying, and can withstand certain laying traction, but cannot withstand mechanical external forces. Single core cables are not allowed to be laid in ferromagnetic material pipelines. YJV22 and YJLV22 are suitable for underground laying and can withstand mechanical external forces, but cannot withstand large tensile forces.
The maximum long-term working temperature of the cable is allowed to be 90 ℃, the short-circuit temperature of the wire core shall not exceed 250 ℃, and the maximum duration shall not exceed 5 seconds.
2、Type & Cable Description
Type | Cable Description |
YJV、YJLV | Steel or aluminum core cross-linked polyethylene insulated PVC sheathed power cables |
YJV22、YJLV22 | Copper or aluminum core cross-linked polyethylene insulated steel strip armored PVC sheathed power cable |
3、Production Scope
Type | Core | Rated voltage /kV Nominal cross-section /mm2 | |||||
0.6/1 | 1.8/3 | 3.6/6、6/6 | 6/10、8.7/10 | 8.7/15~12/20 | 18/30~26/35 | ||
YJV YJLV | 1 | 1.5~630 | 10~400 | 25~400 | 25~400 | 35~400 | 50~400 |
3 | 1.5~300 | 10~300 | 25~300 | 25~300 | 35~300 | - | |
4 | 4~240 | - | - | - | - | - | |
YJV YJLV | 1 | 2.5~630 | 10~400 | 25~400 | 25~400 | 35~400 | 50~400 |
3 | 2.5~300 | 10~300 | 25~300 | 25~300 | 35~300 | - | |
4 | 4~240 | - | - | - | - | - | |
YJV22 YJLV22 | - | - | - | - | - | - | - |
3 | 4~300 | 10~300 | 25~300 | 25~300 | 35~300 | - | |
4 | 4~240 | - | - | - | - | - | |
YJV22 YJLV22 | - | - | - | - | - | - | - |
3 | 4~300 | 10~300 | 25~300 | 25~300 | 35~300 | - | |
4 | 4~240 | - | - | - | - | - |
