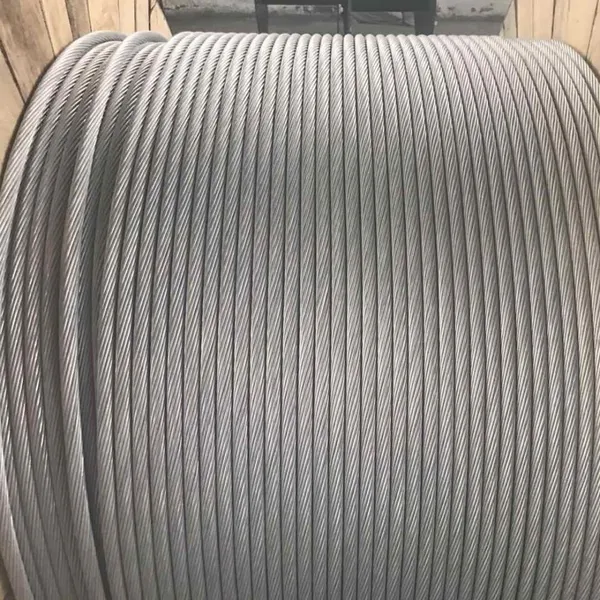

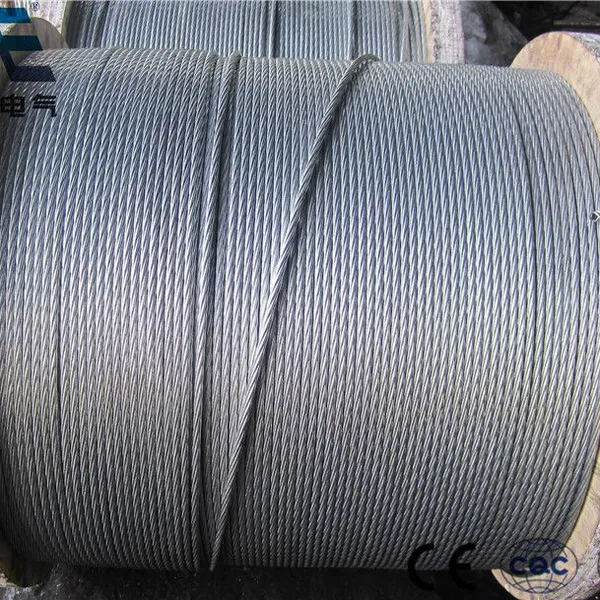

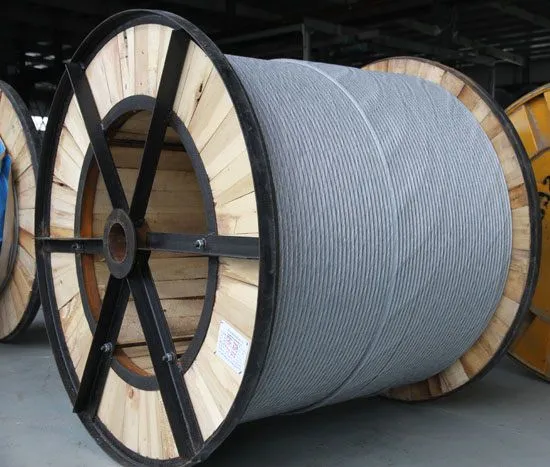

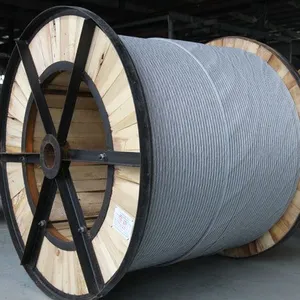

Aluminum-Clad Steel Strand for Overhead Transmission Line
High Corrosion Resistance Aluminum Clad Steel Guy Wire Strand
20AC 30AC 40AC Conductivity Aluminum-Clad Steel Strand
JLB Type Aluminum Clad Steel Strand for OPGW Ground Wire
High Tensile Aluminum-Clad Steel Strand for Power Tower Stay
ASTM B415 Compliant Aluminum Clad Steel Strand for Aerial Cable
Brief Description:
Aluminum clad steel wire is perfectly combined posed of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.
Application:
It is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW,overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW , ground wire , messenger wire , guy wire formed wire for protecting , terminating and splicing transmission and distribution lines , fence , barber wire and hardware etc.
Construction:
Aluminum clad steel wire is a kind of bimetallic wire that aluminum covers on the steel core continuously and evenly.
Compared with ordinary aluminum cable steel reinforced, the conductor weight is 5% lighter, current-carrying capacity is 2-3% higher and power loss decreases 4-6%. Thus, the service life is long and it adds none erection cost.
| ALUMINUM CLAD STEEL STRAND ASTM B416 | |||||||
| Code Number | Area |
No. of wires |
Diameters (mm) | Weight |
Rated Strength |
DC Resistance |
|
| mm2 | wire | conductor | kg/km | kN | ohm/km | ||
| 3 No 5 Awg. | 50,32 | 3 | 4,62 | 9,96 | 334,1 | 54,42 | 1.6990 |
| 3 No 6 Awg. | 39 ,00 | 3 | 4,11 | 8,87 | 265,0 | 45,74 | 2.1420 |
| 3 No 7 Awg. | 31,65 | 3 | 3,67 | 7,90 | 210,1 | 38,36 | 2.7010 |
| 3 No 8 Awg. | 25,10 | 3 | 3,26 | 7,03 | 166,7 | 32,06 | 3.4060 |
| 3 No 9 Awg. | 19,90 | 3 | 2,91 | 6,26 | 132,2 | 25,43 | 4.2940 |
| 3 No 10 Awg. | 15,78 | 3 | 2,59 | 5,58 | 104,8 | 20,16 | 5.4150 |
| 7 No 5 Awg. | 117,40 | 7 | 4,62 | 13,90 | 781,1 | 120,27 | 0,7426 |
| 7 No 6 Awg. | 93,10 | 7 | 4,11 | 12,40 | 619,5 | 101,14 | 0,9198 |
| 7 No 7 Awg. | 73,87 | 7 | 3,67 | 11,00 | 491,1 | 84,81 | 1.1600 |
| 7 No 8 Awg. | 58,56 | 7 | 3,26 | 9,78 | 389,6 | 70,88 | 1.4630 |
| 7 No 9 Awg. | 46,44 | 7 | 2,91 | 8,71 | 308,9 | 56,20 | 1.8440 |
| 7 No 10 Awg. | 36,83 | 7 | 2,59 | 7,76 | 245,1 | 44,58 | 2.3250 |
| 7 No 11 Awg. | 29,21 | 7 | 2,30 | 6,91 | 194,4 | 35,35 | 2.9320 |
| 7 No 12 Awg. | 23,16 | 7 | 2,05 | 6,16 | 154,2 | 28,03 | 3.6970 |
| 19 No 5 Awg. | 318,70 | 19 | 4,62 | 23,10 | 2129,0 | 326,39 | 0,2698 |
| 19 No 6 Awg. | 252,70 | 19 | 4,11 | 20,60 | 1688,0 | 274,55 | 0,3402 |
| 19 No 7 Awg. | 200,40 | 19 | 3,67 | 18,30 | 1339,0 | 230,18 | 0,4290 |
| 19 No 8 Awg. | 158,90 | 19 | 3,26 | 16,30 | 1062,0 | 192,41 | 0,5409 |
| 19 No 9 Awg. | 126,10 | 19 | 2,91 | 14,50 | 842,0 | 152,58 | 0,6821 |
| 19 No 10 Awg. | 99,96 | 19 | 2,59 | 12,90 | 667,7 | 121,00 | 0,8601 |
| 37 No 5 Awg. | 620,60 | 37 | 4,62 | 32,30 | 4170,0 | 635,43 | 0,1394 |
| 37 No 6 Awg. | 492,20 | 37 | 4,11 | 28,80 | 3307,0 | 534,85 | 0,1757 |
| 37 No 7 Awg. | 390,30 | 37 | 3,67 | 25,70 | 2623,0 | 448,09 | 0,2216 |
| 37 No 8 Awg. | 309,50 | 37 | 3,26 | 22,90 | 2080,0 | 374,67 | 0,2794 |
| 37 No 9 Awg. | 245,50 | 37 | 2,91 | 20,30 | 1649,0 | 279,11 | 0,3523 |
| 37 No 10 Awg. | 194,70 | 37 | 2,59 | 17,90 | 1308,0 | 235,61 | 0,4443 |
Dual high-performance design for aluminum-clad steel strand & wire, combining ultra-high tensile steel core and dense aluminum coating, delivering 20%-30% stronger load capacity than regular steel products.
Outstanding anti-corrosion performance, effectively resisting coastal salt spray, industrial fumes and harsh weather, extending service life over 40 years without frequent maintenance.
Excellent electrical conductivity, low power loss, ideal for OPGW matching, overhead transmission lines, power tower stays and railway catenary support scenarios.
Strictly compliant with ASTM B415 & IEC 61232 standards, customizable conductivity grades from 20AC to 40AC, easy for on-site installation with stable long-term operation.
