1. Product Overview

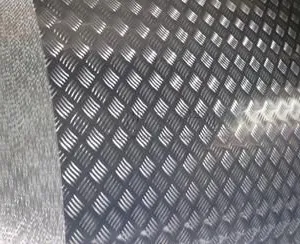

Checkered steel plates, also known as anti-slip plates, tread plates or diamond plates, are produced by a hot rolling embossing process using carbon steel, galvanized steel or aluminum alloy substrates. Continuous raised patterns are rolled onto the plate surface through one integrated forming process, without bonding or splicing.
The concave-convex texture greatly improves surface friction, combining anti-slip, wear-resistant, load-bearing, drainage, dust-proof and decorative functions. It solves the common disadvantages of flat plates, such as easy slipping, water and dust accumulation, and insufficient bearing capacity. Checkered plates are widely used in industrial platforms, ships, vehicles, building stairs, equipment walkways, municipal engineering and other anti-slip load-bearing scenarios.

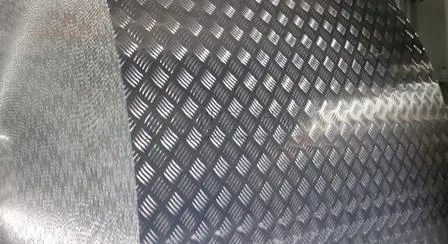

Main pattern types:Lentil / teardrop pattern (most widely used), diamond pattern, five-bar pattern, round bean pattern, orange peel pattern.
Main Implementation Standards
Chinese National StandardsGB/T 3277 Checkered Steel PlatesGB/T 33974 Continuously Hot Rolled Checkered Steel Sheets and StripsGB/T 700 Carbon Structural SteelGB/T 1591 Low Alloy High Strength Steel
International Export StandardsASTM A36 / A283 Gr.CEN S235JR, S275JRJIS G3101 SS400
Supporting Test StandardsTensile test, cold bending test, pattern height and forming rate test, dimensional tolerance inspection.
2. Main Materials and Applicable Working Conditions
2.1 Ordinary Carbon Checkered Plates
Q235B / SS400 / A36
Working condition: Indoor workshop platforms, stair treads, equipment base plates, factory walkways, truck carriage floors.
Performance: Optimal cost performance, excellent welding and cutting machinability, suitable for ordinary anti-slip scenarios in dry inland areas.
Surface: Hot rolled black scale; shot blasting or painting anti-corrosion available upon request.
2.2 Hot-dip Galvanized Checkered Plates
GI
Working condition: Outdoor open-air walkways, humid workshops, sewage treatment plants, mild corrosive environments.
Performance: Hot-dip galvanized coating on the surface, rust and corrosion resistant, no need for on-site painting.
2.3 Aluminum Alloy Checkered Plates
1060 / 3003 / 5052
Working condition: Ship decks, elevator car floors, lightweight vehicle pedals, landscape decorative walkways.
Performance: Light weight, rust-proof, easy to bend, first choice for lightweight projects.
2.4 Low Alloy High Strength Checkered Plates
Q355B
Working condition: Heavy-duty forklift passages, heavy machinery platforms, port heavy-load walkways, large equipment bases.
Performance: High yield strength, superior impact resistance and load-bearing capacity compared with ordinary carbon steel.
3. Specification Parameters
Substrate thickness range: 2.0mm～12.0mmRaised pattern height: 0.5～2mm, not counted into the substrate thickness.
Light load: 2.5–4.0mm, suitable for stairs and small platforms.
Medium load: 4.0–6.0mm, suitable for workshop walkways.
Heavy load: 6.0–12.0mm, suitable for forklifts and port heavy-duty areas.
Standard width: 1000mm, 1250mm, 1500mmCustomized narrow slitting available.
Standard fixed length: 2000mm, 6000mm, 12000mmRandom cutting available upon request.
Dimensional toleranceThickness: ±0.3~±0.6mmWidth: 0~+5mmFlatness meets CNC cutting and bending requirements.
Theoretical weight calculationUnit weight = theoretical weight of flat plate + pattern weight increment.The lentil pattern generally increases weight by about 5% to 8%.
4. Complete Production Process
Uncoil hot rolled substrate and clean the surface to remove oxide scale and impurities.
Integrated embossing rolling by high-temperature mill, forming standard raised patterns in one pass.
Temperature-controlled cooling to ensure full and uniform pattern height without incomplete forming.
Straightening and leveling to eliminate rolling warpage and ensure flat plate surface.
Fixed-length cutting and deburring. Galvanized and aluminum alloy materials can receive additional surface treatment.
Full visual inspection, including pattern forming rate, missing patterns, scratches and pits. Random dimensional inspection.
Mark spraying, classified packing and warehousing.
5. Mandatory Factory Inspection Items
Spectral composition test: Strict control of carbon, manganese, sulfur and phosphorus impurity content.
Mechanical performance: Room-temperature tensile test and 180° cold bending test, no cracking or peeling after bending.
Special pattern inspection: Pattern height, complete forming degree and uniform spacing.
Full dimensional inspection: Substrate thickness, width, length and plate flatness.
Visual inspection: Free of missing patterns, scratches, double skins, pits and oil stains.
6. Main Application Fields
Industrial WorkshopsFactory anti-slip platforms, stair treads, trench cover plates, walkways around equipment.
Ship and Offshore EngineeringAnti-slip walkways on ship decks, offshore platform tread plates, cabin bottom plates.
Transportation VehiclesTruck and bus carriage floors, forklift passages, anti-slip plates for rail transit platforms.
Architectural DecorationSteel structure stairs, sightseeing walkways, elevator car floors, landscape decorative panels.
Municipal and Port WorksHeavy-duty dock walkways, municipal trench cover plates, temporary anti-slip plates for construction sites.
Logistics and Heavy EquipmentForklift operation areas, equipment base plates, loading and unloading platform surfaces.
7. Core Product Advantages
Excellent anti-slip performanceThe 3D raised pattern increases friction and effectively prevents slipping under wet, oily or dusty conditions.
Wear-resistant and load-bearingIntegrated hot rolled forming ensures the pattern is not easy to wear or fall off, and the plate remains stable under long-term heavy load.
Drainage and dust reductionThe concave-convex gaps allow rapid drainage and reduce water accumulation, dust accumulation and cleaning maintenance cost.
Convenient processingCan be arbitrarily cut, bent, welded and punched, adaptable to various on-site processing requirements.
Multiple material optionsCarbon steel, galvanized steel and aluminum alloy can be selected according to dry, humid, corrosion-resistant or lightweight requirements.
Functional and decorative appearanceNeat surface with clear patterns, suitable for direct exposed use without additional finishing.
8. Delivery, Packing and Logistics
Delivery States
Carbon steel checkered plates: Hot rolled black oxide surface, shot blasting rust removal optional.
Galvanized checkered plates: Finished bright rust-proof surface.
Aluminum alloy checkered plates: Clean surface with natural metallic luster.
Plate MarkingEach plate is sprayed with material grade, execution standard, substrate thickness, dimension and heat batch number.
PackingThin plates are bundled with steel strips on wooden pallets and covered with rainproof film. Thick plates are fixed separately. Reinforced seaworthy packing available for export.
Delivery Lead TimeRegular in-stock Q235B lentil pattern plates: Delivery within 5–7 days.Customized galvanized, aluminum alloy and special thickness plates: 7–10 days.Container shipment available from Tianjin Port.
Attached Shipping DocumentsOriginal Mill Test Certificate, mechanical performance inspection report, factory certificate.
