1. Product Overview
This series of portable industrial waterproof socket distribution boxes are customized for temporary power consumption in construction sites, factory workshops, stage performances, engineering renovations and exhibition projects. Adopting high-impact ABS waterproof housing with IP54 protection grade, built-in standard RCD leakage protectors and MCB miniature circuit breakers, supporting single-phase and three-phase input, with diversified customized collocations of industrial multi-core sockets and civilian sockets. Equipped with a portable hand-held structure, it can be freely moved for temporary power supply on site, and can also be fixed on the wall for long-term stable power distribution. Multiple current specifications of 16A and 32A are optional, which can safely supply power for small and medium-power electrical equipment in various scenarios.
2. Core Product Features
(1) Rugged IP54 Waterproof & Dustproof Enclosure
The box body is made of thick modified ABS engineering plastic, with strong compression, drop and impact resistance. The overall sealing structure reaches IP54 protection grade, which can effectively block rain splashing, construction dust and sundry intrusion, greatly extending the service life in damp and dusty outdoor environments.
(2) Dual Safety Electrical Protection System
Each distribution box is equipped with residual current leakage protection device to prevent electric shock accidents; each output loop is equipped with independent MCB air switch, which can automatically cut off the power supply when overload or short circuit occurs. The independent loop design avoids the risk of full-box power failure caused by single-circuit fault, greatly improving the safety and continuity of on-site power consumption.

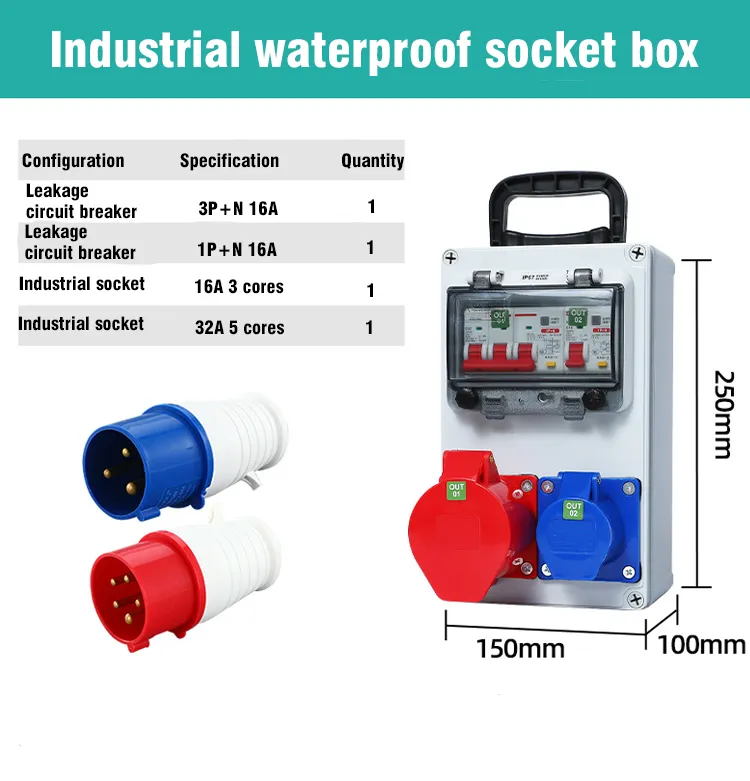

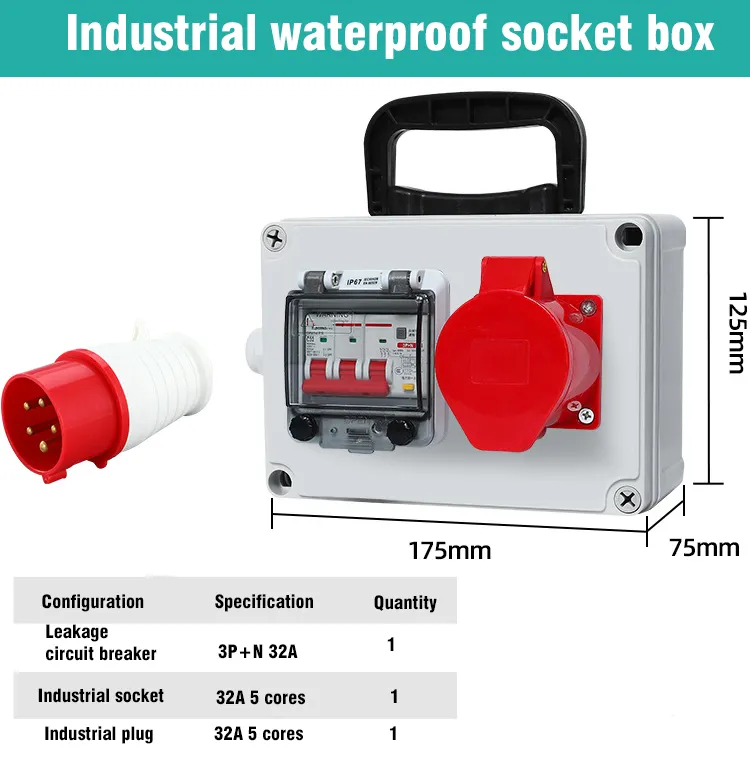

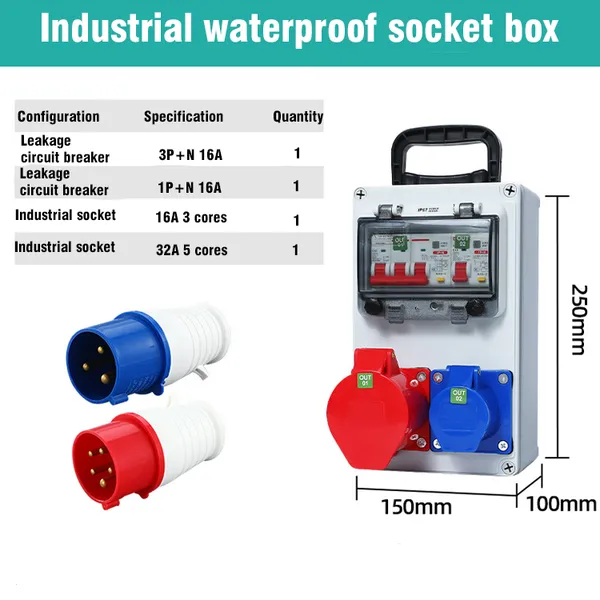

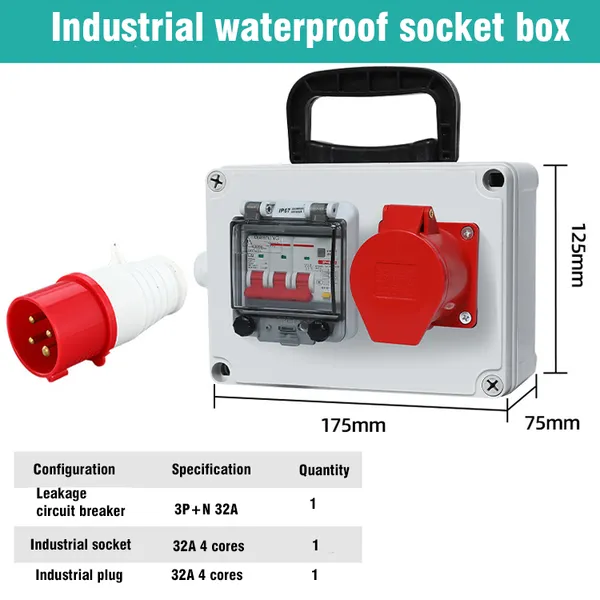

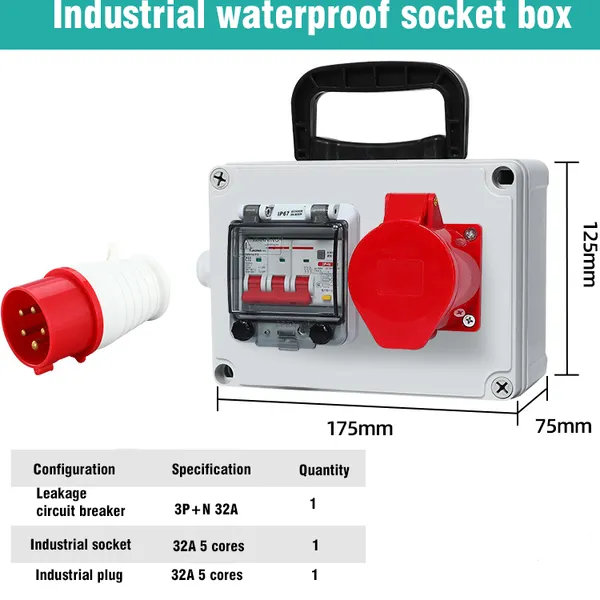

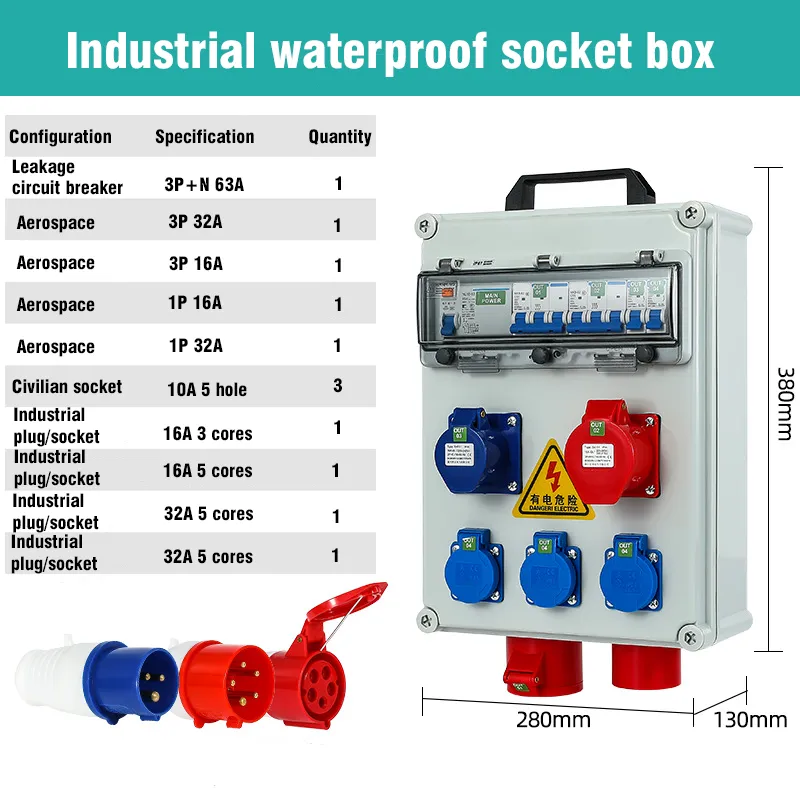

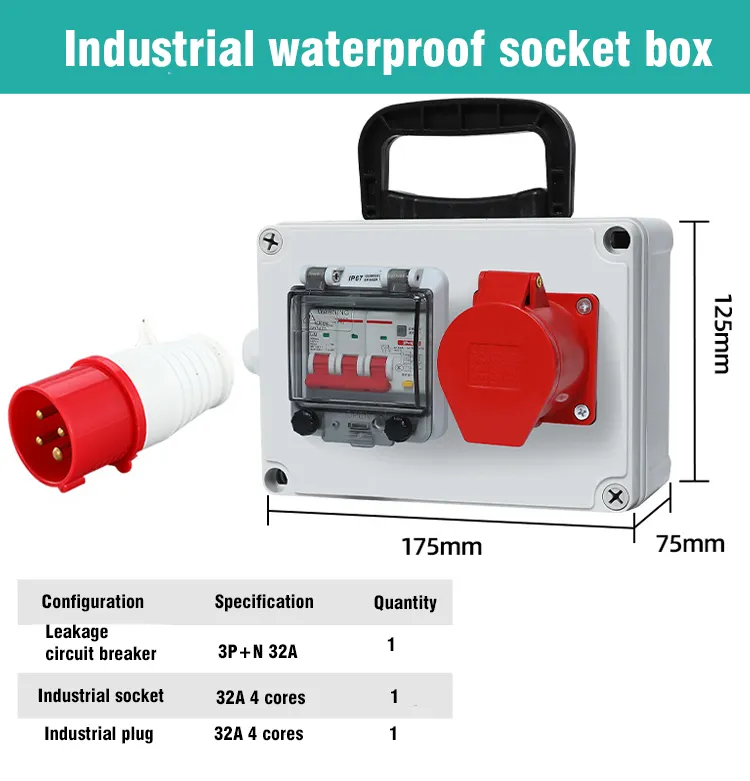

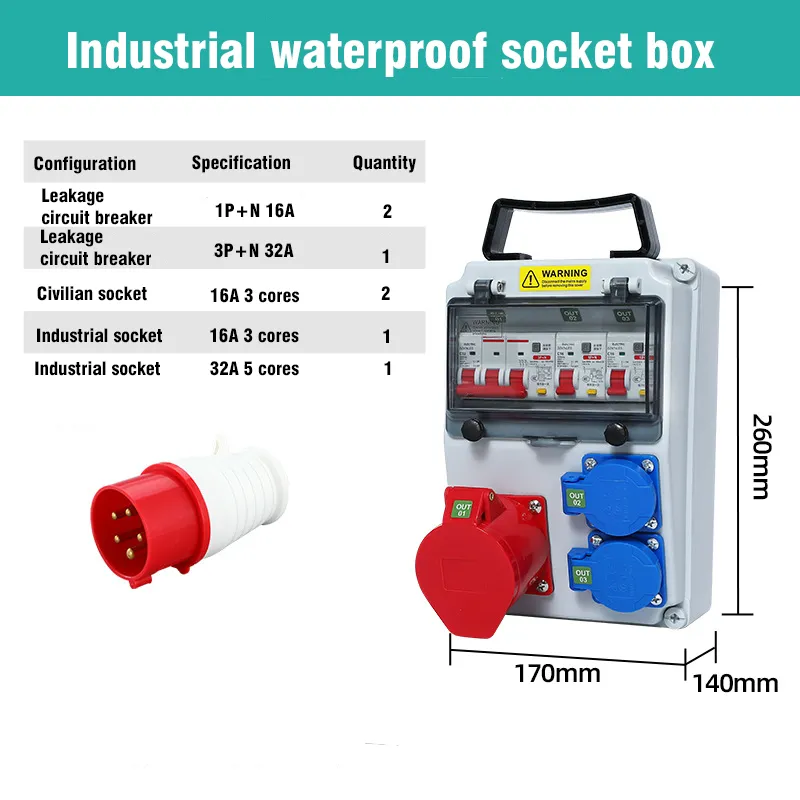

(3) Diversified Customizable Configurations
Phase Type: Single-phase 230V / Three-phase 400V optional
Rated Current: 16A, 32A mainstream specifications customizable
Socket Collocation: 3-core/4-core/5-core industrial waterproof sockets, 3-hole/5-hole civilian standard sockets optional
Circuit Design: Single-loop compact type, multi-loop multi-outlet expanded type, high-current multi-channel centralized power supply type can be customized according to customer demand
(4) Flexible Portable & Wall-mounted Dual Installation
The top integrated handle is convenient for on-site carrying and transfer; reserved fixed mounting holes on the back of the box support wall-mounted installation, which is suitable for long-term fixed power distribution in workshops, warehouses and other places. The transparent waterproof protective cover of the circuit breaker can effectively prevent dust and water mist from entering the electrical components.
(5) Wide Compatibility & Application Scenarios
Matched with standard European industrial plugs and national standard civilian plugs, widely used in construction site power taking, factory equipment maintenance, outdoor stage performance power distribution, exhibition booth temporary electricity, municipal engineering construction, warehouse mobile power supply and other fields.
3. Main Technical Parameters
Enclosure Material: Reinforced Modified ABS Engineering Plastic
Protection Grade: IP54
Rated Voltage: Single Phase 230V / Three Phase 400V
Rated Current: 16A, 32A Optional
Protection Device: RCD Residual Current Circuit Breaker + MCB Miniature Circuit Breaker
Socket Type: Industrial 3/4/5 Pin Waterproof Socket, Civilian Standard Socket
Installation Method: Portable Handheld / Wall Mounted
Custom Service: Support OEM for box size, loop quantity, socket combination, current parameter
4. Packing Details
Inner Package: EPE pearl cotton shockproof single packaging
Outer Package: Export standard corrugated carton, compression and drop resistance, suitable for sea, air, land cross-border transportation
