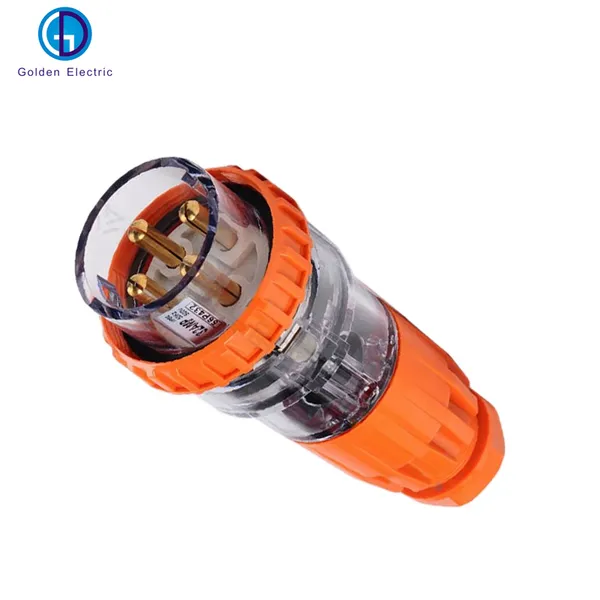

Help CenterAustralian Standard 3/4/5 Pin Industrial Male Plug for Construction Site, Stage Lighting, Farm Outdoor Temporary Power Connection
Product Spotlights
Transparent front cover allows visual inspection of internal wiring, effectively avoiding wrong wiring and hidden electrical safety hazards.
High-toughness orange PA66 flame retardant shell features anti-impact, anti-aging performance for frequent plug and unplug use.
Related Products
-
Australian Standard 5 Pin Industrial Male Plug for Construction Site, Stage Lighting, Farm Outdoor Temporary Power ConnectionUS$ 15 - 30MOQ: 1 Unit -
Orange Angled AU Standard Industrial Waterproof Plug, Heavy Duty 90 Degree Elbow Electrical Plug ConnectorUS$ 15 - 30MOQ: 1 Unit
-
Garden Outdoor Power Supply, Garage Workshop Wall Socket, Farm Exterior Electrical Outlet, Construction Temporary Power, Caravan External Power SocketUS$ 15 - 50MOQ: 10 Pieces
-
Industrial Socket Plug 16A 32A 63A 125A IP44 IP67 Male and Female With Cover SocketUS$ 0.5 - 50MOQ: 1 Unit
-
Australian Standard IP66 Industrial Plug With Socket 56P310/56P315 10A 15A 20A 250V 3 Flat Round Pins Waterproof 3 OutletsUS$ 0.5 - 50MOQ: 1 Unit
1.Product Overview

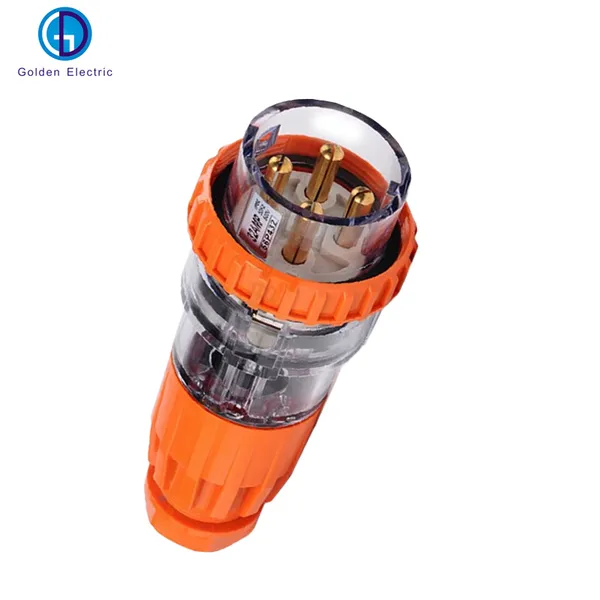

This Australian standard IP66 waterproof industrial male plug is a heavy-duty electrical connector designed for industrial, construction, stage, agricultural and outdoor temporary power supply occasions. It adopts high-quality H63 copper nickel-plated pins with superior corrosion resistance and stable conductive performance. Equipped with dual rubber sealing gaskets, the plug reaches IP66 waterproof and dustproof grade, which can work safely in humid, rainy and dusty harsh environments.The transparent front cover enables direct observation of internal wiring status to prevent wrong wiring faults. The flame-retardant PA66 orange shell features high mechanical strength, matched with bayonet locking structure and strain relief cable gland to ensure safe and reliable connection. A full range of specifications including 3/4/5 poles and 10A/20A/32A/40A/50A current options are provided, widely used for connecting temporary power equipment such as construction machinery, stage lighting, workshop equipment and farm irrigation devices.
2. Core Product Features

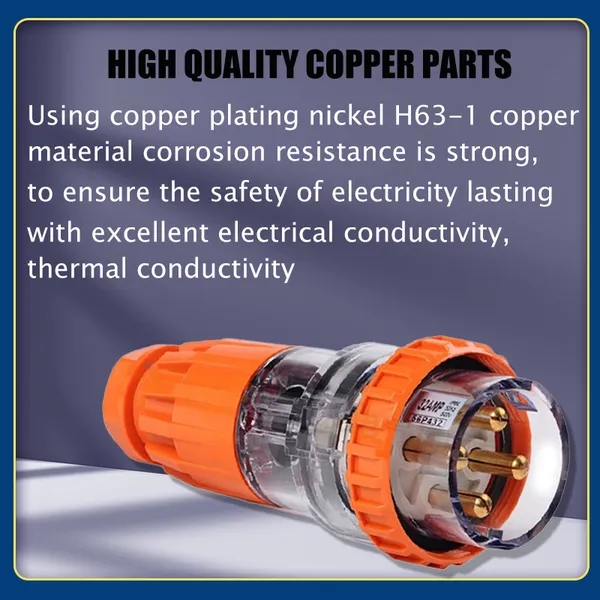

(1) Nickel-plated H63 High-purity Copper Conductive Pins
The internal contact pins are made of H63 brass with overall nickel plating treatment, effectively resisting oxidation, rust and chemical corrosion. It has excellent electrical and thermal conductivity, low contact resistance, no abnormal heating under long-term high-load operation, ensuring long-term safe and stable power transmission.
(2) IP66 Dual Sealing Waterproof & Dustproof Structure
Double rubber sealing gaskets are installed inside the plug to achieve IP66 protection level, which can effectively block splashing rainwater, dust, mist and debris intrusion, avoiding leakage and short-circuit accidents caused by environmental erosion, perfectly adapting to long-term open-air outdoor use.

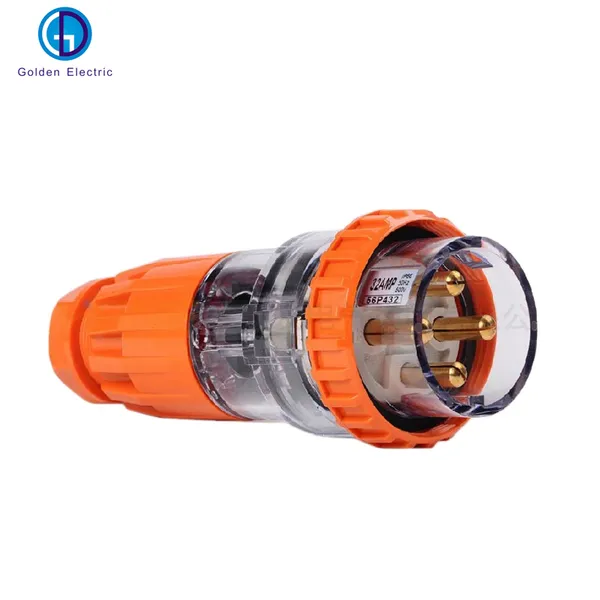

(3) Transparent Visual Front Cover Design
The transparent front shell allows electricians to directly check internal wiring and terminal crimping conditions, quickly discover wrong wiring, loose terminals and hidden dangers, greatly improving on-site electrical construction safety and maintenance efficiency.
(4) Flame-retardant High Toughness PA66 Shell
The outer main body is made of orange high-strength flame-retardant PA66 engineering plastic, with outstanding impact resistance, drop resistance, aging resistance and oil resistance. It can withstand frequent plugging and unplugging without cracking or deformation, adapting to rough construction site use.
(5) Bayonet Locking + Strain Relief Cable Clamp
Adopts bayonet rotary locking structure to lock the plug and socket tightly to prevent accidental pull-off and sudden power failure. The rear strain relief cable gland firmly clamps the connecting cable to avoid wire falling off and poor contact caused by pulling and twisting.
(6) Complete Specifications & Easy Disassembly Installation
Multiple poles (3P/4P/5P) and current ratings (10A/20A/32A/40A/50A) are optional to meet different load power demands. The modular detachable structure facilitates fast on-site wiring, terminal crimping and later maintenance replacement, complying with Australian industrial electrical safety standards with CE certification.

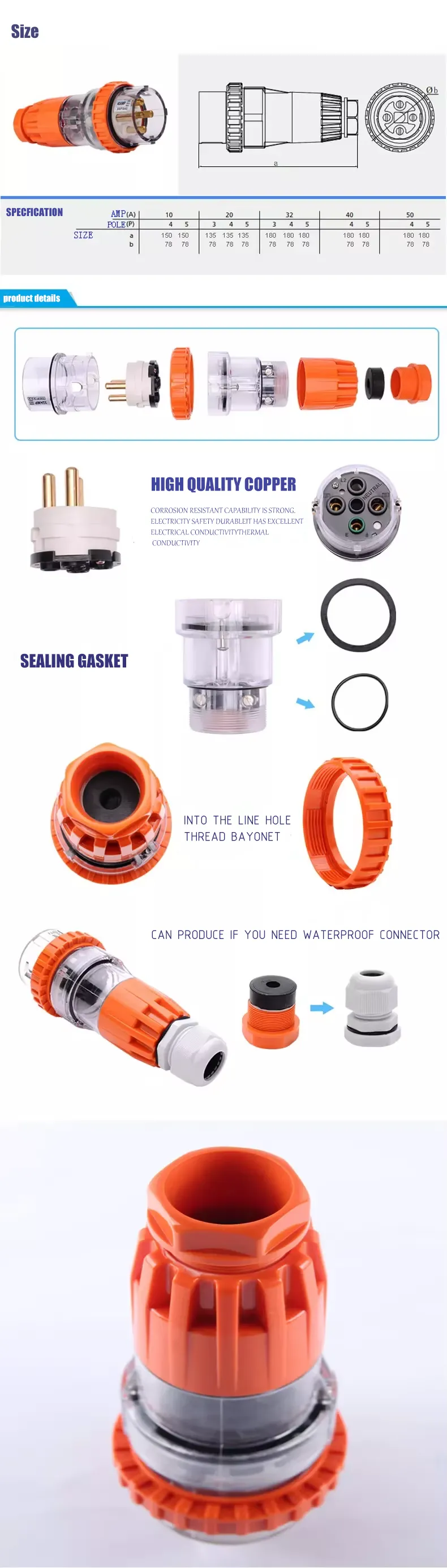

3. Main Technical Parameters
Product Name: AU Standard IP66 Waterproof Industrial Male Plug
Protection Grade: IP66
Conductor Material: H63 Brass with Nickel Plating
Shell Material: Flame Retardant PA66 Engineering Plastic
Available Poles: 3P / 4P / 5P
Rated Current: 10A / 20A / 32A / 40A / 50A Optional
Rated Voltage: 500V
Locking Mode: Bayonet Locking
Feature: Transparent Cover, Strain Relief, Detachable Modular Structure
Certification: CE
Application: Construction Site, Stage Lighting Equipment, Workshop Machinery, Farm Electrical System, Outdoor Temporary Power Distribution
4. Packing Details
Inner Package: Independent PE Plastic Bag
Outer Package: Export Standard Corrugated Carton, Shockproof & Compression Resistant for Global Logistics
