Portable Industrial Waterproof Socket Box With Circuit Breaker Overload Leakage Protection, Multiple Sizes & Socket Configurations Optional
Product Spotlights
Complete electrical protection system
Ergonomic top carry handle design, lightweight structure for easy moving, on-site layout and repeated transportation
Compact size with neat internal wiring, easy wall-mounted or floor-placed installation modes
1. Product Overview
This series of industrial waterproof socket boxes is tailor-made for temporary power distribution scenarios such as construction sites, workshops, stage performances and exhibitions. It adopts impact-resistant ABS waterproof housing, built-in standardized leakage circuit breakers and MCB miniature circuit breakers, with diversified socket collocation schemes (single 5-hole socket, 4-way 3-hole sockets, vertical multi-outlet types optional). Equipped with a portable carry handle, it can be freely moved and deployed on site, providing safe, stable and flexible temporary power access for various electrical equipment. The IP54 sealing design ensures stable operation in rainy, dusty indoor and outdoor environments.
2. Core Product Advantages
(1) Reliable Waterproof & Durable Housing
The box body is made of thick modified ABS engineering plastic, with strong compression and impact resistance. The overall sealing structure reaches IP54 protection grade, effectively blocking splashing rainwater, construction dust and debris, extending service life in harsh working conditions.
(2) Dual Safety Protection Mechanism
Every configuration is equipped with a leakage circuit breaker for anti-electric-shock protection; multi-socket models add independent 1P MCB air switches for each loop. When overload or short circuit occurs, the corresponding circuit will automatically cut off power, avoiding whole-box power failure and improving on-site power safety.

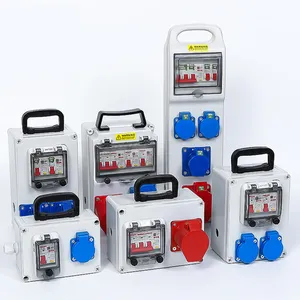

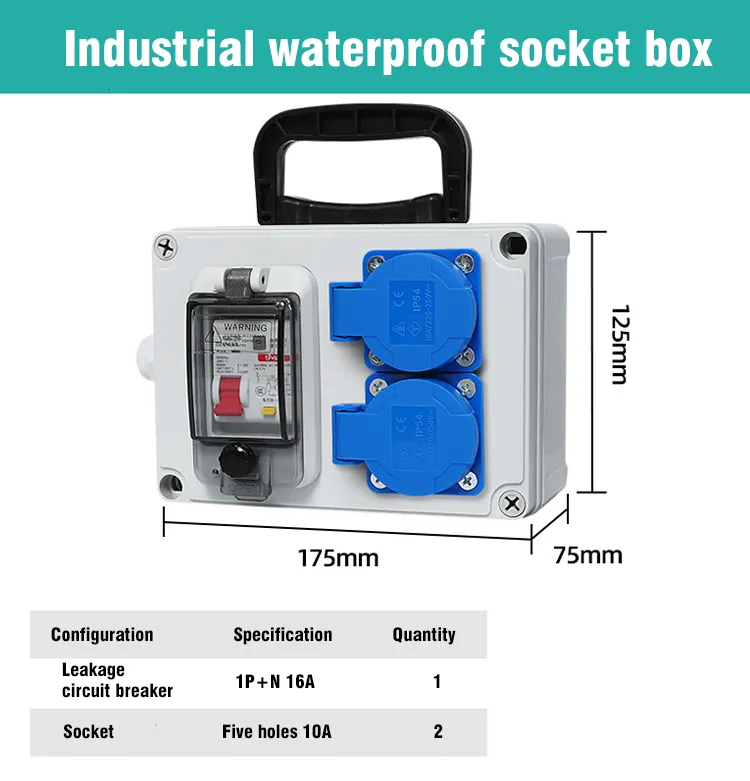

(3) Rich Customizable Configurations

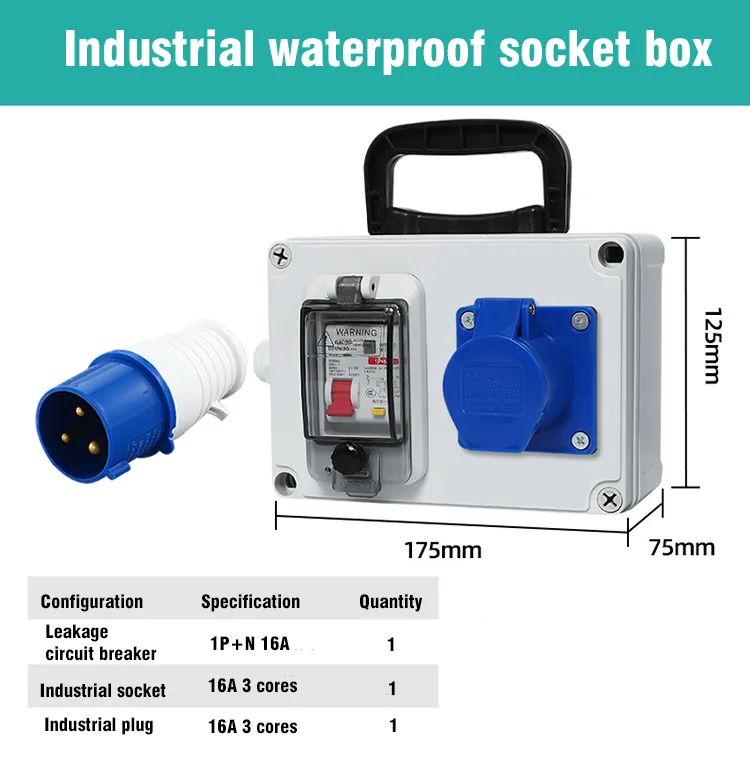

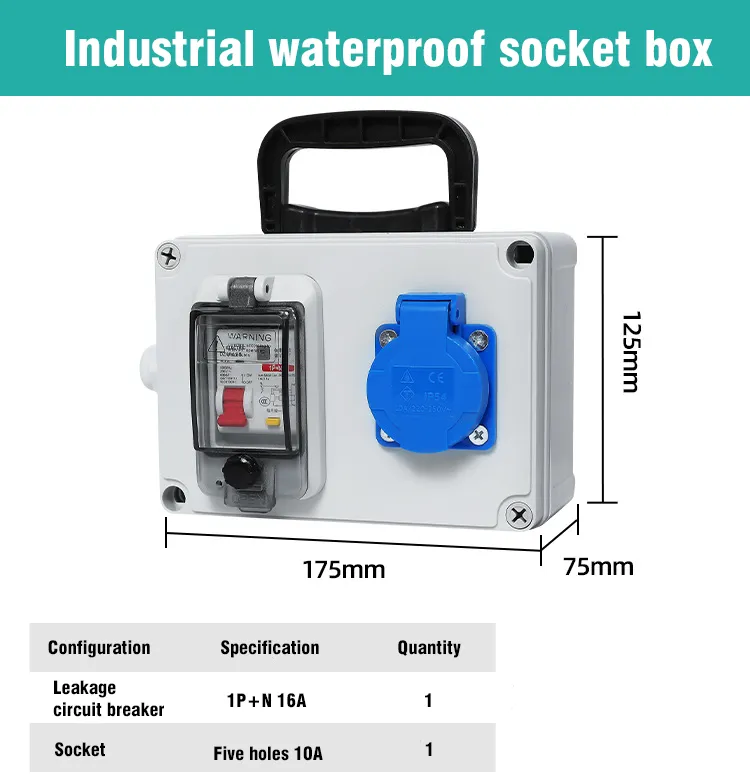

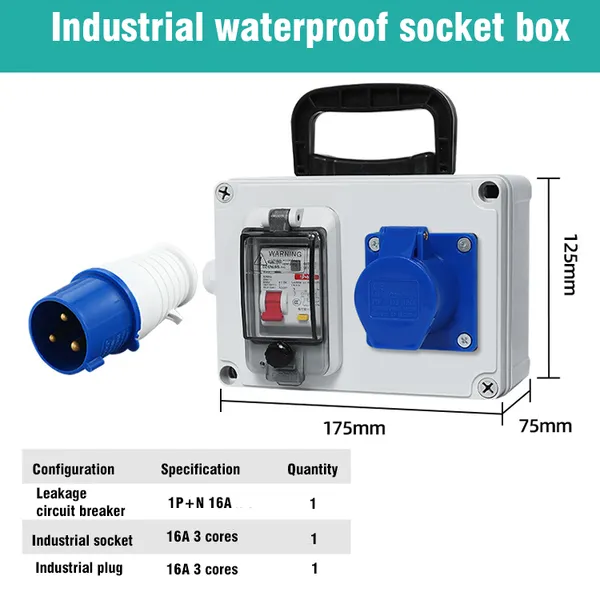

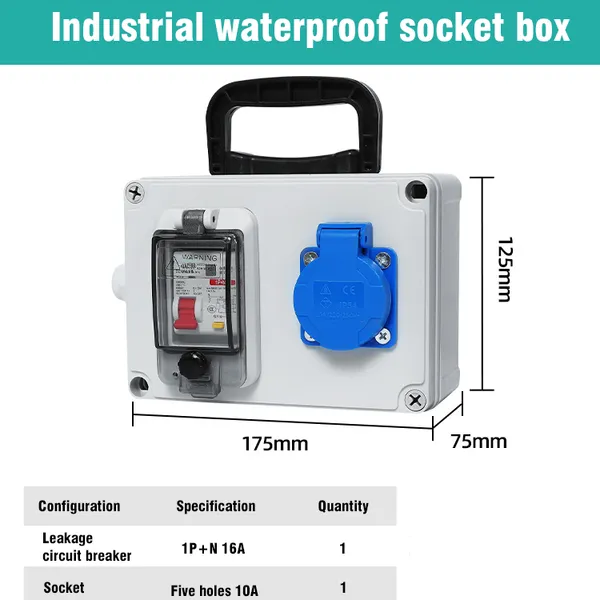

Single-socket version: 1P+N 16A leakage breaker + 1pcs 10A five-hole civilian socket, compact for small-power single-device use
4-socket version: 1P+N 16A main leakage breaker + 4pcs 1P 16A independent air switches + 4pcs 10A three-hole sockets, supporting 4 devices working simultaneously

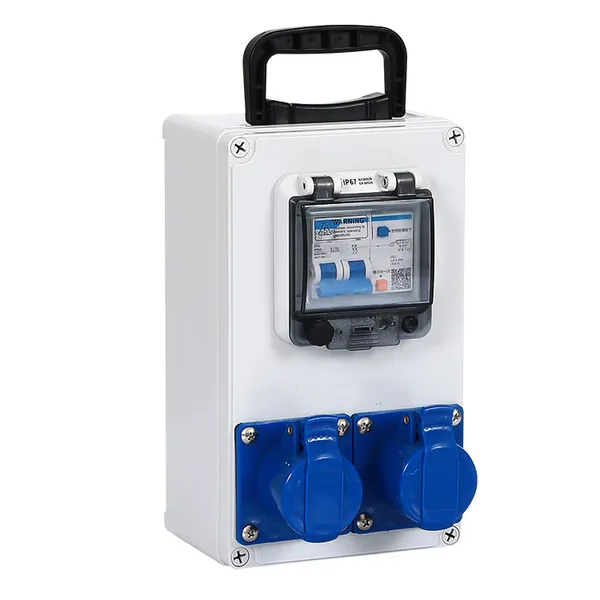

Vertical long version: higher capacity with more output sockets, suitable for multi-device concentrated power supply needs

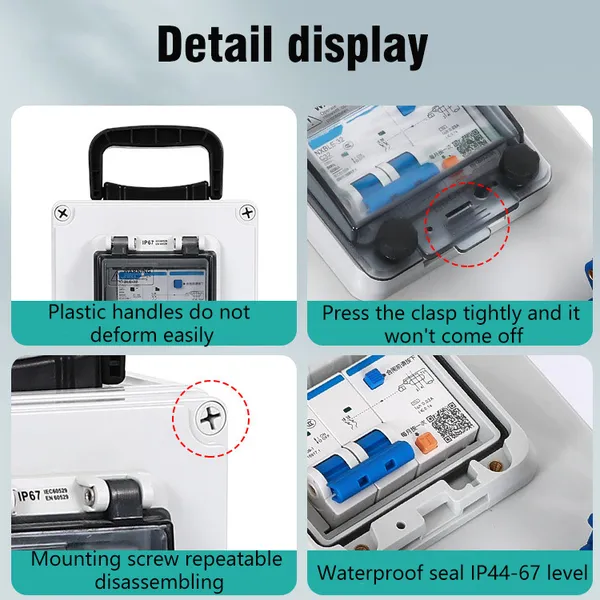

(4) Portable & Flexible Installation
The integrated top handle allows easy carrying between construction sites and event venues; reserved mounting holes support wall-fixed installation for long-term workshop use. The transparent switch cover makes daily inspection and maintenance more convenient.
(5) Wide Compatibility & Application
Matched with standard civilian or industrial waterproof sockets, it can connect electric drills, cutting machines, stage lighting, audio equipment, exhibition booth devices, covering construction, factory, entertainment, commercial exhibition multiple fields.
3. Detailed Technical Parameters
| Item | Single-socket Model | 4-socket Horizontal Model | Vertical Long Model |
|---|---|---|---|
| Overall Size | 175*125*75mm | 260*170*140mm | Customizable height & width |
| Protection Grade | IP54 | IP54 | IP54 |
| Main Leakage Breaker | 1P+N 16A | 1P+N 16A | Customizable Ampere |
| Branch Air Switch | None | 4pcs 1P 16A | Customizable quantity & current |
| Socket Spec | 1pcs 10A 5-hole | 4pcs 10A 3-hole | Optional civilian/industrial sockets |
| Housing Material | Reinforced ABS Plastic | Reinforced ABS Plastic | Reinforced ABS Plastic |
| Installation Way | Portable / Wall-mounted | Portable / Wall-mounted | Portable / Wall-mounted |
4. Packing Solution
Inner packing: EPE pearl cotton shockproof wrapping for each unit
Outer packing: Export-grade corrugated carton, pressure-resistant and drop-resistant, fit for sea, air and land cross-border transportation
FAQ
1) Q:Why use electrical cabinet heater?
A:The heat generated by electrical equipment under load operation can prevent the accumulation of condensate. However, when the equipment stops working and cools down, it will gradually adapt to the surrounding ambient temperature, causing the temperature inside the cabinet to drop below the dew point. Because this triggers the demand for radiant heat! The heater prevents the formation of condensate by raising the temperature of the electrical cabinet by several degrees above the ambient temperature outside the cabinet
2) Q:Your products?
A: Golden electric is factory for Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: After Sales Service?
A: We will provide the best After-sales Service
4) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN,UNION,CASH for small order.
5) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
6) Q:What's your contact information ?
Send your Inquiry Details in the Below, Click "send" Now!! We will do our best to give you a perfect service.
