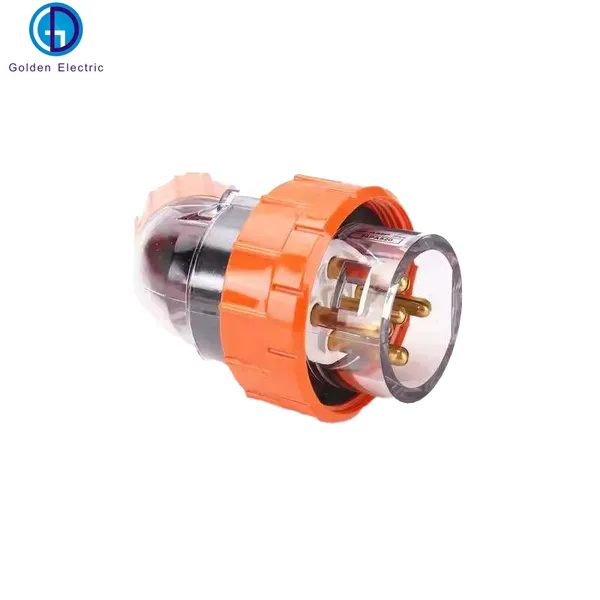

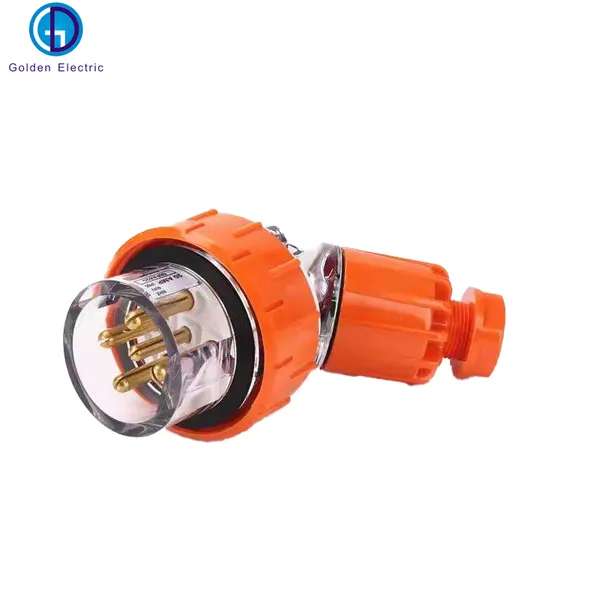

Help CenterOrange Angled AU Standard Industrial Waterproof Plug, Heavy Duty 90 Degree Elbow Electrical Plug Connector
Product Spotlights
Transparent front cover enables visual inspection of internal wiring, quickly troubleshooting loose terminals and wrong wiring to eliminate electrical safety risks.
High-toughness flame-retardant PA66 orange shell delivers outstanding impact, aging and oil resistance for frequent plug-unplug use.
Related Products
-
Garden Outdoor Power Supply, Garage Workshop Wall Socket, Farm Exterior Electrical Outlet, Construction Temporary Power, Caravan External Power SocketUS$ 15 - 50MOQ: 10 Pieces -
Industrial Socket Plug 16A 32A 63A 125A IP44 IP67 Male and Female With Cover SocketUS$ 0.5 - 50MOQ: 1 Unit
-
Australian Standard IP66 Industrial Plug With Socket 56P310/56P315 10A 15A 20A 250V 3 Flat Round Pins Waterproof 3 OutletsUS$ 0.5 - 50MOQ: 1 Unit
-
1-to-4 Industrial Waterproof Power Splitter, IP67 IEC Standard Multi-way Plug Adapter for Outdoor Stage & Worksite Power BranchingUS$ 0.5 - 50MOQ: 1 Unit
-
Lockable IP66 Waterproof Rotary Isolator Switch, 10A 32A 1-4 Pole Single/Three Phase Isolation Disconnect SwitchUS$ 10 - 35MOQ: 1 Piece
1. Product Overview
This 90-degree angled Australian standard IP66 waterproof industrial male plug is a heavy-duty elbow-type electrical connector specially developed for limited-space industrial, construction, stage and outdoor temporary power supply occasions. The right-angle structural design greatly reduces cable bending stress, effectively preventing wire insulation cracking and damage during wiring in narrow installation positions.It adopts high-quality H63 brass nickel-plated conductive pins with superior anti-oxidation and anti-corrosion performance, equipped with double rubber sealing gaskets to reach IP66 waterproof and dustproof protection level. The transparent front cover supports intuitive internal wiring inspection, while the flame-retardant PA66 orange housing matches bayonet locking and strain relief cable clamping structure to guarantee safe and reliable power connection.Available in 3/4/5 poles and 10A/20A/32A/40A/50A multiple current specifications, this angled industrial plug is widely applied to construction machinery, stage lighting equipment, workshop production lines, agricultural irrigation devices and various outdoor temporary power distribution engineering projects.
2. Core Product Features

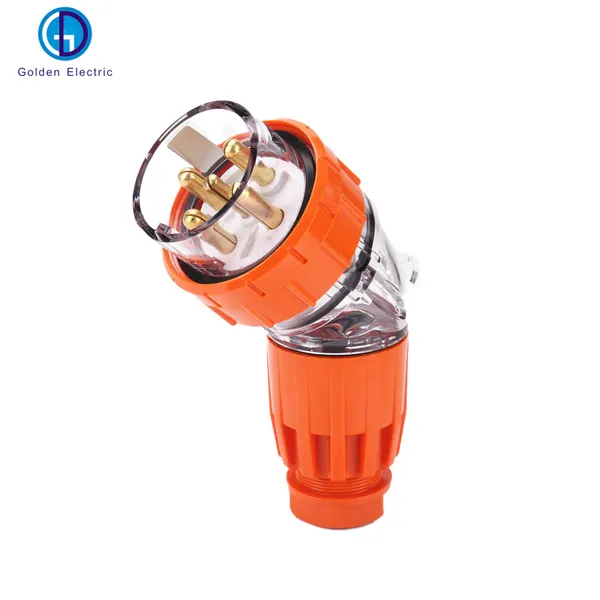

(1) 90-Degree Elbow Ergonomic Design
Unique right-angle outlet structure avoids sharp cable bending, effectively reducing wire tensile damage and insulation aging. It perfectly adapts to narrow wall corners, equipment embedded interfaces and compact wiring scenarios, greatly optimizing on-site wiring layout and prolonging cable service life.
(2) H63 Nickel-plated High-precision Copper Conductive Pins
Internal contact terminals are made of H63 brass with overall nickel plating treatment, featuring excellent anti-rust, anti-corrosion and oxidation-resistant capabilities. With low contact resistance and outstanding electrical & thermal conductivity, the plug runs safely without overheating under long-term full-load operation, ensuring stable power transmission for high-power equipment.

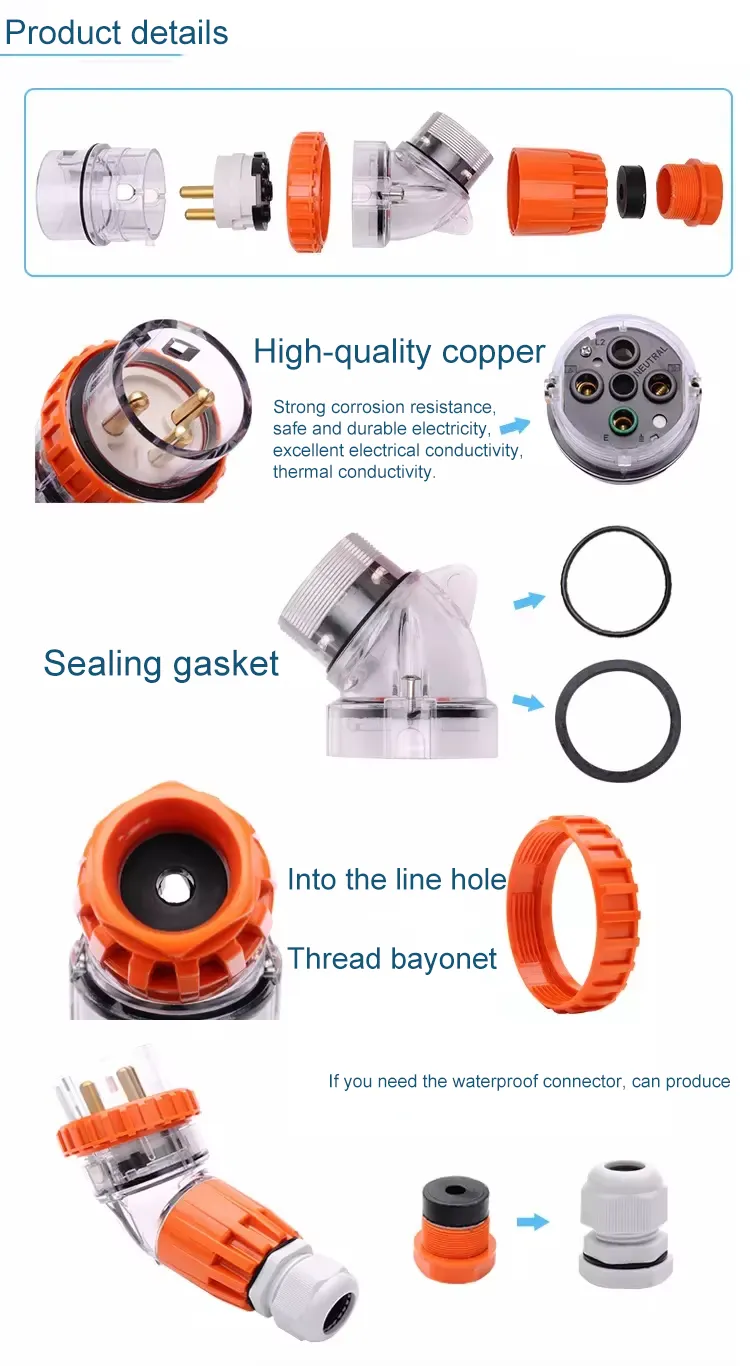

(3) IP66 Double Sealing Waterproof & Dustproof Structure
Two layers of high-elastic rubber sealing gaskets are installed inside the plug, which can effectively block splashing rainwater, dust, fog and sundry intrusion. It can work stably in humid, rainy and dusty open-air environments, avoiding leakage, short circuit and other electrical faults caused by environmental erosion.

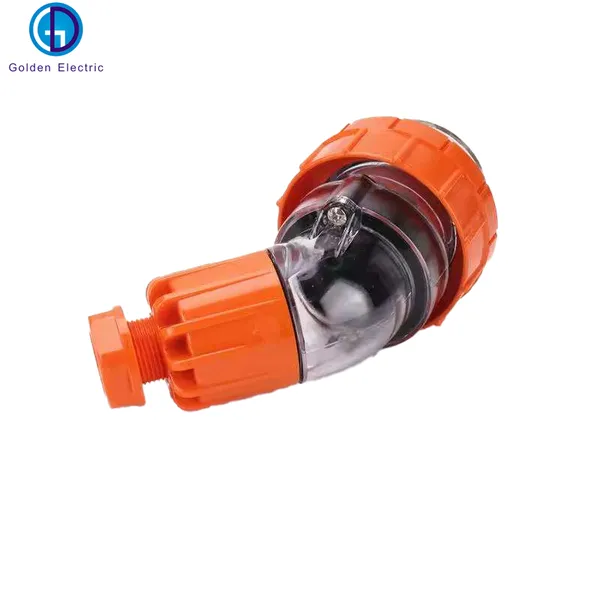

(4) Transparent Visual Front Cover for Safe Wiring Inspection
The transparent front shell allows electricians to directly observe internal terminal crimping, wiring sequence and wire connection status, quickly discovering hidden dangers such as wrong wiring and loose terminals, which significantly improves construction safety and later maintenance efficiency.
(5) Flame-retardant High-strength PA66 Protective Housing
The outer shell is made of high-performance orange flame-retardant PA66 engineering plastic, with excellent impact resistance, drop resistance, oil resistance and anti-aging properties. It can withstand frequent plugging and unplugging in harsh construction site environments without cracking, deformation or aging failure.
(6) Bayonet Locking + Strain Relief Cable Protection
Rotary bayonet locking tightly connects the plug and socket to prevent accidental pull-off and sudden power failure. The rear professional strain relief cable gland firmly locks the connecting cable, effectively avoiding poor contact or wire falling off caused by frequent pulling and twisting.
(7) Complete Specifications & Modular Disassembly Structure
Multiple pole numbers (3P/4P/5P) and rated currents ranging from 10A to 50A are optional to meet different load power demands. The split modular design supports rapid field wiring, terminal crimping and component replacement, complying with Australian industrial electrical standards and certified by CE for global export.
3. Main Technical Parameters
Product Name: 90 Degree Angled AU Standard IP66 Waterproof Industrial Male Plug
Protection Grade: IP66
Conductive Material: H63 Brass with Nickel Plating
Shell Material: Flame Retardant PA66 Engineering Plastic
Available Poles: 3P / 4P / 5P
Rated Current: 10A / 20A / 32A / 40A / 50A Optional
Rated Voltage: 500V
Structural Type: 90 Degree Elbow / Right Angle
Locking Method: Bayonet Rotary Locking
Key Feature: Transparent Cover, Strain Relief, Modular Detachable
Certification: CE
Application: Construction Site, Stage Lighting Equipment, Workshop Machinery, Farm Electrical System, Outdoor Temporary Power Distribution
4. Packing Details
Inner Package: Independent PE Plastic Bag Sealing
Outer Package: Export Standard Corrugated Carton, Shockproof & Compression Resistant, Suitable for Global Sea, Air and Land Cross-border Logistics
