1. Product Overview

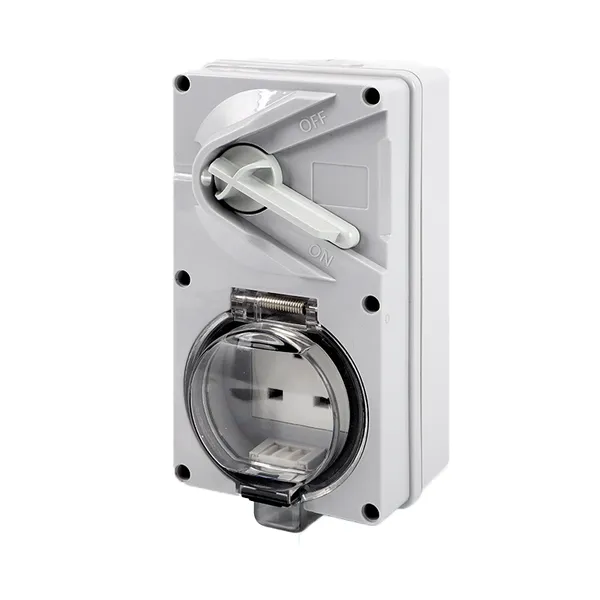

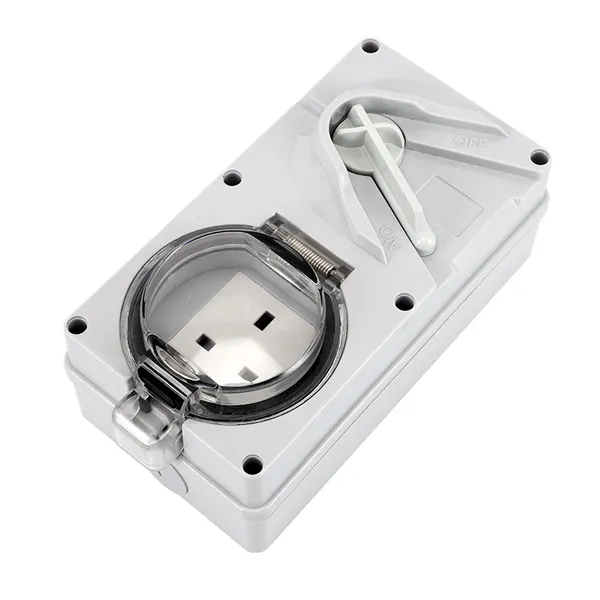

This IP55 waterproof UK switched wall socket integrates a rotary isolating switch and a standard BS 13A single socket, specially designed for outdoor and semi-outdoor power supply scenarios such as garden, garage, workshop, farm and caravan.The whole enclosure adopts high-performance PC+ABS composite engineering plastic with excellent flame retardant, anti-aging and impact resistance, matched with integrated rubber sealing ring to reach IP55 weatherproof grade. Equipped with an independent ON/OFF rotary isolation switch, users can safely cut off the power before plugging and unplugging equipment to avoid electric shock accidents. The hinged transparent waterproof protective cover can effectively block rain, dust and debris, while the thickened internal large space is compatible with most British standard plugs for easy plugging operation. Widely used for household exterior power, industrial workshop equipment power supply, farm irrigation electrical facilities and temporary construction power distribution.
2. Core Product Features

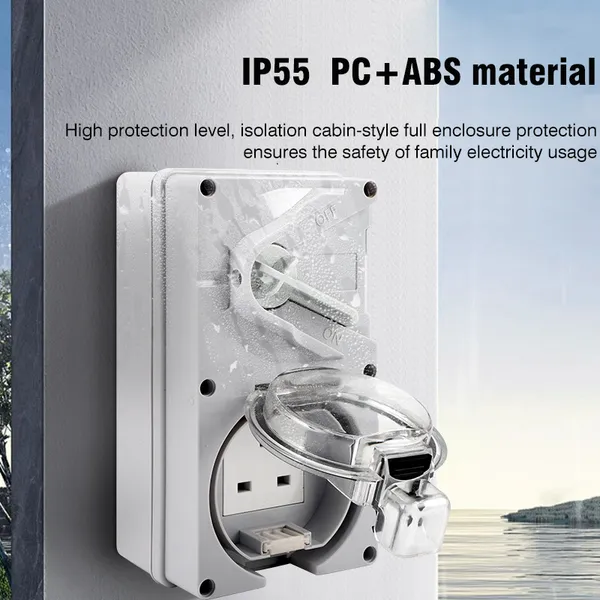

(1) IP55 Weatherproof Sealed Enclosure
The socket is equipped with a high-elastic integrated rubber sealing gasket, reaching IP55 waterproof and dustproof protection level. It can resist splashing rainwater, dust, mist and debris intrusion, and can work stably in open-air garden, garage and other humid and dusty environments, effectively preventing leakage and short-circuit safety hazards.
(2) High Toughness PC+ABS Flame Retardant Housing
The outer box is made of thickened PC+ABS composite material, with outstanding flame retardant, anti-drop impact resistance, acid and alkali corrosion resistance and anti-aging properties. It will not deform, crack or yellow after long-term outdoor sun and rain exposure, adapting to harsh outdoor climate environments.
(3) Built-in Independent Rotary Isolation Safety Switch
The independent rotary ON/OFF isolating switch can completely cut off the live circuit of the socket. Users can disconnect the power supply first before plugging and unplugging electrical equipment, which fundamentally avoids electric shock accidents caused by live plugging and unplugging, greatly improving outdoor electricity safety.

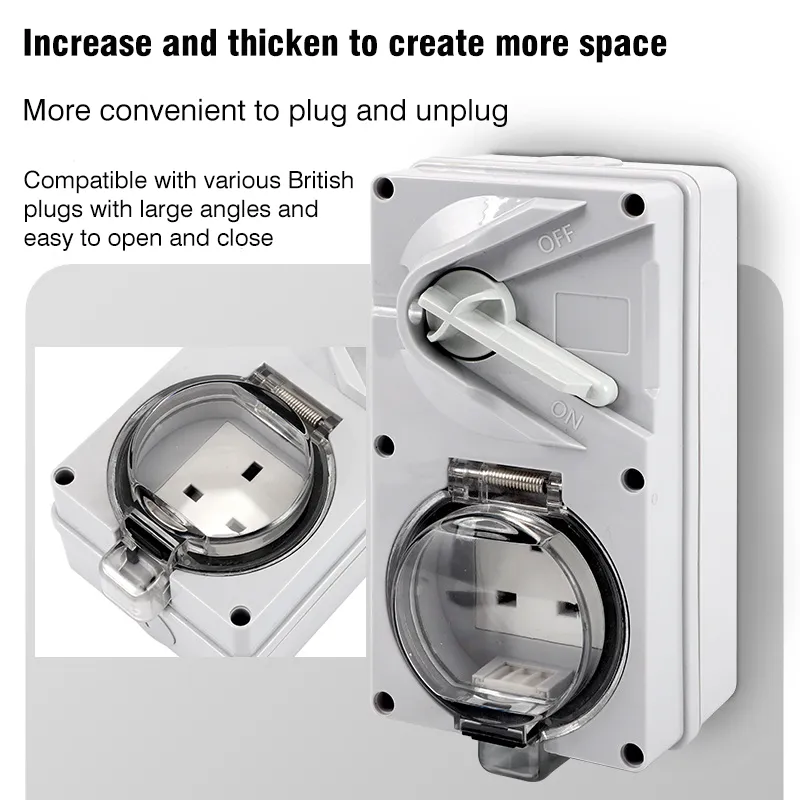

(4) Enlarged Thickened Internal Space for Easy Plugging
The internal cavity is widened and thickened to reserve enough operating space, compatible with various large-angle standard British plugs, smooth plugging and unplugging without jamming, effectively solving the problem of difficult wiring of thick-angle plugs for conventional waterproof sockets.

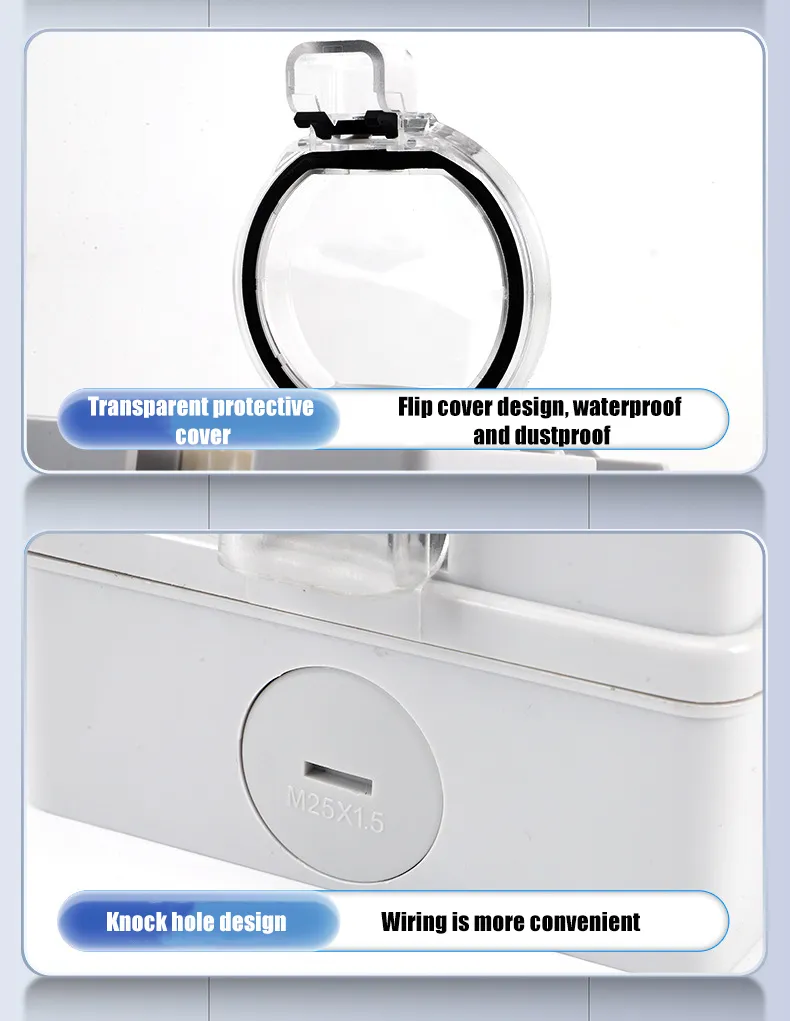

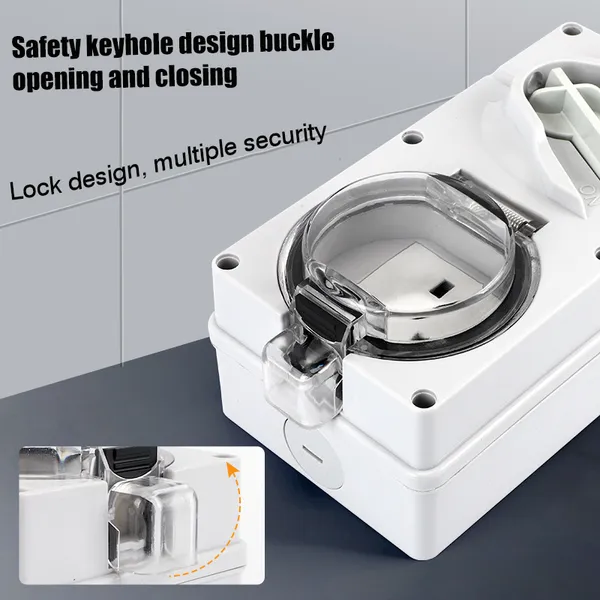

(5) Hinged Transparent Waterproof Dust Cover
The spring-type hinged transparent protective cover can automatically close after plug pulling out, tightly seal the socket jack to prevent rain and dust from entering; the transparent design can directly observe the plug connection status, which is convenient for daily inspection and maintenance.

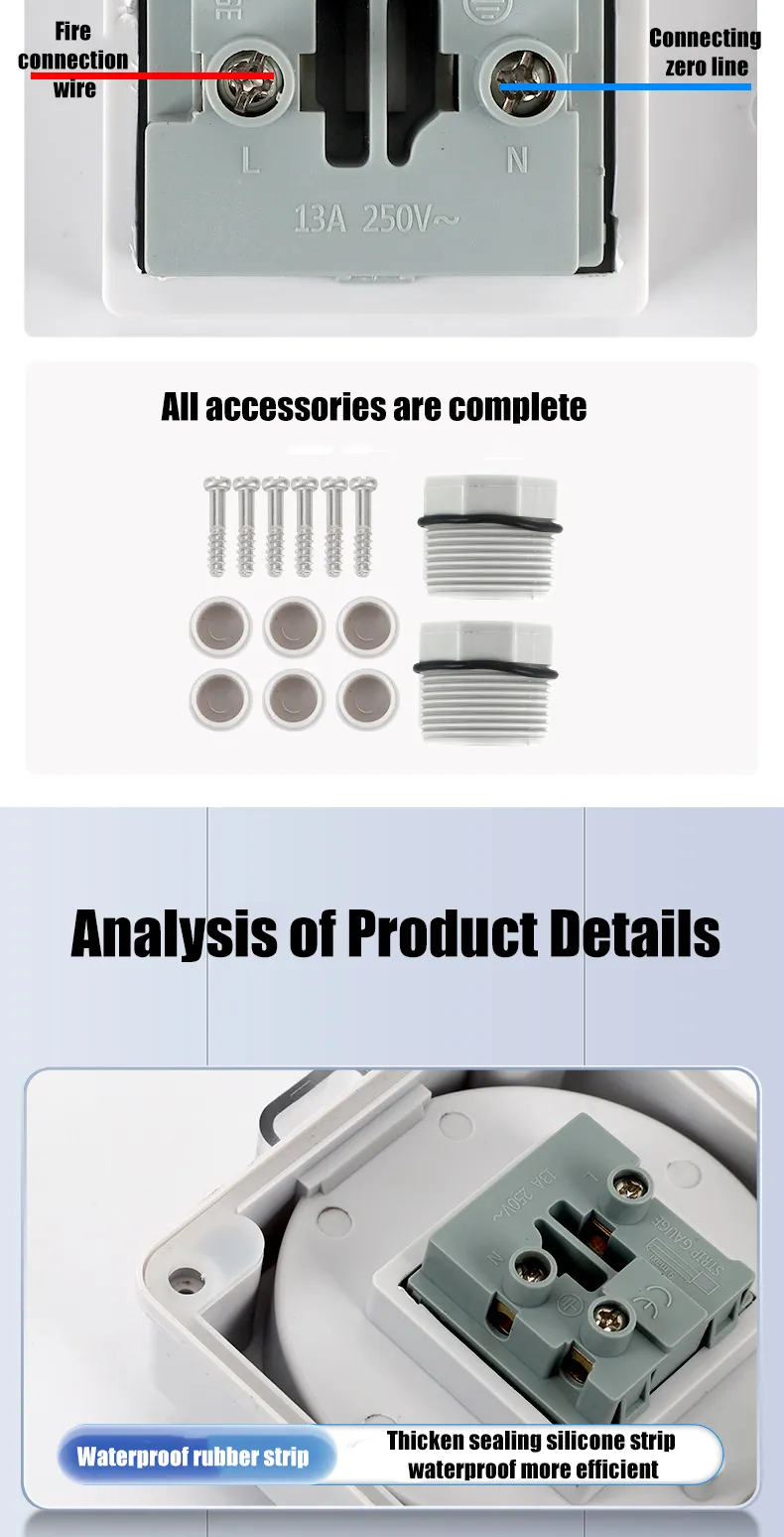

(6) Thickened Pure Copper Socket Insert for Stable Power Transmission
The internal conductive insert is stamped from high-purity thickened copper, with small contact resistance, good electrical conductivity, stable load current transmission, no abnormal heating during long-term high-power operation, effectively avoiding hidden dangers such as socket burnout and circuit fire.
(7) Wall-mounted Fully Enclosed Safe Design
Reserved standard wall fixing holes for quick and firm wall installation; fully enclosed cabin protective structure isolates all live conductive parts, effectively preventing accidental touch by children or construction personnel, complying with British electrical safety standards.
3. Main Technical Parameters
Product Name: IP55 Waterproof UK Isolator Switched Wall Socket
Protection Grade: IP55
Shell Material: PC+ABS Flame Retardant Engineering Plastic
Standard: British BS Standard
Rated Current: 13A
Rated Voltage: 230V AC
Built-in Component: Rotary Isolation On/Off Switch + Single UK 13A Socket
Protective Structure: Hinged Transparent Waterproof Dust Cover
Installation Type: Wall Mounted
Feature: Weatherproof, Isolation Power Cut-off, Flame Retardant, Anti-aging
Application: Garden, Garage, Workshop, Farm, Caravan, Outdoor Temporary Power Supply
4. Packing Details
Inner Package: Independent PE Plastic Bag
Outer Package: Export Standard Corrugated Carton, Shockproof & Compression Resistant for Global Cross-border Logistics
