1. Product Overview

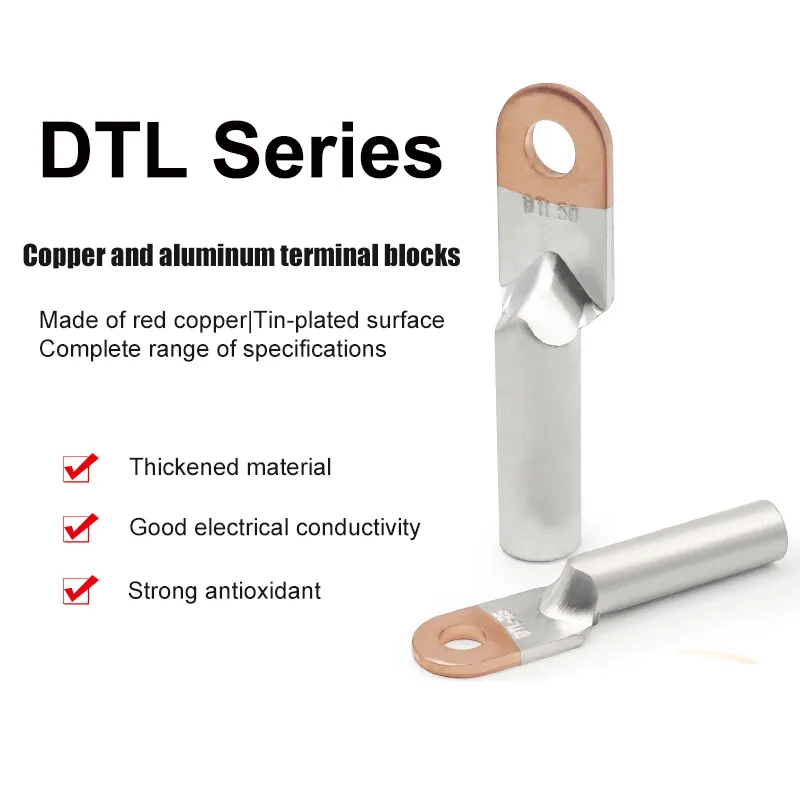

DTL series copper-aluminum bimetallic cable lugs are specially designed to solve the wiring problem between aluminum cables and copper electrical components. Adopting advanced high-energy explosion welding technology, thick red copper terminal and high-purity aluminum barrel are fused into one piece. It perfectly avoids electrochemical corrosion caused by direct contact between copper and aluminum materials, effectively preventing circuit overheating, oxidation and burnout failures. It is an essential wiring connector for power transmission, photovoltaic power generation, energy storage, power grid renovation and industrial electrical engineering.
2. Core Product Features
Advanced Explosion Welding TechnologyCopper and aluminum are combined at molecular level without delamination, cracking or separation. The contact resistance is extremely low, ensuring stable current transmission and no abnormal heat generation under long-time high-current load.
Professional Copper-Aluminum Anti-Corrosion Transition DesignRealizes safe connection between aluminum cables and copper busbars, switches, transformers and other equipment, greatly extending the service life of the whole wiring system.

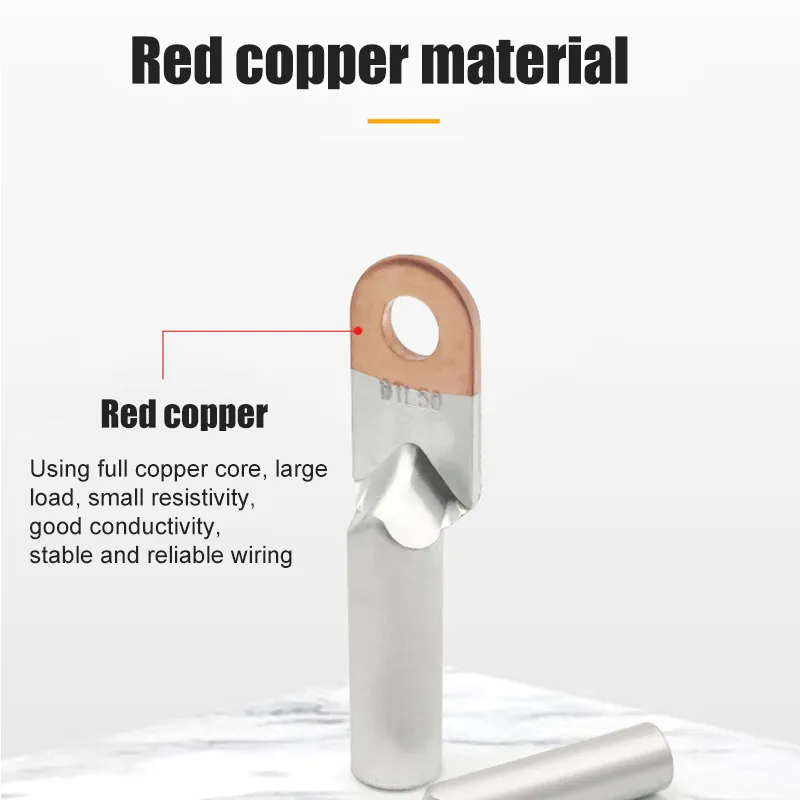

High-Grade Raw Material SelectionThe cable barrel is made of high-purity industrial aluminum with good ductility, which will not crack during crimping; the terminal ring adopts thick electrolytic copper with strong current-carrying capacity and good anti-oxidation performance.

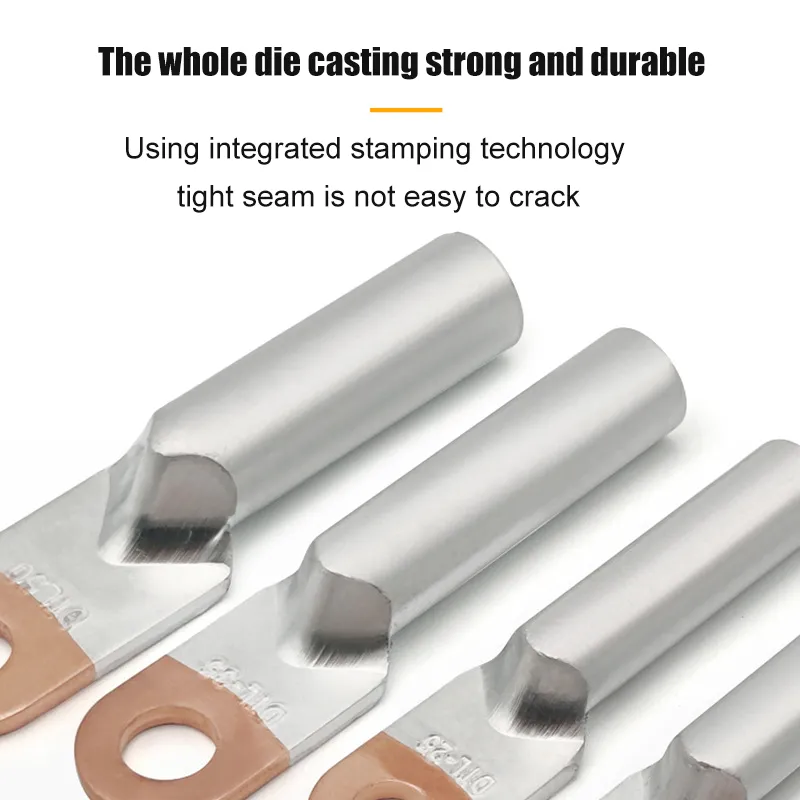

Precision Structural ProcessingSeamless extruded aluminum tube with smooth inner surface can fully wrap the cable core; standard stamping mounting hole features high tensile strength, stable installation and strong vibration resistance.
Complete Specifications & Wide ApplicationRich specifications ranging from DTL-10 to DTL-400 cover all mainstream aluminum cable cross-sections. Widely applied in photovoltaic power stations, energy storage projects, urban power grid transformation, high & low voltage distribution boxes, transformers, new energy vehicles and construction machinery wiring.
3. Technical Specifications
Product Model: DTL Series Copper Aluminum Bimetallic Cable Lug
Rated Voltage: 0.6/1kV
Production Process: Explosion Welding + Seamless Extrusion Forming
Raw Material: High Purity Aluminum Tube + Electrolytic Red Copper
Connection Method: Hydraulic Crimp Connection

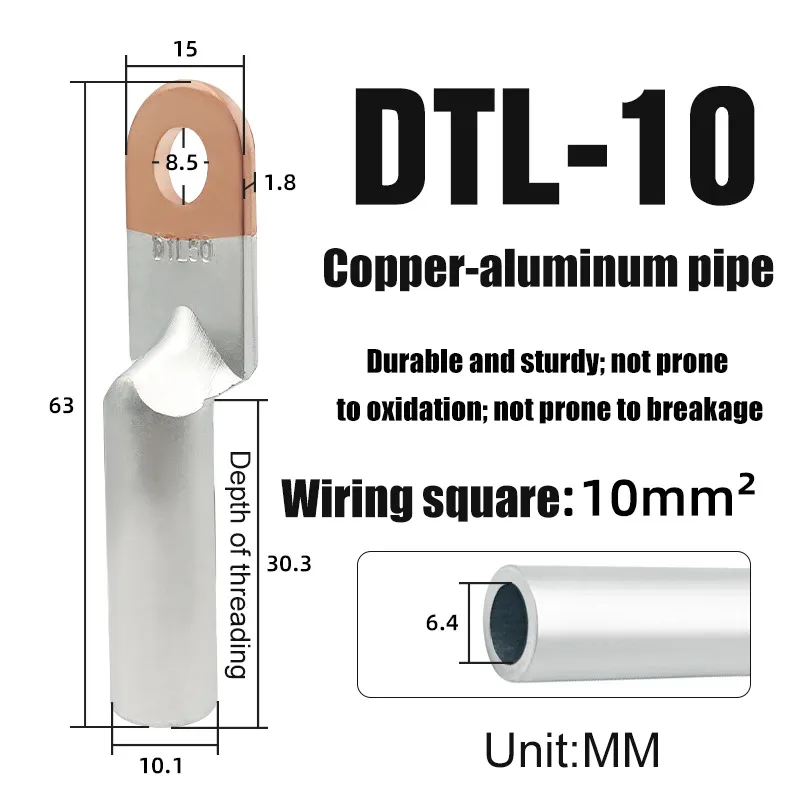

Available Specifications: 10/16/25/35/50/70/95/120/150/185/240/300/400mm²
Applicable Cable: Aluminum Core Power Cable
Application Scenarios: PV Station, Energy Storage, Power Grid, Distribution Cabinet, Transformer, Industrial Electrical Equipment
4. Packing Information
Inner Packing: Moisture-proof PE Plastic Bag
Outer Packing: Standard Export Corrugated Carton, Compression & Drop Resistant, Suitable for Sea & Air Logistics Transportation
