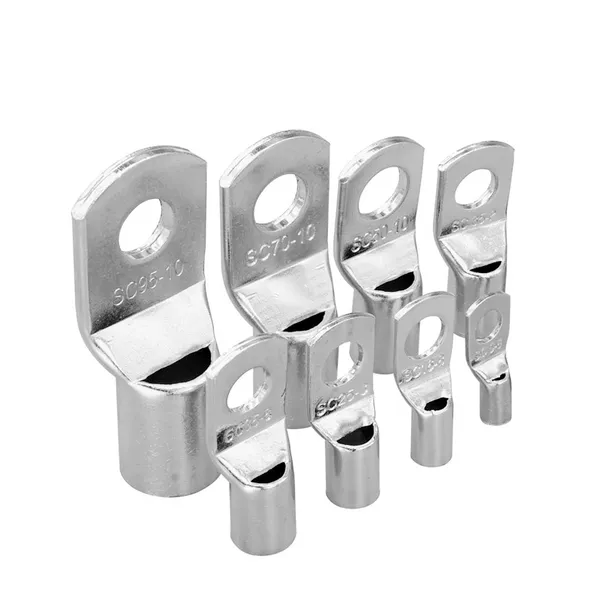

Help CenterIndustrial Grade Tin-Plated Copper Wire Terminals Multiple Sizes Available
Product Spotlights

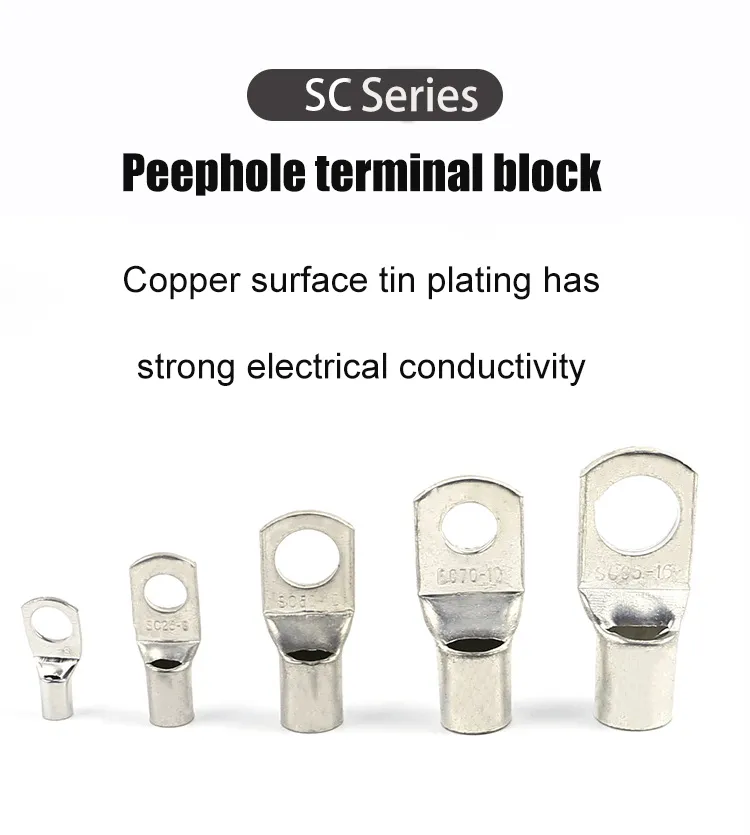

Uniform Tin Plated Surface, Anti-oxidation & Anti-corrosion
Precise Stamping Molding, Tight Crimping Without Loosening
Thickened Terminal Body, Strong Load-bearing & High Current Resistance
Standard Screw Hole Position, Easy Installation & Firm Fixing

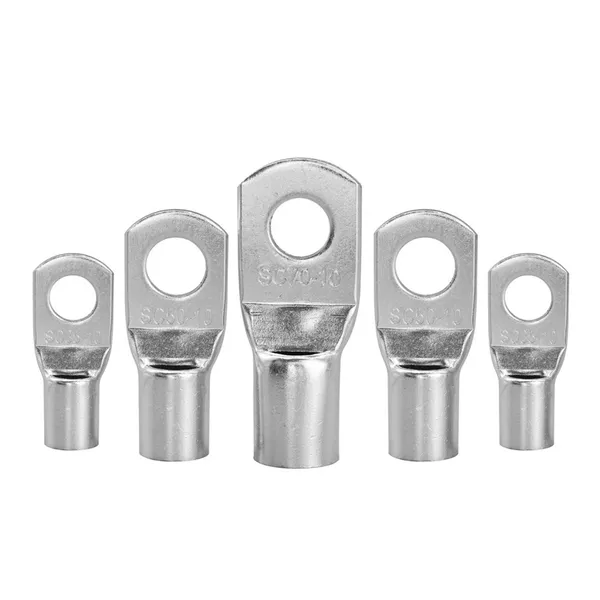

Wide Application Range, Multiple Sizes from SC1.5 to SC300
Strict Production Standard, Stable Performance for Industrial Wiring
Smooth Inner Barrel, Perfect Fit for Cable
Related Products
-
DTL-2 Bimetallic Copper Aluminum Cable Lug Crimp Wire Terminal Connector for Aluminum Cable ConnectionNegotiableMOQ: 100 Pieces -
DTL Bimetallic Copper Aluminum Cable Lug, Anti-Corrosion Transition Crimp Wire Terminal for Aluminum Wire ConnectionNegotiableMOQ: 100 Pieces
-
Waterproof Event Temporary Power Distribution Box for Outdoor Live Music, Stage Performance, Construction SiteUS$ 35 - 150MOQ: 1 Piece
-
19 Pin IP67 Waterproof Stage Multicore Extension Cable Rubber Cable for Concert Stage Lighting Audio Power TransmissionNegotiableMOQ: 1 Piece
-
Yellow and Black IP67 Waterproof Plastic Portable Socket Box Outdoor Industrial Machinery Electric Distribution BoxUS$ 25 - 75MOQ: 1 Piece
Product Description
Cable end sleeve/ferrule is also known and copper nose which is terminal by crimping on cable/wire/ electrical equipment without thermal treatment.It is a kind of accessories for electrical connections
* Various shaped of end, to adapt to all kinds of connecting conditions

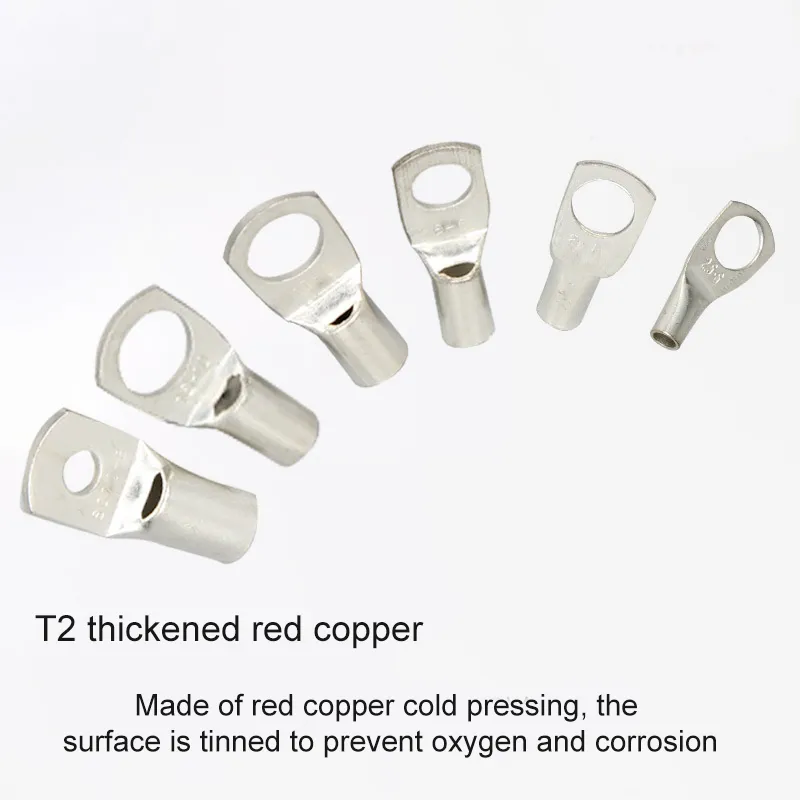

* Made of premium copper and material for longer lifespan and better performance
* Custom product can be made upon request
* Selected high quality copper and Environmental protection plastic process of stretching
* Using one-step injection molding technology, Instead of crimping process
* One integrated mass,easy entry wires,More strong, More convenient, More reliable

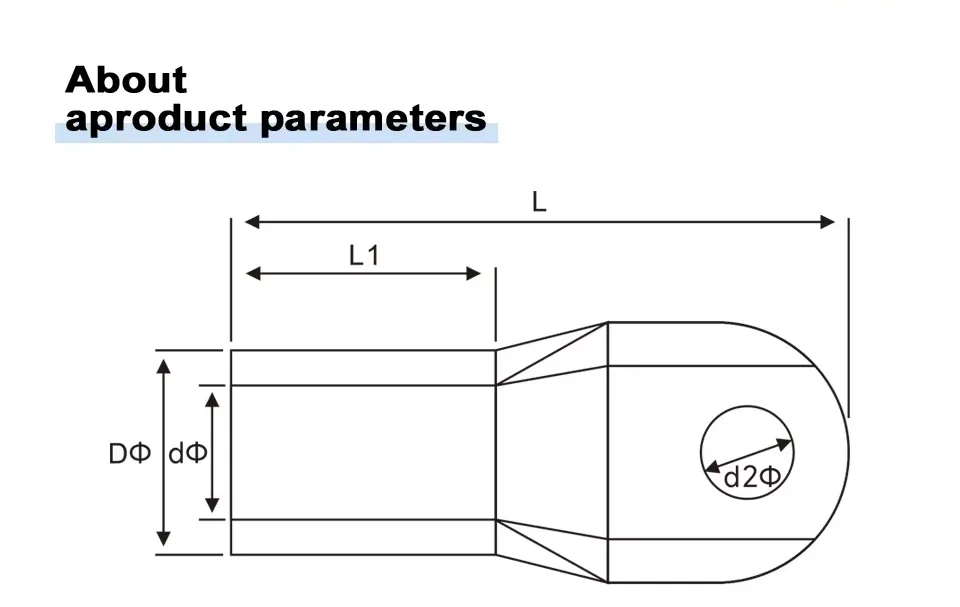

Item No. |
d2(mm) |
Dimension(mm) |
Cable size(mm) |
|||
d∅ |
D∅ |
L1 |
L |
|||
SC 1.5-5 |
5.3 |
1.9 |
3.35 |
6.5 |
18 |
1.5 |
SC 2.5-4 |
4.3 |
2.6 |
4 |
7 |
18 |
2.5 |
SC 2.5-5 |
5.3 |
2.6 |
4 |
7 |
20 |
2.5 |
SC 4-5 |
5.3 |
3.2 |
4.8 |
7.5 |
20.5 |
4 |
SC 4-6 |
6.4 |
3.2 |
4.8 |
7.5 |
22 |
4 |
SC 6-5 |
5.3 |
3 |
5.3 |
8 |
24 |
6 |
SC 6-6 |
6.4 |
3.7 |
5.3 |
8 |
24 |
6 |
SC 10-6 |
6.4 |
4.5 |
6.3 |
9 |
24 |
10 |
SC 10-8 |
8.4 |
4.5 |
6.3 |
9 |
25 |
10 |
SC 16-6 |
6.4 |
5.7 |
7.5 |
11 |
27.5 |
16 |
SC 16-8 |
8.4 |
5.7 |
7.5 |
11 |
29.5 |
16 |
SC 25-6 |
6.5 |
7.2 |
9.0 |
13.5 |
34 |
25 |
SC 25-8 |
8.4 |
7.2 |
9.0 |
13.5 |
34 |
35 |
SC 35-8 |
8.4 |
8.5 |
10.8 |
14.5 |
37 |
35 |
SC 35-10 |
10.5 |
8.5 |
10.8 |
14.5 |
38 |
35 |
SC 50-8 |
8.4 |
9.8 |
12.5 |
17.0 |
42.5 |
50 |
SC 50-10 |
10.5 |
9.8 |
12.5 |
17.0 |
44 |
50 |
SC 70-10 |
10.5 |
11.5 |
14.5 |
19.5 |
50 |
70 |
SC 70-12 |
13.0 |
11.5 |
14.5 |
19.5 |
50 |
70 |
SC 95-10 |
10.5 |
13.7 |
17.0 |
23.5 |
57 |
95 |
SC 95-12 |
13.0 |
13.7 |
17.0 |
23.5 |
57 |
95 |
SC 120-12 |
13.0 |
15.0 |
19.0 |
26.0 |
63 |
120 |
SC 120-16 |
17.0 |
15.0 |
19.0 |
26.0 |
63 |
120 |
SC 150-12 |
13.0 |
16.7 |
21.0 |
29.0 |
71 |
150 |
SC 150-16 |
17.0 |
16.7 |
21.0 |
29.0 |
71 |
150 |
SC 185-16 |
17.0 |
18.5 |
23.0 |
33.0 |
79 |
185 |
SC 240-16 |
17.0 |
21.0 |
26.0 |
40.0 |
91 |
240 |
SC 240-20 |
21.0 |
21.0 |
26.0 |
40.0 |
92 |
240 |
SC 300-16 |
17.0 |
24.0 |
30.0 |
44.0 |
100 |
300 |
SC 300-20 |
21.0 |
24.0 |
30.0 |
44.0 |
102 |
300 |
SC 400-16 |
17.0 |
27.0 |
34.0 |
46.0 |
102 |
400 |
SC 400-20 |
21.0 |
27.0 |
34.0 |
46.0 |
113 |
400 |
SC 500-16 |
17.0 |
30.0 |
38.0 |
50.0 |
123 |
500 |
