log washer upstream equipment
1. Product Introduction
In a mineral or aggregate washing circuit, a log washer cannot operate efficiently in isolation. Log Washer Upstream Equipment refers to the suite of heavy-duty machinery installed directly before the log washer. This front-end system typically includes Hoppers, Apron or Vibrating Feeders, Scalping Screens, and Primary Jaw Crushers.
The primary role of upstream equipment is to condition the raw, run-of-mine (ROM) material by regulating the feed rate, removing oversized boulders, and pre-soaking sticky clays. By delivering a sized, steady, and optimized material stream, upstream equipment prevents log washer flooding, minimizes paddle wear, and ensures maximum scrubbing efficiency.
2. Applications
Upstream equipment circuits are deployed across mining, quarrying, and recycling plants to prepare materials before high-intensity scrubbing:
Heavy Clay Mineral Mining (Iron, Bauxite, Manganese): Regulating the flow of sticky, un-screened ROM ore and scalping out massive rocks that could damage the log washer's internal shafts.
Alluvial Gold & Placer Deposit Mining: Utilizing high-pressure water monitors and trommel screens upstream to pre-wet and slurry clay-heavy gravels.
Crushed Stone & Gravel Quarries: Pre-screening out natural dirt and fines from blasted rock so that only the contaminated coarse stone enters the log washer.
Construction & Demolition (C&D) Waste Recycling: Feeding and sorting mixed demolition debris, ensuring large concrete blocks are crushed down to an acceptable size before washing.
3. Key Operational Advantages
Prevents Machine Flooding & Surging: Variable-speed upstream feeders ensure a consistent, metered volumetric flow, eliminating the "starve-and-surge" cycles that cause log washer chokes.

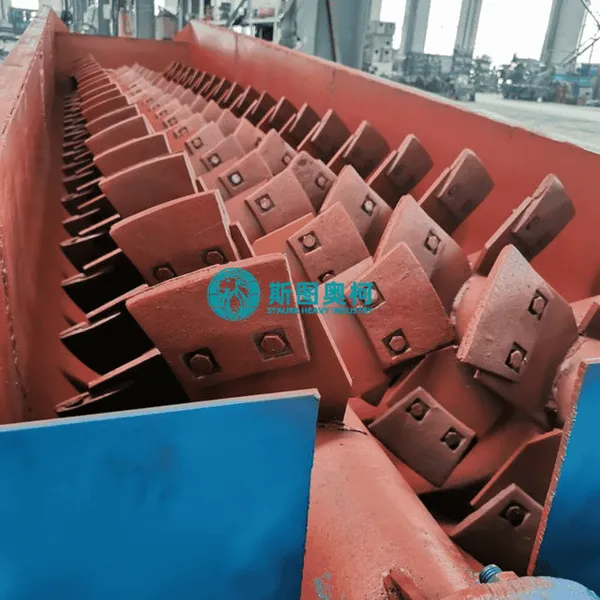

Extends Log Washer Service Life: By scalping out oversized rocks (typically anything larger than $100\text{mm}$ to $150\text{mm}$), it prevents catastrophic damage to the log washer's paddles, shafts, and drive gears.
Maximizes Scrubbing Efficiency: Pre-wetting manifolds or logs installed upstream begin softening "fat" clays before they enter the washer, shortening the required retention time inside the tub.
Reduces Energy Consumption: Upstream screens bypass natural fines and mud that do not require intense scrubbing, ensuring the log washer only expends energy on material that actually needs cleaning.
4. Core Components & Their Working Principles
The upstream sequence operates through a series of synchronized stages:
A. Hoppers & Feeders (Regulated Feeding)
Equipment: Heavy-duty Dump Hoppers paired with Apron Feeders (for sticky, high-impact mining ores) or Vibrating Grizzly Feeders (for dry aggregates).
Working Principle: Raw ROM material is dumped into the hopper. The feeder uses mechanical traction or electromagnetic vibration to draw material out from the bottom at a highly regulated, adjustable speed, preventing downstream bottlenecks.
B. Scalping Screens / Vibrating Grizzlies (Size Separation)
Equipment: Static Grizzly Bars, Vibrating Scalpers, or Trommel Screens.
Working Principle: The metered material passes over heavy-duty steel bars or thick punched plates.
Oversized Material slides over the top and is diverted to a primary crusher or a separate stockpile.
C. Pre-Conditioning Manifolds (Clay Softening)
Equipment: High-pressure water spray bars or pre-soak chutes.
Working Principle: As the sized material transitions from the scalper to the log washer feed chute, high-pressure water is sprayed onto it. This instantly initiates the disintegration of the outer clay crust, turning hard, dry clay lumps into a softer, semi-slurried state that the log washer paddles can easily chop through.
