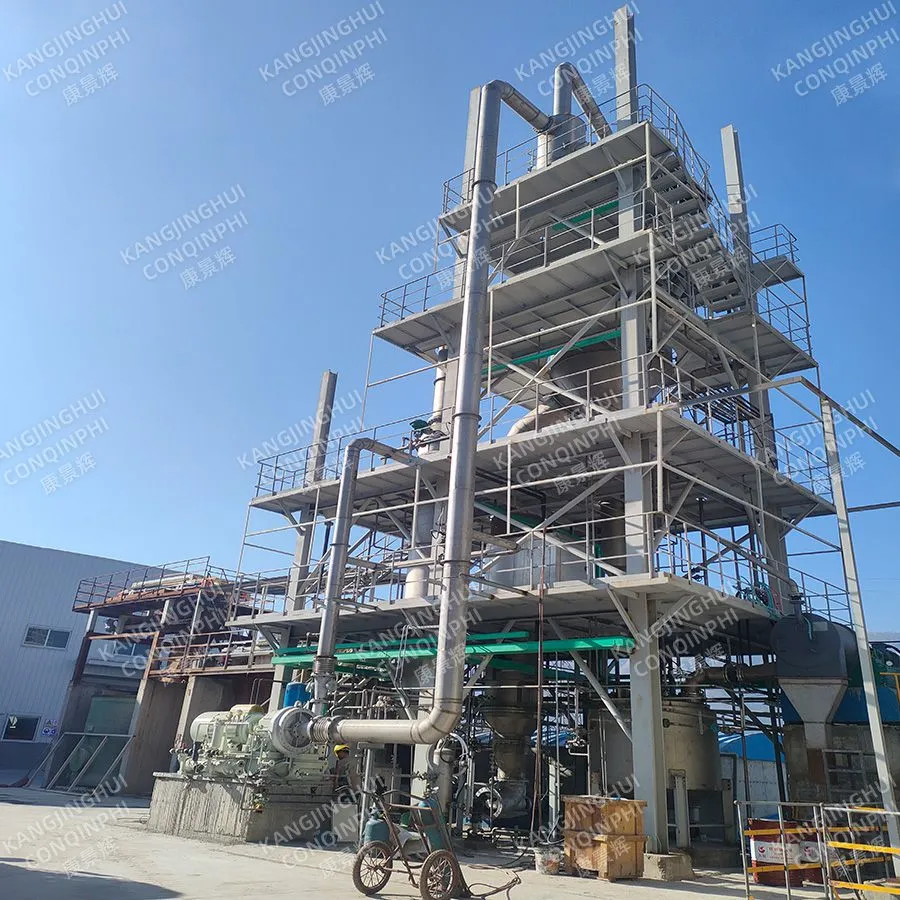

As a leading manufacturer specializing in advanced environmental and process solutions, Qingdao Conqinphi Environmental Technology leverages its extensive expertise to present the Compact Multi-Effect Evaporation Crystallizer. Designed for efficiency and reliability, this system is engineered to tackle the challenges of concentration and crystallization in demanding industries. Our commitment to innovation is reflected in a product that delivers significant reductions in operational energy costs while maintaining a compact footprint, making it an ideal solution for facilities with space constraints.
The core value of our system lies in its intelligent multi-effect design, which maximizes heat recovery and minimizes external energy input. This translates directly into lower utility bills and a reduced environmental impact for our clients. Whether you are processing industrial wastewater for zero-liquid discharge (ZLD), recovering valuable chemicals, or concentrating food and pharmaceutical products, this crystallizer provides a robust and cost-effective pathway to achieve your production and sustainability goals.
Detailed Product Features & Technical Specifications:
- Advanced Multi-Effect Evaporation: The system utilizes a cascade of evaporation effects. Vapor from the first effect acts as the heating source for the second, and so on, dramatically improving thermal efficiency. This design can reduce steam consumption by up to 70% compared to single-effect units.
- Integrated Crystallization Unit: Seamlessly integrated with the evaporator, the crystallizer allows for controlled growth of solid crystals from the concentrated solution. Key parameters like crystal size distribution and final moisture content can be precisely adjusted to meet specific product requirements.
- Compact & Modular Design: Engineered for optimal space utilization, the system's compact layout reduces the required floor area. Its modular construction facilitates easier transportation, installation, and potential future expansion.
- Superior Construction Materials: Critical wetted parts are constructed from high-grade 316L or 304 stainless steel to ensure corrosion resistance and product purity. For highly corrosive applications, materials like titanium or special alloys are available upon request.
- Fully Automated Operation: The system is controlled by a state-of-the-art PLC with a user-friendly touch-screen interface. Automation covers feed flow, temperature, pressure, density, and crystal growth, ensuring consistent output with minimal manual intervention.
- Low Energy Consumption: Through optimal heat exchanger design, efficient vapor-liquid separation, and intelligent heat recovery between effects, the system achieves industry-leading low specific energy consumption.
- Versatile Heating Options: The system can be configured to use various heating sources, including low-pressure steam, thermal oil, or electric heaters, providing flexibility to match your plant's existing utilities.
Technical Parameters Table:
| Parameter | Specification / Range |
|---|---|
| Evaporation Capacity | 100 L/hr to 50 m³/hr (Customizable) |
| Number of Effects | 2, 3, 4, or 5 (Optimized based on duty) |
| Final Product Form | Concentrated Liquid & Solid Crystals |
| Steam Consumption (approx.) | 0.25 - 0.4 kg steam / kg water evaporated* |
| Cooling Water Requirement | Significantly reduced due to multi-effect design |
| Control System | PLC with SCADA, Remote monitoring optional |
| Material of Main Body | SS316L / SS304 / Special Alloy (Customizable) |
*Varies based on number of effects and operating conditions.
Benefits to Our Clients:
- Substantial Cost Savings: Dramatically lower energy and cooling water consumption directly reduces operating expenses.
- Enhanced Process Reliability: Automated controls and robust design ensure stable, continuous operation with high on-stream time.
- Space Efficiency: The compact design frees up valuable floor space for other process equipment or expansion.
- Environmental Compliance: Effectively achieves zero-liquid discharge (ZLD) or minimizes wastewater volume, aiding in regulatory compliance.
- Resource Recovery: Recovers clean water and valuable solid products (crystals) from waste streams, turning a cost center into a potential revenue stream.
- Scalability & Flexibility: The modular design and customizable capacity allow the system to grow with your business and adapt to different feedstocks.
Trust & Quality Backing:
Qingdao Conqinphi Environmental Technology Group is not just a supplier; we are your partner in process innovation. Established in 2015, our growth to a workforce of 201-300 people operating from a 10,000-30,000 square meter factory is a testament to our commitment to quality and customer satisfaction. Our systems, including this advanced crystallizer, are backed by a comprehensive quality management framework. With an annual export value between US$10-50 Million, we have successfully delivered reliable solutions to a global clientele across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped efficiently from the Port of Qingdao. When you choose our Compact Multi-Effect Evaporation Crystallizer, you are investing in a solution backed by solid manufacturing expertise, international market validation, and a drive for sustainable engineering excellence.
Frequently Asked Questions (FAQ):
Q1: What is the main advantage of a "multi-effect" design over a single-effect evaporator?
A: The primary advantage is vastly improved energy efficiency. In a multi-effect system, vapor produced in one effect is used to heat the next, reusing latent heat. This cascading effect can reduce steam consumption by over 50%, leading to significant operational cost savings.
Q2: Can this system handle my specific wastewater or product stream?
A: Our systems are highly customizable. We conduct a thorough analysis of your feed composition, including salinity, viscosity, fouling potential, and corrosivity, to recommend the optimal material selection (e.g., titanium for high chlorides) and design configuration.
Q3: How compact is "compact"? What floor space is typically required?
A: The footprint is significantly smaller than traditional evaporation setups due to vertical integration and efficient layout. A standard system for a 5 m³/hr capacity might occupy approximately 6m x 8m. Exact dimensions are provided in the layout drawings during the project engineering phase.
Q4: What kind of crystal quality and size can I expect from the integrated crystallizer?
A: The crystallizer allows for controlled growth. You can typically achieve crystal sizes ranging from fine powders to larger granules (e.g., 0.1mm to 2.0mm). The final moisture content can also be controlled, often reaching below 5% for free-flowing solids, depending on the product.
Q5: Is the operation fully automatic?
A: Yes, the standard system includes full PLC-based automation. It controls feed pumps, heating source, vacuum system, and discharge cycles automatically based on set parameters. An optional SCADA system allows for remote monitoring and data logging.
Q6: What after-sales support do you provide?
A: We provide comprehensive support including detailed installation manuals, on-site or remote commissioning assistance, operator training, and a readily available inventory of common spare parts. Technical support is available throughout the equipment's lifecycle.
Q7: How is the energy consumption calculated for my project?
A: We perform detailed heat and mass balance simulations based on your specific feed conditions and desired output. This simulation provides an accurate forecast of steam, electricity, and cooling water requirements, allowing for precise ROI calculation before purchase.
Q8: What is the typical lead time for a custom system?
A: Lead time depends on the complexity and capacity. For standard designs, it typically ranges from 12 to 20 weeks from order confirmation to shipment from Qingdao port. We maintain transparent communication throughout the manufacturing process.
