As a leading manufacturer specializing in advanced environmental solutions, Qingdao Conqinphi Environmental Technology Group is proud to present our state-of-the-art Multi-Effect Evaporation Crystallizer. Engineered for the demanding requirements of industrial wastewater brine treatment, this system represents our commitment to providing reliable, energy-efficient, and cost-effective Zero Liquid Discharge (ZLD) solutions. With over eight years of expertise and a robust manufacturing base, we deliver equipment that helps clients tackle complex wastewater challenges, recover valuable resources, and meet stringent environmental regulations.

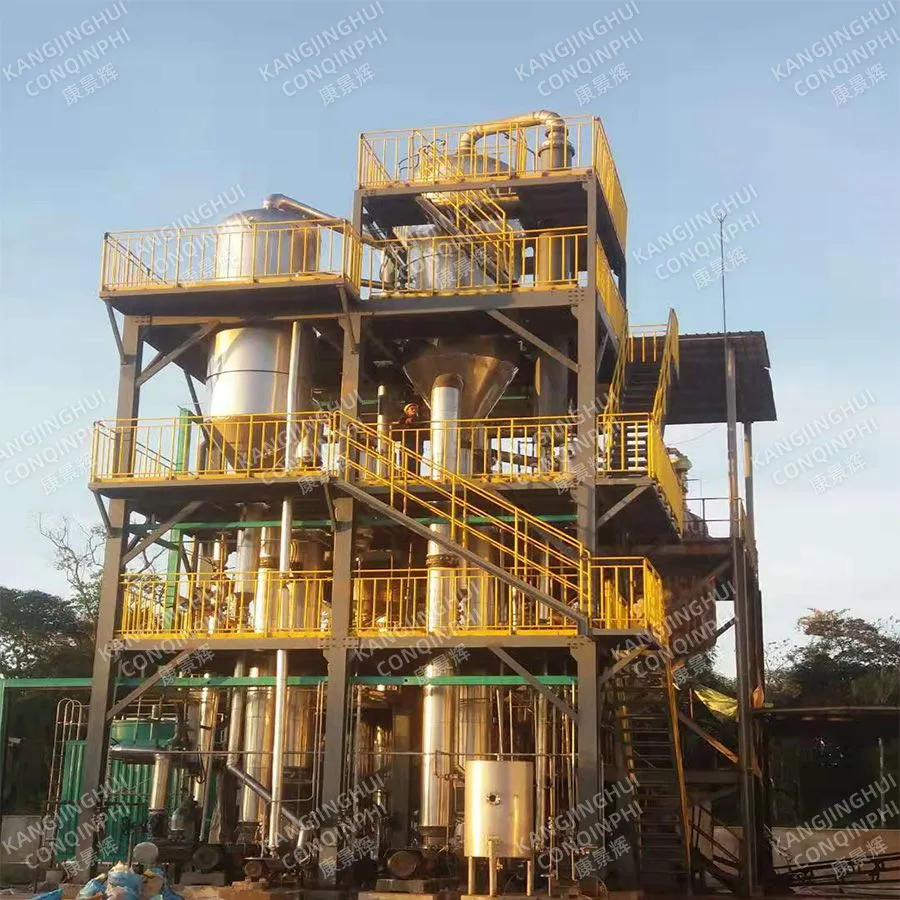

Our Multi-Effect Evaporation Crystallizer is designed to concentrate high-salinity wastewater streams to the point of salt crystallization, minimizing liquid waste volume and enabling resource recovery. The system utilizes a series of evaporative effects, where the vapor generated in one effect serves as the heating source for the next, dramatically improving thermal efficiency. This design is particularly effective for treating challenging brines from industries such as:
- Chemical & Pharmaceutical: Treatment of high-COD, high-salt process wastewater.
- Power Plant & Mining: Desulfurization wastewater (FGD), ion-exchange resin regeneration brine.
- Textile & Dyeing: Concentrated dyeing and printing wastewater.
- Landfill Leachate & RO Reject: Treatment of highly concentrated reverse osmosis reject streams.
Technical Specifications & Operational Advantages:
The system's performance is defined by several key technical parameters and design features that ensure reliable operation and optimal output.
| Parameter | Description / Typical Range |
| Evaporation Type | Multi-Effect Evaporation with Forced Circulation Crystallizer |
| Number of Effects | Customizable (e.g., 2-effect, 3-effect, 4-effect based on steam economy needs) |
| Heat Source | Low-pressure steam, hot oil, or electric heating (customizable) |
| Evaporation Capacity | From 1 ton/hour to over 50 tons/hour (project-specific design) |
| Final Product | Concentrated brine or dry crystalline salts (e.g., NaCl, Na2SO4) |
| Condensate Quality | High-purity distillate suitable for reuse or direct discharge |
| Construction Material | SS316L, Duplex Stainless Steel, Titanium, Hastelloy (selected based on feed chemistry) |
| Control System | Fully automatic PLC with HMI, remote monitoring optional |
Core Benefits for Your Operation:
- Superior Energy Efficiency: The multi-effect design reuses latent heat, reducing steam consumption by up to 50-70% compared to single-effect evaporators, leading to substantial operational cost savings.
- High Water Recovery: Produces high-quality condensate that can often be recycled within the plant, reducing freshwater intake and overall water footprint.
- Waste Volume Minimization: Effectively reduces wastewater volume by over 90%, transforming a liquid waste problem into a manageable solid (salt), which can sometimes be sold or safely disposed of.
- Robust & Corrosion-Resistant Design: Built with premium corrosion-resistant alloys tailored to your specific wastewater composition, ensuring long equipment life and minimal maintenance downtime.
- Stable Crystallization & Easy Discharge: The forced circulation crystallizer design promotes uniform crystal growth and prevents scaling, ensuring smooth, continuous operation and easy salt slurry discharge.
- Compliance & Sustainability: Enables compliance with increasingly strict environmental regulations on wastewater discharge and supports corporate sustainability goals by achieving near Zero Liquid Discharge.
Frequently Asked Questions (FAQ)
-
Q: What is the main difference between a multi-effect evaporator and a single-effect one?
A: A multi-effect evaporator uses the vapor from one chamber to heat the next, significantly improving thermal efficiency. A single-effect unit uses fresh steam for each evaporation cycle, consuming more energy. Our multi-effect system is designed for large-scale, continuous operations where energy cost is a major concern. -
Q: Can this system handle wastewater with suspended solids or organic matter?
A: Yes, but pre-treatment is often recommended. We conduct a thorough analysis of your feed stream and can design a complete solution that includes necessary pre-treatment (e.g., filtration, softening) to protect the evaporator and ensure optimal performance. -
Q: What kind of salts can be crystallized?
A: The system is effective for crystallizing common inorganic salts like sodium chloride (NaCl), sodium sulfate (Na2SO4), and mixed salts. The specific crystallizer design (e.g., forced circulation, Oslo type) can be selected based on the salt's properties. -
Q: How is the system controlled?
A: It is typically equipped with a fully automated PLC control system. Operators can monitor and adjust parameters like temperature, pressure, flow rate, and density from a central Human-Machine Interface (HMI) panel, ensuring stable and safe operation. -
Q: What is the expected lifespan of the equipment?
A: With proper material selection (like duplex steel or titanium for corrosive feeds) and routine maintenance, the core evaporator and crystallizer vessels can have a service life exceeding 15 years. We provide detailed operation manuals and support. -
Q: Do you offer pilot testing or feasibility studies?
A: Absolutely. For new or complex wastewater streams, we recommend pilot-scale testing at our facility or yours. This helps verify process parameters, crystal quality, and final design data, minimizing project risk. -
Q: What after-sales services are provided?
A: Our comprehensive service package includes installation supervision, commissioning, operator training, and readily available spare parts support. We maintain long-term partnerships with our clients to ensure their systems perform optimally. -
Q: How long does it take from order to delivery?
A: Lead time depends on the system's complexity and capacity. Standard modular units may take 4-6 months, while large custom-engineered projects require 8-12 months. We provide a detailed project timeline upon quotation.
Backed by Qingdao Conqinphi's solid manufacturing foundation spanning 10,000-30,000 square meters and a dedicated team of 201-300 professionals, our equipment is built to last and perform. Our commitment to quality is underscored by our adherence to the ISO9001 quality management system, ensuring every component meets rigorous standards. With an annual export value ranging between US$10-50 million, our solutions are trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, proving our global reliability and expertise. Choosing our Multi-Effect Evaporation Crystallizer means investing in a proven, efficient, and sustainable wastewater treatment solution designed to reduce your operational costs and environmental liability. Contact us today for a detailed technical consultation and a customized proposal tailored to your specific brine treatment challenges.
