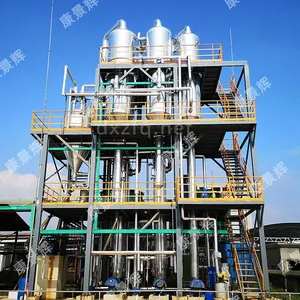

Help CenterSemi-Automatic Multi-Effect Evaporation Crystallizer With Corrosion-Resistant Alloy
Product Spotlights
Related Products
-
Multi-Effect Evaporation Crystallizer With Remote Monitoring and Free Installation GuideUS$ 4950 - 5871000MOQ: 1 Case -
Three-Stage Tri-Effect Falling Film Evaporator With Crystallizer for Viscous Liquid ConcentrationUS$ 2490 - 269800MOQ: 1 Combo
-
Vacuum Heat Pump Evaporator for Low Temperature Distillation of Printing WastewaterUS$ 2490 - 269800MOQ: 1 Combo
-
Low Temperature Vacuum Heat Pump Evaporator for Chemical Wastewater Reduction and ReuseUS$ 2490 - 269800MOQ: 1 Combo
-
Multi-Effect Force Circulation MVR Evaporator for Beverage Concentration and Food ProcessingUS$ 2490 - 269800MOQ: 1 Combo

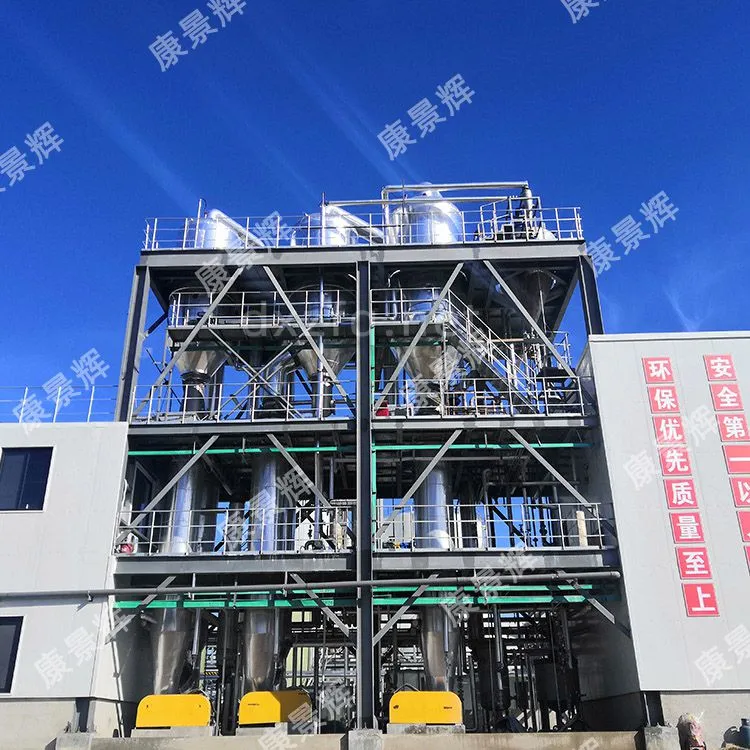

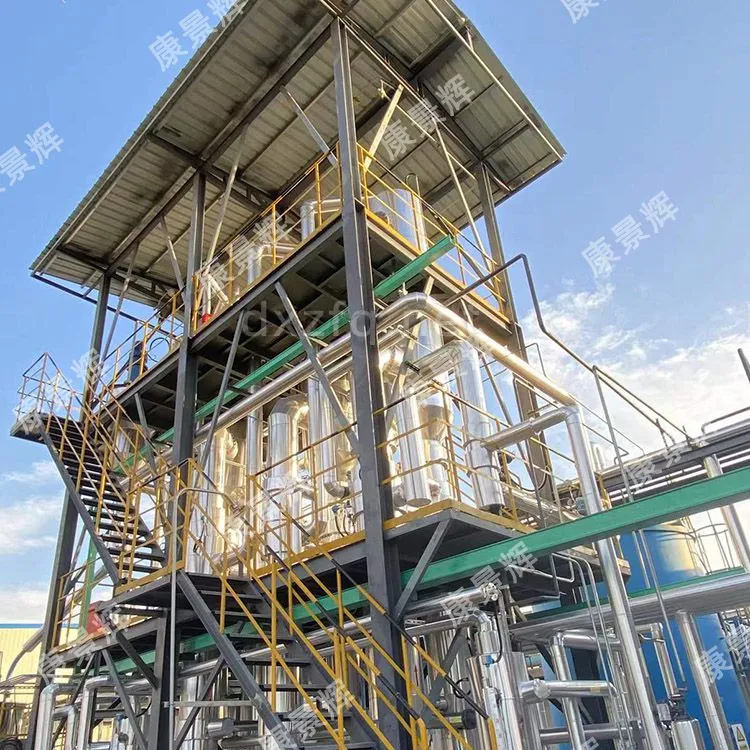

As a leading manufacturer specializing in advanced environmental and process technology solutions, Qingdao Conqinphi Environmental Technology Group is proud to present our Semi-Automatic Multi-Effect Evaporation Crystallizer. Engineered with high-grade corrosion-resistant alloys, this system is designed to deliver exceptional efficiency and durability in demanding industrial applications such as wastewater zero-liquid discharge (ZLD), chemical recovery, and salt crystallization. Our decade of experience since 2015, combined with a large-scale manufacturing facility of 10,000-30,000 square meters, ensures that every unit is built with precision and reliability, meeting the stringent requirements of global markets from North America and Europe to Southeast Asia and beyond.
This advanced crystallizer integrates multi-effect evaporation technology to significantly reduce energy consumption while maximizing output. The semi-automatic operation, managed through an intuitive control interface, provides an optimal balance between operational control and labor efficiency. Constructed from premium corrosion-resistant alloys, the system withstands aggressive chemical environments, ensuring a long service life and minimal maintenance. Below are the detailed technical specifications and operational advantages:
- Superior Energy Efficiency: Utilizes a multi-effect (MEE) design where the vapor from one effect serves as the heating source for the next, dramatically lowering steam consumption and operational costs.
- Robust Construction: Key components are fabricated from high-performance corrosion-resistant alloys like 316L stainless steel or duplex steels, offering excellent resistance to chlorides, acids, and high-salinity brines.
- Intelligent Semi-Automatic Control: Features a PLC-based control system with a user-friendly touch screen. It allows for precise monitoring and adjustment of parameters like temperature, pressure, vacuum level, and feed rate, reducing operator error and ensuring consistent product quality.
- High-Purity Crystallization: The integrated crystallizer section is designed to produce uniform, high-purity crystals with controlled particle size distribution, suitable for valuable product recovery or waste solidification.
- Versatile Application Scope: Ideal for concentrating industrial wastewater (e.g., from pharmaceuticals, textiles, electroplating), recovering salts and chemicals, and treating high-TDS streams for ZLD compliance.
- Compact and Modular Design: Engineered for efficient use of floor space. The modular nature allows for scalability and easier installation, fitting into existing plant layouts.
The system's technical parameters are customizable based on client-specific feed characteristics and capacity requirements. A standard configuration overview is presented in the table below:
| Parameter | Specification / Description |
| Evaporation Capacity | Customizable from 500 L/hr to 20,000 L/hr (water evaporation) |
| Number of Effects | Typically 2 to 4 effects, configurable for optimal energy use |
| Operating Pressure | Vacuum operation (customizable range) |
| Heating Source | Steam (saturated), hot water, or thermal oil |
| Construction Material (Wetted Parts) | Corrosion-resistant alloy (316L, 2205 duplex, titanium, etc.) |
| Control System | Semi-automatic PLC with HMI touch screen, data logging |
| Final Product Output | Concentrated brine or solid crystals (moisture content customizable) |
Investing in this system translates to direct benefits for your operation:
- Cost Savings: Multi-effect design cuts steam usage by up to 50-70% compared to single-effect units, leading to substantial utility cost reduction.
- Enhanced Reliability: The corrosion-resistant construction minimizes downtime due to equipment failure, ensuring continuous operation even with challenging feeds.
- Operational Simplicity: The semi-automatic control reduces the need for highly skilled constant supervision, lowering labor costs and human error.
- Environmental Compliance: Enables effective wastewater treatment and resource recovery, helping plants meet stringent environmental regulations and achieve sustainability goals.
FAQ
-
What does "semi-automatic" mean for this crystallizer?
The system automates core processes like temperature control, level sensing, and pump sequencing via PLC. Operator intervention is primarily needed for startup, shutdown, and specific mode changes, offering a balance between automation and manual control flexibility. -
Which corrosion-resistant alloys are typically used?
Common choices include 316L stainless steel for general corrosion, duplex stainless steels (e.g., 2205) for chloride environments, and titanium or high-nickel alloys for extremely corrosive media. The material is selected based on your specific feed analysis. -
How is the energy efficiency of the multi-effect system achieved?
In a multi-effect setup, vapor generated in the first, higher-pressure effect is used to heat the next effect at a lower pressure. This cascading reuse of latent heat significantly reduces the total fresh steam required per unit of water evaporated. -
Can this system handle high scaling or fouling feeds?
Yes. The design can incorporate features like forced circulation, anti-scalant dosing points, and CIP (Cleaning-in-Place) systems to manage scaling. The choice of smooth, corrosion-resistant alloy surfaces also helps reduce fouling adhesion. -
What is the typical lead time for delivery and installation?
Lead time depends on the system's complexity and capacity. Standard models may have a shorter timeframe, while fully customized units require detailed engineering. An estimated timeline is provided upon project finalization. -
Do you provide technical support and training?
Yes. We offer comprehensive commissioning, on-site operator training, and detailed operation & maintenance manuals. Remote support and a supply of spare parts are also available. -
Is the system suitable for Zero Liquid Discharge (ZLD) projects?
Absolutely. This evaporator-crystallizer is a core component in many ZLD trains, concentrating wastewater to a small volume of brine or solid crystals, allowing for complete liquid elimination. -
How is the final crystal quality and moisture content controlled?
Crystal size and final moisture are controlled by adjusting parameters in the crystallizer section, such as supersaturation, residence time, and stirring speed. The system can be tuned to produce crystals meeting specific purity and dryness specifications.
Backed by Qingdao Conqinphi Environmental Technology Group's strong manufacturing capabilities and a proven track record of exporting to over a dozen global regions, this Semi-Automatic Multi-Effect Evaporation Crystallizer represents a reliable and efficient solution for your concentration and crystallization needs. Our commitment to quality is reinforced by a robust internal management system. With an annual export value in the range of US$10-50 million and a dedicated team of 201-300 professionals, we ensure every project receives meticulous attention from design to delivery. Choose our corrosion-resistant alloy crystallizer to achieve lower operational costs, enhanced process reliability, and superior environmental performance. Contact us today to discuss your specific application and receive a tailored proposal.
