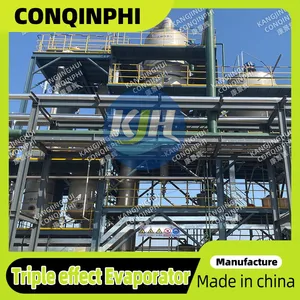

Help CenterMulti-Effect Evaporation Crystallizer for Pharmaceutical Salt Concentration
Product Spotlights
Related Products
-
Standard-Compliant Multi-Effect Evaporator With Remote Monitoring and Technical Support PackageUS$ 5470 - 768000MOQ: 1 Combo -
Multi-Effect Evaporator for Pharmaceutical and Chemical Processing With CIP SystemUS$ 5470 - 768000MOQ: 1 Combo
-
Customized Multi-Effect Evaporator With Automatic Control for Food and Beverage IndustryUS$ 5470 - 768000MOQ: 1 Combo
-
High-Efficiency Multi-Effect Evaporator System With MVR Technology for Energy SavingsUS$ 5470 - 768000MOQ: 1 Combo
-
304 Stainless Steel Multi-Effect Evaporator With PLC Control for Industrial ConcentrationUS$ 5470 - 768000MOQ: 1 Combo
As a leading manufacturer in separation technology since 2015, Qingdao Conqinphi Environmental Technology Group is proud to present our advanced Multi-Effect Evaporation Crystallizer, engineered specifically for the demanding requirements of pharmaceutical salt concentration. With over 10,000 square meters of dedicated manufacturing space and a team of 201-300 technical professionals, we have developed this system to deliver exceptional purity, energy efficiency, and operational reliability for pharmaceutical manufacturers worldwide. Our crystallizer represents the culmination of extensive R&D and practical experience serving markets across North America, Europe, Asia, and beyond, ensuring that your pharmaceutical salt production meets the highest standards of quality and consistency.
The pharmaceutical industry requires crystallization systems that can produce salts of exceptional purity while maintaining strict process control and energy efficiency. Our Multi-Effect Evaporation Crystallizer addresses these needs through innovative design and precision engineering:
- Superior Energy Efficiency: By utilizing multiple evaporation effects, the system significantly reduces steam consumption compared to single-effect units, with thermal energy being reused across successive stages.
- Precision Crystallization Control: Advanced control algorithms maintain optimal supersaturation levels, ensuring consistent crystal size distribution and minimizing fines or oversized particles.
- Pharmaceutical-Grade Materials: All wetted parts are constructed from 316L stainless steel or higher-grade materials compatible with pharmaceutical applications and easy to clean and sterilize.
- Flexible Configuration: The system can be customized with 2-6 effects depending on capacity requirements and energy optimization goals, with optional mechanical vapor recompression (MVR) for further efficiency.
- Integrated Separation: Complete systems include crystallizers, separators, centrifuges, and drying units as needed, providing a turnkey solution for salt production.
- Automated Operation: PLC-based control with SCADA interface allows for precise monitoring and adjustment of temperature, pressure, concentration, and crystal growth parameters.
The technical specifications of our Multi-Effect Evaporation Crystallizer can be tailored to specific pharmaceutical applications, but typical configurations include:
| Parameter | Specification Range | Typical Application |
| Number of Effects | 2 to 6 effects | Based on steam economy requirements |
| Evaporation Capacity | 500 to 50,000 kg/hr water evaporation | Pilot to full production scale |
| Operating Temperature | 40°C to 120°C | Optimized for salt solubility characteristics |
| Final Concentration | Up to saturation and beyond | For crystal nucleation and growth |
| Steam Consumption | 0.25 to 0.5 kg steam/kg water evaporated | Depending on number of effects |
| Crystal Size Range | 50 to 1000 microns | Controllable through operating parameters |
Pharmaceutical manufacturers benefit from this system in multiple ways. The multi-effect design dramatically reduces energy costs, often by 50-70% compared to single-effect evaporation. The controlled crystallization process yields salts with consistent particle size distribution, which is critical for downstream processing and final product quality. The system's modular design allows for scalability as production needs grow, while the automated controls reduce labor requirements and minimize human error. Furthermore, the closed-system operation prevents contamination and ensures a hygienic production environment suitable for pharmaceutical applications.
Our commitment to quality is demonstrated through our manufacturing certifications and global reach. With ISO 9001 quality management systems in place and annual export values reaching substantial figures, we have established ourselves as a reliable partner for pharmaceutical companies worldwide. Our systems have been successfully implemented across diverse markets including North America, Europe, and Southeast Asia, handling various pharmaceutical salts with consistent results. The combination of our technical expertise, manufacturing capabilities, and customer-focused approach ensures that you receive a crystallization system that not only meets but exceeds your expectations for pharmaceutical salt production.
Frequently Asked Questions:
1. What types of pharmaceutical salts can this crystallizer process?
This system is designed to handle a wide range of pharmaceutical salts including sodium chloride, potassium chloride, magnesium sulfate, and various active pharmaceutical ingredient (API) salts. The materials of construction and operating parameters can be adjusted based on the specific salt's characteristics.
2. How does the multi-effect design improve energy efficiency?
In a multi-effect system, vapor from the first effect becomes the heating medium for the second effect, and this process continues through subsequent effects. This cascading use of thermal energy significantly reduces steam consumption compared to single-effect evaporation where all vapor is typically condensed without further use.
3. Can the system be integrated with existing pharmaceutical production lines?
Yes, our engineering team designs each system with integration in mind. We can interface with your existing feed preparation, downstream separation, and packaging systems, ensuring seamless operation within your current pharmaceutical manufacturing setup.
4. What level of automation is included in the standard system?
The standard system includes PLC-based control with an HMI interface for monitoring and adjustment of key parameters. Advanced control options including recipe management, data logging, and remote monitoring are available to meet specific pharmaceutical manufacturing requirements.
5. How is crystal size distribution controlled in this system?
Crystal size is controlled through precise management of supersaturation levels, residence time in the crystallizer, and seeding strategies when required. The system's automated controls maintain optimal conditions for consistent crystal growth throughout the batch or continuous operation.
6. What maintenance requirements should we anticipate?
Regular maintenance includes inspection of heat exchanger surfaces, pump seals, and instrumentation. The system is designed for accessibility with clean-in-place (CIP) capabilities to minimize downtime. Specific maintenance schedules depend on operating conditions and the pharmaceutical salt being processed.
7. Can the system handle different production capacities?
Absolutely. We offer systems ranging from pilot-scale units for R&D and small-scale production to large industrial systems. The modular design allows for future expansion, and we can provide guidance on sizing based on your current and projected pharmaceutical salt production needs.
8. What documentation and validation support is provided?
We provide comprehensive documentation including design specifications, operating manuals, and maintenance procedures. For pharmaceutical applications, we can support validation activities with documentation of materials of construction, design qualifications, and performance data as required for regulatory compliance.
