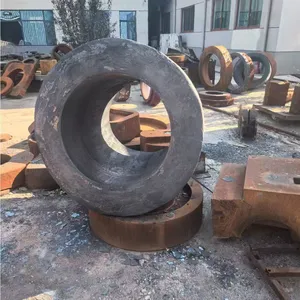

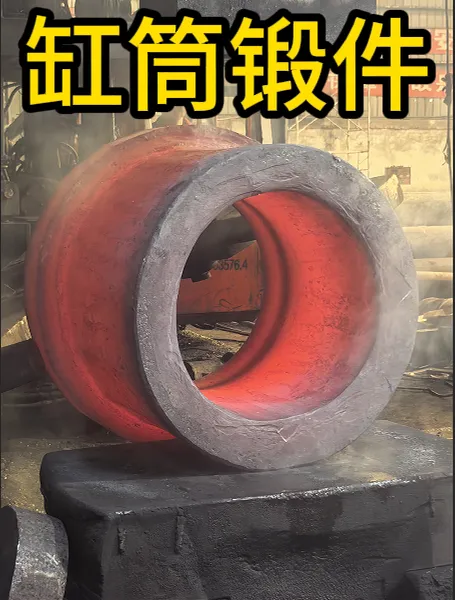

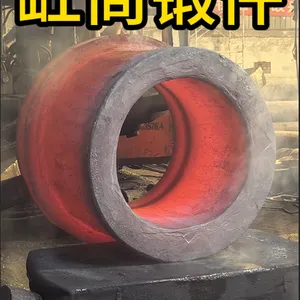

Basic Introduction | Cylinder Tube Open-Die Forgings | Custom Forged Components
Founded in 2011, Shandong Qingliang Mould Technology Co., Ltd. specializes in R&D, production and full-lifecycle customized service of cylinder tube open-die forgings. Focused on hydraulic drive and pressure-bearing core component field, we adopt mature forging craft, matched heat treatment and full-range quality control system. Following the development concept of manufacturing sturdy cylinder tubes to realize stable hydraulic transmission, we supply qualified cylinder forging solutions for construction machinery, automobile manufacturing, pressure vessels, metallurgy & mining and new energy equipment, serving as regular supporting supplier for multiple equipment manufacturers and key engineering projects.
Performance Features | Cylinder Tube Open-Die Forgings
Favorable Strength & Pressure Resistance

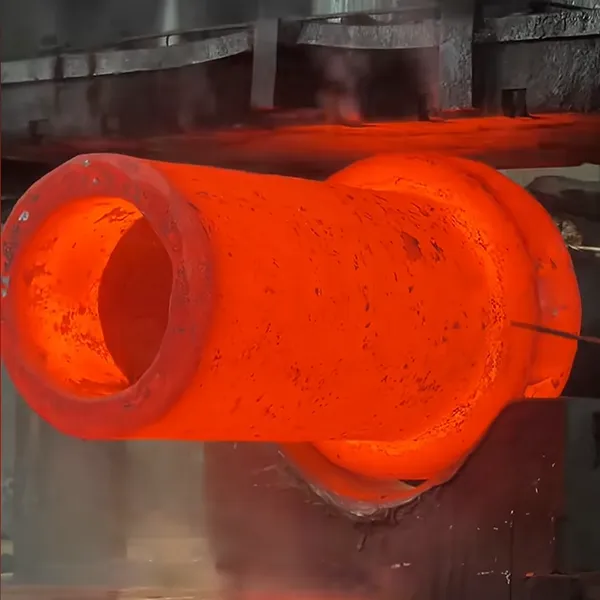

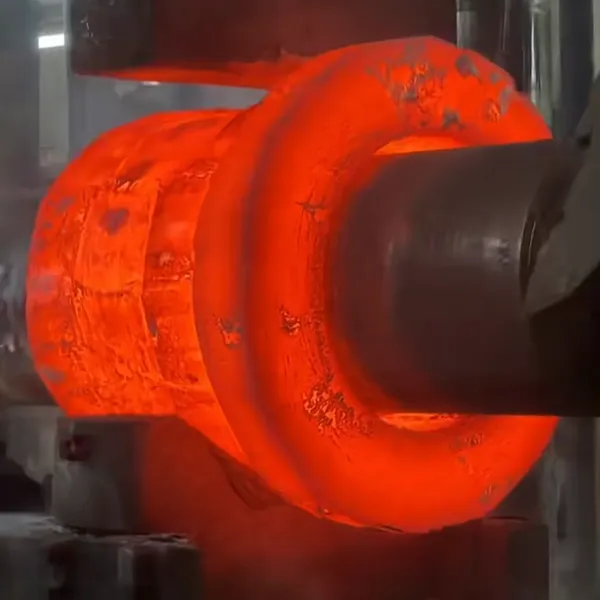

Produced from special steel like 42CrMo; upsetting, piercing and expanding forging refines grain and densifies structure, tensile strength 600-1000MPa, yield strength 355-835MPa. Regular service pressure ≤63MPa, customized design available for ultra-high pressure up to 100MPa.
Excellent Wear & Anti-Seizure Performance

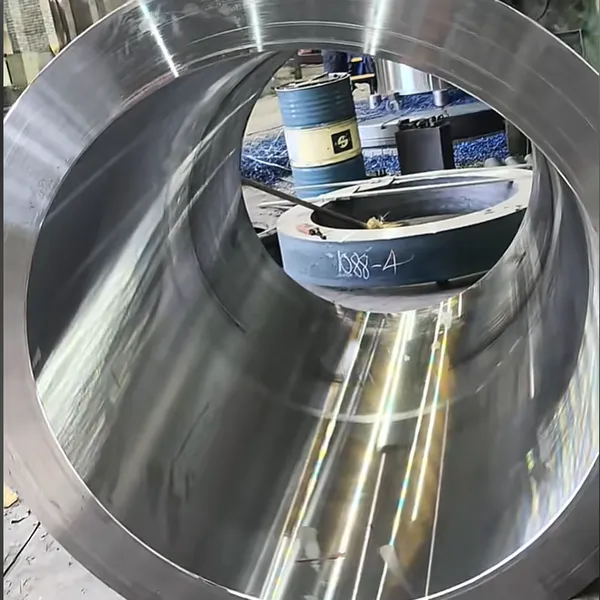

Inner bore is processed via intermediate-frequency induction quenching and honing, hardness HRC55-62, hardened depth 1.5-5.0mm with hardness deviation ≤3HRC; wear resistance is improved by 30%-50% compared with ordinary cylinder tubes.
Balanced Toughness & Enhanced Fatigue Resistance
Composite heat treatment of quenching & tempering, cryogenic stabilization and multi-stage tempering. Impact toughness ≥30~60J/cm² at 20℃, low-temperature impact energy ≥25J at -40℃ to mitigate cracking and edge chipping under high-pressure impact.
High Dimensional Accuracy & Stable Tolerance
All processes comply with relevant GB standards; inner diameter tolerance H7-H8, roundness ≤0.01mm, cylindricity ≤0.015mm/m, concentricity ≤0.015mm to ensure smooth reciprocating movement of piston.
