1. Basic Information

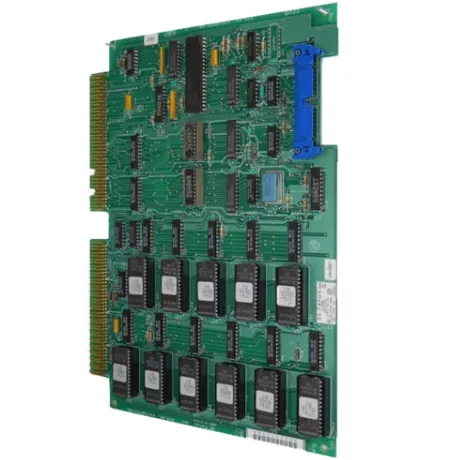

GE IC600CB527M is a 4-channel high-precision analog input control module dedicated for GE FANUC Series Six PLC/DCS systems, with hardware part number 44A720898-001. It is designed for -10V～+10V DC standard industrial voltage signal acquisition, completing high-speed A/D conversion, data shaping and link status management.
Adopting 12-bit high-precision ADC architecture and high-impedance differential input design, the module features fast response, strong anti-interference and stable data acquisition. It is widely used in metallurgy, water treatment, power and traditional manufacturing industries for legacy GE automatic control system maintenance, I/O expansion and faulty part replacement.
2. Technical Specifications
2.1 Core Function & Acquisition Specifications
Model: IC600CB527M, Type: 4-Channel Voltage Analog Input Module
Compatible System: GE FANUC Series Six PLC/DCS System
Input Range: -10V DC ～ +10V DC standard industrial voltage signal
ADC Resolution: 12-bit (4096 quantization levels) high-precision conversion
Conversion Speed: 1ms per channel, 4ms full 4-channel scan update rate
Input Impedance: ＞1MΩ high-impedance differential input for distortion-free signal collection
Core Functions: Analog signal acquisition, A/D conversion, data filtering, parity check and link fault diagnosis
Data Performance: Built-in noise filtering and error correction to ensure stable and accurate data
2.2 Electrical & Power Specifications
Power Supply: 5V DC backplane power supply from system CPU, no external power required
Rated Current: 1A @ 5V DC, stable load for long-term full-load operation
Loop Output: 24VDC auxiliary output, rated 1A load capacity
Protection: Built-in over-voltage, over-current, surge and ESD protection
Signal Isolation: Differential isolation design to suppress common-mode interference
Insulation Performance: High insulation resistance for safe and stable operation
2.3 Diagnosis & Operation Characteristics
Power-on Self-test: Comprehensive self-inspection of ADC chip, channels, power circuit and bus interface
LED Status Indication: DPU, ENABLED, CHAIN OK, PARITY multi-status indicator lights
Real-time Monitoring: Continuous monitoring of I/O link status, data transmission and parity state
Fault Diagnosis: Accurately identifies over-range, link breakage and data check errors
Fault Tolerance: Automatic single-channel fault isolation without affecting other channels
Data Traceability: Uploads real-time data and fault codes for monitoring and troubleshooting
2.4 Environmental & Protection Specifications
Operating Temperature: 0℃～+60℃, suitable for long-term cabinet operation
Storage Temperature: 0℃～+70℃, excellent temperature stability for storage and transportation
Humidity Range: 5%～95%RH (non-condensing), dust-proof and moisture-proof
EMC Performance: Industrial anti-interference design against electromagnetic and harmonic noise
Protection Grade: IP20 indoor protection standard
Certification: CE, UL, CSA international industrial safety certification
2.5 Physical Structure Specifications
Structure Type: Standard modular PCB board for GE Series Six system
Installation: Embedded rack mounting, plug-and-play replacement
Board Size: 8.15×11 inch circuit board with dedicated 12.46×1.175 inch panel
Weight: Approx. 0.9kg (3LBS), lightweight and stable for long-term mounting
Structural Performance: Vibration-resistant reinforced PCB design for industrial working conditions
3. Working Principle
Power-on Initialization & Self-test: After 5V DC backplane power-on, the module completes full hardware self-inspection, initializes ADC parameters and channel configuration, synchronizes system bus timing, and enters standby acquisition mode.
Field Analog Signal Acquisition: Four independent channels collect -10V～+10V DC field voltage signals, filter common-mode interference and clutter through high-impedance differential circuits, and retain effective signals.
High-speed A/D Conversion: Converts analog voltage signals into standard digital signals via 12-bit high-precision ADC chip, with 1ms single-channel conversion and 4ms full-channel scanning to ensure real-time data.
Data Verification & Filtering: Corrects and smoothes converted digital data through parity check and intelligent filtering algorithm, eliminates abnormal jitter data, and guarantees acquisition accuracy and stability.
Bus Data Upload: Uploads processed process data, channel status and module operating information to the CPU main control unit through Series Six backplane bus for real-time monitoring and closed-loop process adjustment.
Fault Monitoring & Alarm: Detects link faults, data errors and signal over-range abnormalities, triggers LED alarm and fault code upload, isolates faulty channels automatically, and recovers normal operation after troubleshooting.
4. Application Scenarios
4.1 Industrial Standard Voltage Signal Acquisition
Collects -10V～+10V DC signals from pressure, liquid level, flow and temperature transmitters, provides accurate real-time process parameters for industrial production monitoring and adjustment, and meets conventional process parameter detection requirements.
4.2 GE Series Six System I/O Expansion
Expands voltage analog signal acquisition points for GE Series Six PLC/DCS systems without modifying main control programs and cabinet structures, realizing low-cost system function expansion and production line upgrading.
4.3 Legacy GE System Maintenance & Replacement
Directly replaces aging and faulty analog input modules with inaccurate sampling and data jitter. Plug-and-play installation quickly restores system acquisition functions, shortening maintenance downtime and reducing operation costs.
4.4 Industrial Process Closed-loop Control
Provides stable and accurate analog feedback signals for PID closed-loop adjustment of constant temperature, constant pressure and constant flow processes, ensures stable process parameters, and improves production qualification rate.
4.5 Industrial Equipment Condition Monitoring
Collects operating condition signals of motors, fans and pumps, supports real-time equipment condition monitoring, abnormal alarm and operation analysis, and guarantees safe and stable operation of industrial equipment.
