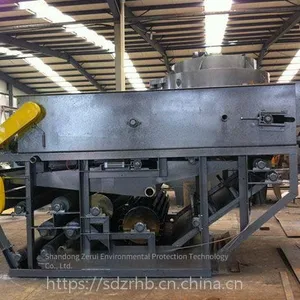

Help CenterWhich Company Has the Best Sewage and Sludge Dewatering Machine for Sand Washing Plants? Look for Shandong Zerui Environmental Protection. It's Reliable.
Related Products
-
Prices, Models, and Pictures of Oral Clinic Sewage Treatment Equipment - Shandong Zerui Environmental ProtectionUS$ 1507.69 - 2307.69MOQ: 1 Unit -
How Much is the Rural and Town Domestic Sewage Treatment Equipment? Find Zerui for Worry-free Service! Custom Processing and Sales According to Demand.US$ 1384.62 - 1476.92MOQ: 1 Unit
-
How Much is the Urban Sewage Treatment Equipment? for Cost-effective Sewage Treatment Equipment, Choose Zerui Environmental ProtectionUS$ 1676.92 - 1999.85MOQ: 1 Unit
-
New Rural Household Sewage Treatment Equipment? Save Your Worry, Choose Zerui! Customized Processing and Sales According to DemandUS$ 1384.62 - 1476.92MOQ: 1 Unit
-
Where to Find Integrated Sewage Treatment Equipment? Come to Shandong Zerui Environmental Protection!US$ 4461.54 - 5676.92MOQ: 1 Unit
How much does a sand washing plant sludge dewatering machine cost? Save worry and money with Shandong Zetray Environmental Protection Technology Co., Ltd.
Sand washing plant sludge dewatering machines, belt sludge dewatering machines, sludge presses, sludge filter presses, sludge filters, mud dewatering machines, mud presses, mud filter presses, mud filters are suitable for electronics factories, sand washing sludge dewatering machines, pile driving mud filter presses, construction site mud treatment equipment, paper mill pulp presses, printing and dyeing factories, chemical factories, aluminum factories (aluminum hydroxide), electroplating factories, sugar factories, leather factories, gold mine tailing sludge, iron ore tailings, lead-zinc ore tailings, fluorite mines, potassium-sodium feldspar mines, construction, subways, steel factories. The products feature high efficiency, energy-saving technology and good quality.

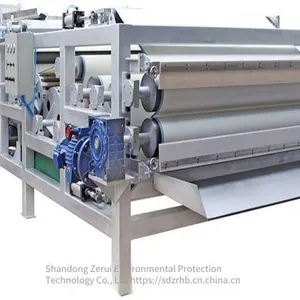

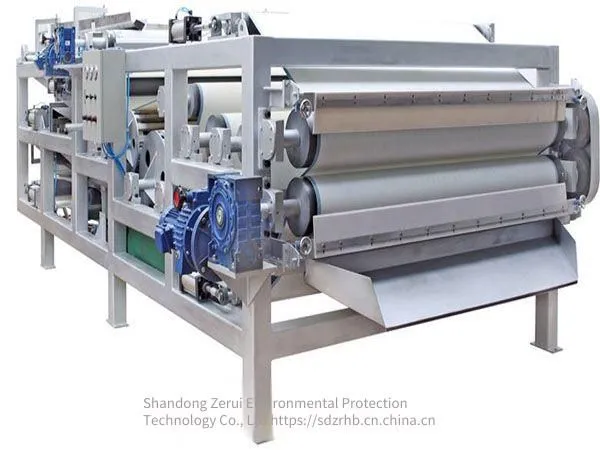

I. Parameter description of the 2-meter belt filter press:
Main machine model: hx2000,
Main machine power: 4.99KW.
Complete set power: 18KW.
Main machine weight: 5.02T.
Main machine external dimensions: Length X Width X Height = 5400X2900X2000,
Effective width of the filter belt: 2000MM,
Effective speed of the filter belt: 1 - 7M/MIN,
Tension and deviation correction air pressure of the filter belt: 0.25MPA,
Flushing water pressure of the filter belt: 0.4 - 0.5MPA.
Length of the upper filter belt: 15150MM,
Length of the lower filter belt: 14550MM,
Treatment capacity of concentrated sludge: 10 - 20M3/H,
Moisture content of the filter cake: (1) Organic sludge: 70% - 80%
(2) Inorganic sludge: 20% - 30%.
It is equipped with an automatic deviation adjustment device and an alarm and tripping device for deviation adjustment failure.
II. Main machine configuration:
(1) One set of dynamic mixer (with the main machine)
(2) One pneumatic control cabinet (with the main machine)
(3) One deviation adjustment control box (with the main machine)
(4) One set of static mixer

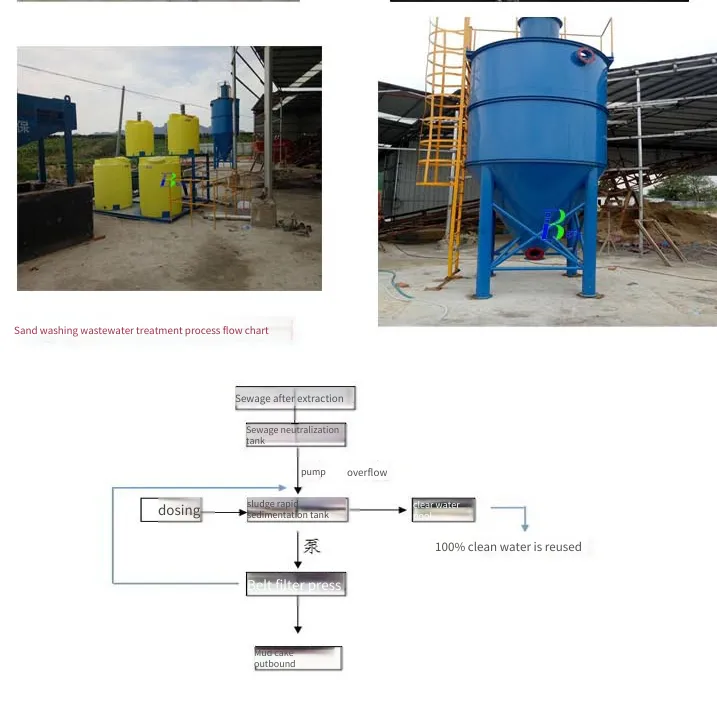

Process flow:
Main technical performance advantages
1. Reasonable and advanced complete dehydration process and equipment
Every link such as sludge transportation, coagulation reaction, gravity concentration and dehydration, filter screen shearing and extrusion dehydration, double-roll high-pressure dehydration, filter cake discharge and collection, and continuous and reliable complete operation is tried to ensure quality and lead in the industry.
2. Large processing capacity, good effect and high filter cake output
With the advanced and reasonable structural layout design of the main machine and combined with the dedicated and mature supporting process, the processing capacity is 2 - 5 times larger than that of ordinary dehydration equipment.
3. Low moisture content of filter cake
By adopting the double-roll extrusion and the technology of reverse operation and discharge of slag and water independently developed by Shandong Zetray Environmental Protection Technology Co., Ltd., the separation speed of slag and water is greatly accelerated, and the moisture content of the filter cake is reduced to the minimum level of mechanical dehydration.
4. Good anti-corrosion performance, strong acid and alkali resistance
The parts of this machine in contact with slag or water are all made of high-quality 304# stainless steel. For the anti-corrosion treatment of the rest of the carbon steel parts, after surface sandblasting and rust removal, four layers of thickened fluorocarbon paint are used for high-strength anti-corrosion treatment, and its acid and alkali corrosion resistance and rust prevention ability can reach more than eight years.
5. Reliable and stable mechanical performance, which can ensure 24-hour fully automatic continuous operation and production
The main drive reduction motor uses a domestic famous brand cycloidal pinwheel reducer. Double-row sprockets and frequency converters are used to adjust and control the speed, with large torque and stable operation.
6. The automatic filter screen deviation correction system is sensitive, reliable and durable
The latest patented technology of our company is adopted: the automatic filter screen tracking and deviation correction system, which ensures the stable operation of the filter screen in the center, prolongs the service life of the filter screen, and prevents the filter screen from deviating and wrinkling.
7. The automatic filter screen cleaning effect is good, ensuring the continuous water permeability of the filter screen
The patented technology of our company is adopted: non-blocking and easy-to-clean cleaning nozzles, resulting in less water consumption and thorough cleaning of the filter screen.
8. Double-row cylindrical roller bearings with large bearing capacity and waterproof and dustproof bearing seats are adopted
All rollers are supported and fixed by double-row cylindrical roller bearings with large bearing capacity and waterproof and dustproof bearing seats, and their service life can reach 3 - 5 years.
9. All rollers are made of thickened national standard seamless pipes and wrapped with high-quality and corrosion-resistant natural rubber
10. High-strength polymer polyester filter screens are adopted
Different filter screens are selected according to the physical and chemical characteristics of sludge. This machine uses high-quality filter screens with high strength, good water permeability, not easy to block, dense and smooth surface, high solid recovery rate, easy to clean, and easy to peel off the filter cake.
11. Simple operation, maintenance and repair
When designing the structure of this machine, the convenience of users' operation and the simplicity of maintenance and repair are fully considered, and a very reasonable and advanced structural layout design is adopted.
How much is the sludge dewatering machine for sand washing plants? Save worry and money by choosing Shandong Zetray Environmental Protection Technology Co., Ltd.
