Help CenterSupply of Zhitu Machinery Bwc1800 Automatic Corrugated Flame Arrester Core Forming and Winding Machine
Related Products
-
Professional Manufacturer of Bw800 Horizontal Mobile Lifting Positioner, Supporting Non-standard CustomizationUS$ 3461.54 - 3938.46MOQ: 1 Unit -
Zhitu Machinery Specializes in the Production of Head-tail Lifting Positioners and Supports Non-standard Customized Production.US$ 3461.54 - 3938.46MOQ: 1 Unit
-
Jinan Zhitu Lr-15t Vertical Coil Winding Machine, Customizable Coil Winding EquipmentUS$ 2153.85 - 2307.69MOQ: 1 Unit
-
Zhitu Machinery Supplies Mx-30 Cnc Turret Busbar Processing Machine, Fully Automatic Busbar Processing Production Line.US$ 415.38 - 446.15MOQ: 1 Unit
-
Supply Zhitu Machinery Z1400 Online Stretch Film Wrapping Machine, Free Design of Non-standard Wrapping MachinesUS$ 661.54 - 692.31MOQ: 1 Unit

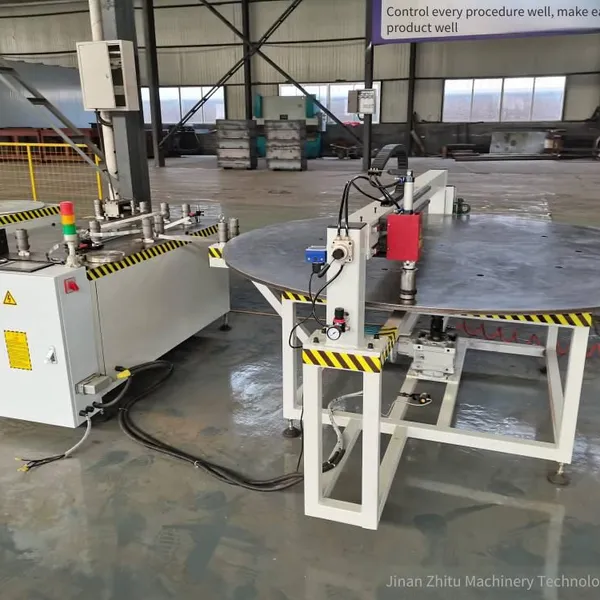

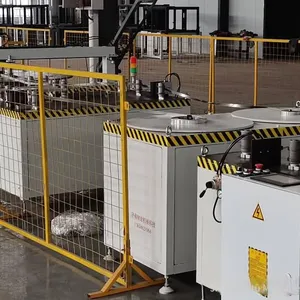

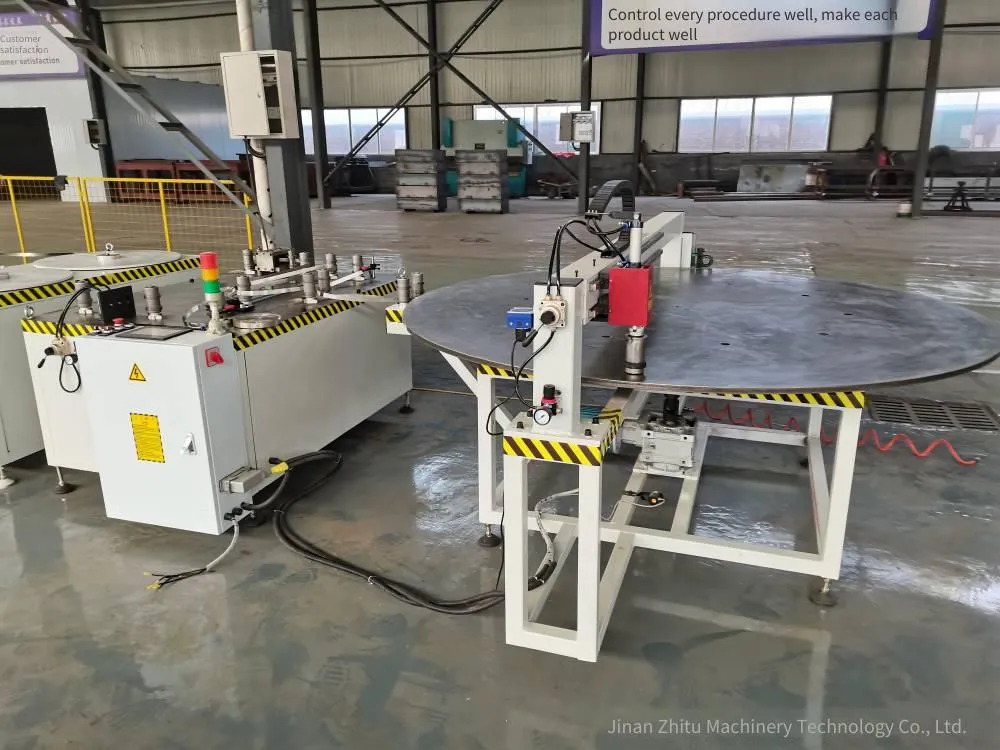

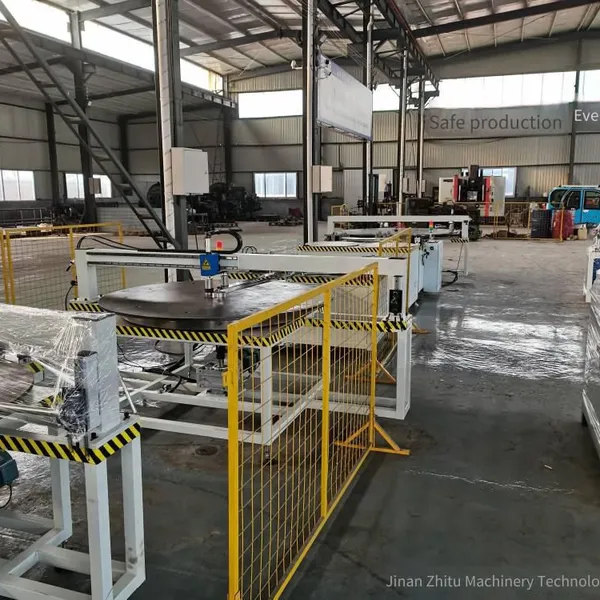

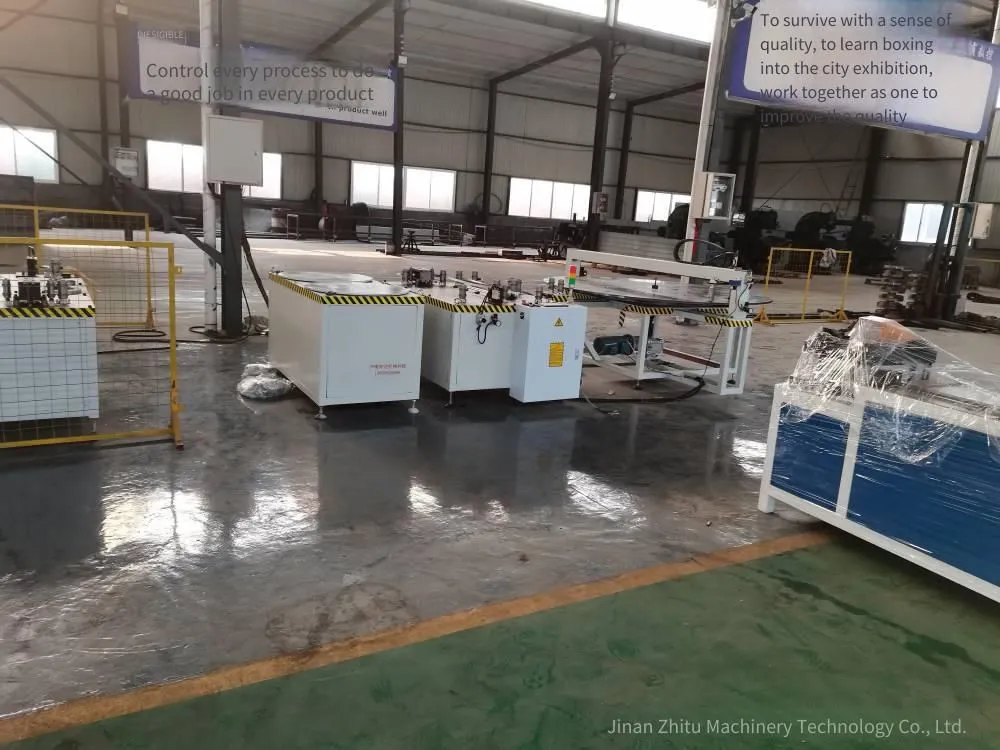

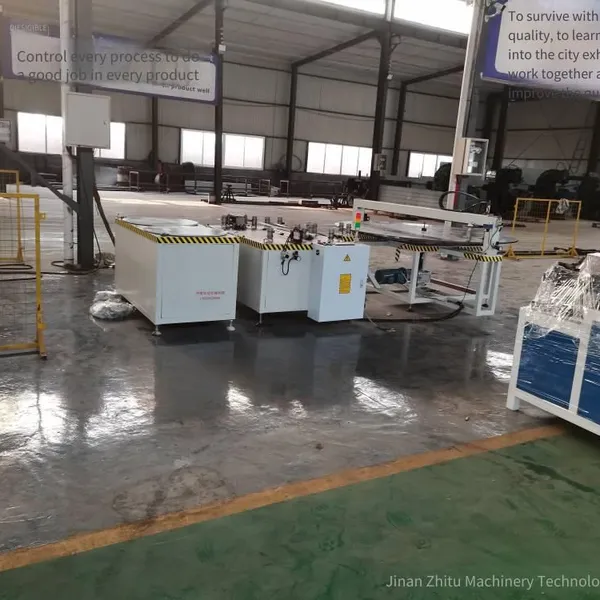

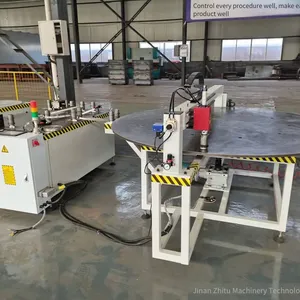

Supply BWC1800 automatic corrugated fire retardant core forming and winding machine. Professional production of disc-type wire winding machines, including square material mechanism, automatic cold pressing forming mechanism, and automatic winding mechanism.
CorrugatedFire retardant coreProduct introduction of the board
CorrugatedFire retardant coreThe board is usually made of stainless steel strip or copper-nickel alloy material and pressed into a corrugated shape. The size of the corrugation is determined by the gas properties and the flame speed. The corrugated thin plates and flat plates are alternately wound on the central axis to form a stack of fire retardant layers with triangular pores. This structure of the fire retardant layer can produce corrugated fire retardant layers with different diameters, different thicknesses, and different pores according to the design requirements.ZhituJinan Zhitu Machinery Technology Co., Ltd. specializes in the R & D and production of various specifications of corrugated fire retardant nets, corrugated fire retardant boards, stainless steel fire retardant sheets, stainless steel fire retardant discs / fire retardant boards with steel ring protection and large-diameter fire retardant nets. The thickness of the commonly used corrugated thin plates is between 0.1 - 0.3mm. The height of the corrugation is generally 0.2mm, 0.3mm, 0.5mm, 0.7mm, 1.2mm, etc., which should be determined according to the flame speed.
The flame arrester with a corrugated structure has been proven to have good fire retardant performance, a wide range of applications, low manufacturing costs, and is easy to inspect and install. Therefore, this structure of the flame arrester has been widely used. The corrugated fire retardant layer can be composed of several fire retardant layers as a whole, but there should be no gaps between the layers to prevent the flame from passing through the gaps and affecting the overall fire retardant performance of the flame arrester.
