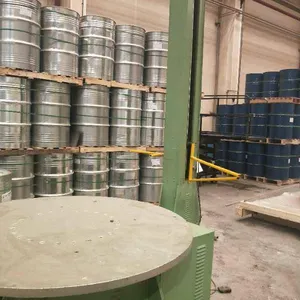

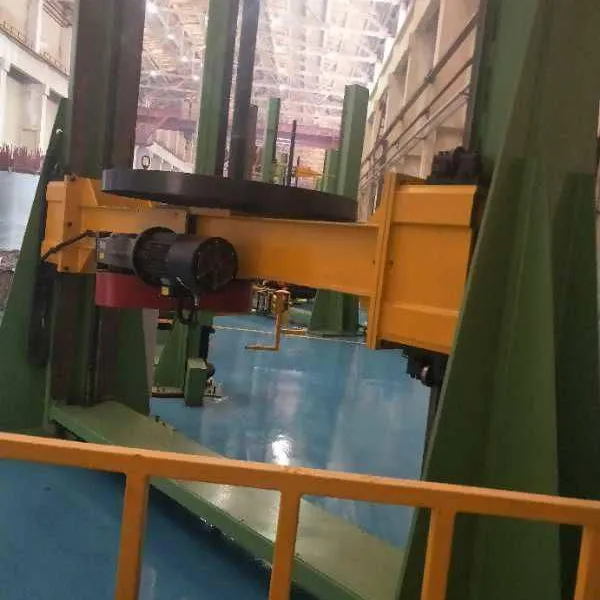

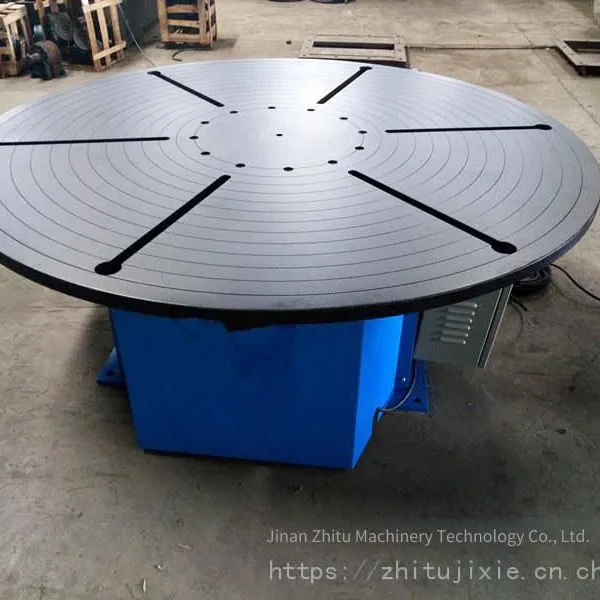

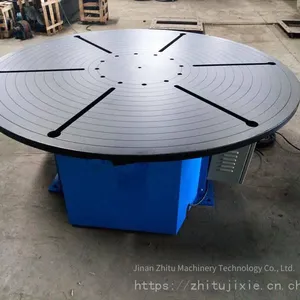

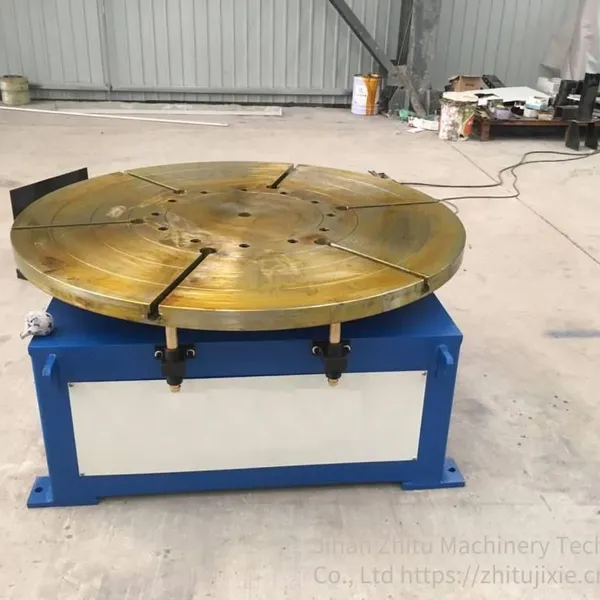

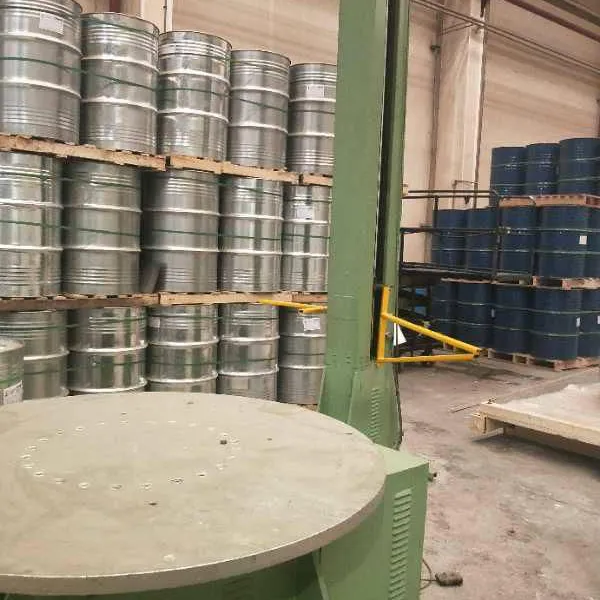

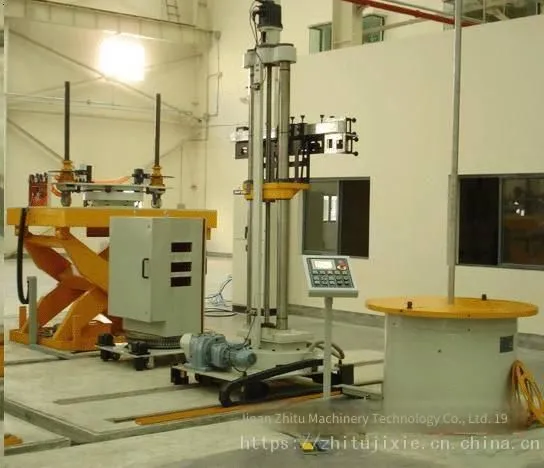

Jinan Zhitu LR-15T Vertical Coil Winding Machine, Customized Coil Winding Equipment.
LR Series Vertical Winding Machine
1. Equipment Usage: This equipment is used for winding coils of large transformers and reactors. It can be customized into a pit-type or pit-free model according to the user's needs.
2. Equipment Features: The operator is always in the same position as the winding part. The frequency converter can provide stepless speed regulation. The encoder counts forward and reverse rotations. It has power-off memory, touch screen operation,PLC control. The starting point can be set arbitrarily, and multiple sections of turns can be set. The total number of turns error is zero. The start and stop are stable, and the stop is firm.
3. Technical Parameters: (It can be customized as25T,30T,35T, etc. according to the user's requirements, and corresponding equipment will be provided.)
Parameter Model |
LR-10T |
LR-15T |
LR-20T |
Load-bearingT |
10 |
15 |
20 |
Flower plate diametermm |
1200 |
1600 |
1800 |
Coil rotation diametermm |
1800 |
2200 |
2600 |
Flower plate lifting strokemm |
1800 |
2200 |
2800 |
Flower plate torqueNm |
10000 |
13000 |
18000 |
Flower plate rotation speedr/min |
0-15 |
0-10 |
0-10 |
Flower plate lifting speedm/min |
0.5 |
0.3 |
0.3 |
Flower plate above the groundmm |
300 |
300 |
300 |
