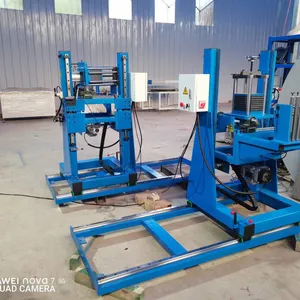

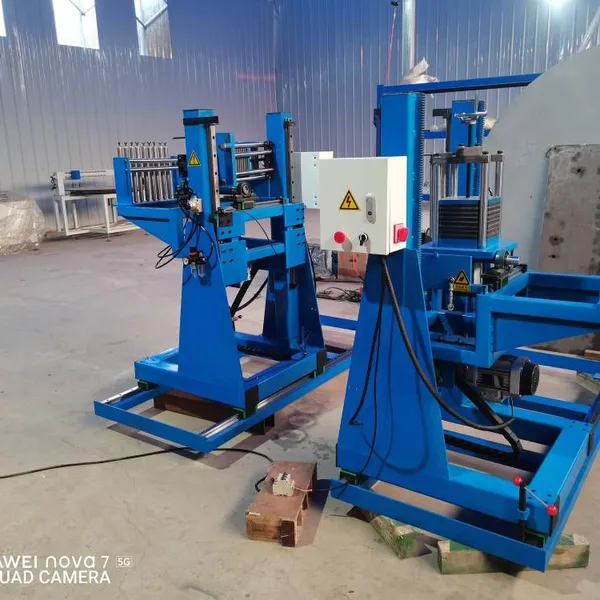

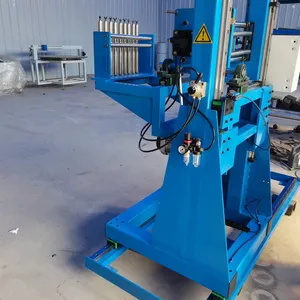

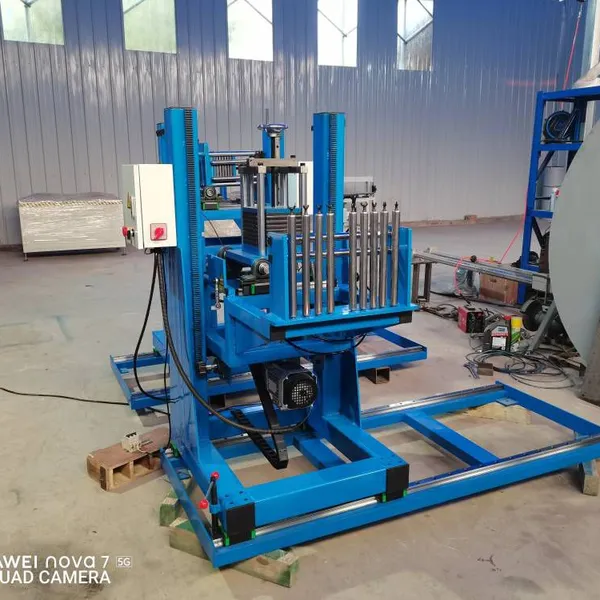

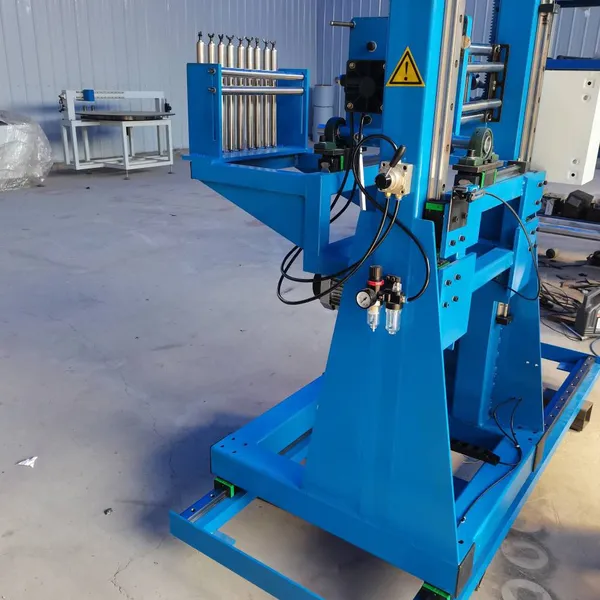

Help CenterZhitu Machinery Specializes in the Production of Head-tail Lifting Positioners and Supports Non-standard Customized Production.
Related Products
-
Jinan Zhitu Lr-15t Vertical Coil Winding Machine, Customizable Coil Winding EquipmentUS$ 2153.85 - 2307.69MOQ: 1 Unit -
Zhitu Machinery Supplies Mx-30 Cnc Turret Busbar Processing Machine, Fully Automatic Busbar Processing Production Line.US$ 415.38 - 446.15MOQ: 1 Unit
-
Supply Zhitu Machinery Z1400 Online Stretch Film Wrapping Machine, Free Design of Non-standard Wrapping MachinesUS$ 661.54 - 692.31MOQ: 1 Unit
-
Jinan Zhitu Supplies T1200 Pallet Wrapping Machine, Supports Non-standard CustomizationUS$ 2153.85 - 2461.54MOQ: 1 Unit
-
Zhitu Supplies Rx3 Horizontal Constant Tension Coil Winding Machine, Customized Non-standard, Constant TorqueUS$ 1492.31 - 1523.08MOQ: 1 Unit

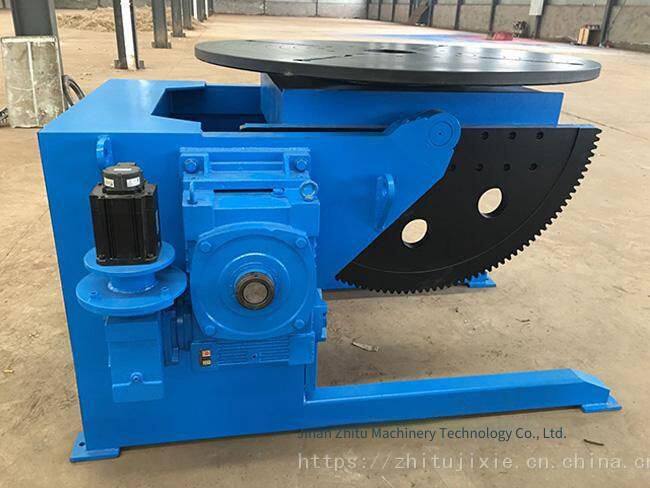

Seated positioner
The seated positioner is driven by a three-phase asynchronous motor to realize the overturning and infinite rotation of the workbench. The overturning angles of positioners of different models vary, generally divided into 0-90° and 0-120°. The panel of the positioner is machined with T-slots for easy clamping of workpieces, and the annular oil groove line is convenient for centering.
According to the customer's usage requirements, it can be derived into: mechanical/hydraulic lifting positioner, L-shaped positioner, head-tail positioner, lifting positioner, double-column positioner, precision positioner matched with robots, etc.
BWJ Positioner Series:

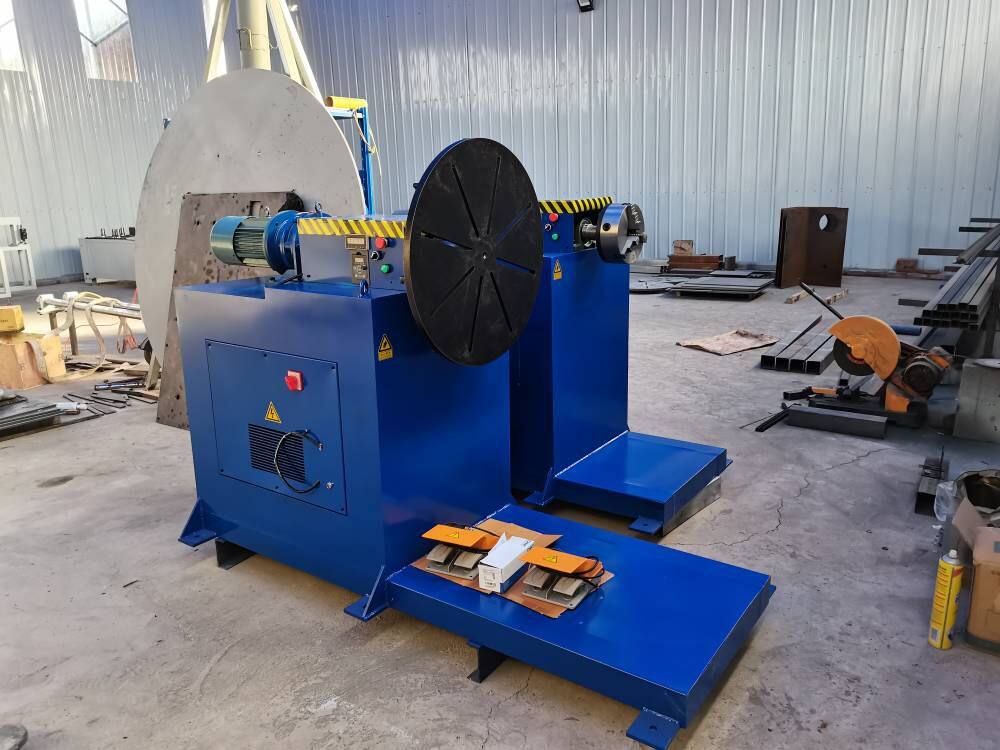

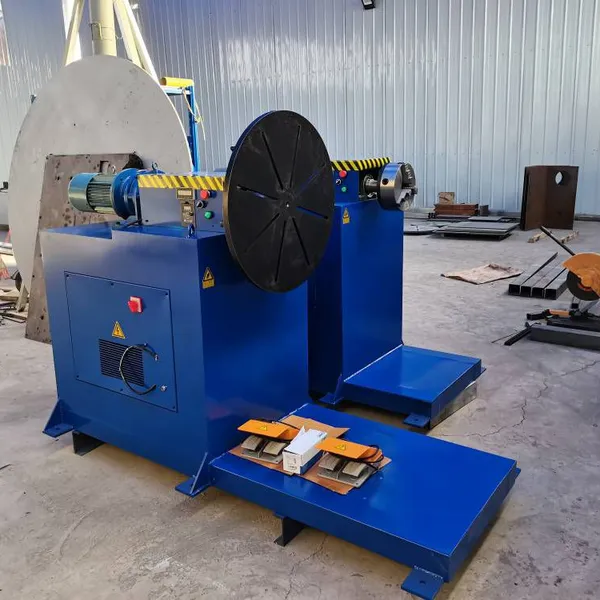

This series consists of positioners in various forms such as side-tilting, head-tail rotating, head-tail lifting and rotating, head-tail tiltable, and double-rotating. It is a practical auxiliary positioning device, mainly used in workplaces such as welding of steel structural parts and assembly of mechanical parts.
It enables the workpiece to be in the optimal welding or assembly position through the lifting, rotation, and overturning of the workbench. It can be matched with a welding manipulator to form a special automatic welding machine, and is widely used in the manufacturing industry of various steel structural parts such as flanges and pipe fittings. It can also be used as peripheral equipment to match with robots to achieve automatic welding. It is one of the commonly used equipment in modern pipeline, container, and steel structure production enterprises..
Load capacity (kg) 0°/90° |
Overturning motor power (kw) |
Overturning speed r/min |
Overturning angle (°) |
Slewing motor power (KW)
Slewing speed r/min
Slewing speed regulation method
Workbench diameter (mm)
Distance from center of gravity/mm
Eccentricity/mm
600/300
0.55
1.5
0 - 90
0.37
0.2 - 2
AC variable frequency speed regulation
650
100
50
1000
0.75
0.37
0-120
0.75
0.1-1
1000
250
150
2000
1.5
0.37
0-120
1.5
0.1-1
1100
250
150
3000
1.5
0.37
0-120
1.5
0.06-0.6
1400
300
200
5000
3
0.37
0-120
2.2
0.05-0.5
1600
300
200
10000
4
0.37
0-120
3
0.05-0.5
2000
400
200
20000
7.5
0.3
0-120
5.5
0.02-0.2
2000
500
20
