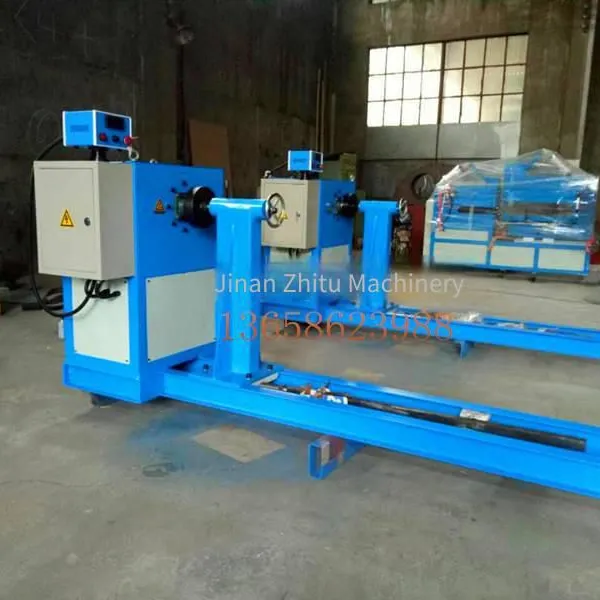

Help CenterZhitu Machinery Specializes in Rx-1t High and Low Voltage Horizontal Fully Automatic Constant Tension Automatic Cable Winding Transformer Winding Machines
Related Products
-
Supply of Fully Automatic Processing Equipment for Transformer Insulation Materials - Zt2516 Fully Automatic Cutting MachineUS$ 6615.38 - 6923.08MOQ: 1 Unit -
Zhitu Machinery Supplies Rx-3 High and Low Voltage Horizontal Automatic Cable Arrangement Power Transformer Winding MachineUS$ 1492.31 - 1523.08MOQ: 1 Unit
-
Professionally Manufacture H550l Vertical Ring Body Winding Packaging Machines. Zhitu Machinery Provides Free Design and Production of Non-standard Packaging Machinery.US$ 415.38 - 430.77MOQ: 1 Unit
-
Supply of Zhitu Zt2516 High-speed Cnc Cutting Machine for Composite MaterialsUS$ 1046.15 - 1061.54MOQ: 1 Unit
-
Supply of Xinjiang Fully Automatic Composite Material Cutting Machine, Model Zt2518 Vibrating Knife CutterUS$ 538.46 - 553.85MOQ: 1 Unit

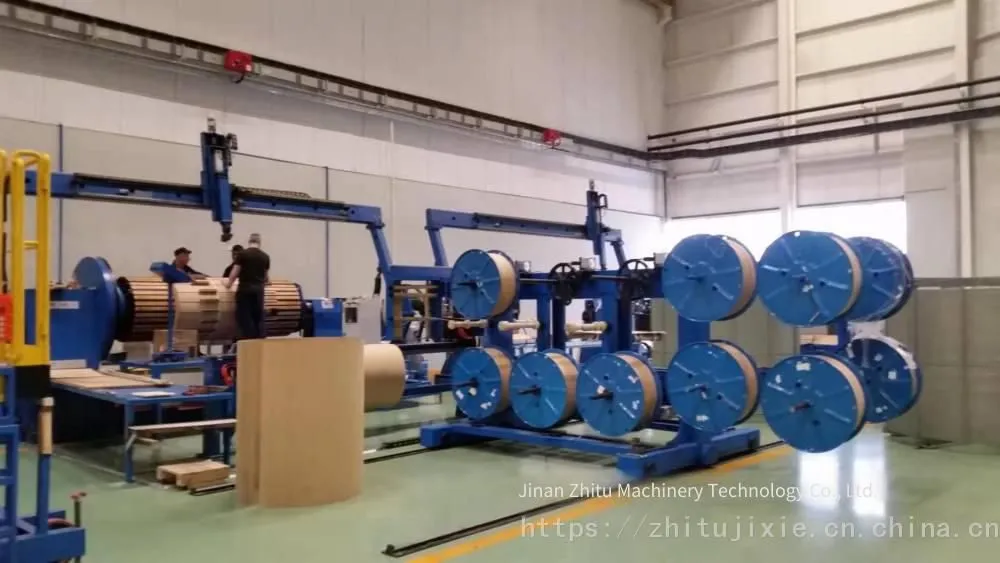

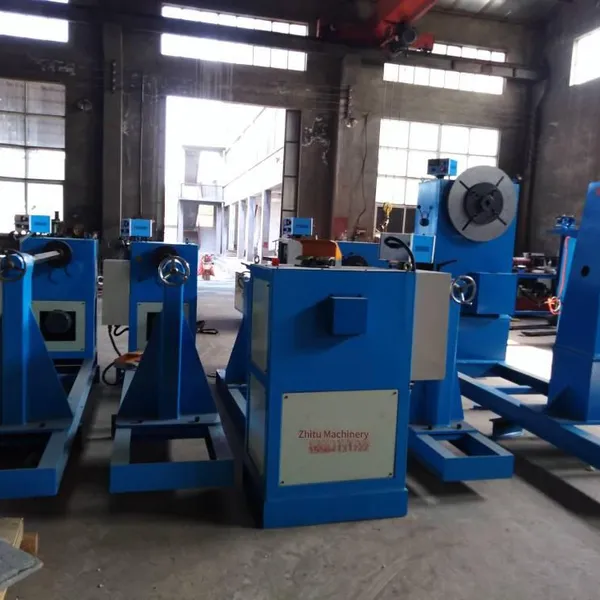

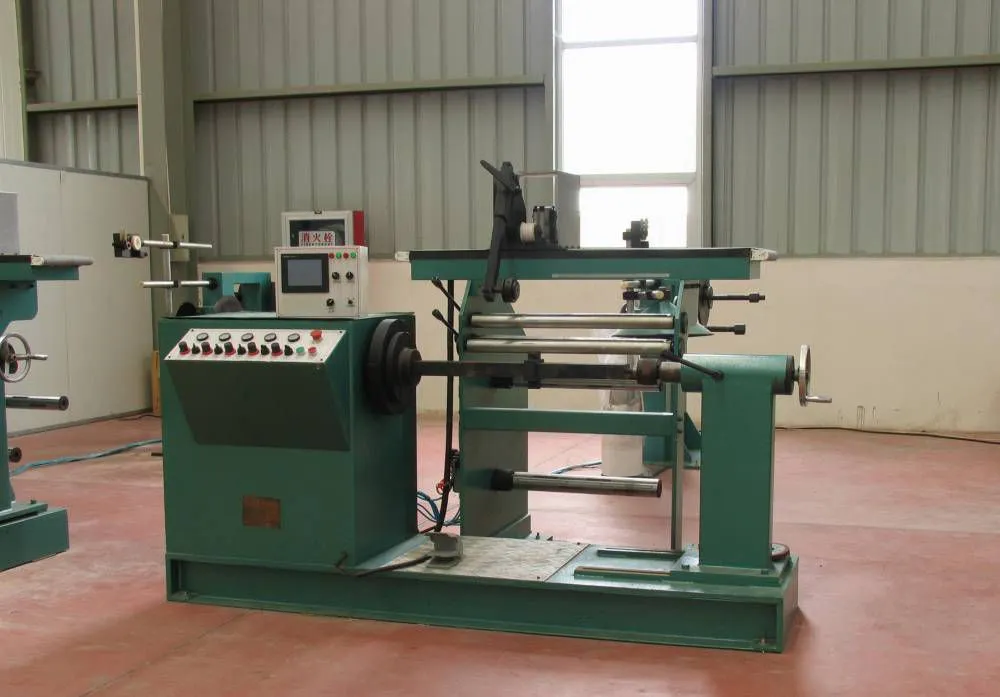

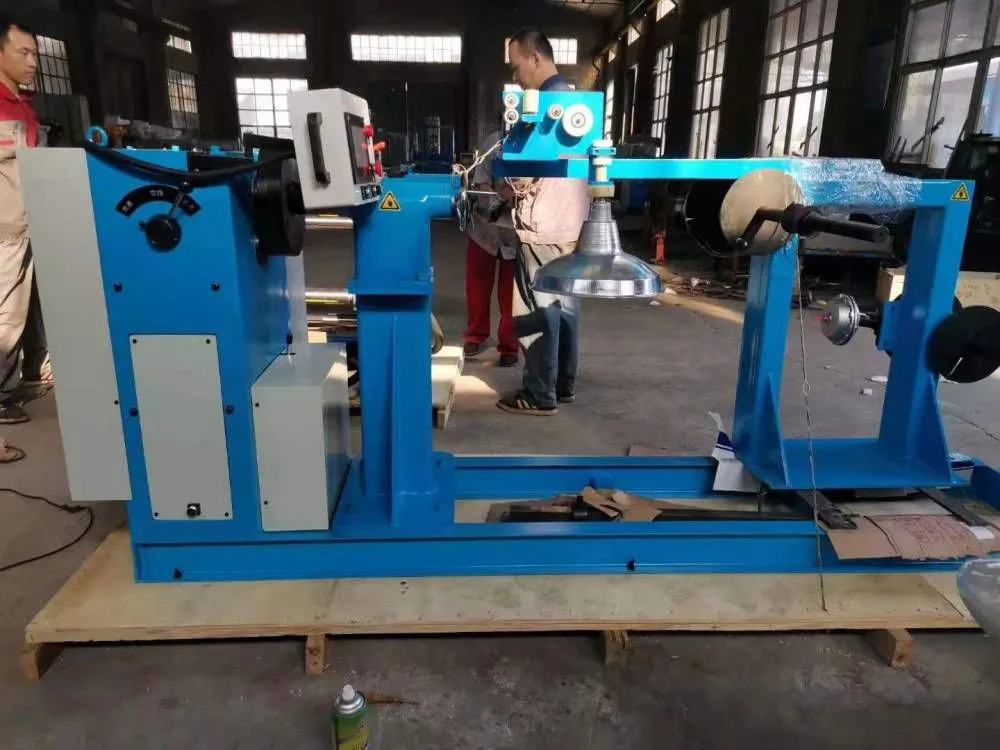

Automatic wire winding and arranging machine (Load-bearing 1T tons)
I. Product composition and structural features
This equipment consists of the main chassis guide rail, the tailstock, andthe automatic wire arranging device, PLC control, the servo motor system, and the touch screen human-machine interface.
The structural features are as follows:
1. The mechanical transmission part of this winding machine is located in the headstock, and the transmission part is installed on the operating side of the headstock.
2. This winding machine uses a frequency converter to achieve stepless speed regulation, with smooth starting and constant torque. Adjusting the speed control knob can achieve stepless speed change from 0 - 50 Hz; set the number of turns and it will stop automatically.
3. This machine is equipped with an automatic braking device to prevent reverse rotation when the winding stops.
4. The button station is centrally controlled by a foot switch orControl the start and stop of the spindle with buttons.
5. This equipmentfeatures high automation, complete functions, and strong power, ensuring the axial and radial compactness of coil winding.
II. Technical Parameters
1. Center height of the winding machine spindle ------------------------------------850mm
2. Diameter of the winding machine faceplate --------------------------------------200mm
3. Adjustment range of the winding machine tailstock-----------------------------100～500mm
4. Torque of the winding machine spindle---------------------------------1000N.M
5Rated power of the motor-----------------------------------------4kw
Rated speed-----------------------------------1400 r/min
6Speed range---------------------------------0～60r/min Variable frequency speed regulation
7Load capacity of the winding machine---------------------------------------1000Kg
8、Conductor specifications ------------- -------- PaperCovered wire: Φ8mm—Φ13mm
9,Applicable workpiece range ----------------------Outer diameter(o.d.) ≤1400mm
10、Adjust the minimum spacing of wire diameter-----------------------------------0.02mm
11、Cable arrangement width ------------ -----------------------500mm
III.Functional features:
1、This machine adopts a hard - fabric gear mechanical speed - change system, featuring high efficiency and low noise.
2、 The motor has a braking function, which is sensitive and reliable.
3、 In terms of electricity, variable - frequency speed regulation is adopted, and the braking is controlled by the frequency converter. Therefore, the starting and braking slopes can be preset to make it suitable for the winding state.
4、The variable - frequency speed regulation has a wide range, and the speed regulation is accurate and stable.
5、 It has an automatic cable - arranging function.
6、It adopts a servo motor and PLC control system. A high - definition touch - type operation screen is used for display and human - machine dialogue. Imported ball screws and linear guide rails are used to ensure accurate cable - arranging.
7、 A dedicated circuit is set to synchronize the automatic cable - arranging with the winding.Coordinate.
8. The cable arrangement device is equipped withtension stringingfunction, and the tension is adjustable to meet the requirements of different wire gauges. In addition, a pneumatic pressing device is provided to meet the needs of workpieces.
9. Before winding, the automatic cable arrangement pitch can be conveniently set according to different wire gauges. During the winding process, possible errors can be manually fine - tuned to ensure the coil is tight.
10.The desktop control box is placed above the chassis for easy use and clear display.
