CIPP liner hose manufacturing machine
What is CIPP Liner hose
Cured-in-place pipe lining, or CIPP, is a fastest trenchless solution for repair old or damaged underground pipe line for drainage, sewerage or portal water without the excavation of ground, pavement and driveay.
There are two type of CIPP liner ose, one is heat curing such as steam and hot water and another is UV curing( UV-CIPP liner).
The advantage of repairing damaged pipe with CIPP liner hose is as follows:
Cost-Effective
Rehabilitating damaged pipe with CIPP liner due to its installation is very fast and procedure is simple.
The following features will explain why it is the cost-effective of CIPP lining
Daimeter range: from 2”(50mm) to 120” (3000mm), and wall thicknesses is from 2 mm to 30mm.
Fast and efficient
CIPP lining is a fast and efficient trenchless pipe rehabilitation technology.
Renovation of pipelines that are inaccessible for traditional excavation methods
Unlike traditional methods, CIPP lining does not require the excavation of ground, pavement or driveway.
Long-service life: Fully structural fixing designed to be more than 50 years.
Various applications: It can rehabiliting the duct-iron pipe, concrete pipe and plastic pipe with very thin CIPP liner hose what is made from glass fiber matrix and high strength resin in the lining material increases liner strength, small shrinkage.
Smooth surface, very low friction improves flow capacity.
No traffic disruption
Immediately used after installation.

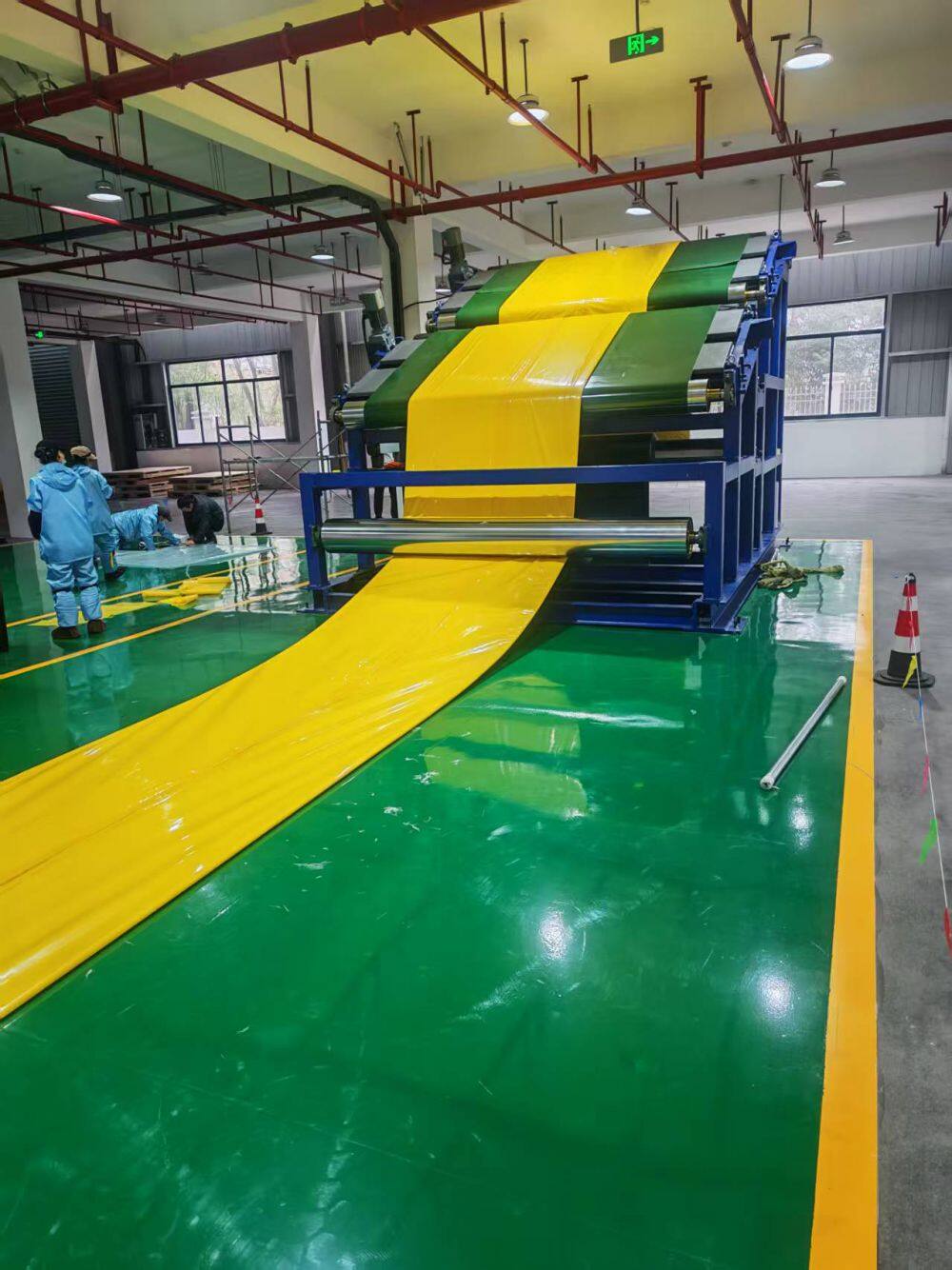

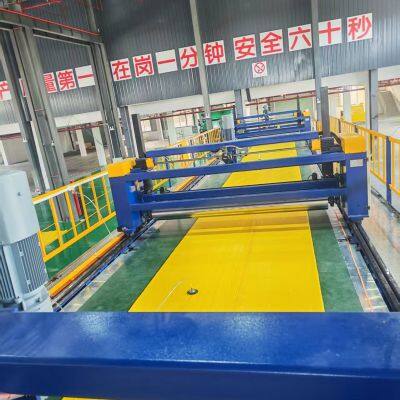

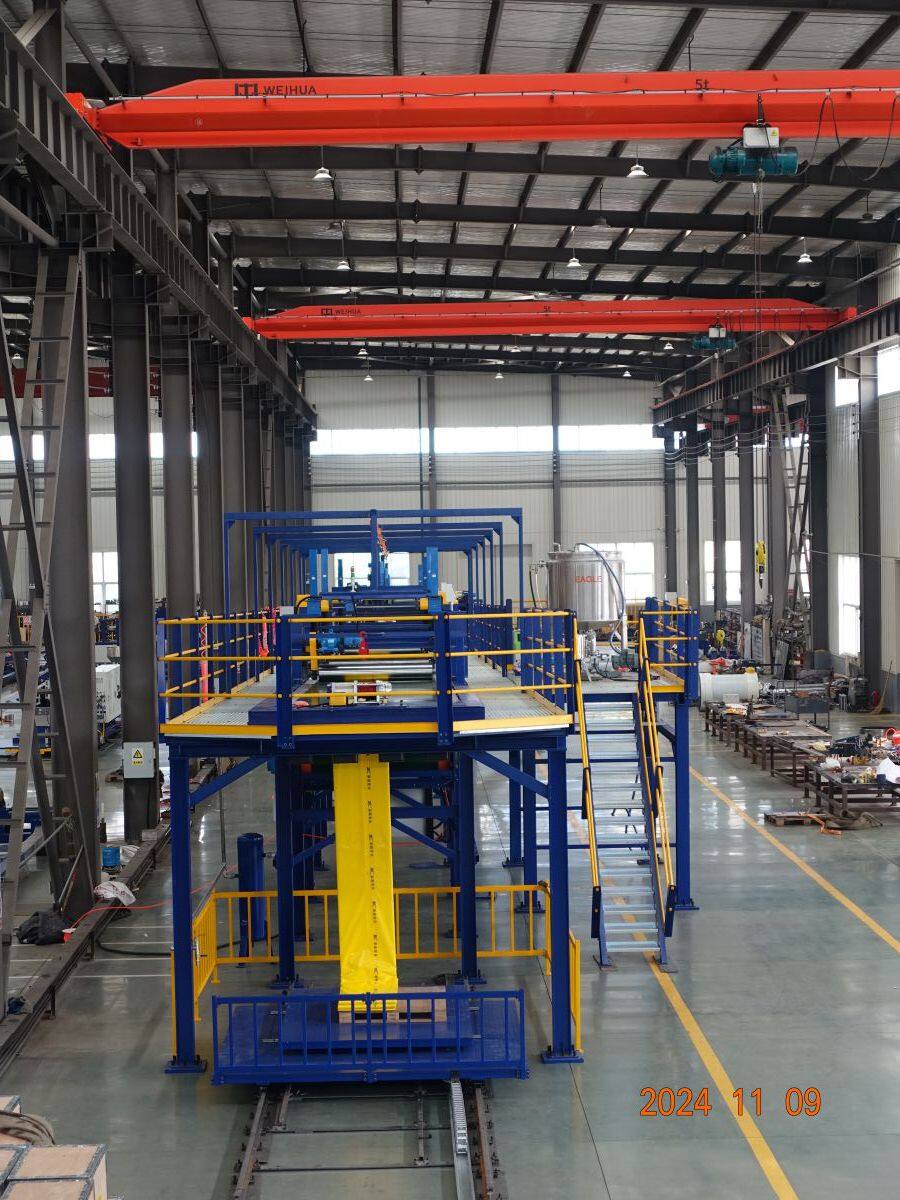

CIPP liner hose manufacturing machine
With new technology to produce the CIPP (Cured In Place Pipe) liner hose. It equipped fully automatic dry liner manufacturing machine and wet(impregnation) liner manufacturing machine.
The dry liner consists material uncoiling station, Aramid rope loading station, fiber glass matrix folding station, leakage-proof nonwoven fabric heat sealing and anti-light film heating sealing unit and folding unit.
The wet(impregnation)liner hose manufacturing machine consists online fully automatic and high precision resin dosing and mixing unit, fully automatic powerful vacuum unit, ultra-flat impregnation and flatting unit and automatic folding unit to ensure the high production speed, fully impregnation of glass fibre and resin, uniform thickness and lower resin consumption.
Specification
Min. Dia mm |
Max. Dia mm |
Capacity m/shfit |
Area |
|
STL-600 |
200 |
600 |
300-600 |
45*4*5*2 |
STL-800 |
200 |
800 |
300-600 |
45*4*5*2 |
STL-1200 |
200 |
1200 |
200-500 |
50*5*5*2 |
STL-1500 |
200 |
1500 |
200-500 |
50*5*5*2 |
STL-2000 |
300 |
2000 |
200-500 |
55*7*5*2 |
