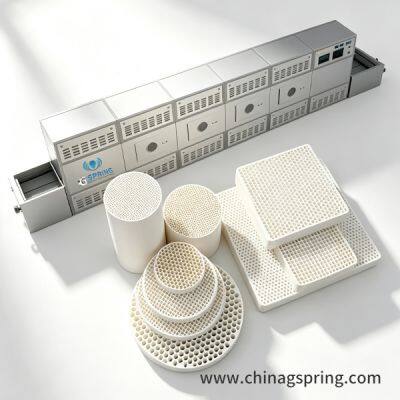

Industrial Microwave Oven For Ceramics Industry
Fast Drying • Uniform Heating • Continuous Automatic Production
Microwave Machine in Ceramics Industry Advantage:

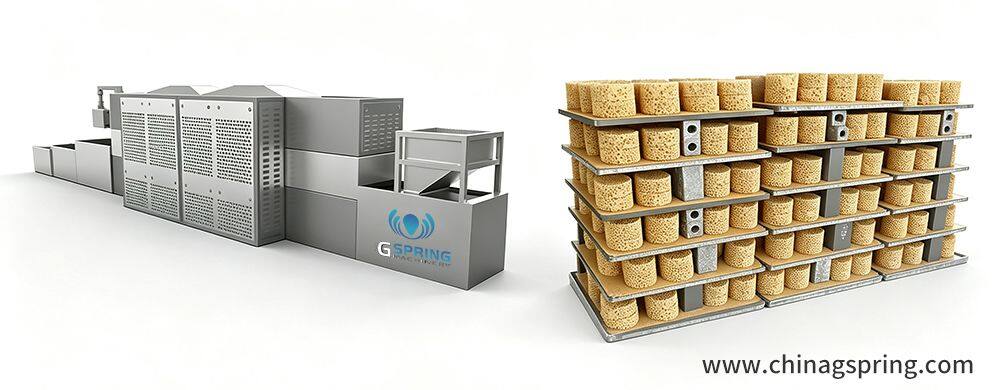

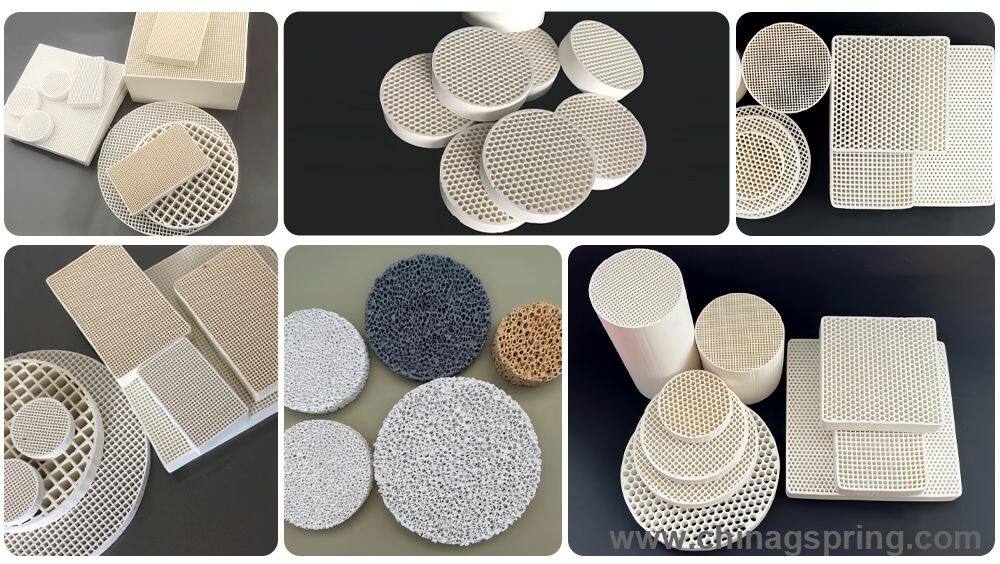

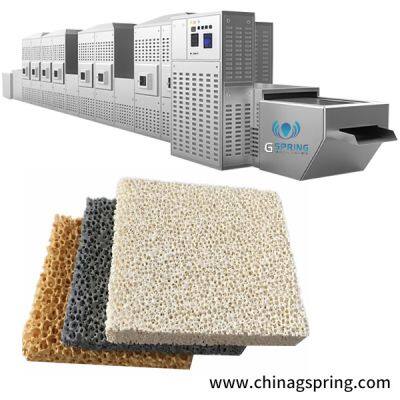

Microwave drying technology has been successfully used for drying of porous ceramics, as porous material molded with lot of water, porous, and inner hole wall is very thin, plus porous material's bad thermal conductivity, traditional methods is very different to make even heating, but microwave technology is easily to dry porous ceramic from 18-25% to 3%, greatly shorten drying time, increase the finished products quality.

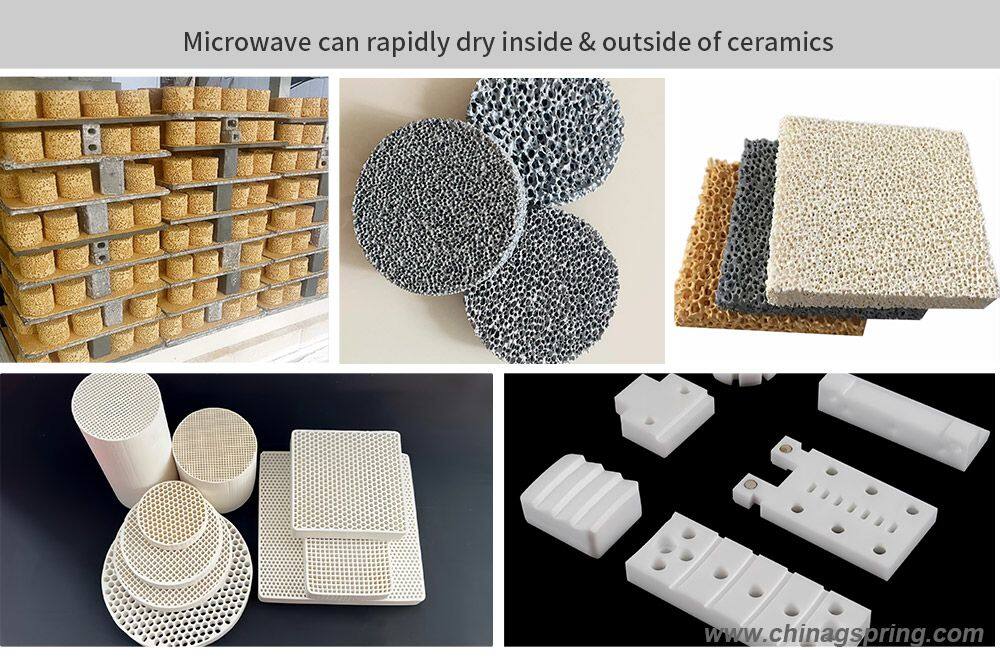

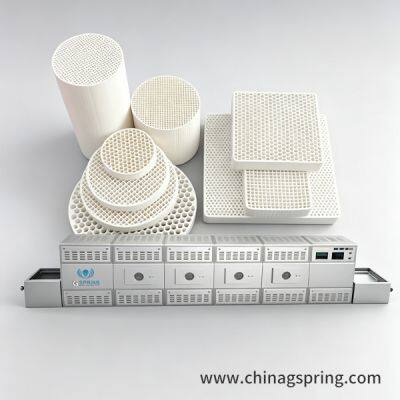

Microwave can rapidly dry inside & outside of ceramics, especially honeycomb ceramics，kinds of material ceramics, special shape ceramic etc.
✔ Tunnel Conveyor Design
✔ Energy Saving Technology
✔ PLC Intelligent Control
✔ Large Capacity Production
✔ 2450MHz / 915MHz Available
Suitable for:
Wood Processing
Ceramics Industry
Bamboo Products
Wooden Boards
Ceramic Materials
Decorative Materials

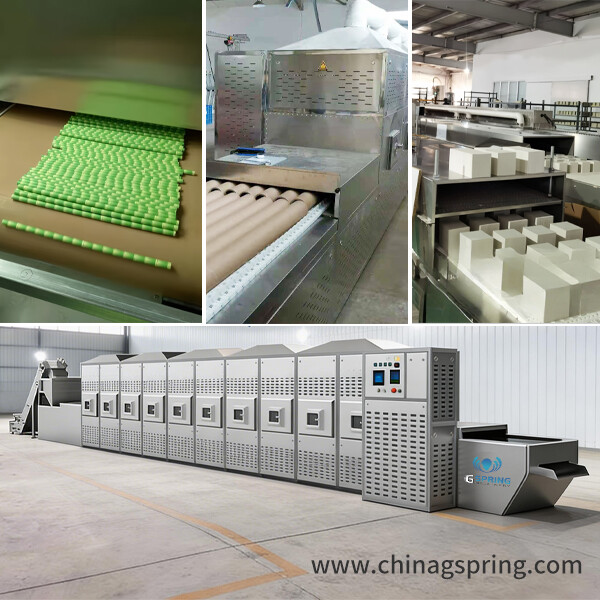

Industrial Microwave Drying Solution
Our industrial microwave oven adopts advanced microwave penetration heating technology to rapidly dry wood and ceramic materials from inside to outside.
Compared with traditional heating methods, microwave drying technology offers:
✔ Faster drying speed
✔ Uniform internal heating
✔ Lower energy consumption
✔ Continuous automatic production
✔ Stable product qualityWidely used in wood processing factories and ceramics production lines.
Machine Advantages
✔ Fast Internal Heating
Microwave energy directly heats moisture inside materials for rapid drying efficiency.
✔ Uniform Drying Effect
Reduce cracking, deformation and uneven moisture problems.
✔ Continuous Production
Tunnel conveyor structure supports automatic industrial production.
✔ PLC Intelligent Control
Automatic adjustment of:
Microwave power
Conveyor speed
Temperature
Drying time
✔ Energy Saving Technology
Compared with traditional drying systems, energy consumption can be reduced significantly.
✔ Environment Friendly
No smoke, low noise and clean production process.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
China Gspring Machine are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email:
