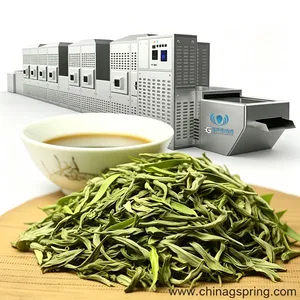

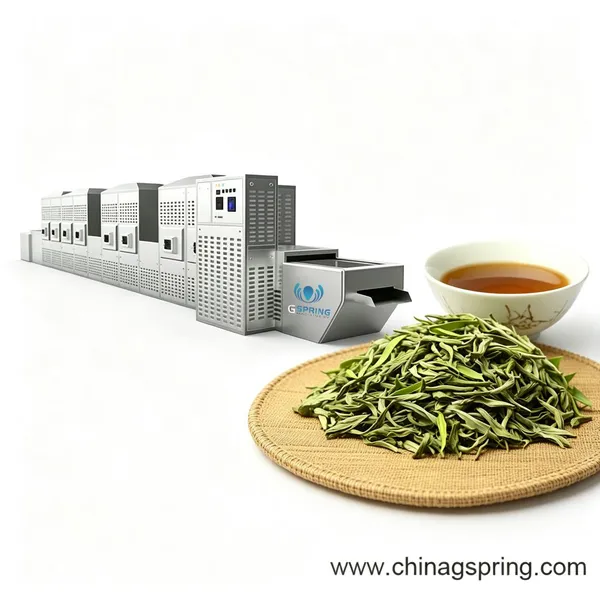

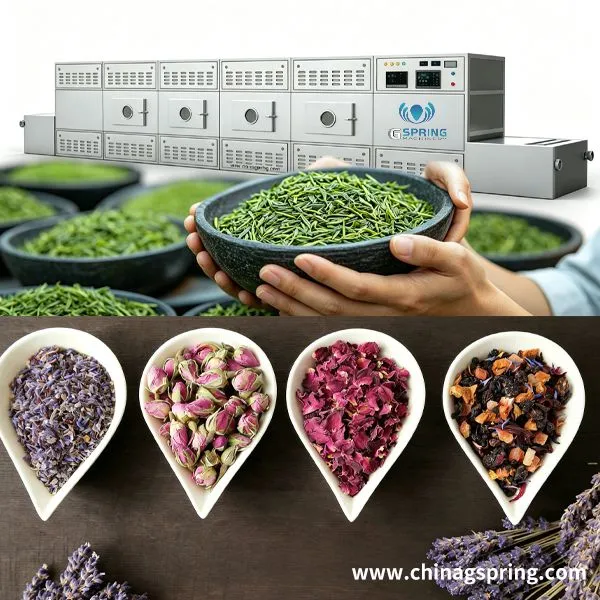

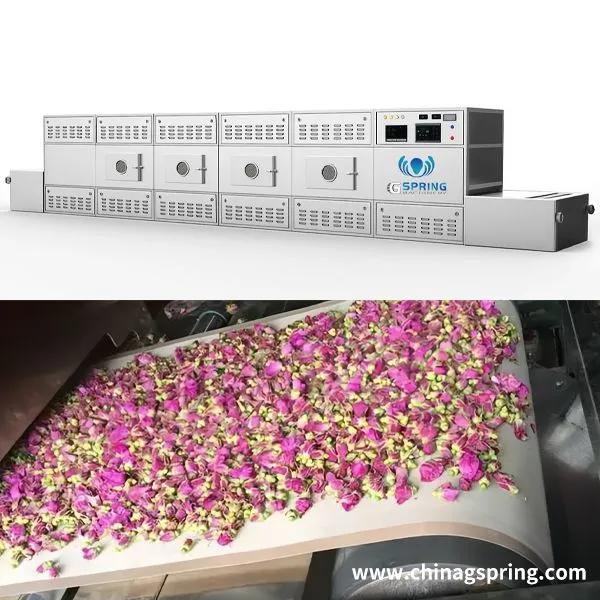

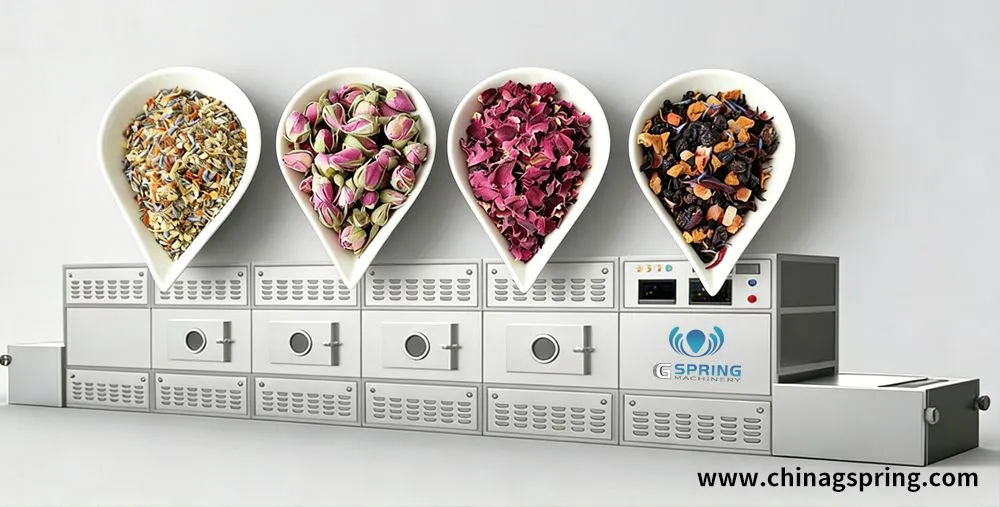

CE Certified Large Capacity Industrial Microwave Dryer Machine for Tea Processing
High Efficiency Tea Drying & Sterilization Solution for Modern Tea Factories

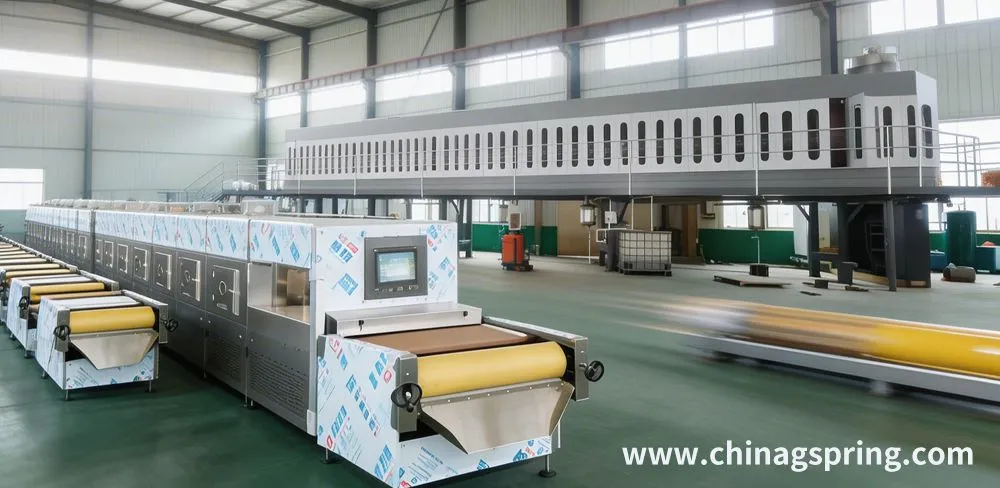

The large capacity industrial microwave dryer machine for tea is specially designed for continuous drying, sterilization, enzyme fixation, moisture reduction, and quality improvement of various tea products. It is widely used for green tea, black tea, herbal tea, flower tea, oolong tea, and other agricultural products processing industries.
Compared with traditional hot air drying equipment, microwave drying technology provides faster heating speed, lower energy consumption, better color retention, and higher production efficiency. The machine adopts food-grade SUS304 stainless steel structure and PLC intelligent control system, ensuring stable operation and long service life.
Main Applications
This industrial microwave tea dryer is suitable for:
Green tea drying
Black tea processing
Herbal tea sterilization

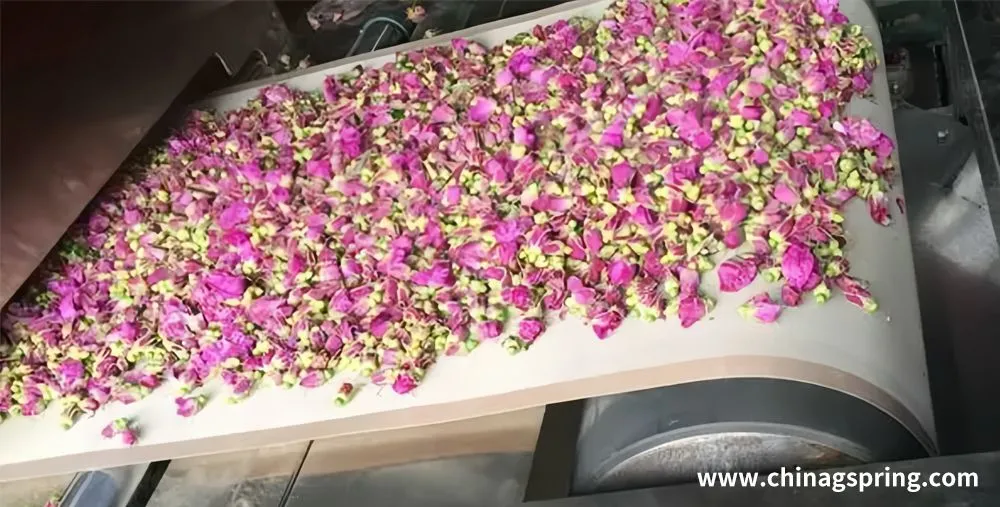

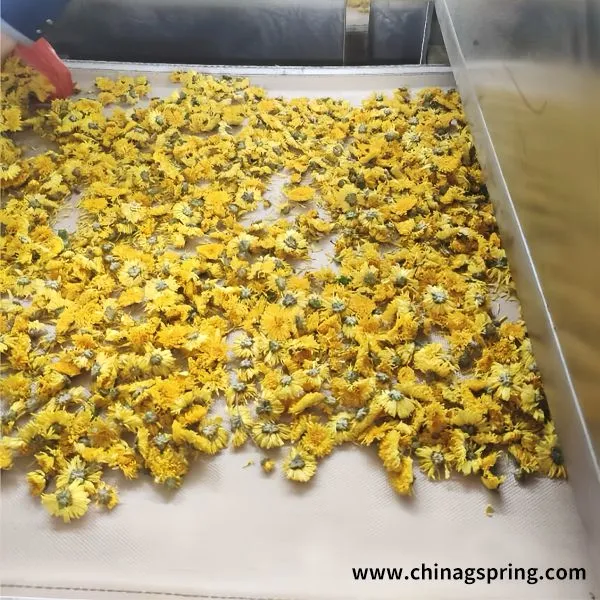

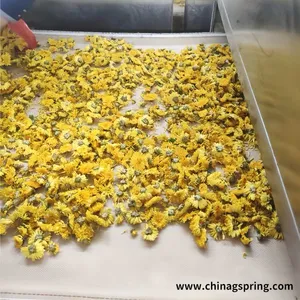

Flower tea drying
Tea leaf moisture reduction
Tea enzyme fixation
Agricultural products drying
Food sterilization processing
Suitable materials include:
Green tea
Black tea
White tea
Oolong tea
Jasmine tea
Rose flower tea
Herbal leaves
Medicinal plants
Main Advantages of Industrial Microwave Tea Dryer
1. Fast Drying Speed
Microwave energy directly penetrates into tea leaves and heats moisture molecules rapidly from inside to outside, greatly shortening drying time compared with conventional drying methods.
2. Better Tea Color & Aroma Retention
Low-temperature rapid drying technology helps preserve the natural color, fragrance, nutrition, and flavor of tea products.
3. Large Capacity Continuous Production
The continuous tunnel conveyor design is ideal for industrial-scale production and supports uninterrupted operation for tea processing factories.
4. Sterilization Function
The microwave drying process also provides effective sterilization, reducing bacteria and improving food safety standards.
5. Energy Saving & High Efficiency
Microwave heating achieves high thermal efficiency and reduces unnecessary heat loss, helping factories lower operating costs.
6. Food Grade SUS304 Stainless Steel
The entire machine is manufactured with high-quality SUS304 stainless steel, meeting food processing hygiene requirements.
7. PLC Intelligent Control System
Equipped with automatic temperature control, adjustable conveyor speed, and intelligent operation interface for easy production management.
Technical Features
CE Certified Industrial Microwave Dryer
Continuous Tunnel Conveyor Structure
Adjustable Microwave Power
Adjustable Drying Temperature
PLC Touch Screen Control
Uniform Heating Technology
Automatic Continuous Feeding
Large Capacity Industrial Design
Low Labor Cost
Stable Performance
Optional Customization
We can customize the machine according to customer requirements:
Different output capacities
Single-layer or multi-layer conveyor belt
Automatic feeding system
Cooling system
Different microwave power configurations
Factory layout solutions
Why Choose Microwave Drying for Tea?
Traditional drying methods often cause:
Uneven heating
Long drying time
Tea discoloration
Aroma loss
High energy consumption
Industrial microwave drying technology effectively solves these problems by providing rapid, uniform, and controllable heating performance.
Technical Specifications：
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
Widely Exported to Global Markets
Our industrial microwave tea drying machines have been exported to many countries and regions for food processing and agricultural production applications.
Suitable for:
Tea factories
Agricultural processing plants
Herbal tea manufacturers
Food processing companies
Commercial drying production lines
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
