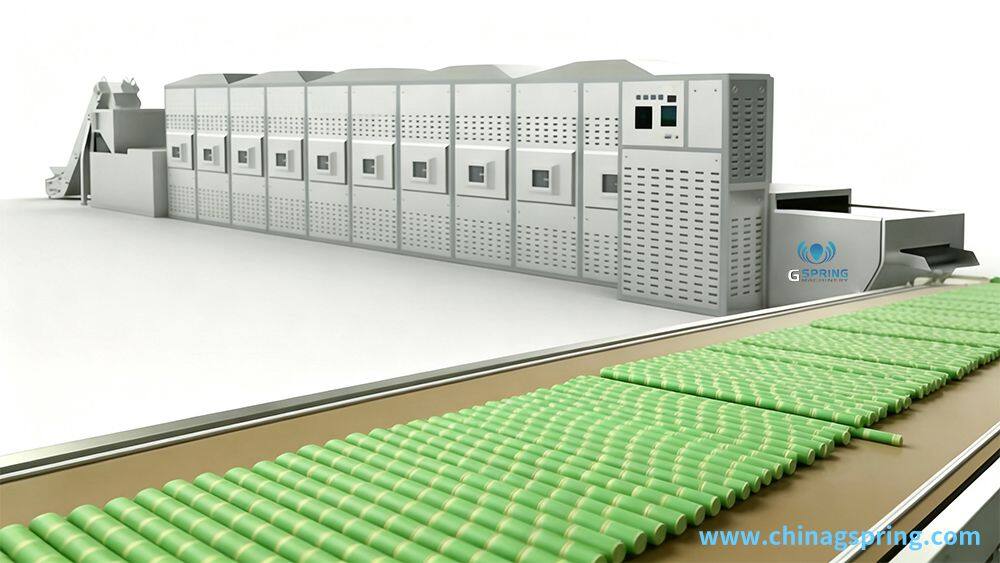

Large Capacity Tunnel Type Industrial Microwave Oven For Paper Industry
Our tunnel type industrial microwave oven adopts advanced microwave penetration heating technology to rapidly dry paper materials from inside to outside.
Compared with traditional hot air or steam drying systems, microwave technology offers:
✔ Faster drying speed
✔ Uniform heating effect
✔ Lower energy consumption
✔ Continuous automatic production
✔ Stable product quality
Widely used in paper processing factories and packaging material industries.

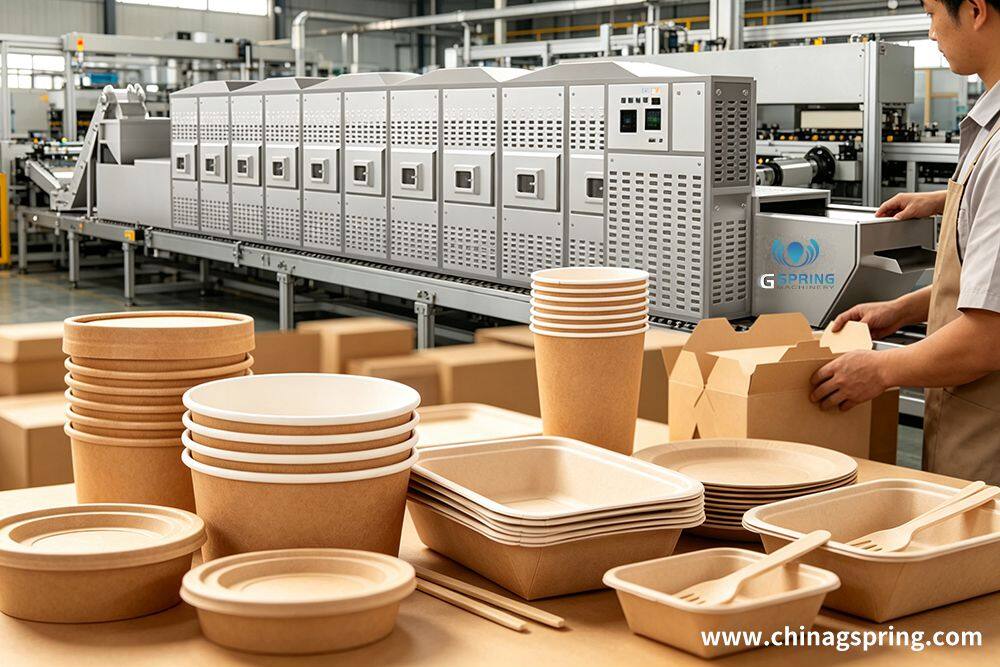

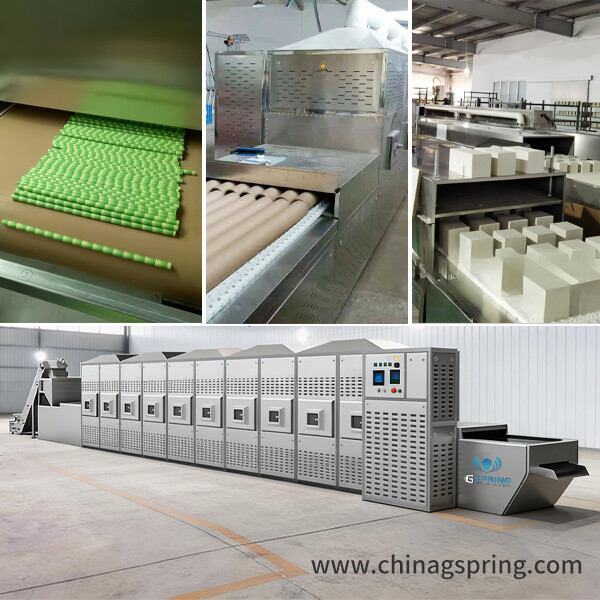

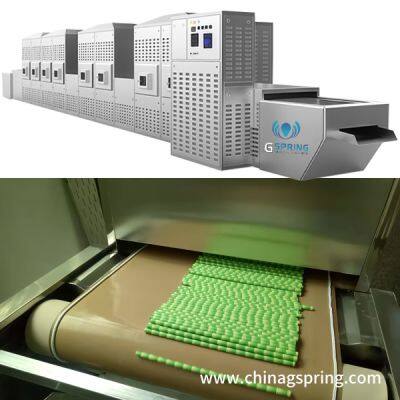

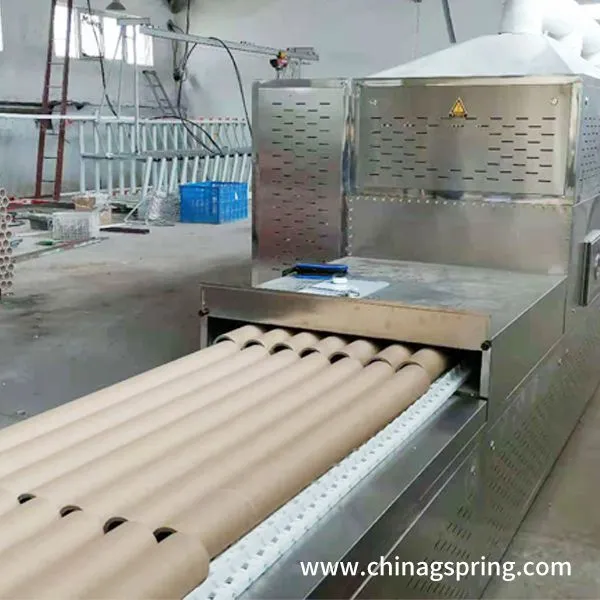

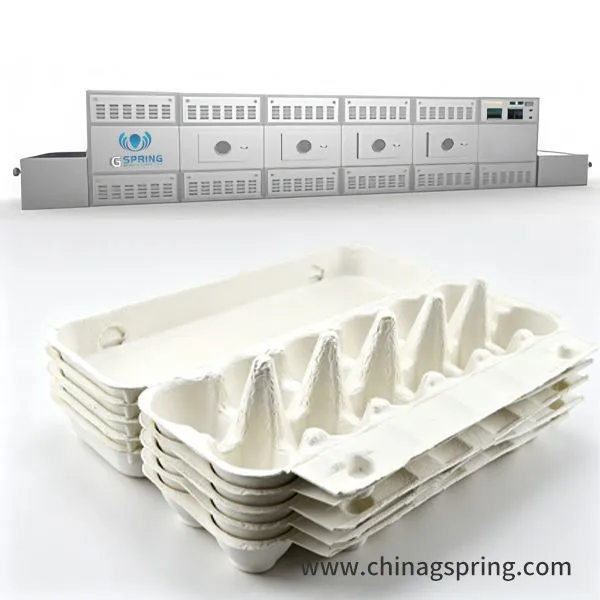

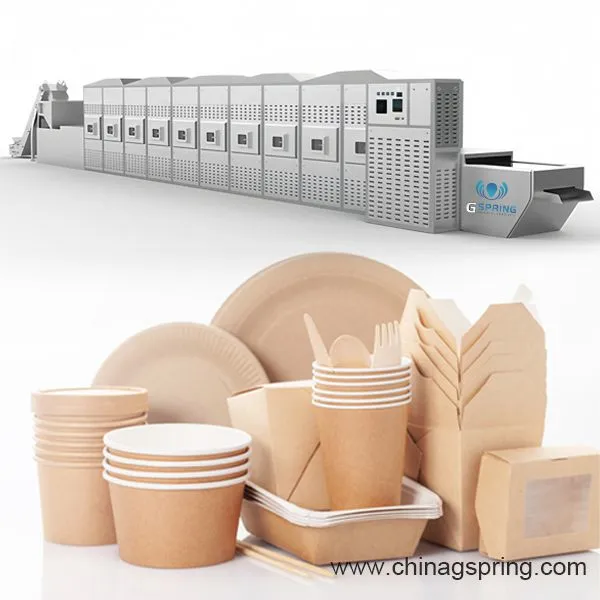

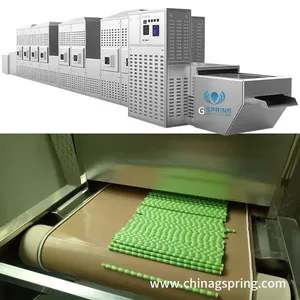

Microwave can directly dry both from inside & outside, even heating, not easy deformed, so widely used in paper industry, such as paper tube; paper bags, honeycomb cardboard, paper bowl.
Machine Advantages
✔ Large Capacity Continuous Production
Tunnel conveyor structure supports 24-hour continuous industrial production.
✔ Fast Microwave Heating
Microwave directly heats moisture inside paper materials, greatly shortening drying time.
✔ Uniform Drying Effect
Reduce deformation, cracking and uneven moisture problems.
✔ PLC Intelligent Control
Automatic adjustment of:
Microwave power
Conveyor speed
Drying temperature
Heating time
✔ Energy Saving Technology
Compared with traditional drying systems, energy consumption can be reduced significantly.
✔ Clean & Environment Friendly
-
No smoke, low noise, clean industrial production.
Microwave Heating Principle
Microwave energy penetrates paper materials directly and interacts with water molecules inside the product, generating heat internally for rapid drying.
Advantages include:
Deep penetration heating
Higher thermal efficiency
Faster drying process
Better product consistency
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
China Gspring Machine are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email:
