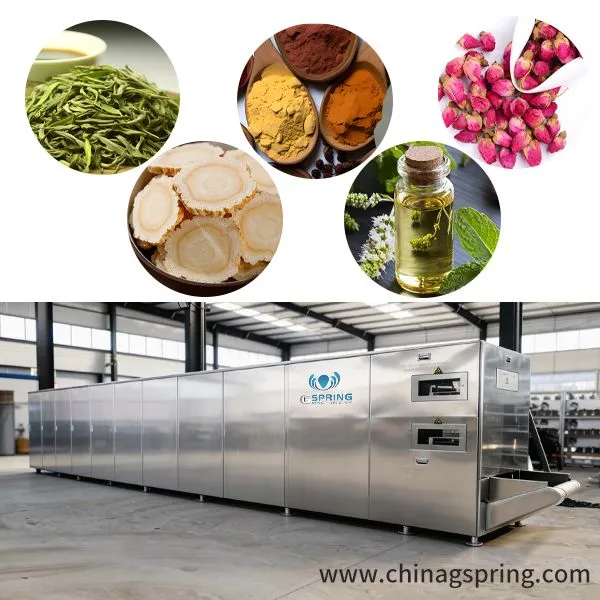

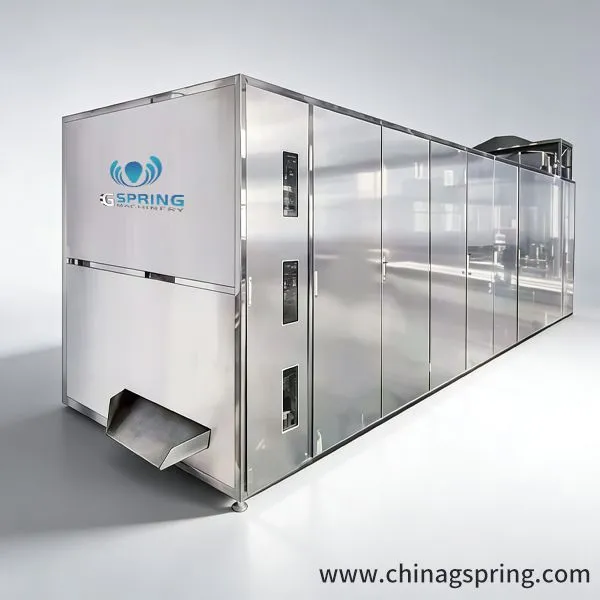

Automatic Industrial Microwave Dryer SUS304 Stainless Steel Continuous Drying Equipment
Product Introduction：
The industrial microwave dryer machine adopts advanced microwave heating technology for rapid drying, sterilization and low-temperature dehydration processing. Compared with traditional hot air drying equipment, microwave drying offers faster heating speed, higher efficiency and better product quality.
This continuous microwave drying equipment is manufactured with food-grade SUS304 stainless steel and is widely used in food, tea, herbs, spices, fruits, vegetables, seafood, chemical powder and agricultural products processing industries.
The machine supports continuous automatic operation, energy saving production and intelligent PLC control system.
Main Features：
Rapid Heating & High Efficiency
Microwave energy penetrates materials directly, heating from inside to outside for fast moisture evaporation and reduced drying time.
SUS304 Stainless Steel Structure：
The whole machine is made of food-grade SUS304 stainless steel, corrosion resistant, hygienic and durable for industrial production.
Continuous Automatic Operation：

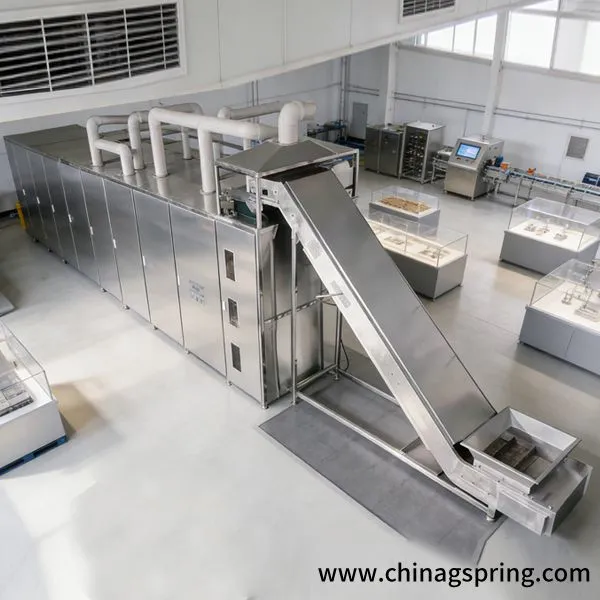

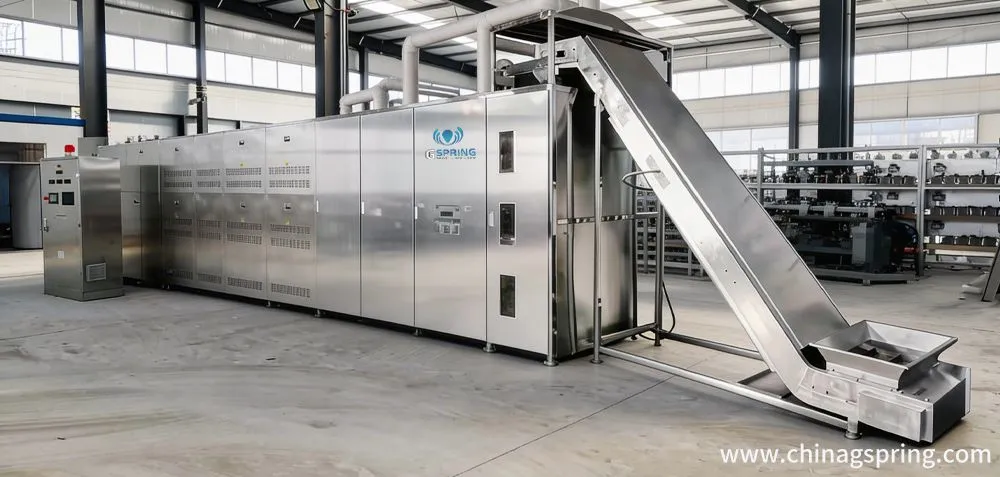

Tunnel type conveyor belt design supports continuous feeding and continuous drying, improving production efficiency.
Drying & Sterilization Function：
The equipment can simultaneously complete drying and sterilization processes, reducing bacteria and extending product shelf life.

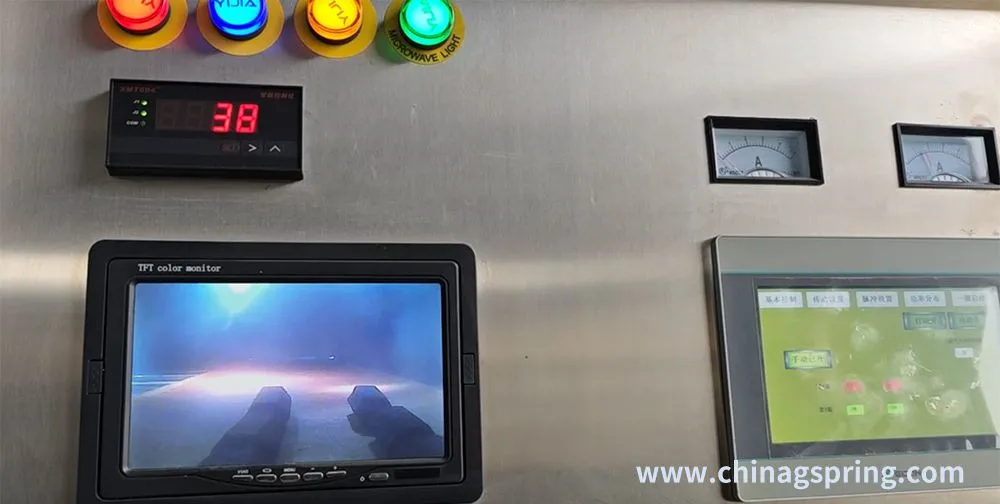

Intelligent PLC Control：
Temperature, conveyor speed and microwave power can be adjusted automatically through PLC intelligent control system.
Energy Saving Technology：
Compared with traditional electric or hot air drying equipment, microwave drying significantly reduces energy consumption and labor costs.

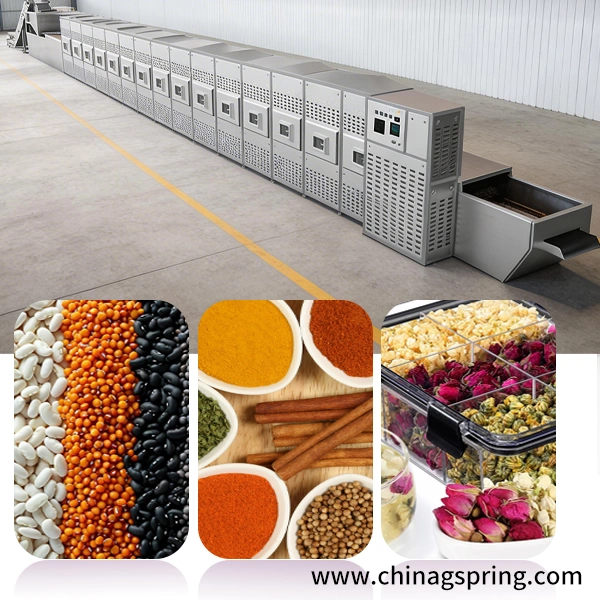

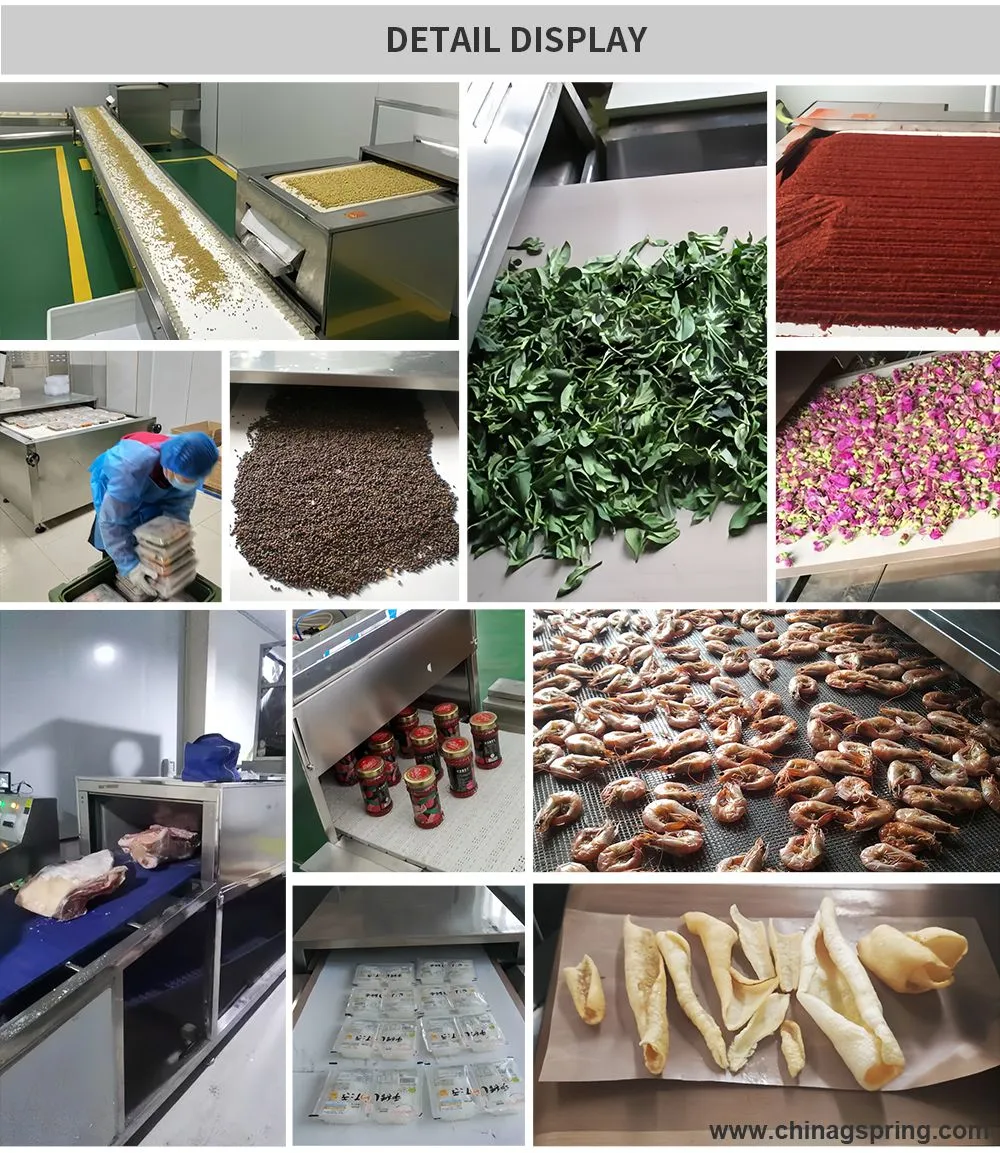

Applications：
This industrial microwave dryer machine is suitable for:
Food drying
Spice sterilization

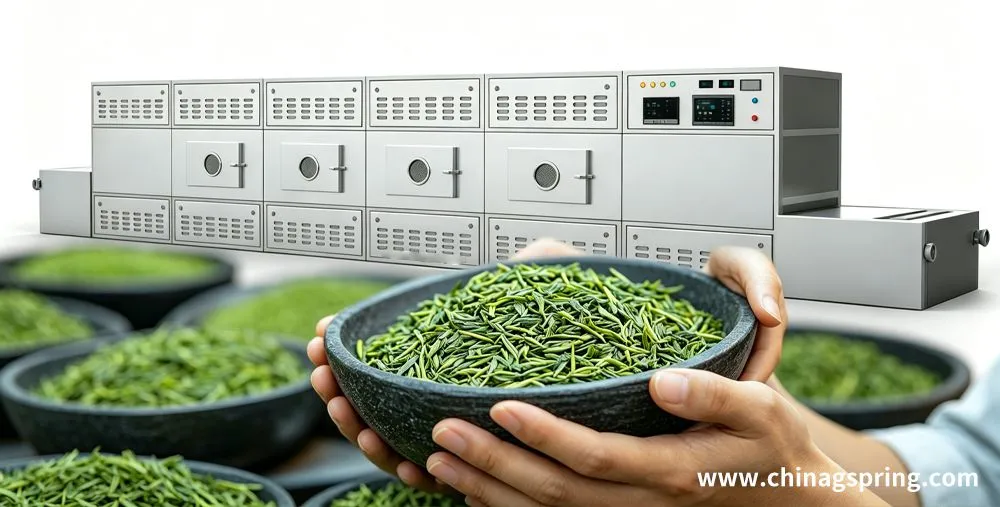

Tea drying
Herbal medicine processing
Fruit & vegetable dehydration
Seafood drying
Chemical powder drying
Grain & bean sterilization
Agricultural products processing
Advantages of Industrial Microwave Drying Equipment
Compared with traditional drying equipment:
Faster drying speed
Better product color retention
Lower drying temperature
Improved sterilization effect
Energy saving operation
Continuous automatic production
Reduced labor cost
Uniform heating effect
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
Why Choose Our Industrial Microwave Dryer?
Professional industrial microwave equipment manufacturer
Customized solutions available
Stable microwave output system
CE certified equipment
Experienced technical support
Factory direct supply
Global export experience
FAQ：
What materials can be processed?
The microwave dryer is suitable for food, spices, herbs, tea, fruits, vegetables, seafood, chemicals and agricultural products.
Is the machine customizable?
Yes. Machine size, microwave power, conveyor width and capacity can all be customized according to customer requirements.
What is the advantage of microwave drying?
Microwave drying provides faster heating, better drying quality, sterilization function and lower energy consumption compared with traditional drying methods.
Do you have any other models of microwave equipment?
industrial microwave dryer, microwave drying machine, industrial microwave oven, continuous microwave dryer, tunnel microwave dryer, microwave sterilization equipment, food microwave drying machine, automatic microwave dryer, SUS304 stainless steel microwave dryer, industrial drying equipment
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
grace@chinagspring.com.
