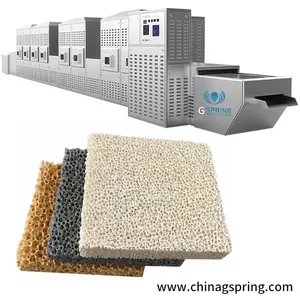

Industrial Microwave Dryer for Ceramics Large Capacity Production
Product Introduction
The Industrial Microwave Dryer for Ceramics is designed for high-capacity and continuous ceramic production processes. By adopting advanced microwave heating technology, the system rapidly removes moisture from ceramic materials while maintaining uniform drying performance and reducing production time.
Compared with traditional hot air or natural drying methods, microwave drying delivers faster heating, improved energy efficiency, and better product consistency for industrial ceramic manufacturers.
This equipment supports large-scale automatic production and can be customized according to factory capacity requirements.
Industrial microwave dryer for ceramics supports large capacity continuous production with fast drying, uniform heating, PLC automatic control, energy saving performance, stable product quality, and customized solutions for ceramic manufacturing factories.
Key Features
1. Large Capacity Continuous Production
Designed for industrial-scale ceramic manufacturing with stable conveyor operation and high processing efficiency.
2. Fast Internal Heating Technology
Microwave energy penetrates ceramic materials directly to accelerate moisture evaporation from inside to outside.
3. Uniform Drying Quality
Reduces uneven moisture distribution, minimizes deformation, and helps improve final product consistency.
4. PLC Intelligent Automation
Automatic adjustment of microwave power, conveyor speed, and process parameters for stable operation.
5. Energy Saving Operation
Higher thermal utilization and reduced production energy consumption compared with conventional drying systems.
6. Durable Industrial Construction
Industrial-grade structure supports long-term continuous operation and simplified maintenance.
-
Application Areas
Suitable for ceramic production processes including:
Ceramic tiles
Ceramic boards
Ceramic components
Decorative ceramics
Industrial ceramic products
Ceramic green body drying
Advanced ceramic materials
Construction ceramic manufacturing
Working Principle
Ceramic materials enter the microwave tunnel through an automatic conveyor system. Microwave energy excites water molecules inside the product and generates heat directly within the material, accelerating moisture evaporation and achieving fast, consistent, and controlled drying.
Why Choose Our Ceramic Microwave Dryer?
✓ Large production capacity
✓ Continuous automatic operation
✓ Stable drying performance
✓ Lower operating cost
✓ Reduced drying cycle time
✓ Flexible customization solutions
✓ Industrial-grade manufacturing qualityIndustrial Microwave Dryer for Ceramics
Ceramic Drying Machine
Large Capacity Microwave Dryer
Continuous Ceramic Dryer
Microwave Drying Equipment
Industrial Ceramic Production Line
Automatic Microwave Dryer
Energy Saving Ceramic Dryer
Microwave Ceramic Processing Equipment
Ceramic Manufacturing Dryer
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
China Gspring Machine are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email:
