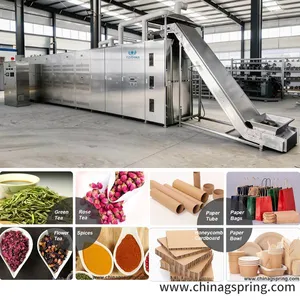

Help CenterMicrowave Oven Industrial Machine for Best Quality Drying Heating Sterilization Tunnel Belt Type
Product Spotlights
✔ Continuous Conveyor System
✔ Single & Multi-layer Belt Available
✔ SUS304 Stainless Steel Structure
✔ Drying & Sterilization Integrated
✔ CE Certified Equipment
Related Products
-
PreciseTemperature Control Industrial Microwave Dryer Machine Sustainable DryingNegotiableMOQ: 1 Set -
Easy Operation PLC Control Industrial Microwave Drying Machine CE ISO Certified Continuous Microwave DryerNegotiableMOQ: 1 Set
-
Factory Price Industrial Microwave Drying Machine for Large Capacity Continuous Production Export UseNegotiableMOQ: 1 Set
-
Large Capacity Tunnel Microwave Drying Machine Continuous Industrial Dryer for Bulk ProductionNegotiableMOQ: 1 Set
-
High Performance Continuous Tunnel Microwave Dryer Machine for Industrial Manufacturing Plant ProductionNegotiableMOQ: 1 Set
High Efficiency Continuous Tunnel Microwave Dryer Machine for Food Drying & Sterilization
Fast Drying • Uniform Heating • Efficient Sterilization
✔ Continuous Conveyor System
✔ Single & Multi-layer Belt Available
✔ SUS304 Stainless Steel Structure
✔ Drying & Sterilization Integrated
✔ CE Certified Equipment
Industrial Microwave Drying Solution for Modern Food Processing
The Continuous Tunnel Microwave Dryer Machine is an advanced industrial drying and sterilization system designed for food, agricultural products, herbal materials, spices, chemicals, and pharmaceutical processing industries. Compared with traditional hot-air drying equipment, industrial microwave drying technology provides faster heating speed, lower energy consumption, more uniform drying performance, and better product quality retention.
Manufactured with food-grade SUS304 stainless steel, the tunnel microwave drying machine supports continuous automatic production and is widely used in large-scale industrial processing plants.
What Is a Tunnel Microwave Dryer Machine?
A tunnel microwave dryer is a continuous conveyor-type industrial microwave oven that uses microwave energy to heat materials internally. Microwave energy directly interacts with water molecules inside the product, generating heat rapidly from the inside out and accelerating moisture evaporation.
According to production requirements, the machine can be designed as:
Single-layer tunnel microwave dryer
Multi-layer continuous microwave dryer
Automatic conveyor microwave drying line
Microwave sterilization and drying integrated system
This equipment is suitable for continuous industrial production with stable output and intelligent PLC control systems.
Main Advantages of Industrial Microwave Dryer Machines
1. Fast Heating & High Efficiency
Microwave energy penetrates directly into materials and heats moisture internally, making the drying speed much faster than traditional heating methods.
Benefits:
Shorter drying time
Increased production efficiency
Continuous automatic operation
Higher industrial productivity
2. Energy Saving & Low Operating Cost
Industrial microwave dryers convert electrical energy directly into thermal energy inside the product, reducing unnecessary heat loss.
Compared with traditional drying:
Lower energy consumption
Reduced production costs
Higher thermal efficiency
Environmentally friendly processing
3. Uniform Drying Performance
Traditional heating often causes surface overheating while the inside remains wet. Microwave drying ensures even penetration and uniform heating.
Results:
Better product consistency
Reduced scorching risk
Improved product appearance
Stable moisture control
4. Preserve Product Quality
Low-temperature microwave drying technology helps maintain:
Natural color
Original flavor
Nutritional value
Product texture
Active ingredients
Especially suitable for:
Fruits
Vegetables
Herbs
Tea leaves
Spices
Seafood
Pharmaceutical materials
5. Sterilization & Shelf-Life Extension
Microwave energy can effectively eliminate bacteria, mold, insects, and microorganisms during the drying process.
Advantages:
Improve food safety
Reduce contamination risk
Extend product shelf life
Meet export processing standards
Applications of Continuous Microwave Drying Equipment：
1. Industrial Tunnel Microwave Dryer for Food Industry
2. Industrial Tunnel Microwave Dryer for Herbs & Pharma Industry
3. Industrial Tunnel Microwave Dryer for Chemical Industry
4. Industrial Tunnel Microwave Dryer for Paper/Wood/Ceramics Industry
5. Industrial Tunnel Microwave Dryer for Coal/Construction Material
Tunnel Microwave Dryer Technology Parameter
Machine Model |
GSB-6HMV |
GSB-10HMV |
GSB-15HMV |
GSB-20HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤7KW |
≤11KW |
≤17KW |
≤23KW |
Output Power |
≥6KW |
≥10KW |
≥15KW |
≥20KW |
Dehydration Capacity |
≤6kg/hour |
≤10kg/hour |
≤15kg/hour |
≤20kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Air Cool |
Air Cool | Air Cool | Air Cool |
Work Style |
Batch Type/Small Capacity/ Lab Scale |
Batch Type/Small Capacity/ Lab Scale | Batch Type/Small Capacity/ Lab Scale | Batch Type/Small Capacity/ Lab Scale |
Tray No. |
Customized |
Customized | Customized | Customized |
Tray Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
If with dehumidification |
Yes, with dehumidification system |
Yes, with dehumidification system | Yes, with dehumidification system | Yes, with dehumidification system |
Material |
SUS304 or food material |
SUS304 or food material | SUS304 or food material | SUS304 or food material |
Size |
Customized Cabinet Microwave Dryer |
Customized Cabinet Microwave Dryer | Customized Cabinet Microwave Dryer | Customized Cabinet Microwave Dryer |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.
Gspring Machine is the manufacturer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab
use or for small capacity industrial use, industrial automatic tunnel microwave dryer, vacuum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech,
Singapore, Armenia, Iraq, Iran, Malaysia,Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
