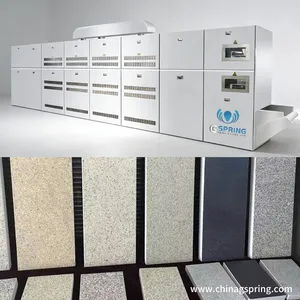

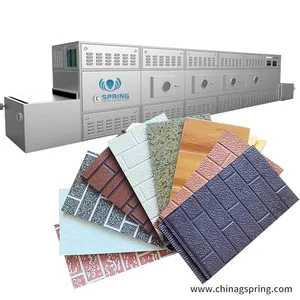

Industrial Microwave Oven For Decoration Board Drying
Fast Drying • Uniform Heating • Continuous Automatic Production
✔ Tunnel Conveyor Design
✔ PLC Intelligent Control
✔ Energy Saving Technology
✔ Large Capacity Production
✔ 2450MHz / 915MHz Available

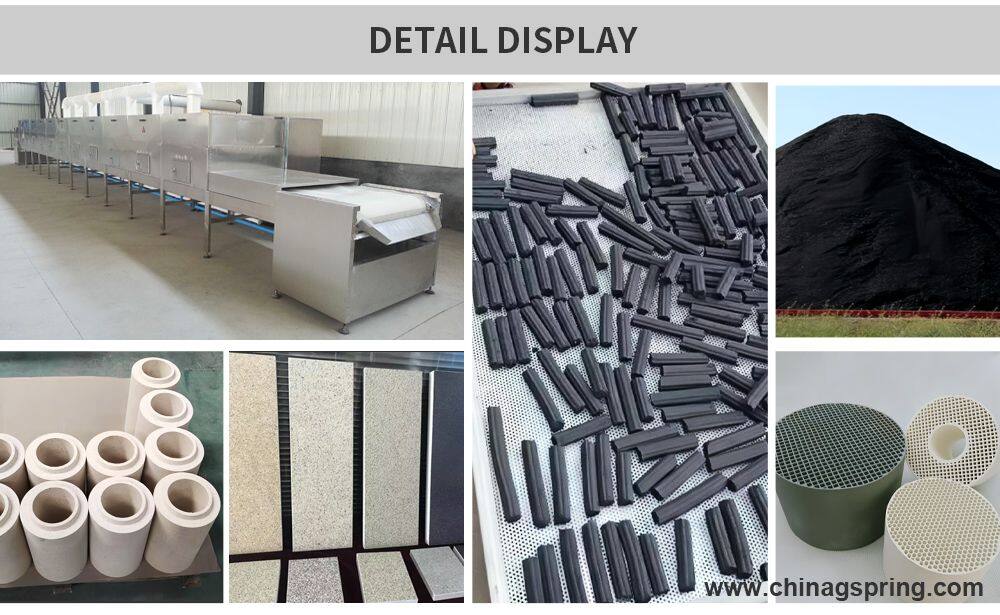

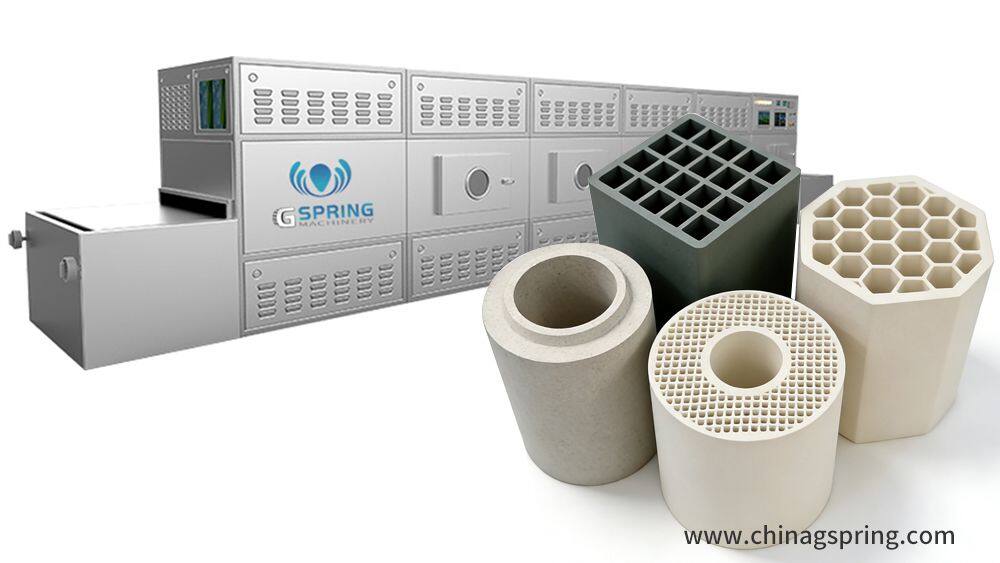

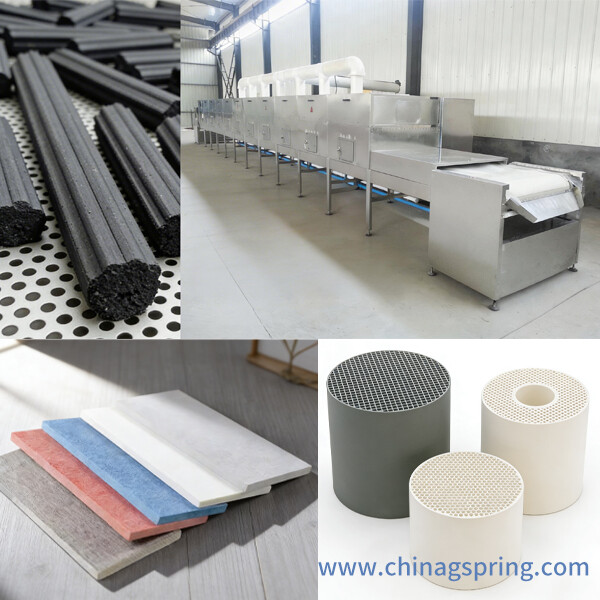

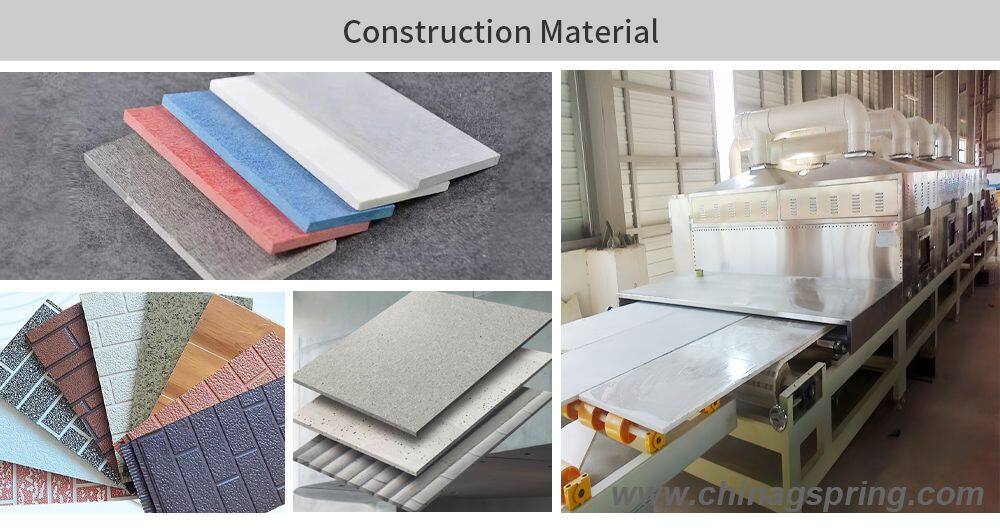

Gspring Machinery can supply industrial microwave dryer to dry coal with low .temperature without starting combustion. Also can heat construction material for rapid moisture removal and reducing shrinkage & wraping, like insulation board, fireproof material etc.

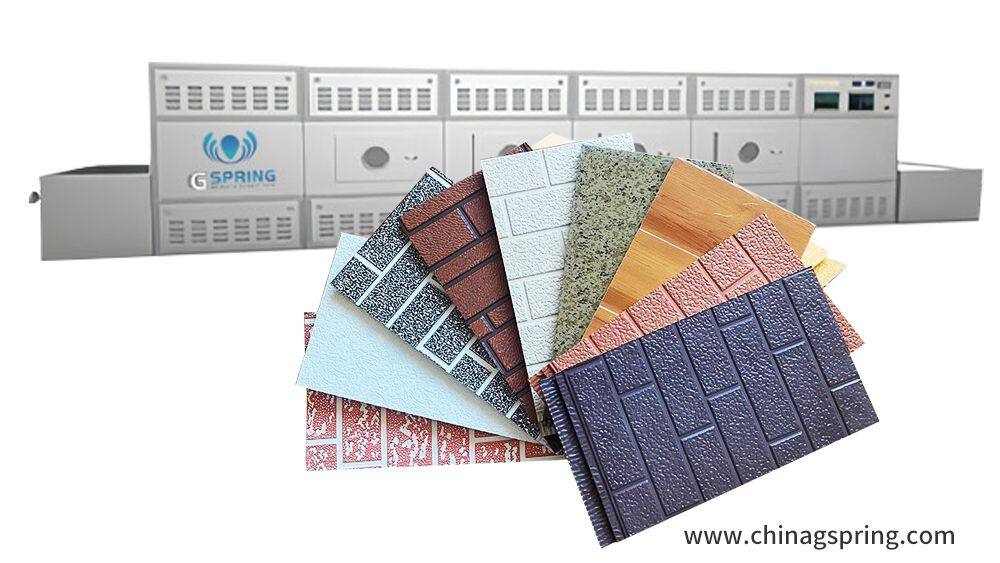

Industrial Microwave Drying Solution For Decoration Board Industry
Our industrial microwave oven adopts advanced microwave penetration heating technology to rapidly dry decorative board materials from inside to outside.
Compared with traditional hot air drying systems, microwave technology offers:
✔ Faster drying speed
✔ Uniform internal heating
✔ Lower energy consumption
✔ Continuous automatic production
✔ Better product consistency

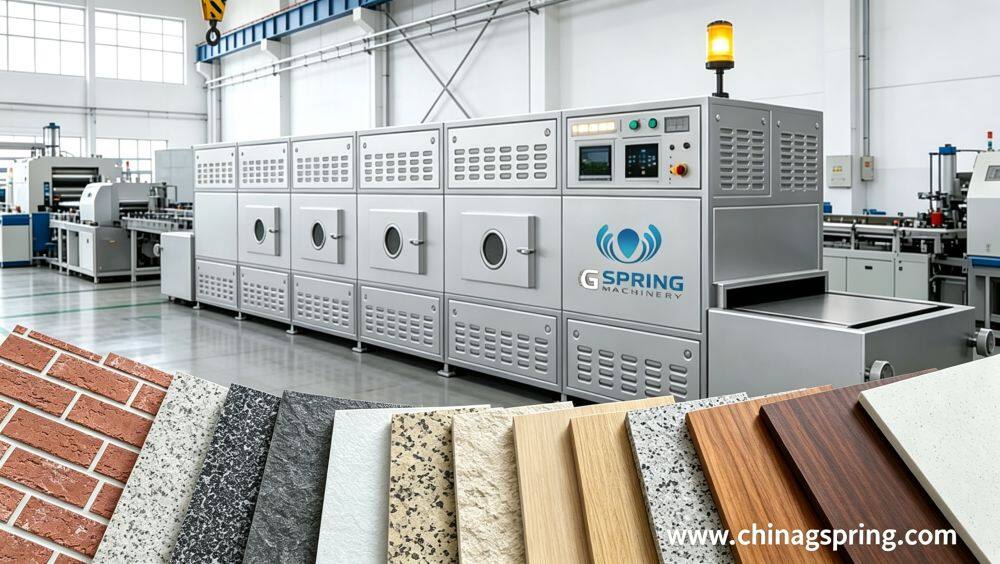

Widely used in decorative board factories and furniture material production lines.
Machine Advantages
✔ Fast Internal Heating
Microwave energy directly heats water molecules inside decorative boards for rapid drying efficiency.
✔ Uniform Drying Effect
Reduce cracking, warping and uneven moisture problems.
✔ Continuous Production

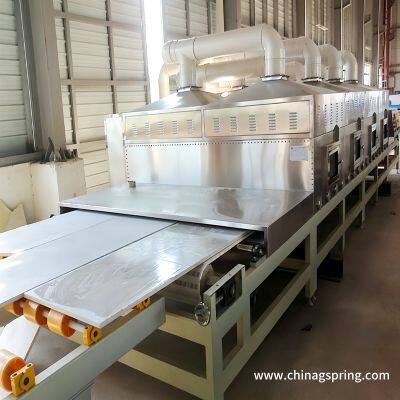

Tunnel conveyor structure supports automatic industrial production.
✔ PLC Intelligent Control
Automatic adjustment of:
Microwave power
Conveyor speed
Temperature
Drying time
✔ Energy Saving Technology
Compared with traditional drying systems, energy consumption can be reduced significantly.
✔ Environment Friendly
No smoke, low noise and clean industrial production.
Microwave Heating Principle
Microwave energy penetrates decorative board materials directly and heats water molecules internally, achieving fast and efficient drying.
Advantages include:
Deep penetration heating
Faster moisture removal
Higher thermal efficiency
-
Better product consistency

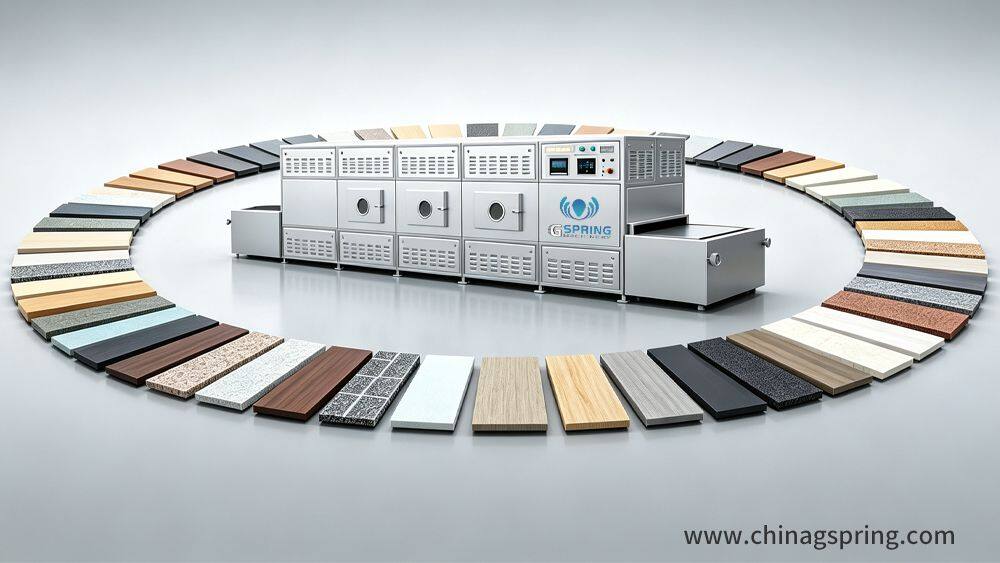

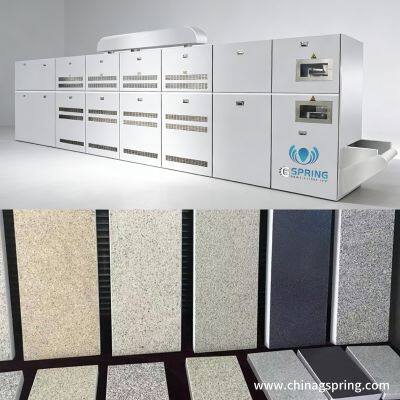

Applicable Materials
Suitable for:

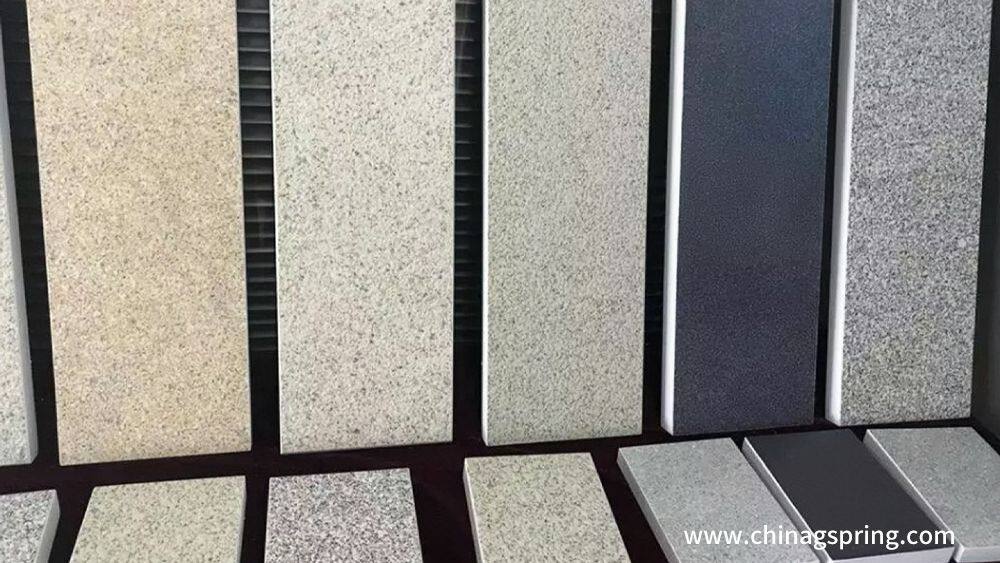

Decorative Boards
MDF Boards
Wooden Decorative Panels
Insulation Boards
Furniture Panels
Building Decoration Materials
Technical Specifications：
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
China Gspring Machinery are the manufactuer of Industrial microwave dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab
use or for small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email grace@chinagspring.com
