Overview:

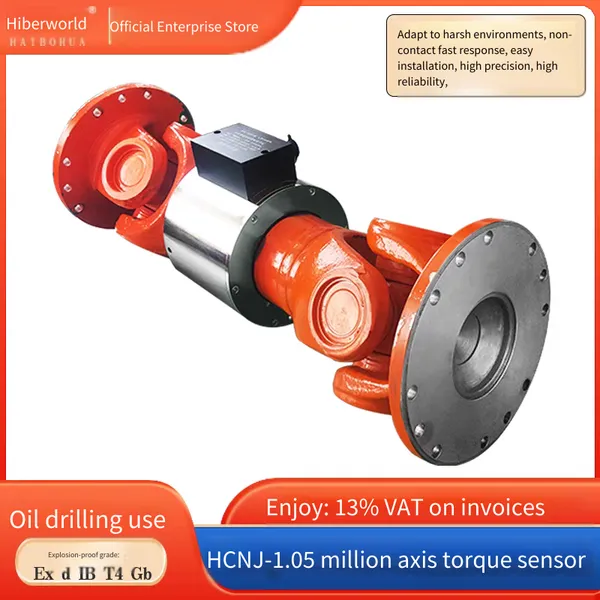

The universal shaft torque sensor is of intrinsic safety explosion-proof type. It is mainly designed to solve the problems in the oilfield drilling process, such as drill pipe breakage caused by excessive torque and inaccurate measurement of turntable torque, which often affect the drilling production. The sensor is directly made on the universal shaft and equipped with a control system to monitor the working conditions of the drilling rig in real - time. Since its launch, the universal shaft sensor has been well - received by oilfield users for its high measurement accuracy, convenient installation and use, and good long - term stability.

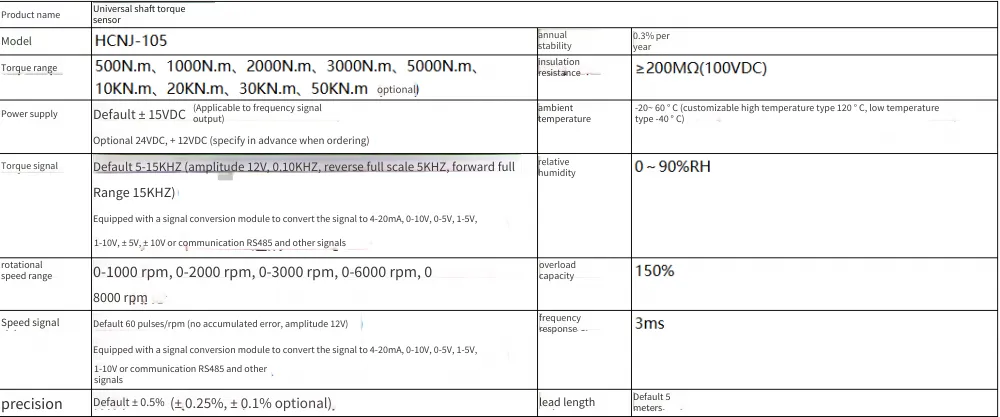

Technical Parameters
Measurement Range 0 - ±5k - 50kNm
Power Supply 24V DC or ±15VDC
Torque Signal 4～20mA or 5 - 15kHz (optional)
Speed Range 0～1000, 3000 r/min
Speed Signal 60 pulses/r, 30 pulses/r (optional)
Accuracy ±0.25%, ±5% per year
Stability 1%/year
Insulation Resistance ≥200MΩ(100VDC)
Ambient Temperature -20~60℃
Relative Humidity 0~90%RH
Overload Capacity 150%
Frequency Response 100μs

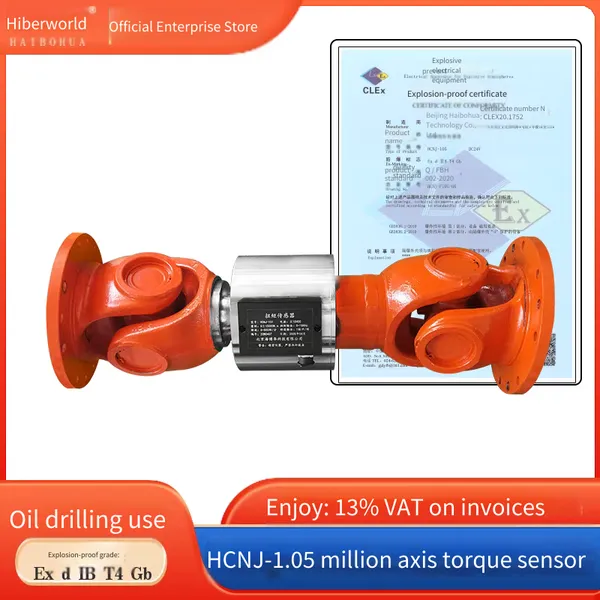

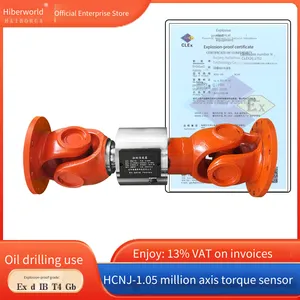

Explosion - proof Grade ExiaⅡCT6
Technical Features:
◆ The measurement position and method can fully reflect the real situation of the turntable torque;
◆ Mature process, high measurement accuracy, and good long - term stability;
◆ It can directly output a 4 - 20mA analog current signal with strong anti - interference ability;
◆ It can measure both static torque and rotating torque, as well as positive and negative torques;
◆ It can continuously measure positive and negative torques without repeated zero adjustment and can operate for a long time; Dimensions
Technical parameters:
Product matching:
1. It can directly transmit the torque frequency signal to a computer or PLC for processing.
2. It can be equipped with an HN - 201 torque power meter to directly display the torque, rotational speed, and power values. The torque and rotational speed have two - way 4 - 20mA transmission signals and come with RS485 communication function.
3. It can be equipped with an XSY torque controller to directly display the torque value, with upper and lower limit two - point alarms and switch - quantity signals (4 - 20mA/RS485 optional).
4. It can be paired with an F/I or F/V signal conversion module, which can convert the original frequency signal of the torque sensor into commonly used signals such as standard 4 - 20mA current, 0 - 5V/0 - 10V voltage, or RS485 communication.
5. You can optionally choose Beijing Haibohua Technology Co., Ltd.'s professional M400 data acquisition software to collect data on the computer, view curves, generate reports, store, print, and playback, etc.
