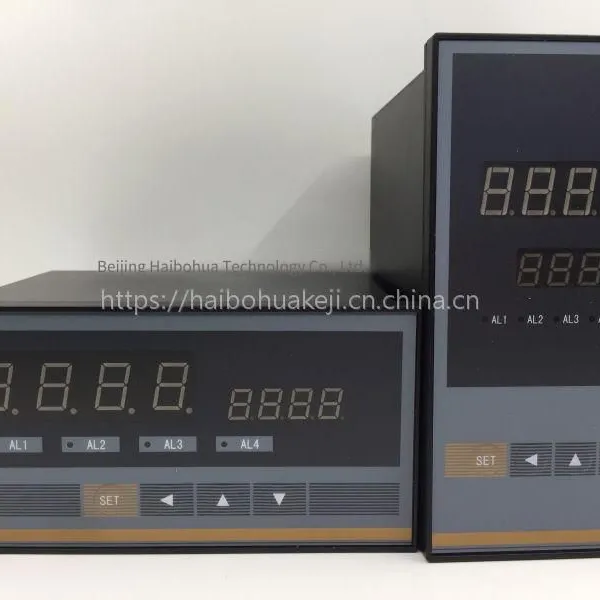

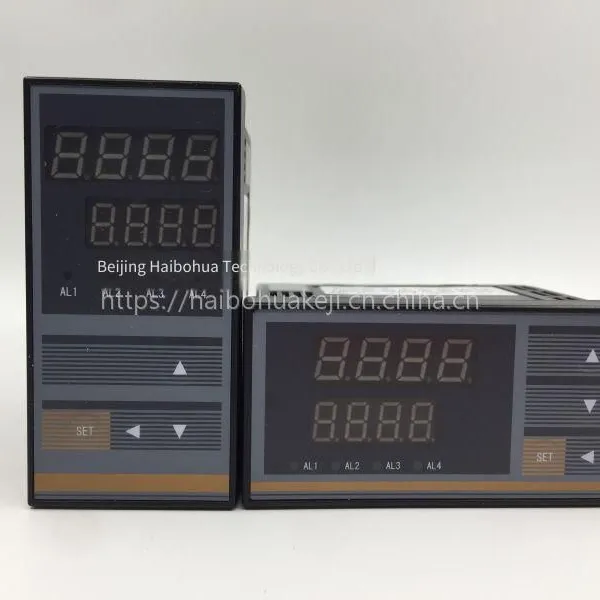

Single-channel thermal meter W series specification description
1. 160×80×125mm Horizontal Cut-out size: 152×76
2. 80×160×125mm Vertical Cut-out size: 152×76
3. 96×96×76mm Cut-out size: 92×92
4. 96×48×82mm Horizontal Cut-out size: 92×45
5. 48×96×82mm Vertical Cut-out size: 92×45
6. 72×72×75mm Opening size: 68×68
7. 48×48×110mm Opening size: 45.5×45.5
Detailed introduction
· 0.2 level accuracy, measurement and control speed of 10 times per second, display range -1999～9999.
· Dual four-digit digital tube display (main display + second display), where the second display can be used to display information such as engineering quantity units.
· Universal input, selectable through settings.
· Optional 1 - 4 point alarm output. It includes five basic alarm modes such as upper limit of measured value, lower limit of measured value, upper limit of deviation, lower limit of deviation, and deviation value, and five standby alarm modes corresponding to the five basic alarm modes. (Standby alarm mode: It means that the instrument does not alarm even if it is in the alarm area when powered on. After the measured value enters the non - alarm area, the standby condition is established, and then it alarms normally).
· 10 - segment broken line correction function.
· Peak and valley value acquisition function.
· Communication and transmission can be optionally configured.
