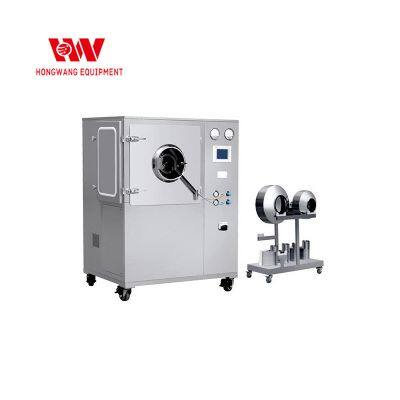

Help CenterBGS Series Laboratory Coating Machine for the Pharmaceutical and Food Industries
Product Spotlights
Related Products
-
New BGX Series Automatic Coating Machine With Interchangeable PansNegotiableMOQ: 1 Set -
Multifunctional DSH Low-Position Wet Mixing GranulatorNegotiableMOQ: 1 Set
-
Multi-functional HSH High-Shear Wet Mixing GranulatorNegotiableMOQ: 1 Set
-
Removable Dry GranulatorNegotiableMOQ: 1 Set
-
ZTH Automatic Lifting Hopper MixerNegotiableMOQ: 1 Set
APPLICATION
Laboratory coating machine is widely used in the pharmaceutical and food industries. It is an efficient, energy-saving, safe, clean and mechatronic equipment that meets GMP requirements for laboratory film coating.
PRINCIPLE
The experimental coating machine is integrated into a main machine, air handling unit, exhaust system, control system, etc. When working, the tablet core is in a clean, sealed rotating drum, constantly moving in complex trajectories under the action of the agitator, and is controlled by a computer. It automatically sprays the coating dressing according to the set process parameters, and at the same time, under a controllable load The set hot air is supplied under pressure, and the hot air is discharged through the bottom of the tablet core, so that the coating medium sprayed on the surface of the tablet core can be quickly and evenly dried, thereby quickly forming a strong, dense, flat, and smooth surface on the surface of the tablet core. film.
Technical Description
Adopt special structure:
The doors on both sides of the main machine adopt an openable structure, which can be opened and closed freely, and cleaning is convenient and quick. The main machine, hot air filtration system and exhaust dust removal system of the high-efficiency coating machine below 10L (including 10L) are in the same body, which is simple and elegant, saving floor space and reducing energy consumption.
The centralized control system is reasonably designed:
The centralized control system composed of PLC programmable controller and HMI human-machine interface has reasonable design, flexible programming, can adapt to various pharmaceutical process needs, reliable operation, stable performance, and meets GMP requirements.
Diversion mixer:
Under the action of the streamlined diversion agitator, the Surui produces a special spiral stirring effect in motion, which can not only guide the Surui to produce radial tumbling motion, but also make the Surui tumble rapidly in the axial direction and form multi-directional and multi-dimensional shapes. The layered swirling action and cross motion ensure uniform spraying of the medicine*, overcoming the shortcomings of traditional mixers such as easy squeezing, stripping, and losing of tablets, slow drying, and the appearance of yin and yang surfaces and spots. The diversion mixer flips smoothly and exchanges frequently, which eliminates the phenomenon of Suri falling from high places and collisions, eliminates fragments and knock-offs, and improves the yield of finished products. The narrow surface of the guide plate avoids the adhesion of excipients on its surface, which not only saves excipients, but also improves the quality of medicines.
Upgraded liquid dispensing atomization system:
Equipped with a constant pressure variable peristaltic pump and eliminating the return pipe. It adopts data programming and has flow display and setting functions. It can set different flow rates according to different varieties to achieve automatic control of liquid flow. The radius of rotation of the peristaltic pump roller changes at any time as the pressure changes, and the output slurry and the amount of shotcrete are automatically balanced. It not only stabilizes the atomization effect and optimizes the spray system, but also prevents the nozzle from clogging, saves auxiliary materials, and is easy to clean.
Upgraded hot air filtration system:
High-efficiency filtration by junior high school makes the cleanliness reach D level, which is in line with the new version of GMP requirements. The air volume is controlled by a frequency converter, which saves electricity and heat energy more effectively than traditional manual air valves.
Configure dust removal and exhaust system:
The use of pulse dust removal reduces the manual bag cleaning cycle and improves dust removal efficiency. Automatic dust cleaning, centralized processing in the dust collecting hopper, simple and convenient operation
Configured production data printer with memory and printing functions:
Using A4 printing paper, all the data of the entire coating process can be printed out. The data is accurate and convenient for inspection and file preservation.
Can write SOP standard operating procedures:
The above functions enable quantitative display and control of relevant technical parameters, and SOP standard operating
